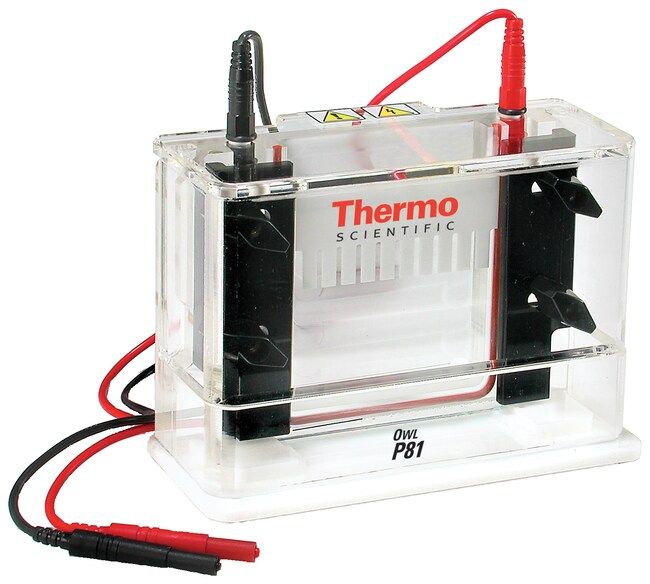

Owl™ P81 Single-Sided Vertical Electrophoresis System

Name: Owl™ P81 Single-Sided Vertical Electrophoresis System
Brand: Thermo Fisher
SKU: P81-GROUP
Price: 924.00 USD

Manufacturer: Thermo Fisher

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Price Chart

Grouped product items
Cat Code	Description	Price	Price	Qty
P81 P81	Thermo Scientific* Owl P81 Single-Sided Vertical Electrophoresis System	$924.00		+ -
Total $0.00

Use the Quantity box to select product first.

Economical system for quick protein runs Includes: Upper and lower buffer chambers, SuperSafe* lid with attached power supply leads, blank glass plate, notched glass plate, notched alumina plate, two combs (10 well, 0.8mm thick), spacer set (0.8mm thick) Warranty: Three years Certifications: CE marked Specifications P81 Vertical System Single Sided Gel Size (L x W) 10 x 10 cm Footprint (L x W x H) 18 x 8 x 13 cm (7.1 x 3.1 x 5.1") Running Buffer Volume Upper Buffer: 100mL Lower Buffer: 50... Read more

Description

Overview

In Stock!

Lead Times May Vary.

Economical system for quick protein runs

Includes: Upper and lower buffer chambers, SuperSafe* lid with attached power supply leads, blank glass plate, notched glass plate, notched alumina plate, two combs (10 well, 0.8mm thick), spacer set (0.8mm thick)

Warranty: Three years

Certifications: CE marked

Specifications	P81
Vertical System	Single Sided
Gel Size (L x W)	10 x 10 cm
Footprint (L x W x H)	18 x 8 x 13 cm (7.1 x 3.1 x 5.1")
Running Buffer Volume	Upper Buffer: 100mL Lower Buffer: 50mL Total Buffer: 150mL

Thermo Scientific Owl P81 System Replacement Parts

• Simple, rugged system provides excellent results
• Upper buffer chamber extends the length of the gel to distribute heat evenly across the entire gel surface
• Side clamps press glass plates against silicone gasket to provide uniform pressure and form a leakproof seal resulting in flat, even banding patterns
• Notched alumina ceramic plate (included) may be used in front of notched glass for cooler, faster runs
- • Power supply leads include a retractable sheath end for convenience and safety
- • Power supply leads are manufactured with strain relief cord to prevent breakage

Thermo Scientific Owl P8-Series System Combs
Comb	Description	Thickness of Teeth	Width of Teeth	EST Well Volume
MP-6A	Standard 6-tooth comb	0.5mm	11.1mm	89µL
MP-6C	Standard 6-tooth comb	0.8mm	11.1mm	142µL
MP-6D	Standard 6-tooth comb	1.5mm	11.1mm	266µL
MP-8A	Standard 8-tooth comb	0.5mm	7.7mm	62µL
MP-8C	Standard 8-tooth comb	0.8mm	7.7mm	99µL
MP-8D	Standard 8-tooth comb	1.5mm	7.7mm	185µL
MP-10A	Standard 10-tooth comb	0.5mm	5.7mm	46µL
MP-10C	Standard 10-tooth comb	0.8mm	5.7mm	73µL
MP-10D	Standard 10-tooth comb	1.5mm	5.7mm	134µL
MP-12A	Standard 12-tooth comb	0.5mm	4.3mm	34µL
MP-12C	Standard 12-tooth comb	0.8mm	4.3mm	55µL
MP-12D	Standard 12-tooth comb	1.5mm	4.3mm	103µL
MP-15A	Standard 15-tooth comb	0.5mm	2.9mm	23µL
MP-20A	Standard 20-tooth comb	0.5mm	1.6mm	13µL
