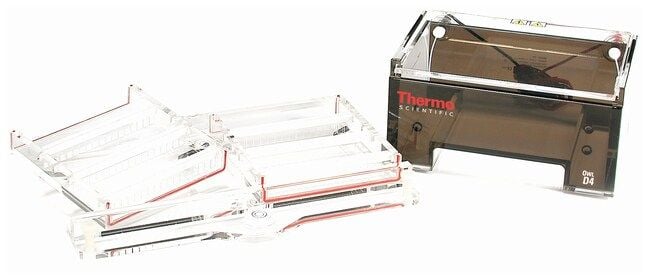

Owl™ D4 Horizontal Electrophoresis System
Manufacturer: Thermo Fisher
This product is discontinued. Please contact us for more information.
Description
Optimal flexibility while conserving valuable bench space
- • Designed to provide flat, even banding patterns and consistent results with hassle-free gel casting — no tape, grease, agarose seals, or other accessories are required
- • Run one gel tray (51 samples) in the buffer chamber, or to save bench space, two stacked trays (102 samples)

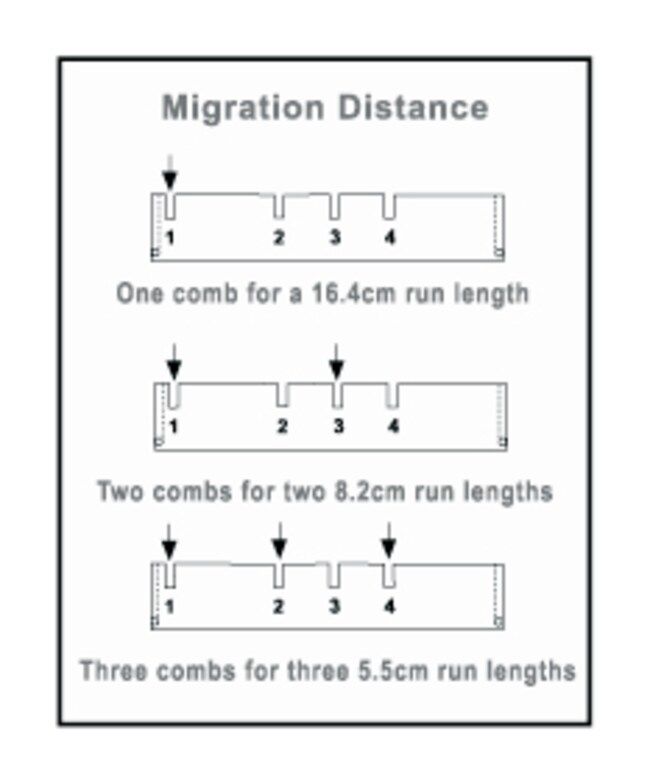

- • Two 16 x 17cm UV Transmissible (UVT) gel trays accommodate up to three combs each, allowing the user to run up to three series of samples equal distances
- • Stand-alone casting platform included for casting two gels simultaneously
- • A single gel can be cast right in the buffer chamber or in the external caster
Includes: Buffer chamber (buffer volume, 1.8L); three-point leveling base; SuperSafe* lid with attached power supply leads; two UVT gel trays; six 1.5mm thick combs; external gel caster; bubble level
Warranty: Three years
Certifications: CE marked
| Specifications | D4 | D4-BP |
| Horizontal System | Space Saving | Space saving, w/ buffer exchange ports |
|---|---|---|
| Gel Size (L x W) | 17 x 16 cm | |
| Footprint (L x W x H) |
23 x 27 x 14 cm (9.1 x 10.6 x 5.5") |
|
| Running Buffer Volume | 1.8 L | |
| Sample Range | 17 to 102 | |
Thermo Scientific Owl D4 Horizontal Electrophoresis System Replacement Parts
- • Power supply leads include a retractable sheath end for convenience and safety
- • Power supply leads are manufactured with strain relief cord to prevent breakage
- • UVT gel tray incorporates gasketed end gates which provide a leakproof seal without tape
Thermo Scientific Owl Leveling Platform
- • Three-point leveling platform ensures flat casting and running surface
- • Includes bubble level
| Thermo Scientific Owl D4 Electrophoresis System Combs | |||||
| Specifications | D4-17C† | D4-17D† | |||
| Description | Micro well comb | ||||
|---|---|---|---|---|---|
| Number of Teeth | 17 | ||||
| Thickness of Teeth | 1.0mm | 1.5mm | |||
| Width of Teeth | 7.2mm | ||||
| Recommended Loading Volumes by Gel Thickness* 0.25cm 0.5cm 0.75cm 1.0cm |
5µL 19µL 32µL 46µL |
8µL 28µL 49µL 69µL |
|||
| *NOTE: Recommended Loading Volumes Calculated at 75% of Total Well Volume †8 and 12-channel pipette format (1X) and (2X) combs. |
|||||
