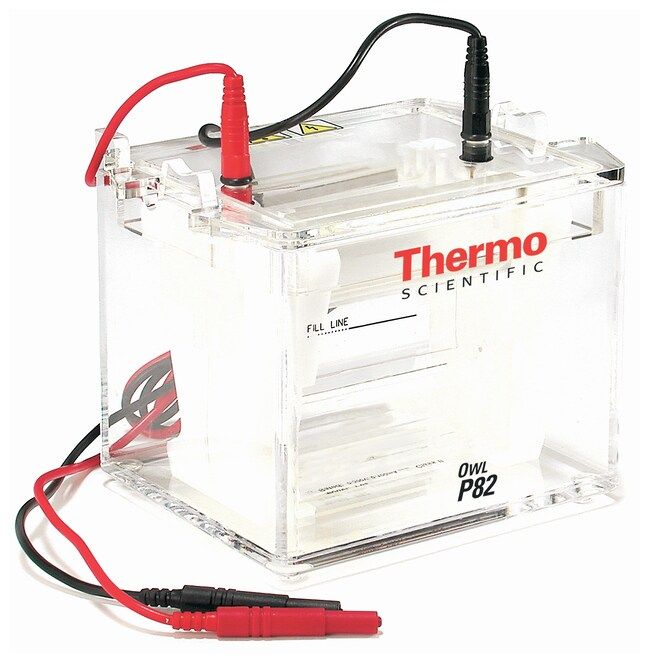

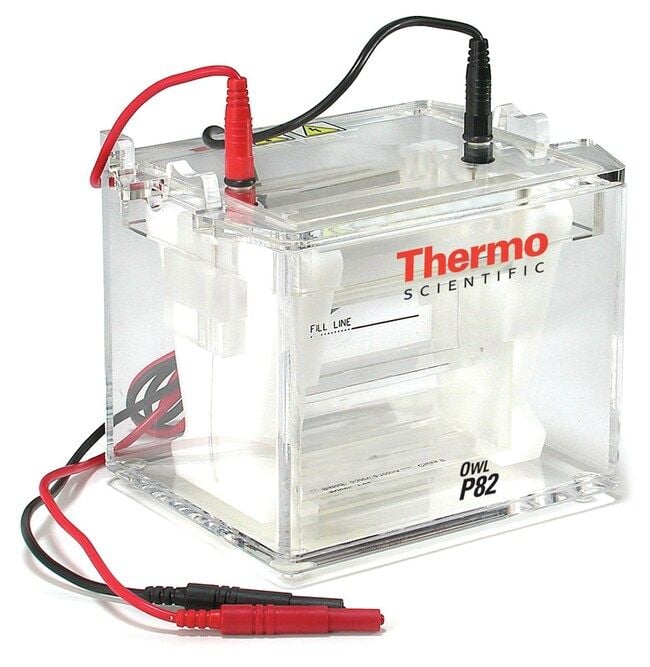

Owl™ P82 Single-Sided Vertical Electrophoresis System
Manufacturer: Thermo Fisher
Easy to use system produces flat, even banding and crisp resolution
• Runs two 10 x 10cm gels or one gel when used with blocking plate; accommodates 8 x 10cm gels utilizing the provided adapter
• Allows gels to easily be placed into the device
• Wedge placed in front of the cassettes provides even pressure against the leakproof gasket, places the cassettes in proper running position
• Two sizes of wedges accommodate varying thickness of precast ... Read more
Description
In Stock!
Lead Times May Vary.
Easy to use system produces flat, even banding and crisp resolution
- • Runs two 10 x 10cm gels or one gel when used with blocking plate; accommodates 8 x 10cm gels utilizing the provided adapter
- • Allows gels to easily be placed into the device
- • Wedge placed in front of the cassettes provides even pressure against the leakproof gasket, places the cassettes in proper running position
- • Two sizes of wedges accommodate varying thickness of precast gels
- • Flexible — use precast polyacrylamide gels or hand cast gels
- • No cooling required
Includes: Inner buffer chambers, buffer tank, SuperSafe* lid with attached power supply leads, two wedges (1.27cm thick), two wedges (1.59cm thick), adapter plates for 10 × 8 gels (2) and blocking plate
Warranty: Three years
Certifications: CE marked
| Specifications | P82 |
| Vertical System | Double Sided |
|---|---|
| Gel Size (L x W) | 8-10 x 10 cm |
| Footprint (L x W x H) |
15.2 x 12.4 x 17 cm (5.88 x 4.75 x 6.69") |
| Upper Buffer Chamber Volume | 150 mL |
| Lower Buffer Chamber Max Vol. | 300 mL |
| Lower Buffer Chamber Min. Vol. (8cm / 10cm gel) |
150 mL |
Thermo Scientific Owl P82 Dual Gel System Replacement Parts
- • Power supply leads include a retractable sheath end for convenience and safety
- • Power supply leads are manufactured with strain relief cord to prevent breakage
| Thermo Scientific Owl P8-Series System Combs | |||||
| Comb | Description | Thickness of Teeth | Width of Teeth | EST Well Volume | |
| MP-6A | Standard 6-tooth comb | 0.5mm | 11.1mm | 89µL | |
|---|---|---|---|---|---|
| MP-6C | Standard 6-tooth comb | 0.8mm | 11.1mm | 142µL | |
| MP-6D | Standard 6-tooth comb | 1.5mm | 11.1mm | 266µL | |
| MP-8A | Standard 8-tooth comb | 0.5mm | 7.7mm | 62µL | |
| MP-8C | Standard 8-tooth comb | 0.8mm | 7.7mm | 99µL | |
| MP-8D | Standard 8-tooth comb | 1.5mm | 7.7mm | 185µL | |
| MP-10A | Standard 10-tooth comb | 0.5mm | 5.7mm | 46µL | |
| MP-10C | Standard 10-tooth comb | 0.8mm | 5.7mm | 73µL | |
| MP-10D | Standard 10-tooth comb | 1.5mm | 5.7mm | 134µL | |
| MP-12A | Standard 12-tooth comb | 0.5mm | 4.3mm | 34µL | |
| MP-12C | Standard 12-tooth comb | 0.8mm | 4.3mm | 55µL | |
| MP-12D | Standard 12-tooth comb | 1.5mm | 4.3mm | 103µL | |
| MP-15A | Standard 15-tooth comb | 0.5mm | 2.9mm | 23µL | |
| MP-20A | Standard 20-tooth comb | 0.5mm | 1.6mm | 13µL | |
