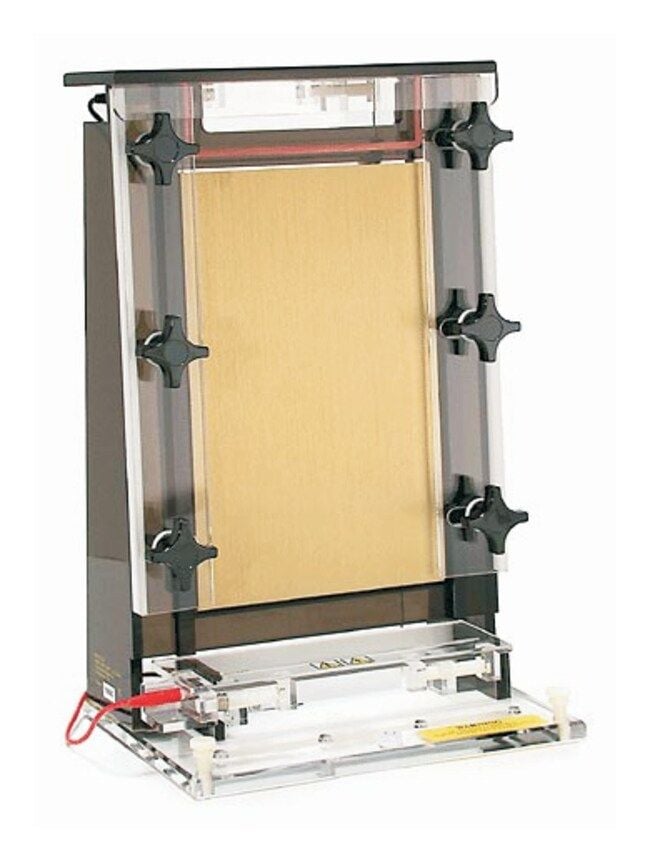

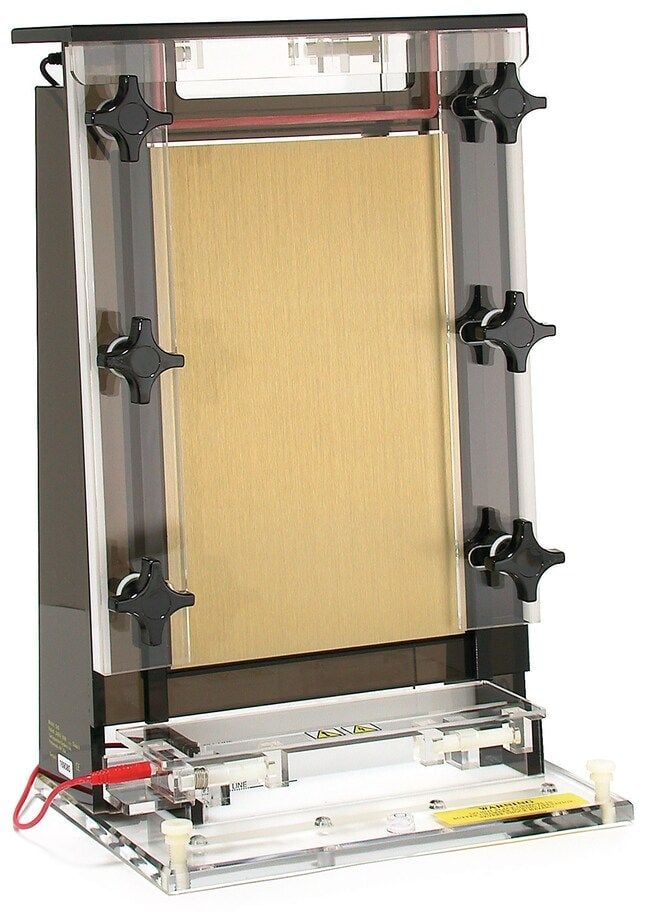

Owl™S4S Aluminum-Backed Sequencers
Manufacturer: Thermo Fisher
This product is discontinued. Please contact us for more information.
Description
Easy setup with even heat distribution for “smile”-free results
- • Floating aluminum heat sink reduces chance of plates cracking during runs
- • Upper buffer chamber (UBC) requires minimal buffer and is easily drained via inline drain port into removable bottle
- • Lower buffer chamber (LBC) is removable for simple buffer disposal
- • Full-length side clamps press gel plates against gasket seated on UBC, applying even pressure across the entire plate providing a reliable, leakproof seal between the plate and gasket
- • Clamps slide over glass plates for easy setup and removal of gels
Includes: UBC with removable drain bottle (with safety interlocking lid and attached power supply lead), removable LBC, anodized aluminum heat sink, two side clamps, two blank glass plates, two notched glass plates, two sharktooth combs (39 teeth, 0.4mm thick), Well comb (20 well, 0.4mm thick), 2 spacer sets (0.4mm), adhesive temperature indicator
Warranty: Three years
Certifications: CE marked
| Specifications | S4S | ||
| Vertical System | Sequencing system | ||
|---|---|---|---|
| Gel Size (L x W) | 20 x 20 cm | ||
| Footprint (L x W x H) |
30.5 x 16.5 x 23 cm (12 x 6.5 x 9") |
||
| Lower Running Buffer | 600 mL | ||
| Upper Running Buffer | 650 mL | ||
| Total Running Buffer | 1250 mL | ||
Thermo Scientific Owl S4S Aluminum Backed Sequencer System Replacement Parts
- • Power supply leads include a retractable sheath end for convenience and safety
- • Power supply leads are manufactured with strain relief cord to prevent breakage
Thermo Scientific Owl SGC-1 Sequencing Gel Casters
- • Simple method permits bubble-free gels to be cast in less than three minutes
- • Horizontal plate sliding procedure, capillary action drawing gel between plates, and surface tension keeps the gel from leaking
- • No taping or special assembly required
- • Exposure to hazardous acrylamide is decreased, reducing cleanup time
- • Fully adjustable to accommodate glass plates from 20 to 42cm wide
- • Includes: Adjustable casting platform, width adjustment knobs, 12 binder clamps
| Thermo Scientific Owl P10-Series System Combs | ||||
| Comb | Description | Thickness of Teeth | Width of Teeth | EST Well Volume |
| S1S-20A | 20-tooth Well Comb | 0.4mm | 6.8mm | 15µL |
|---|---|---|---|---|
| S1S-30A | 30-tooth Well comb | 0.4mm | 4.1mm | 9µL |
| S1S-SHARK4 | 39-tooth Sharktooth Comb | 0.4mm | — | 9µL |
| S1S-SHARK2 | 39-tooth Sharktooth Comb | 0.2mm | — | 5µL |
| S1S-MT2 | 36 (2X)-tooth Sharktooth Micro-Well Comb | 0.4mm | — | 10µL |
| S1S-MT3 | 55 (3X)-tooth Sharktooth Micro-Well Comb | 0.4mm | — | 5.5µL |
| S1S-MT44 | 73 (4X)-tooth Sharktooth Micro-Well Comb | 0.4mm | — | 3.7µL |
| S1S-MT42 | 73 (4X)-tooth Sharktooth Micro-Well Comb | 0.2mm | — | 2.0µL |
