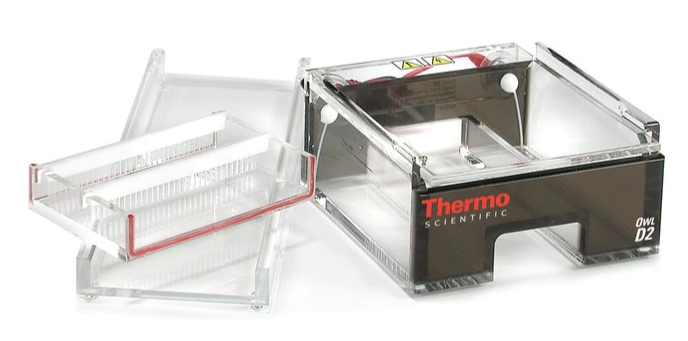

Owl™ D2 Wide-Gel Electrophoresis System
Manufacturer: Thermo Fisher
Starting at from $966.00 Sale $917.70
Select a product below and add it to your cart to request a quote.
Owl™ D2 Wide-Gel Electrophoresis System
Description
Thermo Scientific's Owl D2 Wide-Gel Electrophoresis System can run 10 to 80 samples on one gel.
Features:
- Wide gel size allows 15 or 30 samples to be loaded per row with a micro well comb
- Using special combs and a multichannel pipetter, samples may be loaded directly from a 96-well plate, eight or 12 at a time
- System is excellent for screening PCR samples or routine DNA fragment analysis
- Small footprint saves space on lab bench
- Incorporates Thermo Scientific™ EasyCast™ casting design with external caster-gel tray is fitted with gasket, allowing it to fit snugly into caster and providing a leakproof seal without tape
- Electrode placement allows gel to be run quickly without compromising resolution
Thermo Scientific Owl D2 Wide-Gel Electrophoresis System Combs:
Specifications | Description | Number of Teeth | Thickness of Teeth | Width of Teeth | Recommended Loading Volumes by Gel Thickness* 0.25 cm 0.5 cm 0.75 cm 1.0 cm |
---|---|---|---|---|---|
D1-10C | Standard Comb | 10 | 1.0mm | 12.2mm | 9µL 32µL 55µL 78µL |
D1-10D | Standard Comb | 10 | 1.5mm | 12.2mm | 14µL 48µL 82µL 117µL |
D1-20C | Standard Comb | 20 | 1.0mm | 5.2mm | 4µL 14µL 23µL 33µL |
D1-20D | Standard Comb | 20 | 1.5mm | 5.2mm | 6µL 20µL 35µL 50µL |
D1-30C** | Micro Well (2X) Comb | 30 | 1.0mm | 7.2mm | 5µL 19µL 32µL 46µL |
D1-30D** | Micro Well (2X) Comb | 30 | 1.5mm | 7.2mm | 8µL 28µL 49µL 69µL |
D1-40C | Standard Comb | 40 | 1.0mm | 1.7mm | 1µL 4µL 8µL 11µL |
D1-40D | Standard Comb | 40 | 1.5mm | 1.7mm | 2µL 7µL 11µL 16µL |
D1-MTC** | Micro Well (1x) Comb | 15 | 1.0mm | 7.2mm | 5µL 19µL 32µL 46µL |
D1-MTD** | Micro Well (1x) Comb | 15 | 1.5mm | 7.2mm | 8µL 28µL 49µL 69µL |
D2-RL-9C** | Rapid Load (1X) Comb | 9 | 1.0mm | 7.2mm | 5µL 19µL 32µL 46µL |
D2-RL-9D** | Rapid Load (1X) Comb | 9 | 1.5mm | 7.2mm | 8µL 28µL 48µL 69µL |
D2-RL-25C** | Rapid Load (2X) Comb | 25 | 1.0mm | 2.5mm | 2µL 7µL 12µL 17µL |
D2-RL-25D** | Rapid Load (2X) Comb | 25 | 1.5mm | 2.5mm/td> | 3µL 11µL 18µL 26µL |
*NOTE: Recommended Loading Volumes Calculated at 75% of Total Well Volume
**8 and 12-channel pipette format (1X) and (2X) combs.
SKU | Sample Range | Certification | Footprint |
---|---|---|---|
D2-BP | 10 to 80 | CE Marked | 7.38 x 7.75 x 4" |
SKU | Filling Volume |
---|---|
D2-CST | - |
D2-GK | - |
D2-RL-25C | 0.25cm - 2µL 0.5cm - 7µL 0.75cm - 12µL 1.0cm - 17µL |
D2-RL-25D | 0.25cm - 3µL 0.5cm - 11µL 0.75cm - 18µL 1.0cm - 26µL |
D2-RL-9D | 0.25cm - 8µL 0.5cm - 28µL 0.75cm - 48µL 1.0cm - 69µL |
D2-UVT | - |
SKU | Warranty | Includes |
---|---|---|
D2-BP | 3-Years | Buffer chamber, SuperSafe lid with attached power supply leads, EasyCast gasketed, UVT gel tray, external multiple gel caster, four combs (two 30-well and two 40-well, 1.5mm thick) |
