Owl™ A5 Large Gel System

Name: Owl™ A5 Large Gel System
Brand: Thermo Fisher
SKU: A5-GROUP
Price: 1640.00 USD

Manufacturer: Thermo Fisher

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Price Chart

Grouped product items
Cat Code	Description	Quantity	Includes	Price	Price	Qty
A5 A5	Thermo Scientific Owl A5 Large Gel System	Each	Buffer chamber with three-point leveling base, SuperSafe lid with attached power supply leads, UVT gel tray with gasketed end gates, as well as 16, 24, and 36-well, 1.5m thick combs.	$1,640.00		+ -
Total $0.00

Use the Quantity box to select product first.

Accessories

Grouped product items
Cat Code	Description	Teeth Count	Thickness	Width	Price	Qty

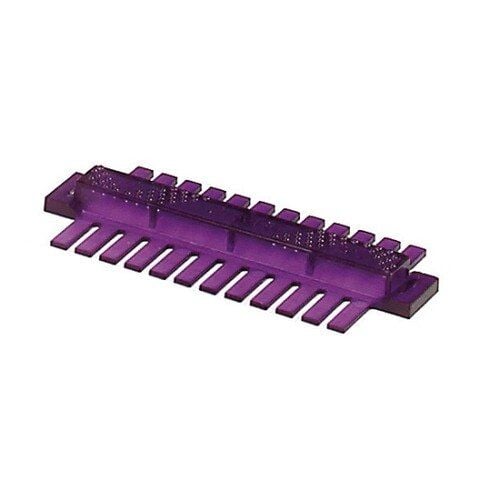

A2-12C A2-12C	Standard 12-tooth comb	12	1.0 mm	14.5 mm	$96.10	+ -
A2-12D A2-12D	Standard 12-tooth comb	12	1.5 mm	14.5 mm	$96.10	+ -
A2-16C A2-16C	Standard 16-tooth comb	16	1.0 mm	10.5 mm	$96.10	+ -
A2-16D A2-16D	Standard 16-tooth comb	16	1.5 mm	10.5 mm	$96.10	+ -
A2-20C A2-20C	Standard 20-tooth comb	20	1.0 mm	8.0 mm	$96.10	+ -
A2-20D A2-20D	Standard 20-tooth comb	20	1.5 mm	8.0 mm	$96.10	+ -

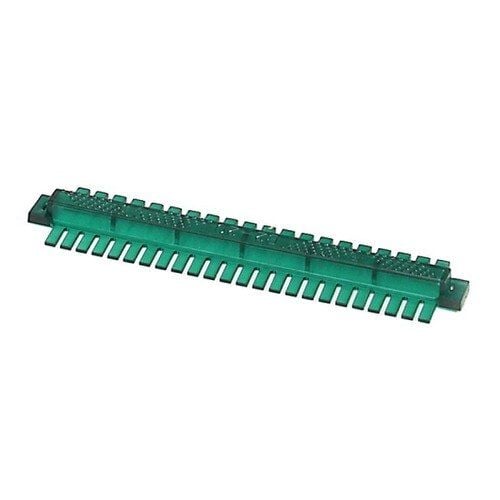

A2-24C A2-24C	Standard 24-tooth comb	24	1.0 mm	6.5 mm	$96.10	+ -
A2-24D A2-24D	Standard 24-tooth comb	24	1.5 mm	6.5 mm	$96.10	+ -
A2-28C A2-28C	Standard 28-tooth comb	28	1.0 mm	5.0 mm	$96.10	+ -
A2-28D A2-28D	Standard 28-tooth comb	28	1.5 mm	5.0 mm	$96.10	+ -
A2-32C A2-32C	Standard 32-tooth comb	32	1.0 mm	4.0 mm	$96.10	+ -
A2-32D A2-32D	Standard 32-tooth comb	32	1.5 mm	4.0 mm	$96.10	+ -
A2-36C A2-36C	Standard 36-tooth comb	36	1.0 mm	3.5 mm	$96.10	+ -
A2-36D A2-36D	Standard 36-tooth comb	36	1.5 mm	3.5 mm	$96.10	+ -

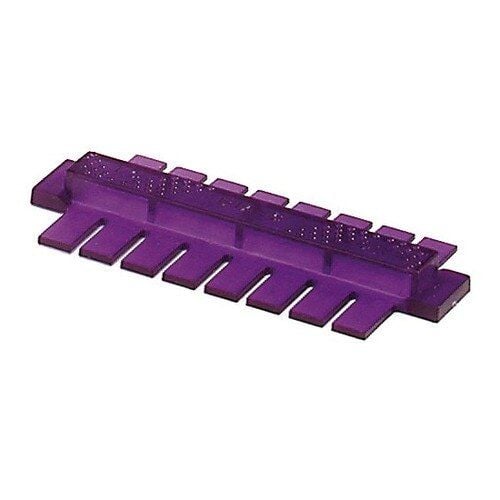

A2-8C A2-8C	Standard 8-tooth comb	8	1.0 mm	22.7 mm	$96.10	+ -
A2-8D A2-8D	Standard 8-tooth comb	8	1.5 mm	22.7 mm	$96.10	+ -
A2-MT2C A2-MT2C	Micro well 42 (2X)-tooth comb	42	1.0 mm	2.7 mm	$96.10	+ -
A2-MT2D A2-MT2D	Micro well 42 (2X)-tooth comb	42	1.5 mm	2.7 mm	$96.10	+ -

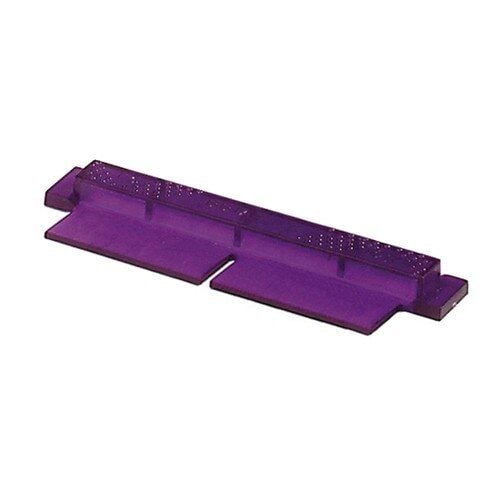

A2-PREP A2-PREP	Prep 2-tooth comb	2	1.5 mm	5 mm	$96.10	+ -
A2-RL-18D A2-RL-18D	Rapid load 18 (1X) tooth comb	18	1.5 mm	7.2 mm	$97.70	+ -

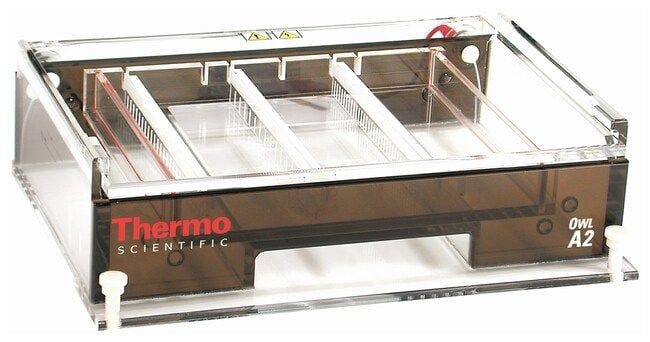

A2-EG A2-EG	Replacement end gates	-	-	-	$104.00	+ -
A2-GK A2-GK	Replacement gaskets	-	-	-	$28.00	+ -
A2-UVT A2-UVT	UVT gel tray with gasketed end gates	-	-	-	$269.00	+ -
A2-RL-UVT A2-RL-UVT	24-slot rapid load UVT gel tray with gasketed end gates	-	-	-	$440.00	+ -
BBL-1 BBL-1	Bubble Level	-	-	-	$28.00	+ -
DAM-20 DAM-20	Chameleon casting dam; 20cmW	-	-	-	$244.00	+ -
PSL-5 PSL-5	Owl Power Supply Leads, 3 ft	-		-	$62.20	+ -
A2-RL-12 A2-RL-12	24-slot rapid load UVT gel tray with (12) 18-well combs	-	-	-	$1,090.00	+ -
A2-RL-24 A2-RL-24	24-slot rapid load UVT gel tray with (24) 18-well combs	-	-	-	$1,510.00	+ -
A2-MTC A2-MTC	Micro well 21 (1X)-tooth comb	21	1.0 mm	7.2 mm	$96.10	+ -
A2-MTD A2-MTD	Micro well 21 (1X) tooth comb	21	1.5 mm	7.2 mm	$96.10	+ -
A2-WALL A2-WALL	Wall comb, 1 tooth	1	1.5 mm	130 mm	$115.00	+ -
Total $0.00

Use the Quantity box to select product first.

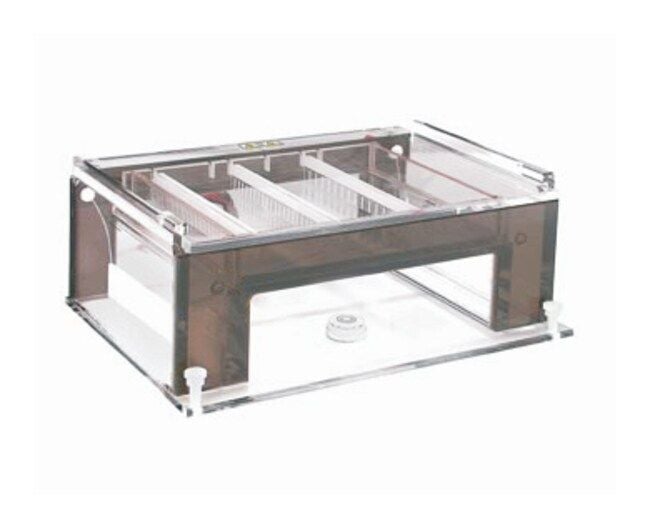

The Owl A5 Large Gel System is a staple for long runs, multiple sample sets, and RNA gels. It has a buffer chamber with a three-point leveling base, a lid with attached power supply leads, a UVT gel tray, and 3 different comb sizes. This product has a 3 year warranty.

Description

Overview

In Stock!

Lead Times May Vary.

Features built-in recirculation, and are ideal for long runs, multiple sample sets or RNA gels.

Product Highlights:

Prevent the formation of pH and ionic gradients
Provide high resolution and uniform, reproducible results
Deliver clear results for samples run over long time periods
Do not require external pumps, tubing or stir bars, because recirculation system is built into buffer chamber
Eliminate uneven migration, band distortion or disassociation of pH-dependent glyoxylated RNA molecules that can result when ionic depletion occurs

Includes: Large gel system that consists of buffer chamber with three-point leveling base, Supersafe lid with attached power supply leads, UVT gel tray with gasketed end gates, as well as 16-well, 24-well, and 36-well, 1.5m thick combs.

Warranty: Three years

Certifications: CE marked

Thermo Scientific Owl A5 Large Gel System Replacement Parts:

Power supply leads include a retractable sheath end for convenience and safety
Power supply leads are manufactured with strain relief cord to prevent breakage
UVT gel tray incorporates gasketed end gates which provide a leakproof seal without tape

Thermo Scientific Owl Leveling Platform:

Three-point leveling platform ensures flat casting and running surface
Includes bubble level

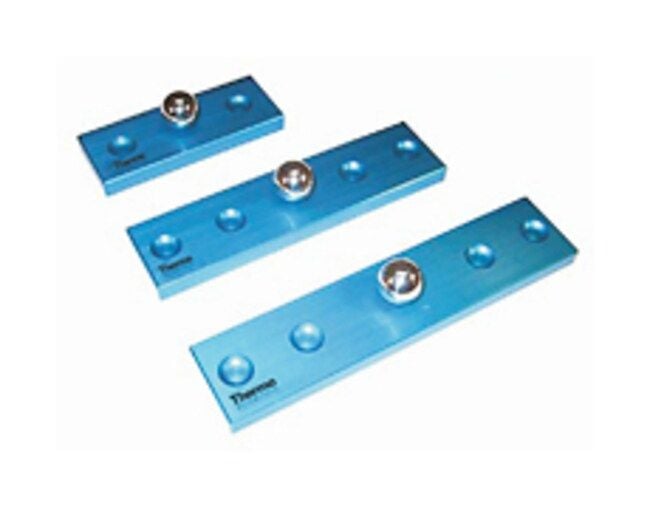

Thermo Scientific Owl Casting Dams:

Seal agarose on contact, eliminating the need for tape
Do not attach to gel tray, enabling gels of any length to be poured
Easily handled and maneuvered using knob or finger depressions
High-quality aluminum dam blocks off a portion of UVT gel tray, allowing shorter gels to be cast and run in one device

Thermo Scientific Owl 24-slot Rapid Load UVT Gel Trays:

Enable multiple sample loading

Specifications

SKU	Dimensions	Warranty	Volume	Gel Size	Sample Range
A5	14.8 x 12.8 x 5.9 In	3 Years	Buffer: 2.0 L	25 x 20 cm	8 to 432

Accessory Specifications

SKU	Filling Volume
A2-12C	0.25cm - 11µL 0.5cm - 38µL 0.75cm - 65µL 1.0cm - 92µL
A2-12D	0.25cm - 16µL 0.5cm - 57µL 0.75cm - 98µL 1.0cm - 138µL
A2-16C	0.25cm - 8µL 0.5cm - 27µL 0.75cm - 47µL 1.0cm - 67µL
A2-16D	0.25cm - 12µL 0.5cm - 41µL 0.75cm - 70µL 1.0cm - 100µL
A2-20C	0.25cm - 6µL 0.5cm - 21µL 0.75cm - 36µL 1.0cm - 51µL
A2-20D	0.25cm - 9µL 0.5cm - 32µL 0.75cm - 54µL 1.0cm - 77µL
A2-24C	0.25cm - 5µL 0.5cm - 17µL 0.75cm - 29µL 1.0cm - 41µL
A2-24D	0.25cm - 7µL 0.5cm - 25µL 0.75cm - 43µL 1.0cm - 61µL
A2-28C	0.25cm - 4µL 0.5cm - 14µL 0.75cm - 23µL 1.0cm - 33µL
A2-28D	0.25cm - 6µL 0.5cm - 20µL 0.75cm - 35µL 1.0cm - 50µL
A2-32C	0.25cm - 3µL 0.5cm - 11µL 0.75cm - 19µL 1.0cm - 27µL
A2-32D	0.25cm - 5µL 0.5cm - 17µL 0.75cm - 29µL 1.0cm - 41µL
A2-36C	0.25cm - 3µL 0.5cm - 10µL 0.75cm - 17µL 1.0cm - 24µL
A2-36D	0.25cm - 4µL 0.5cm - 15µL 0.75cm - 25µL 1.0cm - 35µL
A2-8C	0.25cm - 17µL 0.5cm - 59µL 0.75cm - 102µL 1.0cm - 144µL
A2-8D	0.25cm - 25µL 0.5cm - 89µL 0.75cm - 153µL 1.0cm - 217µL
A2-MT2C	0.25cm - 2µL 0.5cm - 7µL 0.75cm - 12µL 1.0cm - 17µL
A2-MT2D	0.25cm - 3µL 0.5cm - 11µL 0.75cm - 18µL 1.0cm - 26µL
A2-PREP	0.25cm - 5.5µL 0.5cm - 20µL 0.75cm - 34µL 1.0cm - 48µL
A2-RL-18D	0.25cm - 8µL 0.5cm - 28µL 0.75cm - 49µL 1.0cm - 69µL
A2-EG	-
A2-GK	-
A2-UVT	-
A2-RL-UVT	-
BBL-1	-
DAM-20	-
PSL-5	-
A2-RL-12	-
A2-RL-24	-
A2-MTC	0.25cm - 5µL 0.5cm - 19µL 0.75cm - 32µL 1.0cm - 46µL
A2-MTD	0.25cm - 8µL 0.5cm - 28µL 0.75cm - 49µL 1.0cm - 69µL
A2-WALL	-
