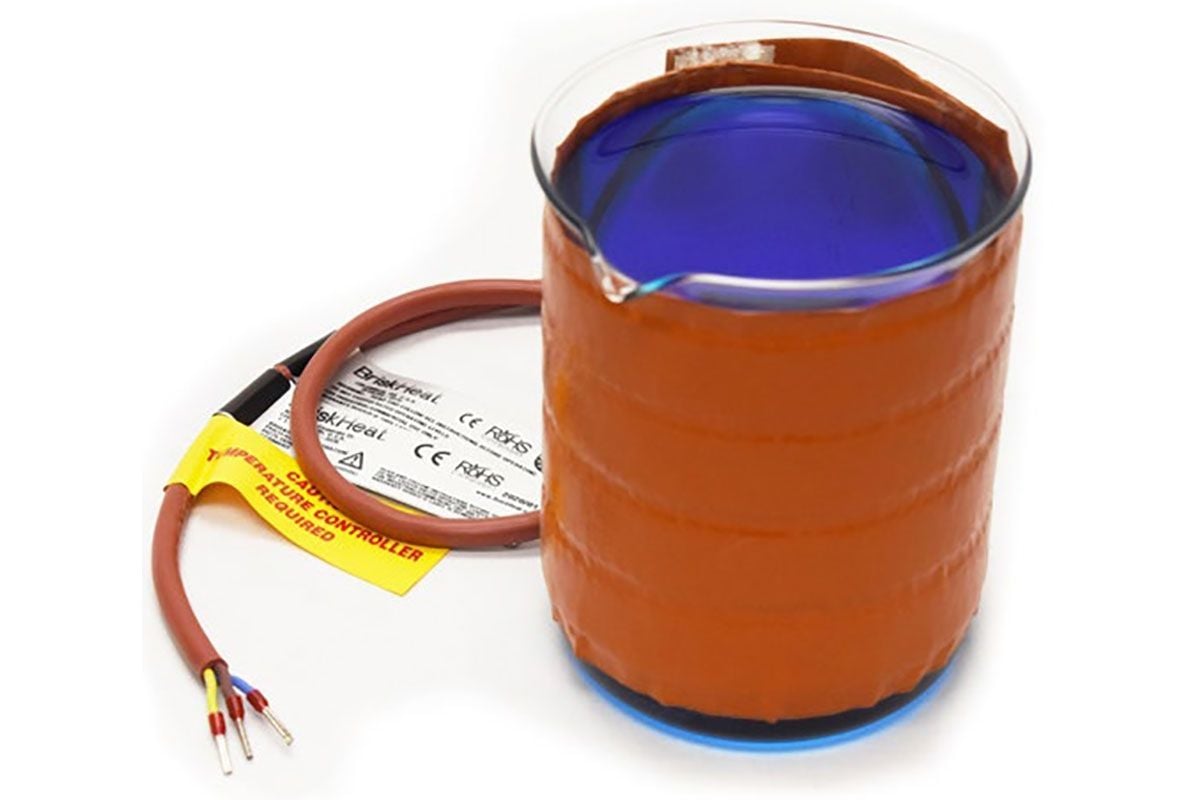

GBHE Grounded Silicone Rubber Griffin Beaker Heaters
Manufacturer: BriskHeat
BriskHeat's GBHE Grounded Silicone Rubber Griffin Beaker Heaters provide even heat for Griffin and standard beaker heating applications. Each heater is moisture and chemical resistant.
Description
In Stock!
Lead Times May Vary
Temperature controller is required for safe operation of this product.
Features:
- Provides even heat for Griffin and standard beaker heating applications
- Removable and reuseable
- 360° grounded heating element for added safety
- Moisture and chemical resistant
- Easy access to graduation
- Maximum Exposure Temperature: 232°C (450°F)
- Voltage Options: 120 or 240 VAC
- Power Density: 5.0 W/in²2 (0.8 W/cm²2 )
- Dielectric Strength: Over 2000 Volts
- Power Cord: 24 in (0.6 m) long with crimped wire
- Ferrule terminated leads
- Ingress Protection Rating: IP66
| SKU | Material | Max Temperature | Height | Diameter | Length | Density |
|---|---|---|---|---|---|---|
| GBHE0250-2 | Silicone Rubber | 450°F (232°C) | 3.25 in (83 mm) | 2.7 in (69 mm) | 12.25 in (311 mm) | 5.0 W/in² (0.8 W/cm²) |
| GBHE0400-2 | Silicone Rubber | 450°F (232°C) | 3.5 in (89 mm) | 3.0 in (76 mm) | 13.75 in (349 mm) | 5.0 W/in² (0.8 W/cm²) |
| GBHE0600-2 | Silicone Rubber | 450°F (232°C) | 4.0 in (102 mm) | 3.6 in (91 mm) | 15 in (381 mm) | 5.0 W/in² (0.8 W/cm²) |
| GBHE1000-2 | Silicone Rubber | 450°F (232°C) | 4.6 in (117 mm) | 4.3 in (109 mm) | 17.25 in (438 mm) | 5.0 W/in² (0.8 W/cm²) |
| SKU | Voltage | Certification | Plug Type | Lead Length |
|---|---|---|---|---|
| GBHE0250-2 | 240V | REACH, RoHS, CE Approved | Ferrule Terminated Leads | 24 in (0.6 m) |
| GBHE0400-2 | 240V | REACH, RoHS, CE Approved | Ferrule Terminated Leads | 24 in (0.6 m) |
| GBHE0600-2 | 240V | REACH, RoHS, CE Approved | Ferrule Terminated Leads | 24 in (0.6 m) |
| GBHE1000-2 | 240V | REACH, RoHS, CE Approved | Ferrule Terminated Leads | 24 in (0.6 m) |
