SDCE Digital Benchtop Temperature Controllers
Manufacturer: BriskHeat
BriskHeat's SDCE Digital Benchtop Temperature Controllers are compatible with a wide range of heaters and surface heating applications. The Digital Temperature Controller is designed for general-purpose use in indoor environments to control temperatures on applications requiring automatic temperature control.
Description
In Stock!
Lead Times May Vary
BriskHeat SDCE Benchtop Digital Temperature Controller is compatible with a wide range of heaters and surface heating applications. The Digital Temperature Controller is designed for general-purpose use in indoor environments to control temperatures on applications requiring automatic temperature control.
Features:
- Touch-screen operation
- Display programmable in °F and °C
- Includes factory-wired temperature sensor
- Plug-and-play, benchop design
- Voltage: 120 VAC model: 100 to 125 VAC, 230 VAC model: 100 to 240 VAC
- Maximum Amp Load: 8 amps @ 120/240 VAC
- Temperature Control Range: Type-J model: -40°F to 698°F (-40°C to 370°C ), Type-K model: -40°F to 899°F (-40°C to 482°C), PT100-RTD model: -58°F to 842°F (-50°C to 450°C)
- Temperature Display Units: °F and °C
- Sensor Input: 5 ft (1.5 m) Type-J or Type-K thermocouple or PT100-RTD factory installed
- Hysteresis: Adjustable setting from 1°-99° (°F or °C)
- Alarms: Audible; programmable for high or low range
- Input Power Cord/Connections: Designated by model
- Output Power Cord/Connection: 120 VAC model: NEMA 5-15R receptacle, 230 VAC model: Neutrik receptacle with mating plug (PN: 41329-03)
Environmental Exposures:
- Operating range: 32°F to 100°F (0°C to 38°C)
- Storage range: -4°F to 158°F (-20°C to 70°C)
- Relative humidity: < 95% non-condensing temperatures
| SKU | Temperature Range | Type |
|---|---|---|
| SDCERA | -50°C to 450°C (-58°F to 842°F) | PT100/RTD |
| SDCEJA | -40°C to 370°C (-40°F to 698°F) | J-Type Thermocouple |
| SDCEKA | -40°C to 482°C (-40°F; to 899°F) | K-Type |
| SDCEJB | -40°C to 370°C (-40°F to 698°F) | J-Type |
| SDCERB | -50°C to 450°C (-58°F to 842°F) | PT100/RTD |
| SDCEKB | -40°C to 482°C (-40°F; to 899°F) | K-Type |
| SDCERC | -50°C to 450°C (-58°F to 842°F) | PT100/RTD |
| SDCEJC | -40°C to 370°C (-40°F to 698°F) | J-Type |
| SDCERD | -50°C to 450°C (-58°F to 842°F) | PT100/RTD |
| SDCEJD | -40°C to 370°C (-40°F to 698°F) | J-Type |
| SDCEKD | -40°C to 482°C (-40°F; to 899°F) | K-Type |
| SDCERE | -50°C to 450°C (-58°F to 842°F) | PT100/RTD |
| SDCEJE | -40°C to 370°C (-40°F to 698°F) | J-Type |
| SDCEKE | -40°C to 482°C (-40°F; to 899°F) | K-Type |
| SDCEKC | -40°C to 482°C (-40°F; to 899°F) | K-Type |
| SKU | Voltage | Plug Type | Dimensions |
|---|---|---|---|
| SDCERA | 120V | NEMA 5-15 | 5.00 in x 5.25 in x 2.25 in |
| SDCEJA | 120V | NEMA 5-15 | 5.00 in x 5.25 in x 2.25 in |
| SDCEKA | 120V | NEMA 5-15 | 5.00 in x 5.25 in x 2.25 in |
| SDCEJB | 230V | Ferrule Ends | 5.00 in x 5.25 in x 2.25 in |
| SDCERB | 230V | Ferrule Ends/NEMA 5-15 | 5.00 in x 5.25 in x 2.25 in |
| SDCEKB | 230V | Ferrule Ends/NEMA 5-15 | 5.00 in x 5.25 in x 2.25 in |
| SDCERC | 230V | NEMA 6-15 | 5.00 in x 5.25 in x 2.25 in |
| SDCEJC | 230V | NEMA 6-15 | 5.00 in x 5.25 in x 2.25 in |
| SDCERD | 230V | Schuko CEE 7/7 | 5.00 in x 5.25 in x 2.25 in |
| SDCEJD | 230V | Schuko CEE 7/7 | 5.00 in x 5.25 in x 2.25 in |
| SDCEKD | 230V | Schuko CEE 7/7 | 5.00 in x 5.25 in x 2.25 in |
| SDCERE | 230V | UK Type G | 5.00 in x 5.25 in x 2.25 in |
| SDCEJE | 230V | UK Type G | 5.00 in x 5.25 in x 2.25 in |
| SDCEKE | 230V | UK Type G | 5.00 in x 5.25 in x 2.25 in |
| SDCEKC | 230V | NEMA 6-15 | 5.00 in x 5.25 in x 2.25 in |
BriskHeat's SDCE Digital Benchtop Temperature Controllers are compatible with a wide range of heaters and surface heating applications. The Digital Temperature Controller is designed for general-purpose use in indoor environments to control temperatures on applications requiring automatic temperature control.
Starting at $333.00
Request A Quote

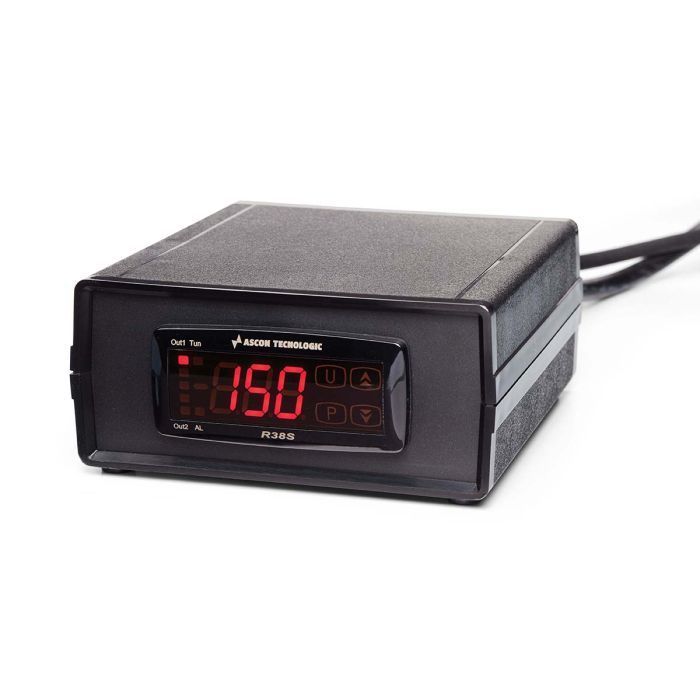

![SDCE Digital Benchtop Temperature Controllers]()
Select a product below and add it to your cart to request a quote.
