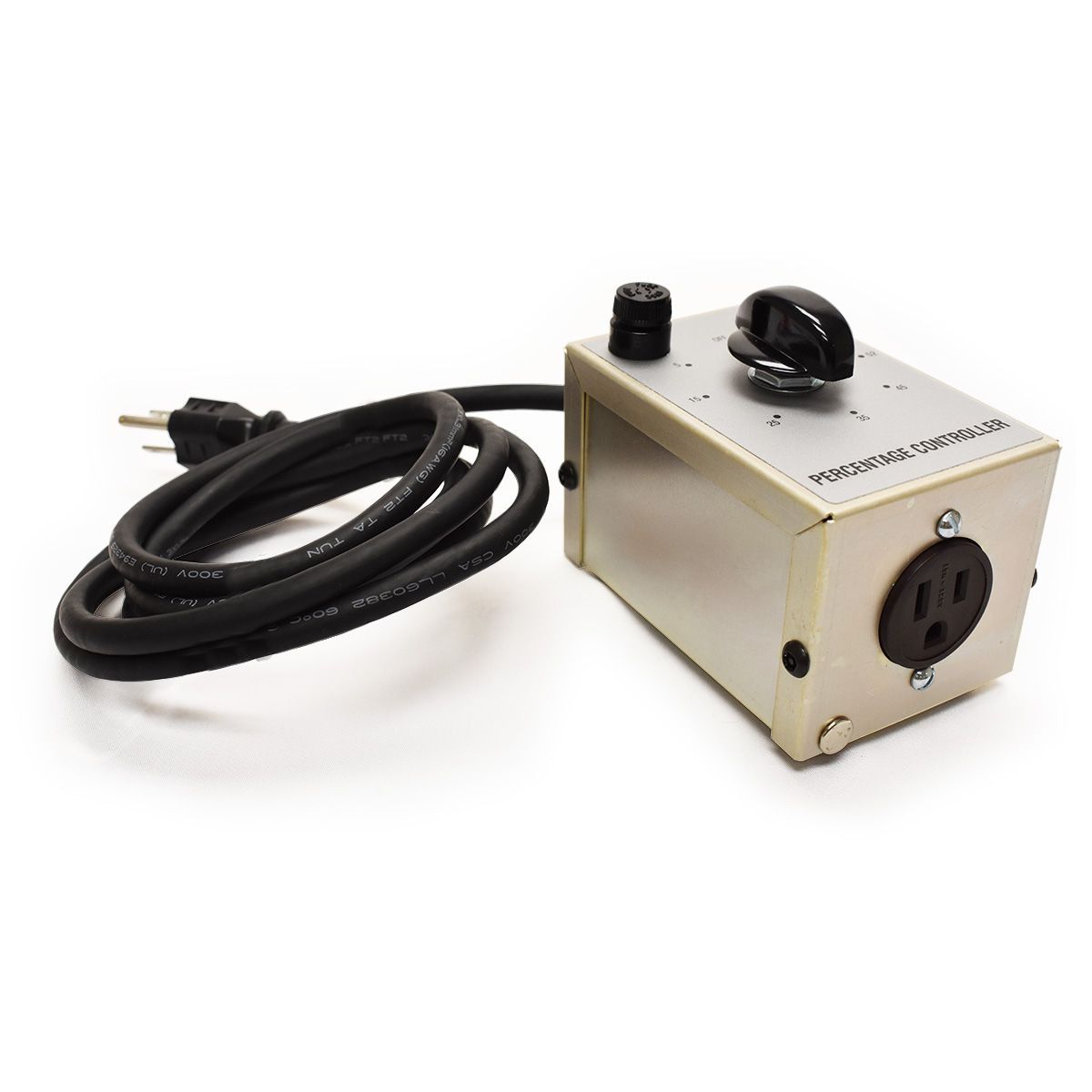

TP0 Portable Time-Percentage Dial Controllers
Manufacturer: BriskHeat
BriskHeat's TP0 Portable Time-Percentage Dial Controllers are portable, plug-and-play option for general use, indoor applications. The time percentage dial controller varies the proportion (length) of time the heater is in the "on" or "off" heating mode. The heating application will determine the actual percentage set-point required. The controller does not use a temperature sensor and therefore satisfactory operation requires occasional supervision under changing load conditions.
Description
In Stock!
Lead Times May Vary
This BriskHeat Time-Percentage Controller is a portable, plug-and-play option for general use, indoor applications. The time percentage dial controller varies the proportion (length) of time the heater is in the "on" or "off" heating mode. The heating application will determine the actual percentage set-point required. The controller does not use a temperature sensor and therefore satisfactory operation requires occasional supervision under changing load conditions.
Features:
- Input power cord, 6 ft (1.8m) long with these available plugs: 120VAC: NEMA 5-15R 240VAC: NEMA 6 - 15R
- Voltage: 120 or 240VAC
- Maximum Amp Load: 15 amps
- Time Percentage Control: 5% to 100%
- Input Power Cords/Connections: 6 ft (1.8 m) long with plug: 120VAC: NEMA 5-15, 240VAC: NEMA 6-15
- Output receptacle: 120VAC: NEMA 5-15R, 240VAC: NEMA 6-15R
Environmental Exposures:
- Operating range: -40°F to 160°F (-40°C to 71°C)
| SKU | Controller | Temperature Range | Operating Temperature Range | Plug Type | Amperage | Lead Length |
|---|---|---|---|---|---|---|
| TP0941-000 | -40°C to 71°C (-40°F to 160°F) | -40°F to 160°F | NEMA 5-15R | 15 amps | ?6 ft (1.8 m) | |
| TP0942-000 | -40°C to 71°C (-40°F to 160°F) | -40°F to 160°F | NEMA 6-15R | 15 amps | ?6 ft (1.8 m) |
BriskHeat's TP0 Portable Time-Percentage Dial Controllers are portable, plug-and-play option for general use, indoor applications. The time percentage dial controller varies the proportion (length) of time the heater is in the "on" or "off" heating mode. The heating application will determine the actual percentage set-point required. The controller does not use a temperature sensor and therefore satisfactory operation requires occasional supervision under changing load conditions.
Starting at $156.00
