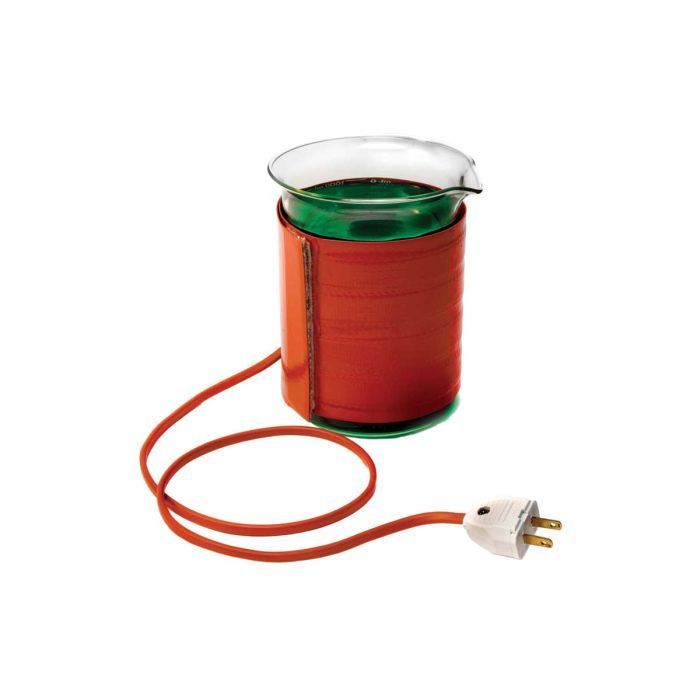

GBH Silicone Rubber Griffin Beaker Heaters
Manufacturer: BriskHeat
BriskHeat's GBH Silicone Rubber Griffin Beaker Heaters provide even heat for griffin and standard beaker heating applications including, laboratory and oil bath environments. With a removable hoop and loop fastener, these beaker heaters allow for easy access to graduation.
Description
In Stock!
Lead Times May Vary
BriskHeat Silicon Rubber Griffin Beaker Heaters provide even heat for griffin and standard beaker heating applications including, laboratory and oil bath environments. With a removable hoop and loop fastener, these beaker heaters allow for easy access to graduation.
Temperature controller is required for safe operation of this product.
Features:
- Maximum exposure temperature: 450°F (232°C)
- Fits griffin and standard size beakers
- Moisture and chemical resistant
- 120 VAC: Standard 2-prong plug (NEMA 1-15)
- 240 VAC: Bare wire connection
- Ideal for Laboratory and Oil Bath Applications
- Fits Griffin and standard size beakers
- Provides even heat for Griffin and standard beaker heating applications
- Removable with hook and loop fastener. Easy-access to graduation
- Moisture and chemical resistant. No need to worry about spills
- Maximum Exposure Temperature: 450°F (232°C)
- Voltage Options: 120 or 240 VAC
- Closure Method: Hook and loop fastener
- Outer Material: 15 mil fiberglass reinforced silicone rubber
- Power Density: 5.0 W/in²2 (0.8 W/cm²2)
- Dielectric Strength: Over 2000 volts
- Power Cord: 24 in (0.6 m) long
- 120 VAC: Standard 2-prong NEMA 1-15 Plug
- 240 VAC: Crimped ferrule leads
| SKU | Material | Max Temperature | Height | Length | Density |
|---|---|---|---|---|---|
| GBH0250-1 | 15 mil Fiberglass Reinforced Silicone Rubber | 450°F (232°C) | 3.0 in (76 mm) | 12.25 in (311 mm) | 5.0 W/in² (0.8 W/cm²) |
| GBH0400-1 | 15 mil Fiberglass Reinforced Silicone Rubber | 450°F (232°C) | 3.5 in (89 mm) | 13.75 in (349 mm) | 5.0 W/in² (0.8 W/cm²) |
| GBH0600-1 | 15 mil Fiberglass Reinforced Silicone Rubber | 450°F (232°C) | 4.0 in (102 mm) | 15 in (381 mm) | 5.0 W/in² (0.8 W/cm²) |
| GBH1000-1 | 15 mil Fiberglass Reinforced Silicone Rubber | 450°F (232°C) | 4.6 in (117 mm) | 17.25 in (438 mm) | 5.0 W/in² (0.8 W/cm²) |
| GBH0250-2 | 15 mil Fiberglass Reinforced Silicone Rubber | 450°F (232°C) | 3.0 in (76 mm) | 12.25 in (311 mm) | 5.0 W/in² (0.8 W/cm²) |
| GBH0400-2 | 15 mil Fiberglass Reinforced Silicone Rubber | 450°F (232°C) | 3.5 in (89 mm) | 13.75 in (349 mm) | 5.0 W/in² (0.8 W/cm²) |
| GBH0600-2 | 15 mil Fiberglass Reinforced Silicone Rubber | 450°F (232°C) | 4.0 in (102 mm) | 15 in (381 mm) | 5.0 W/in² (0.8 W/cm²) |
| GBH1000-2 | 15 mil Fiberglass Reinforced Silicone Rubber | 450°F (232°C) | 4.6 in (117 mm) | 17.25 in (438 mm) | 5.0 W/in² (0.8 W/cm²) |
| SKU | Wattage | Certification | Plug Type | Lead Length |
|---|---|---|---|---|
| GBH0250-1 | 150W | REACH, RoHS, IP54 | NEMA 1-15 | 24 in (0.6 m) |
| GBH0400-1 | 200W | REACH, RoHS, IP54 | NEMA 1-15 | 24 in (0.6 m) |
| GBH0600-1 | 250W | REACH, RoHS, IP54 | NEMA 1-15 | 24 in (0.6 m) |
| GBH1000-1 | 350W | REACH, RoHS, IP54 | NEMA 1-15 | 24 in (0.6 m) |
| GBH0250-2 | 150W | REACH, RoHS, IP54 | Crimped Ferrule Leads | 24 in (0.6 m) |
| GBH0400-2 | 200W | REACH, RoHS, IP54 | Crimped Ferrule Leads | 24 in (0.6 m) |
| GBH0600-2 | 250W | REACH, RoHS, IP54 | Crimped Ferrule Leads | 24 in (0.6 m) |
| GBH1000-2 | 350W | REACH, RoHS, IP54 | Crimped Ferrule Leads | 24 in (0.6 m) |
