4-Ports, Inert Lines Vacuum Manifolds Airfree, Schlenk
Manufacturer: Chemglass
Starting at from $2,286.00 Sale $2,057.40
Select a product below and add it to your cart to request a quote.
4-Ports, Inert Lines Vacuum Manifolds Airfree, Schlenk
Description

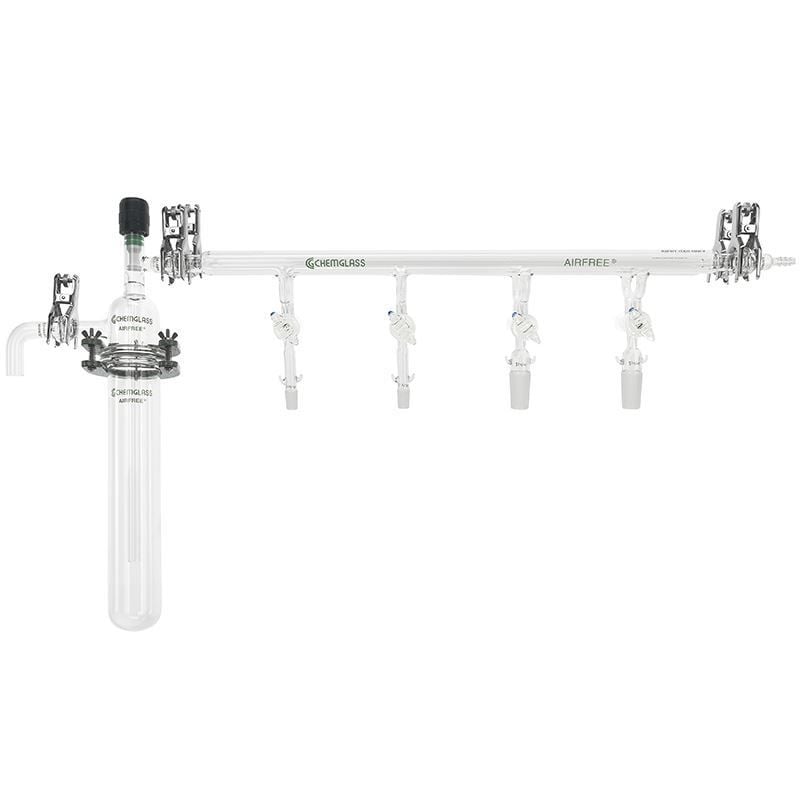

Chemglass 4-Ports, Inert Lines Vacuum Manifolds Airfree, Schlenk
Features:
- Flexible and compact
- Constructed using CG-474-02, 4mm double oblique hollow high vacuum greased stopcocks on all four ports
- Ports are fitted with two 14/20 inner joints and two 24/40 inner joints and are spaced 5" center to center
- All four ends of the manifold have #15 o-ring joints permitting the trap assembly to be attached to either the right or left side of the vacuum bank
- Manifold is supplied with two AF-0210-01 #15 stoppers and three AF-0070-05 #15 o-ring joint to serrated hose adapters
- Trap assembly is a rugged 2 piece design with a 0-12mm Chem-Vac™ Chem-Cap® valve as the shut off
- Stopper and body connection is made via a 57mm flat o-ring flange and is supplied complete with a CG-139-02 clamp and #331 Viton o-ring
- Trap body is 57mm OD x 300mm long
- Trap is supplied complete with one AF-0070-03 #15 o-ring joint to 3/4" straight tubing adapter and one AF-0070-20 #15 o-ring joint to 3/4” bent tubing for connection to heavy wall flexible vacuum tubing
- Other sizes of the AF-0070 adapters are available to fit different ID vacuum tubing
Please note: Airfree vessels and AF-0455 adapters must be purchased separately.
-
Vacuum manifolds are commonly used for the final drying of samples removed from a rotary evaporator.
