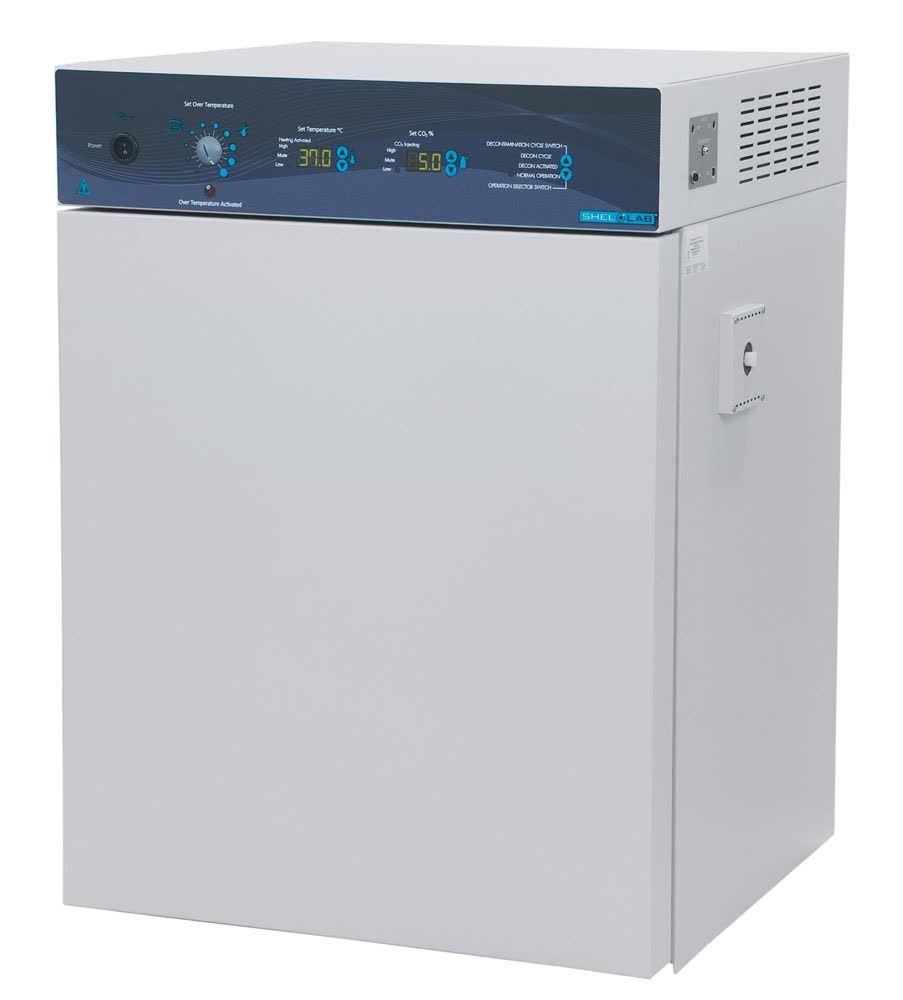

High Heat Auto Decontamination CO2 Incubator

Name: High Heat Auto Decontamination CO2 Incubator
Brand: Sheldon Manufacturing
SKU: SCO6AD-GROUP
Price: 9874.00 USD

Manufacturer: Sheldon Manufacturing

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Price Chart

Grouped product items
Cat Code	Description	Capacity	Temperature Range	Voltage	Price	Price	Qty
SCO6AD SCO6AD	Shel Lab High Heat Decontamination CO2 Incubator	5.9 cu ft.	Ambient +5 to 50	115 V	$9,874.00		+ -
Total $0.00

Use the Quantity box to select product first.

SHEL LAB High Heat Auto Decontamination CO2 Incubator - SCO Series Ideal for Clinical, Analytical, and General Laboratory Applications The SCO6AD unit provides an optimized culturing environment with passive humidification, highly stable CO2 levels, and tight temperature uniformity to safeguard your cell sample populations. Features: and Benefits Copper gas plumbing, a high-heat auto decontamination cycle, and a glass viewing door gives the SCO6AD enhanced protection against microbiological contamination. • Infrared (IR) ... Read more

Description

Overview

SHEL LAB High Heat Auto Decontamination CO2 Incubator - SCO Series

Ideal for Clinical, Analytical, and General Laboratory Applications

The SCO6AD unit provides an optimized culturing environment with passive humidification, highly stable CO2 levels, and tight temperature uniformity to safeguard your cell sample populations.

Features and Benefits

Copper gas plumbing, a high-heat auto decontamination cycle, and a glass viewing door gives the SCO6AD enhanced protection against microbiological contamination.

• Infrared (IR) sensor for quick recovery of CO2 levels after door openings. This sensor does not need to be removed

during the high-heat decontamination cycle.

• USB data logging capabilities.

• Advanced PID temperature control system for sensitive response.

• Independent over temperature set point and operational control override for additional safety.

• Side-mounted access port, 1.5" inner diameter (3.81cm) for independent cables, sensors, and instrumentation.

• Stainless steel interior construction for long life operation, easy cleaning.

• Heated Copper CO2 inlet to promote temperature uniformity and reduce the risks of contamination and condensation.

• Autoclavable shelving system.

• Auto decontamination cycle designed to stop microbial contamination caused by mycetozoa, yeast, viruses, bacteria, and a variety of other microorganisms.

• Heated door to ensure superior temperature uniformity.

• Sealed inner glass door allows for viewing without disturbing the critical growth atmosphere and allows for improved gas utilization and condensate reduction.

• Unique air jacketed design provides excellent temperature uniformity of +/-0.25°C at 37°C.

• Safety certified CAN/CSA, UL, EN, IEC 61010, and compliant with CE.

• Made in the USA

Contamination Control

Extensive use of copper in the CO2 sample port, humidity reservoir, and heated CO2 feed line adds reassurance that foreign microbes will not affect test results. Cleanup is a breeze with the all stainless steel chamber, coved corners, and autoclavable door gasket. Optional copper shelves are available for additional contamination control.

Model	SCO6AD
Interior Volume, Nominal	5.9 cu ft (167 liters)
Interior Dimensions, W x D x H	20.2 x 20.0 x 25.5" (51.3 x 50.8 x 64.7 cm)
Exterior Dimensions, W x D x H	28.5 x 30.8 x 39.5" (72.4 x 78.2 x 100.3 cm)
Interior Construction	300 series stainless steel
Exterior Construction	20 gauge steel, powder coated
Shelves	3 standard, 8 total
Maximum Weight per Shelf	35 lbs (15.8 kg)
Permitted Total Load	105 lbs (47.6 kg)
Electrical	50/60Hz, AC
Voltage	110V-120V
Full Load Amps	12.0
Nominal Power (watts @37°C)	130
Recommended Breaker, Amps	15
Plug Supplied	NEMA5-15P
CO₂ Range	1-20%
Recovery CO₂ at 5%	< 5 minutes
Sensor Type	Infrared
Temperature Uniformity (at 37°C)	±0.25°C
Humidity Range Passive (Ambient 95%)	Yes
Temperature Range Recovery to 37°C	6 minutes

Brochure for CO2 Incubators, High Heat
