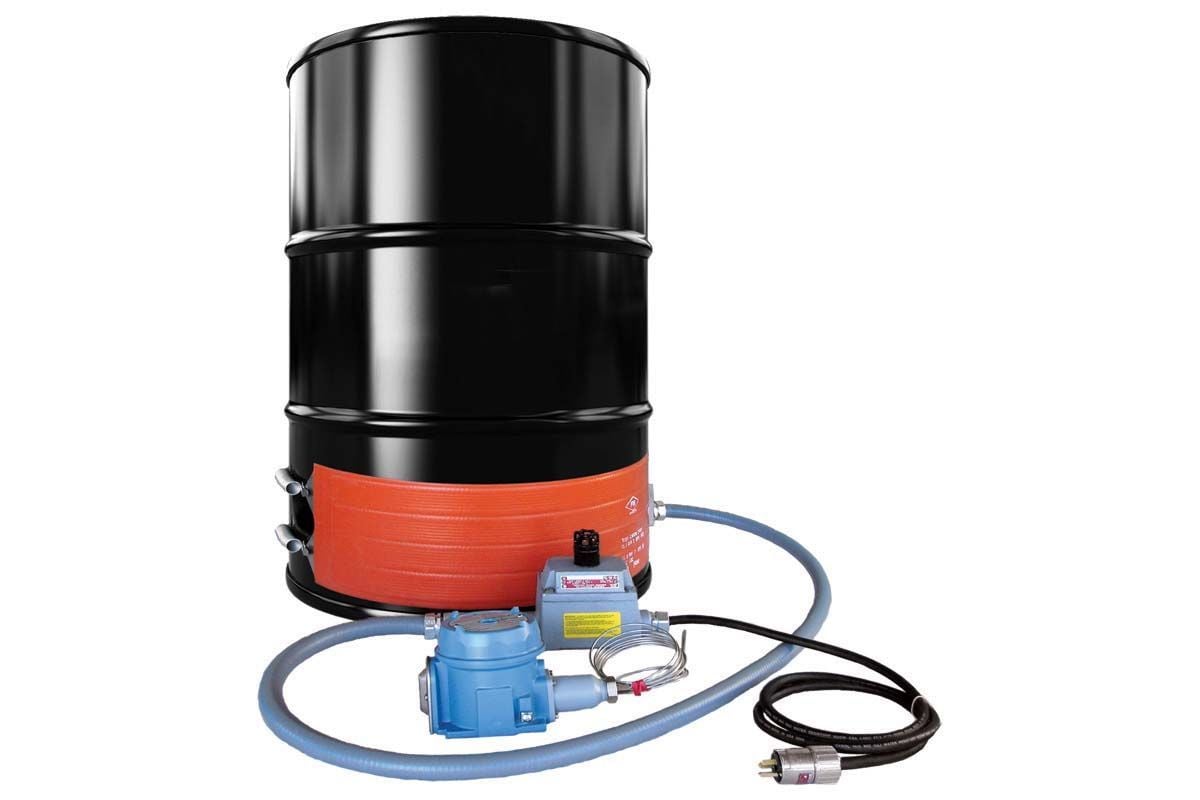

DHNX Series Hazardous-Area Silicone Rubber Drum Heaters
Manufacturer: BriskHeat
BriskHeat's DHNX Series Hazardous-Area Rated Silicone Rubber Drum Heaters are designed to provide practical, efficient means of freeze protection, viscosity control, and maintenance of materials at elevated temperatures. A variety of standard sizes are combined with the availability of configure-to-order designs to meet your application requirements.
Description
In Stock!
Lead Times May Vary
BriskHeat Silicone Rubber Hazardous-Area Rated Drum and Pail Heaters are designed to provide practical, efficient means of freeze protection, viscosity control, and maintenance of materials at elevated temperatures. A variety of standard sizes are combined with availability of configure-to-order designs to meet your application requirements.
DHNX Series requires an External Temperature Controller (not included).
Features:
- FM Approved for Class 1 & 11, Division 2 environments
- High-limit thermostat designed to keep heater below NEC Article 500 T-rating
- Moisture and chemical resistant - IP 54 rated
- DHNX Series: 1 ft (.3 m) long power cord with explosion proof plug
- Extra-wide 8 in (203 mm) surface coverage
- Grounded for your safety - meets NEC 427.23
- Intrinsically safe - able to be used in hazardous environments
- Simple plug-and-play design
- Rugged - provides long service life
| SKU | Max Temperature | Length | Width | Density | Diameter |
|---|---|---|---|---|---|
| DHNX131000T3 | 292°F (144°C) | 58.5 in (1486 mm) | 8 in (203 mm) | 2.50 W/in²(0.39 W/cm²) | 18.6 in (473 mm) |
| DHNX131000T4A | 158°F (70°C) | 58.5 in (1486 mm) | 8 in (203 mm) | 2.50 W/in²(0.39 W/cm²) | 18.6 in (473 mm) |
| DHNX151300T3 | 292°F (144°C) | 70 in (1778 mm) | 8 in (203 mm) | 2.50 W/in²(0.39 W/cm²) | 22.3 in (566 mm) |
| DHNX151300T4A | 158°F (70°C) | 70 in (1778 mm) | 8 in (203 mm) | 2.50 W/in²(0.39 W/cm²) | 22.3 in (566 mm) |
| DHNX231000T3 | 292°F (144°C) | 58.5 in (1486 mm) | 8 in (203 mm) | 2.50 W/in²(0.39 W/cm²) | 18.6 in (473 mm) |
| DHNX231000T4A | 158°F (70°C) | 58.5 in (1486 mm) | 8 in (203 mm) | 2.50 W/in²(0.39 W/cm²) | 18.6 in (473 mm) |
| DHNX251300T3 | 292°F (144°C) | 70 in (1778 mm) | 8 in (203 mm) | 2.50 W/in²(0.39 W/cm²) | 22.3 in (566 mm) |
| DHNX251300T4A | 158°F (70°C) | 70 in (1778 mm) | 8 in (203 mm) | 2.50 W/in²(0.39 W/cm²) | 22.3 in (566 mm) |
| SKU | Plug Type | Lead Length | Wattage |
|---|---|---|---|
| DHNX131000T3 | NEMA 5-15P Plug | 1 ft (0.3 m) | 1000W |
| DHNX131000T4A | NEMA 5-15P Plug | 1 ft (0.3 m) | 1000W |
| DHNX151300T3 | NEMA 5-15P Plug | 1 ft (0.3 m) | 1300W |
| DHNX151300T4A | NEMA 5-15P Plug | 1 ft (0.3 m) | 1300W |
| DHNX231000T3 | Bare Wire Leads | 1 ft (0.3 m) | 1000W |
| DHNX231000T4A | Bare Wire Leads | 1 ft (0.3 m) | 1000W |
| DHNX251300T3 | Bare Wire Leads | 1 ft (0.3 m) | 1300W |
| DHNX251300T4A | Bare Wire Leads | 1 ft (0.3 m) | 1300W |
