Large Capacity CO2 Air Jacketed Incubators, Infrared (IR) Sensor

Name: Large Capacity CO2 Air Jacketed Incubators, Infrared (IR) Sensor
Brand: Sheldon Manufacturing
SKU: SCO31-GROUP

Manufacturer: Sheldon Manufacturing

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Price Chart

Grouped product items
Cat Code	Description	Capacity	Temperature Range	Voltage	Price	Qty
SCO31 SCO31	Shel Lab Large Capacity CO2 Air Jacketed Incubator	31 cu ft.	Ambient +8 to 60	115 V	$19,446.00	+ -
SCO40 SCO40	Shel Lab Large Capacity CO2 Air Jacketed Incubator	40 cu ft.	Ambient +8 to 60	115 V	$23,131.00	+ -
SCO58 SCO58	Shel Lab Large Capacity CO2 Air Jacketed Incubator	58 cu ft.	Ambient +8 to 60	115 V	$27,712.00	+ -
Total $0.00

Use the Quantity box to select product first.

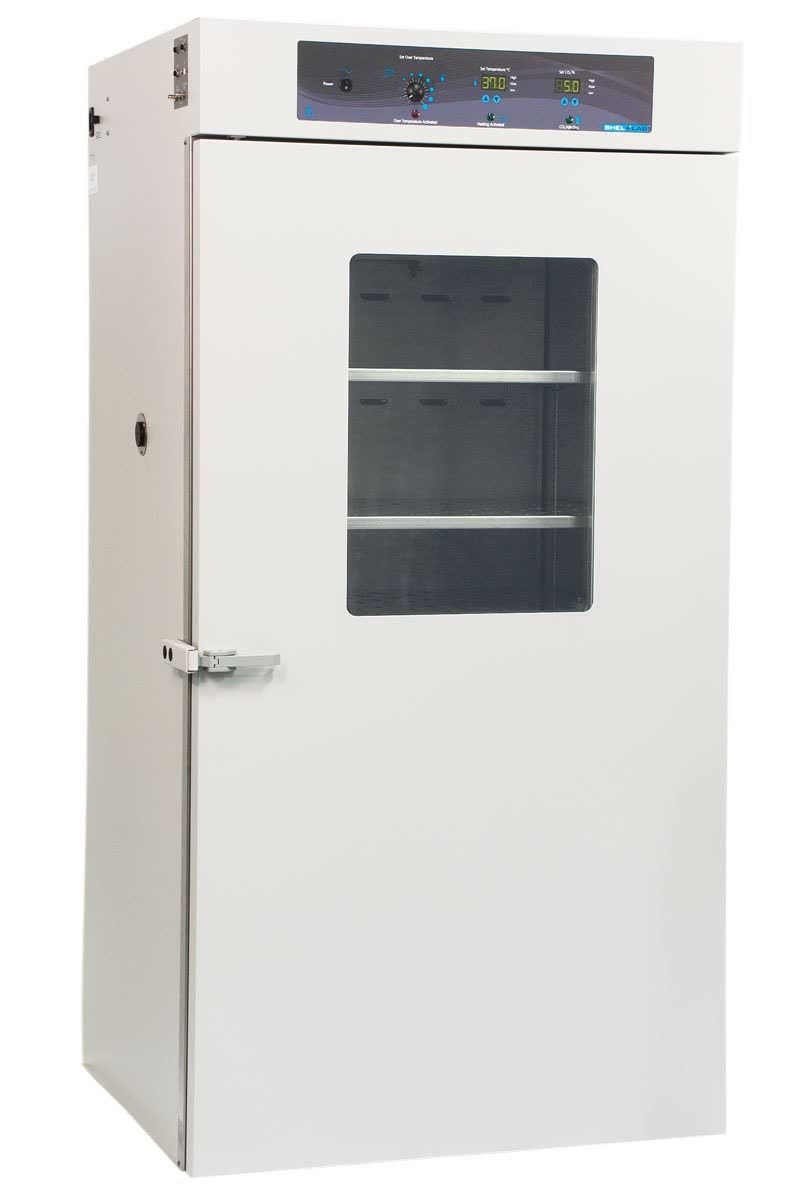

Model SCO31 large capacity dry CO2 incubator is ideal for roller bottle apparatus and high-volume tissue culture applications and cell harvesting. It provides a precisely controlled, accurate, pure environment throughout the culturing process.

Description

Overview

In Stock!

Lead Times May Vary.

SHEL LAB CO2 Incubators

SCO Series Large Capacity Units

Ideal for Clinical, Analytical, and General Laboratory Applications

SCO large capacity CO2 incubators provide the uniform temperatures and highly stable CO2 environments necessary to prevent shocks to cell samples.

Features and Benefits

Contamination control, data logging capabilities, and automatic CO2 deviation alarm protect the SCO large capacity CO2 incubators against microbiological contamination.

• Infrared (IR) sensor for quick recovery of CO2 levels after door openings.

• USB data logging capabilities.

• Advanced PID temperature control system for sensitive response.

• Independent over temperature set point and operational control override for additional safety.

• Side-mounted access port, 1.75" diameter (4.45cm) for independent cables, instrumentation.

• Stainless steel interior construction for long life operation, easy cleaning.

• Condensed connection panel includes; 4-20 mA, dry contact alarm, CO2 inlet, and CO2 sample port.

• Autoclavable shelving system.

• Crafted forced-air conduction provides excellent temperature uniformity of +/-0.5°C at 37°C.

• Roller track ensures ease of use with roll-in bottle racks.

• Sealed glass window allows for viewing without disturbing the critical growth atmosphere and allows for improved gas utilization and condensate reduction.

• Safety certified CAN/CSA, UL, EN, IEC 61010, and compliant with CE.

• Made in the USA

Contamination Control

Extensive use of copper in the humidity heated CO2 feed line and precise airflow management designed to prevent condensation adds reassurance that foreign microbes will not affect test results. Cleanup is a breeze with the all stainless steel chamber.

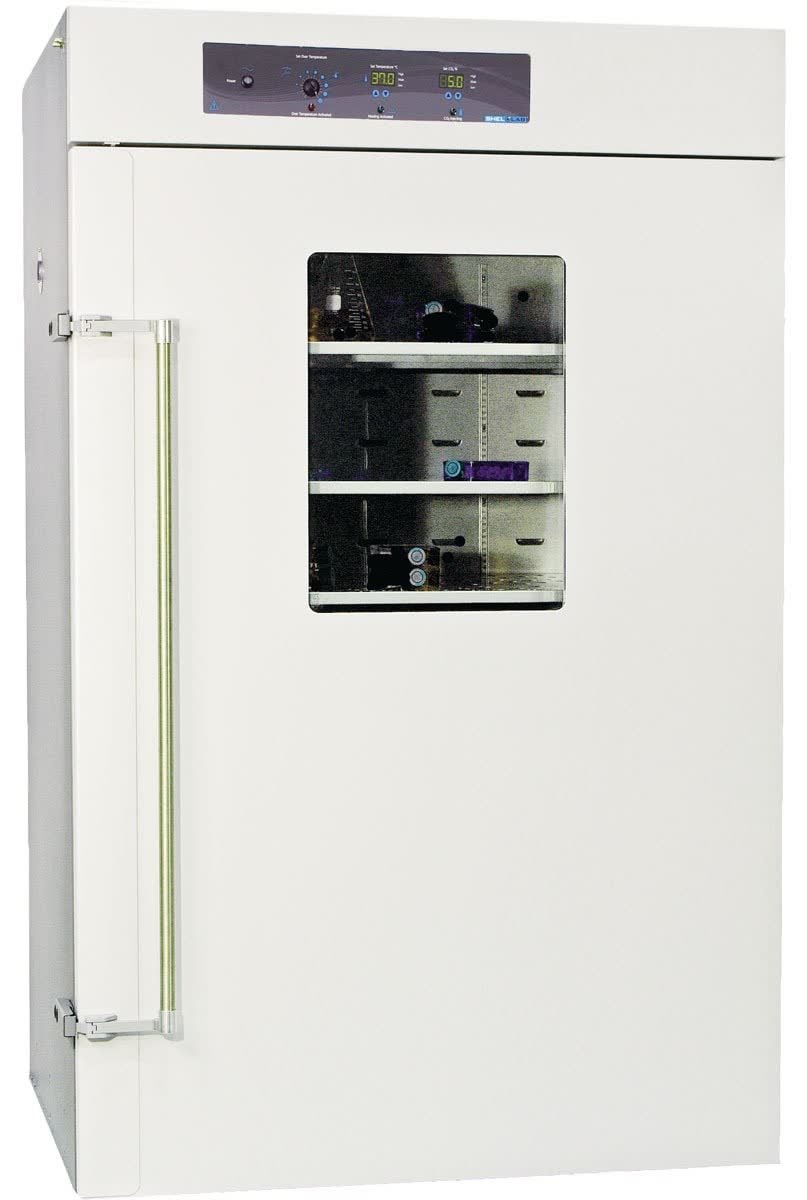

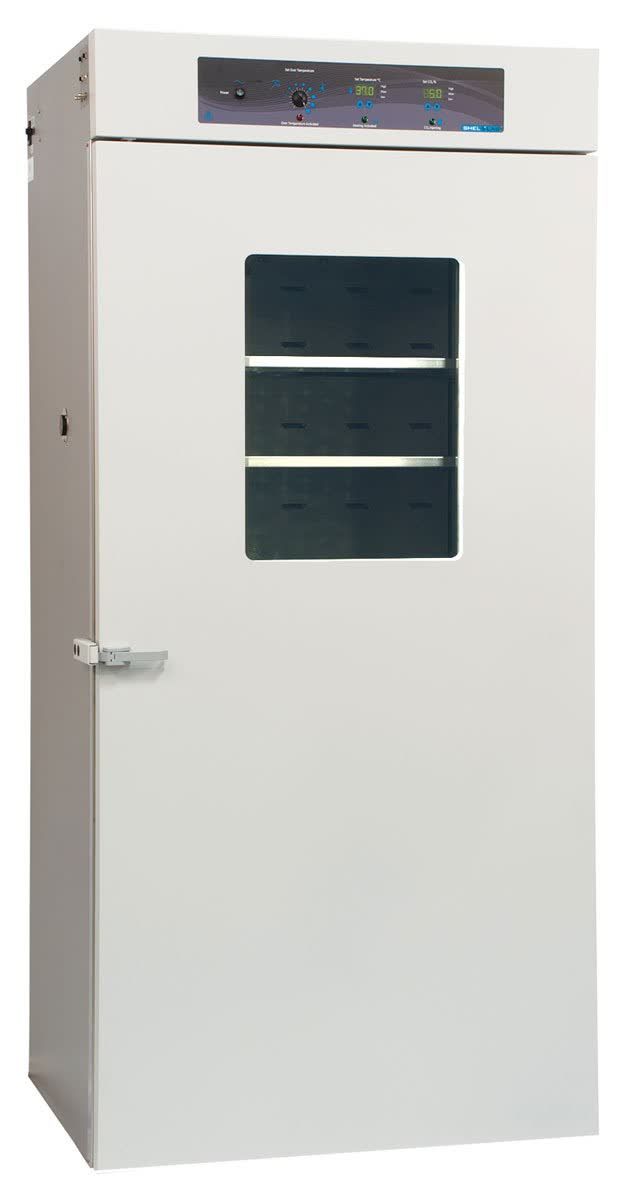

Model	SCO31	SCO40	SCO58
Interior Volume, Nominal	31.4 cu ft (890.7 liters)	39.5 cu ft (1118 liters)	58 cu ft (1641 liters)
Interior Dimensions, W x D x H	32.9 x 26.1 x 63.3" (836 x 663 x 1608 mm)	34.7 x 25.8 x 76.2" (881 x 655 x 1935 mm)	43.0 x 34.5 x 67.5" (1092 x 827 x 1725 mm)
Exterior Dimensions, W x D x H	39.6 x 33.7 x 76.2" (1005 x 851 x 1936 mm)	42.2 x 33.5 x 88.0" (1071 x 851 x 2235 mm)	51.0 x 44.8 x 81.0" (1295 x 1137 x 2057 mm)
Interior Construction	300 series stainless steel	300 series stainless steel	300 series stainless steel
Exterior Construction	20 gauge steel, powder coated	20 gauge steel, powder coated	20 gauge steel, powder coated
Shelves	6 standard, 30 total	6 standard, 30 total	6 standard, 30 total
Maximum Weight per Shelf	50 lbs (22.7 kg)	50 lbs (22.7 kg)	50 lbs (22.7 kg)
Permitted Total Load	300 lbs (136.1 kg)	300 lbs (136.1 kg)	300 lbs (136.1 kg)
Electrical	50/60Hz, AC	50/60Hz, AC	50/60Hz, AC
Voltage	110V-120V	110V-120V	110V-120V
Full Load Amps	14.5	15.0	15.0
Nominal Power (watts @37°C)	321	365	385
Recommended Breaker, Amps	15	20	20
Plug Supplied	NEMA5-20P	NEMA5-20P	NEMA5-20P
CO₂ Range	1-20%	1-20%	1-20%
Recovery CO₂ at 5%	< 5 minutes	< 5 minutes	< 5 minutes
Sensor Type	Infrared	Infrared	Infrared
Temperature Range Recovery to 37°C	8 minutes	7 minutes	7 minutes
Temperature Uniformity (at 37°C)	±0.5°C	±0.5°C	±0.5°C
Temperature Range Ambient +8°C to 60°C	Yes	Yes	Yes
