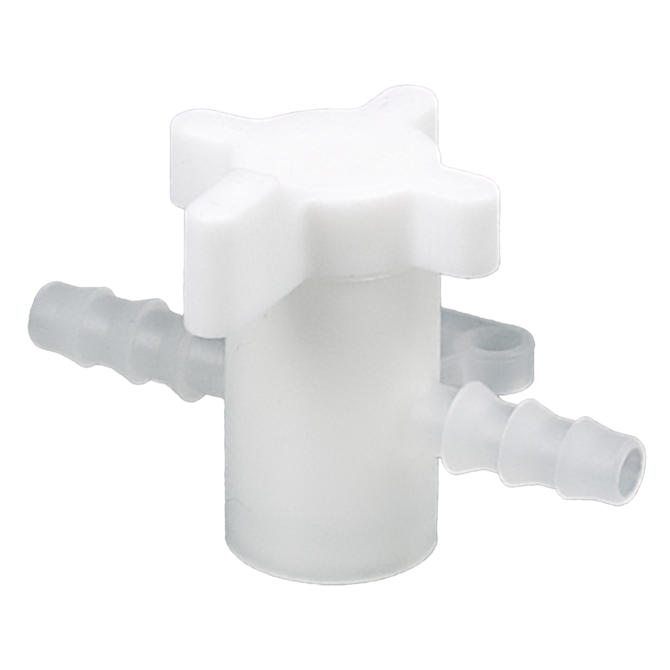

Two-Way PVDF Valves

Constructed entirely from premium-grade PVDF, these colorless, semi-transparent valves resist harsh organic solvents, strong acids, halogenated compounds, and aggressive oxidizing agents. Unlike standard polyolefin plastics, PVDF inherently complies with strict food-grade standards and high-purity laboratory protocols. Featuring an inline, I-shaped flow profile with tapered cylindrical hose grommets, each valve includes a built-in mounting plate to anchor fluid lines firmly to equipment frames, panels, or laboratory walls.

Key Functional Benefits:

• High-Purity Fluoropolymer Construction: Fully composed of PVDF, offering superior resistance to aggressive solvents, strong acids, bases, and halogenated reagents compared to standard PP/PE options.
• Food-Grade & Biocompatible: Translucent, additive-free polymer matrix meets international standards for food contact and high-purity pharmaceutical media contact.
• Integrated Panel Mounting Plate: Features a pre-molded mounting base to secure liquid lines onto laboratory frames or instrument chassis, preventing mechanical stress and line sagging.
• Stepped Hose Grommets: Tapered outer spout profile delivers a high-friction, leak-resistant seal when fitted with flexible 5 mm to 13 mm inner diameter laboratory tubing.

Pressure & Temperature Operating Envelope: These PVDF valves are engineered for low-pressure fluid control systems. Do not exceed the maximum compression rating of 1 bar (14.50 psi) or operating temperatures outside the 0°C to 40°C (32°F to 104°F) range.
