Two-Way Polypropylene/Polyethylene Valves
Manufacturer: Burkle Inc.
Description

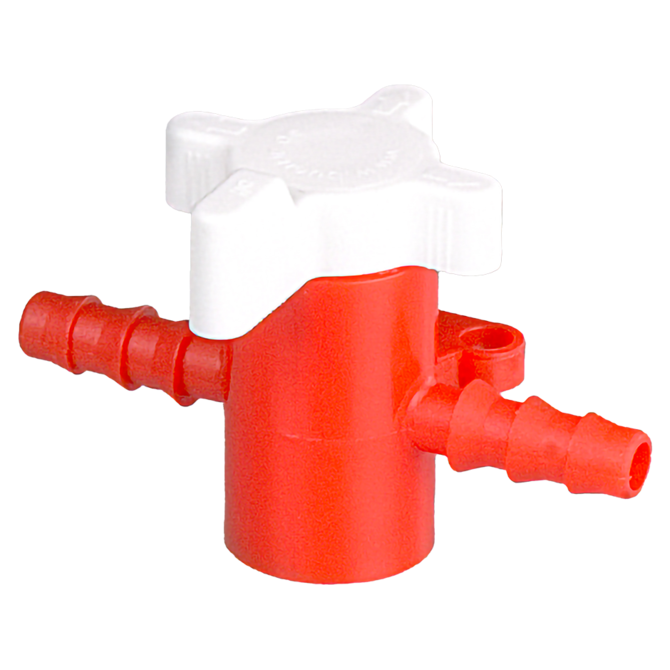

Each valve features a high-impact polypropylene body paired with smooth polyethylene internal control components, delivering excellent resistance to a wide range of aqueous chemicals, weak acids, and alkaline solutions. Engineered with a straight, I-shaped flow profile, these valves incorporate tapered, cylindrical grommets on both ends to ensure a tight, slip-resistant grip on flexible tubing. A built-in mounting plate allows technicians to anchor the valve securely to panels, frames, or equipment walls to prevent line sagging during operation.
Key Functional Benefits:
- Bi-Material Chemical Defense: Polypropylene and polyethylene construction resists aggressive industrial liquids, neutral reagents, and routine cleaning solutions
- Integrated Panel Mounting Plate: Includes a pre-molded mounting base for quick attachment to instrument housings or lab frames, stabilizing fluid lines during manual adjustments
- Stepped Cylindrical Grommets: Tapered outer spout dimensions create a high-friction seal against flexible laboratory tubing to prevent slip-offs under pressure
- High-Contrast Manual Control: Bright red ergonomic turn handle provides immediate visual feedback of flow status (open vs. closed) from anywhere in the facility
Thermal & Pressure Limits: These valves are designed for low-pressure liquid transfer systems. Do not exceed the maximum pressure rating of 1 bar (14.5 psi) or operating temperatures outside the 5°C to 40°C range. Not autoclavable.
| SKU | Autoclavable | Color | Diameter | For Use With | Max Pressure |
|---|---|---|---|---|---|
| 8605-0060 | No | Red, White | Spout: 5.6 mm - 7.8 mm | 5 mm - 7 mm Hose | 1 bar |
| 8605-0080 | No | Red, White | Spout: 7.6 mm - 9.8 mm | 7 mm - 9 mm Hose | 1 bar |
| 8605-0100 | No | Red, White | Spout: 9.6 mm - 11.8 mm | 9 mm - 11 mm Hose | 1 bar |
| 8605-0120 | No | Red, White | Spout: 11.6 mm - 13.8 mm | 11 mm - 13 mm Hose | 1 bar |
|
Burkle Inc. Product Catalog | Download |
| SKU | Material | Dimensions | Temperature Range | Shape |
|---|---|---|---|---|
| 8605-0060 | Polypropylene, Polyethylene | 54 mm x 36 mm x 38 mm | 5°C - 40°C | I |
| 8605-0080 | Polypropylene, Polyethylene | 54 mm x 36 mm x 38 mm | 5°C - 40°C | I |
| 8605-0100 | Polypropylene, Polyethylene | 70 mm x 51 mm x 53 mm | 5°C - 40°C | I |
| 8605-0120 | Polypropylene, Polyethylene | 70 mm x 51 mm x 53 mm | 5°C - 40°C | I |
Starting at $11.07
