High Performance Muffle Furnaces
Manufacturer: Yamato Scientific America
The Yamato High-Performance Programmable Muffle Furnaces are perfect for long applications and applying high heat. This equipment contains a porcelain hot plate where the heater is not exposed to the inner chamber to ensure no sample contamination. The alumina fiber insulation allows for faster healing and lower operational costs.
Starting at from $7,395.00 Sale $7,025.25
Request A Quote
![High Performance Muffle Furnaces]()
Select a product below and add it to your cart to request a quote.
High Performance Muffle Furnaces
The Yamato High-Performance Programmable Muffle Furnaces are perfect for long applications and applying high heat. This equipment contains a porcelain hot plate where the heater is not exposed to the inner chamber to ensure no sample contamination. The alumina fiber insulation allows for faster healing and lower operational costs.
Description
In Stock!
Lead Times May Vary
The Yamato High Performance Programmable Muffle Furnaces contain a variety of features to ensure safety and efficient operation.
Best Features:
- RCF-free chamber
- High temperature accuracy at ± 1.0°C
- High accuracy controller for better operability and visibility
- Program operation of maximum 99 steps, 99 patterns, with repeat operation function
- Excellent heat tightness with a firmly sealed chamber door
Safety Features:
- Self-diagnostic functions
- Calibration off-set
- Key lock function
- Auto-recovery after a power failure
- Earth leakage breaker
- Automatic overheat prevention device
- Independent overheat prevention device
Operation Features:
- Fixed temperature
- Quick auto stop/start
- Power on/operation time accumulation
- Calendar
- Clock
- Display of power consumption
- CO2 emissions and heater operation
Please Note: All Models are not equipped with a power plug with the exception of FP-103. All models with no power plug include a Rounded Terminal for M4. For more information, please refer to our downloads tab.
| SKU | Temperature Accuracy | Controller |
|---|---|---|

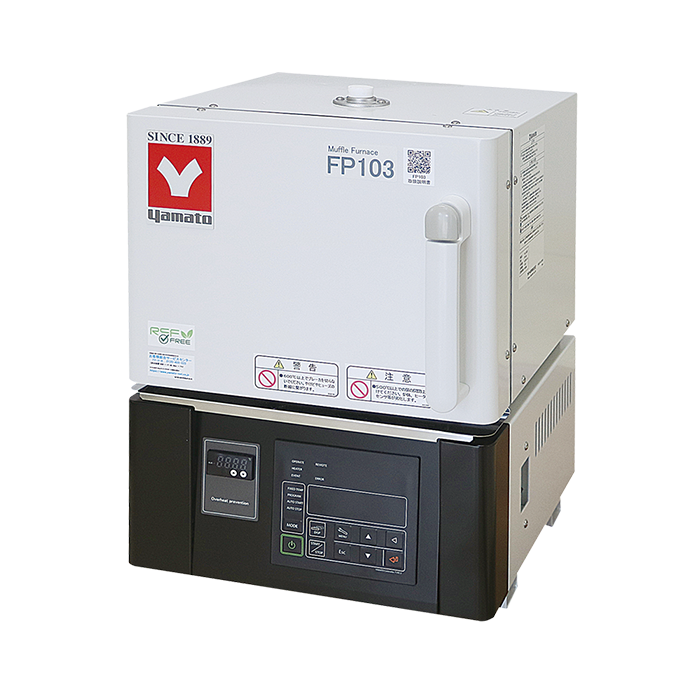

| FP-103 | ±1 at 1150°C | PID control by microprocessor |

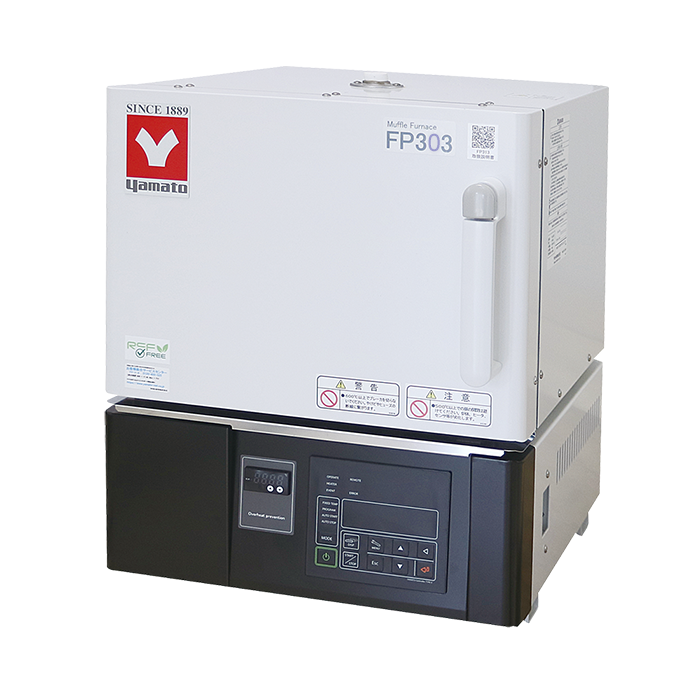

| FP-303 | ±1 at 1150°C | PID control by microprocessor |
| FP-313 | ±1 at 1150°C | PID control by microprocessor |
| FP-413 | ±1 at 1150°C | PID control by microprocessor |
|
Yamato Muffle Furnace FP Series Brochure | Download |
|
|
How to Install 220V Plug | Download |
|
|
Electrical Plug (NEMA) Information Sheet | Download |
-
Read MoreMuffle furnaces, or muffle ovens, are crucial for high-temperature heating such as ashing, soldering and brazing, glass fusing, heat treating, and environmental testing.
| SKU | Material | Width | Depth | Height |
|---|---|---|---|---|
| FP-103 | Alumina fiber and chrome-free electro-galvanized steel plate | 376 mm | 404 mm | 515 mm |
| FP-303 | Alumina fiber and chrome-free electro-galvanized steel plate | 446 mm | 504 mm | 565 mm |
| FP-313 | Alumina fiber and chrome-free electro-galvanized steel plate | 446 mm | 504 mm | 565 mm |
| FP-413 | Alumina fiber and chrome-free electro-galvanized steel plate | 506 mm | 504 mm | 625 mm |
