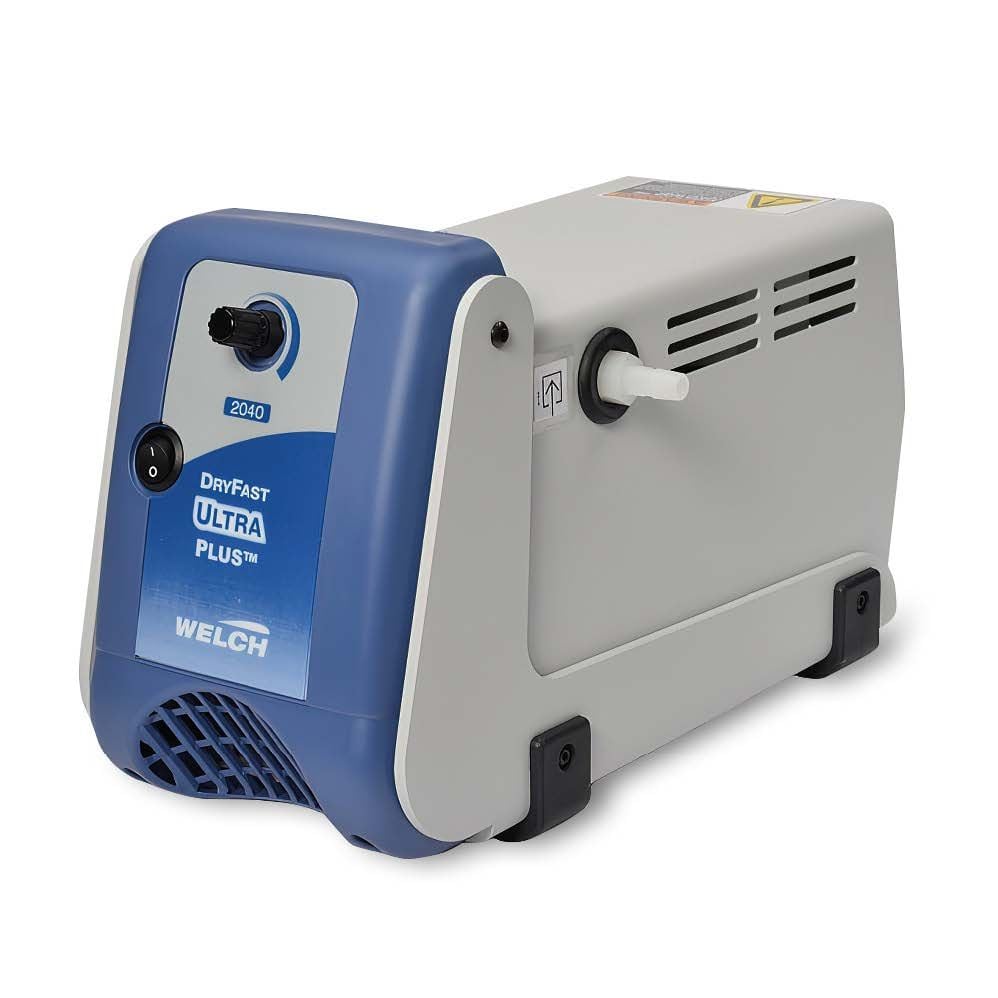

DryFast Ultra Plus Diaphragm Pumps
Manufacturer: Welch Ilmvac
Starting at from $4,951.00 Sale $4,703.45
Select a product below and add it to your cart to request a quote.
DryFast Ultra Plus Diaphragm Pumps
Description
Meet Welch's DryFast Ultra Plus Diaphragm Pump, providing one of the highest vacuum performances from any 2-stage 2-head corrosion resistant diaphragm pump on the global market for your vacuum manifold (Schlenk lines), rotary evaporator, or vacuum concentrator applications.
Features:- Available in 115V or 230V options
- Includes Gas Ballast
- 1/5 HP
- 2 heads/2 stages
- 29.9 Hg Maximum Vacuum
- 0.75 torr ultimate pressure
- 40 lpm free air displacement
- 1/4 in ID tubing needed
- M14 (1/8) Intake Thread NPT
- Product weighs 21.25 lbs
SKU | H.P. | Includes | Motor Power | Ambient Temperature Range |
---|---|---|---|---|
2040B-01 | 1/5 HP | Gas Ballast | 0.7 kW @ 50 Hz, 0.85 kW @ 60Hz | 10°C - 40°C |
2040C-02 | 1/5 HP | Gas Ballast | 0.7 kW @ 50 Hz, 0.85 kW @ 60Hz | 10°C - 40°C |
Welch DryFast Ultra Plus V2 | Download | |
Welch Chemical Duty, Dry (Oil-Free) Diaphragm Vacuum Pump Brochure | Download |
SKU | Dimensions | Certification | Power Requirement | Plug Type | Tubing Needed | Intake Thread NPT |
---|---|---|---|---|---|---|
2040B-01 | 13.8 x 6.8 x 8.8 in | cUL, CE | 115V, 60Hz, 1 Phase | NEMA 5-15 | 1/4 in (7 mm) | M14 (1/8) |
2040C-02 | 13.8 x 6.8 x 8.8 in | cUL, CE | 115V, 60Hz, 1 Phase | NEMA 5-15 | 1/4 in (7 mm) | M14 (1/8) |
