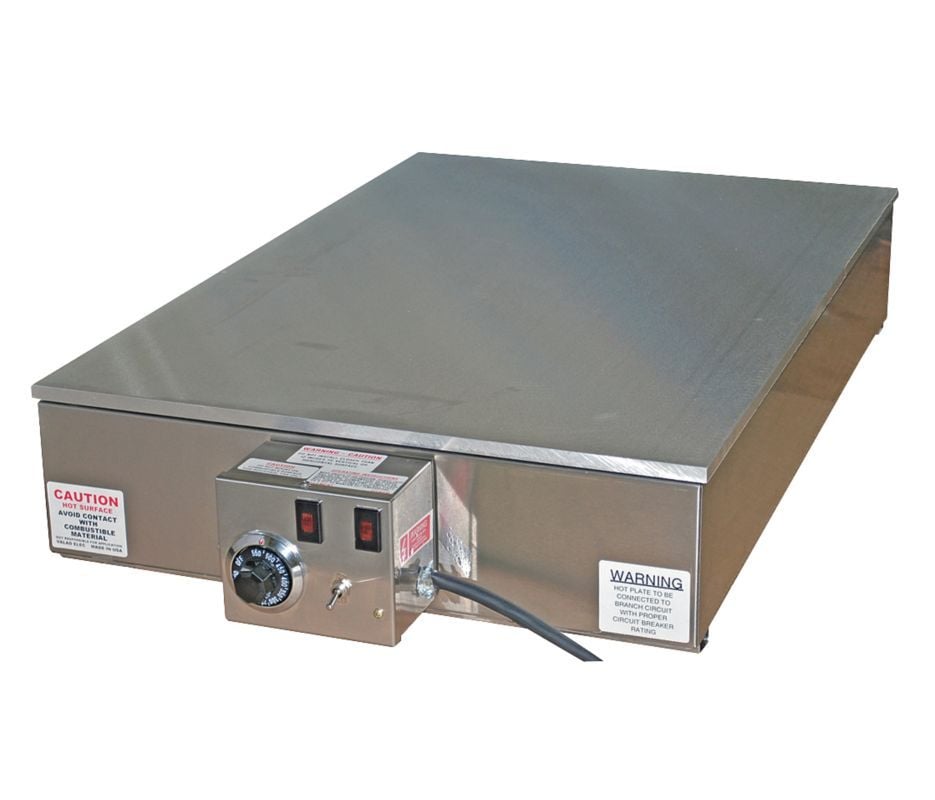

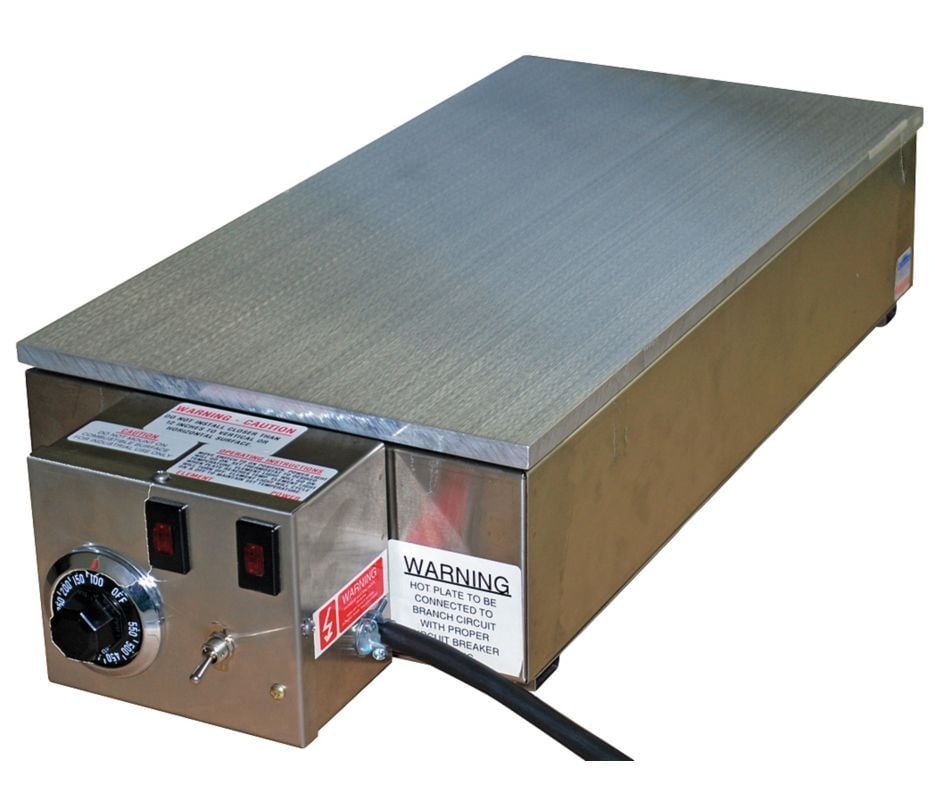

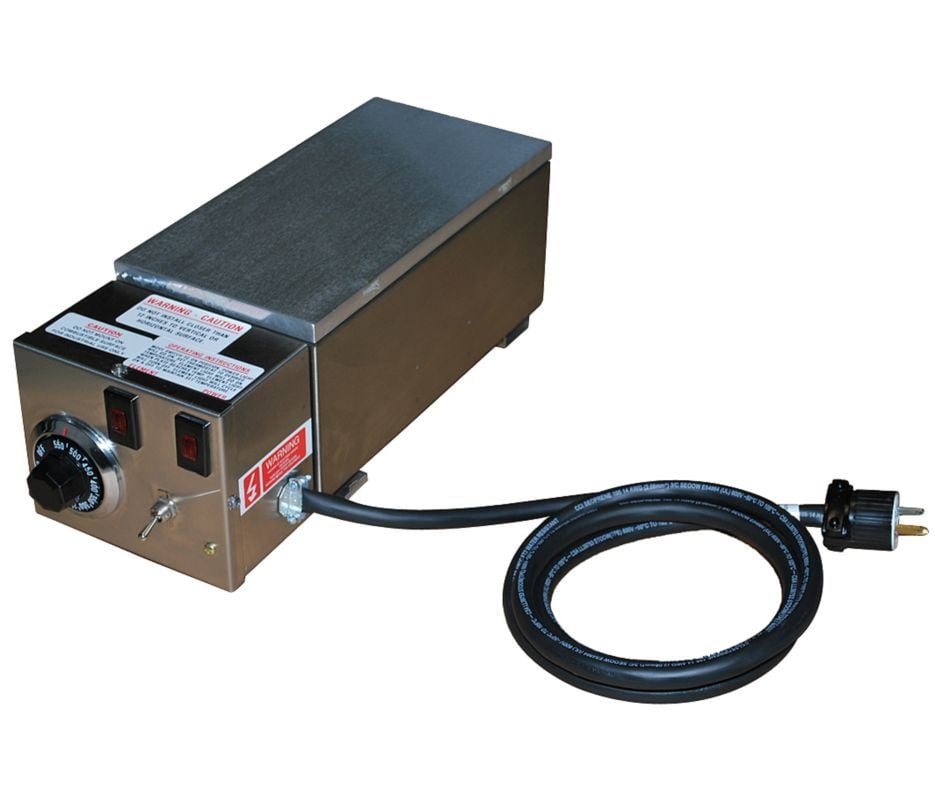

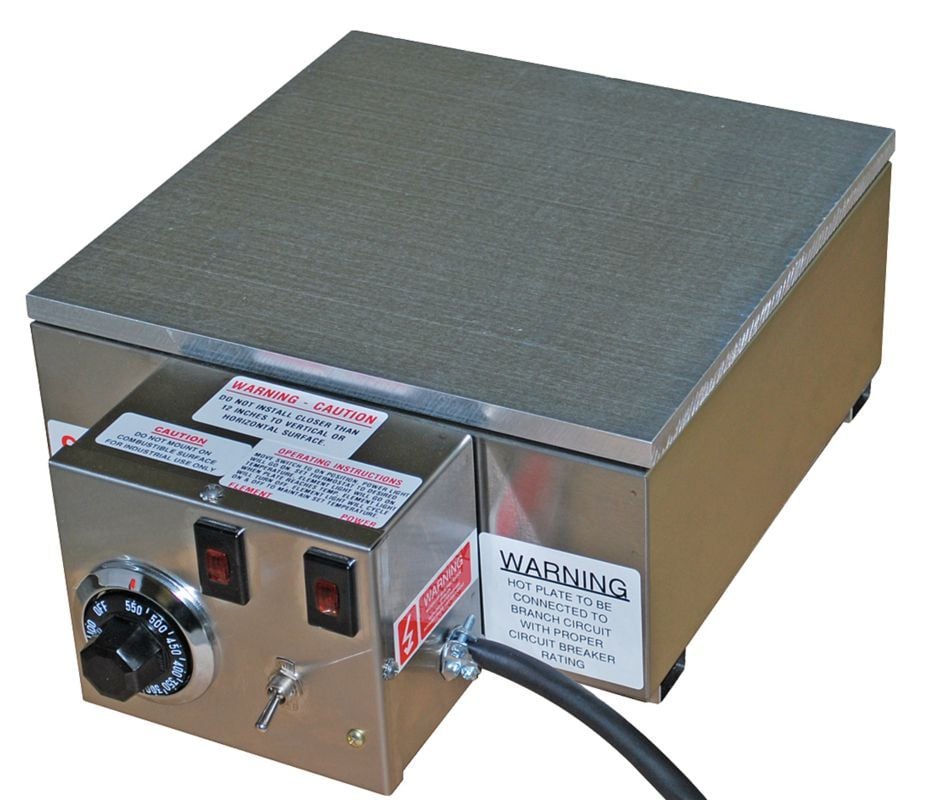

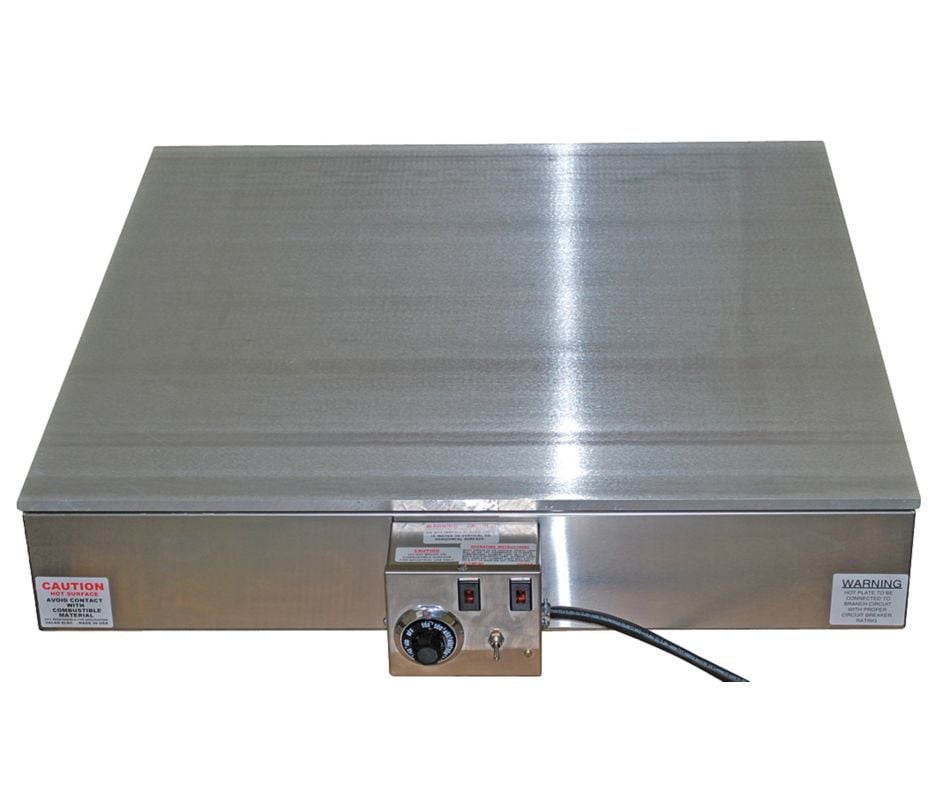

HP Standard Industrial Hot Plates

The key to this hot plate's performance is its 1/2 inch aluminum top plate with a leveled finish, which ensures exceptional and uniform heat transfer across the entire surface. Its durable 304 stainless steel cabinet is built for ease of cleaning and to meet sanitary codes, making it suitable for adverse environments like pharmaceutical and cosmetic manufacturing. Temperature is controlled via an adjustable operating thermostat within a range of 37°C to 287°C (100°F to 550°F). Available in a wide range of sizes, from 6 in x 12 in up to 36 in x 36 in, you can select the perfect unit for maximum process capacity.

Features:

• Rated for heavy loads and industrial conditions (all hot plates rated for minimum of 150 lbs)
• 1/2 inch aluminum leveled top plate provides uniform heat transfer
• Temperature range from 37°C to 287°C (100°F to 550°F)
• 304 stainless steel cabinet for ease of cleaning and sanitary compliance
• Wide range of sizes available, from 6 in x 12 in up to 36 in x 36 in
• Includes replaceable stainless steel magnesium-filled flat oval heating elements
• Manufactured to IEEE45 and ANSI ETL UL/499 standards
• Backed by a one-year warranty

Each Unit Includes:

• Replaceable stainless steel magnesium-filled flat oval heating elements
• 6 foot-heavy duty cord and plug
• Adjustable operating thermostat (Range from 100°F to 550°F)
• Mounting legs

Applications:

• Laboratories and pharmaceutical manufacturing
• Preheating for soldering operations
• Cosmetic and flavor manufacturing
• Semiconductor production and more

Important Notice: Valad Electric Heating Corp. assumes no liability for loss, damage, or personnel injury resulting from the high temperatures produced by our hot plates. These hot plates are for NON-HAZARDOUS locations.

Please note: Most items are made to order and are non-returnable once the package has been opened.

Customization: Alternative construction styles are available, including stainless steel tops, additional top sizes, varying top thickness, and low- and high-temperature operating thermostats. Please contact us for more details regarding returns or customization options.
