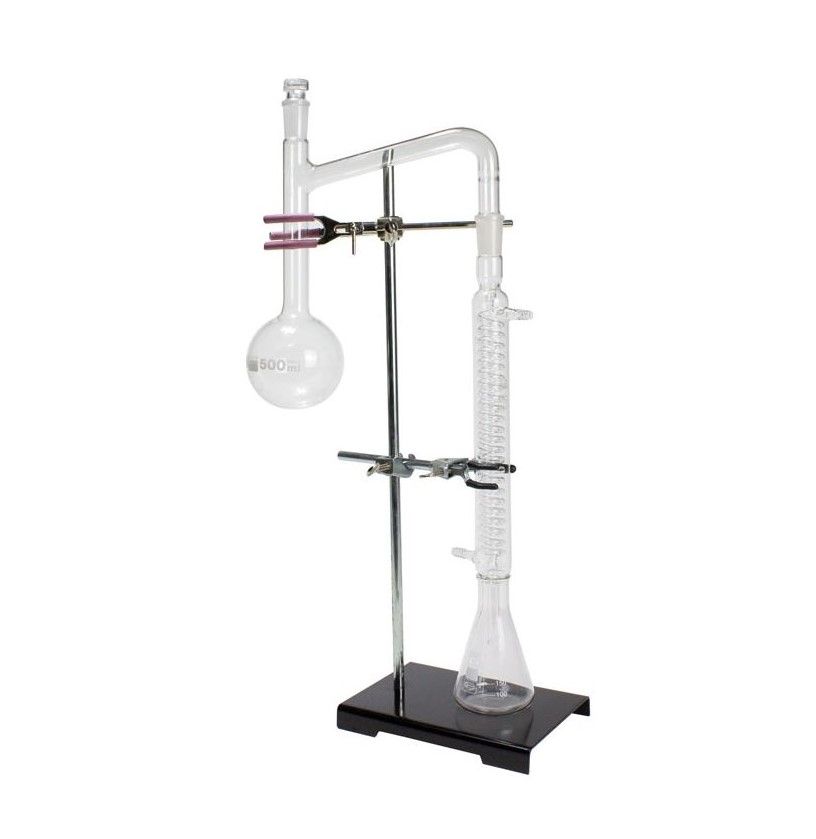

Complete Distillation Apparatus Set

What’s Included in the Box:

The DSA001 kit is a full "laboratory-in-a-box," containing the following components:

• Glassware: 500 mL Round Bottom Distillation Flask with Side Tube (Still Head)
• 300 mm Graham Condenser (9 mm Nozzle OD)
• 250 mL Erlenmeyer Flask (Receiving Vessel)
• 24/40 Ground Glass Stopper
• Support Hardware: 6 in x 9 in Support Stand with 24" Rod
• Swivel Burette Clamp & Extension Clamp
• Clamp Holder
• Instructional Support:
• Comprehensive Activity Guide for setup and experimental procedures.

Features:

• Features standard 24/40 ground glass joints for airtight, leak-proof connections without the need for rubber stoppers in critical vapor paths.
• The Graham condenser features a coiled inner tube, providing a larger surface area for more efficient cooling of vapors in a compact 300 mm length.
• The included heavy-duty stand and multi-point clamping system prevent the apparatus from tipping or shifting during boiling.
• High-quality borosilicate glass ensures the system safely transitions from the high heat of the boiling flask to the cold jacket of the condenser.

Usage & Safety Guidelines:

• CAUTION! Pressure Hazard: Never distill in a completely closed system. Ensure the connection to the receiving flask is vented to the atmosphere to prevent pressure build-up and potential explosion.
• Connect the water source to the lower nozzle of the Graham condenser and the drain to the upper nozzle. This ensures the cooling jacket stays full and eliminates air pockets.
• Always add boiling chips to the distillation flask before heating to ensure a smooth, controlled boil.
