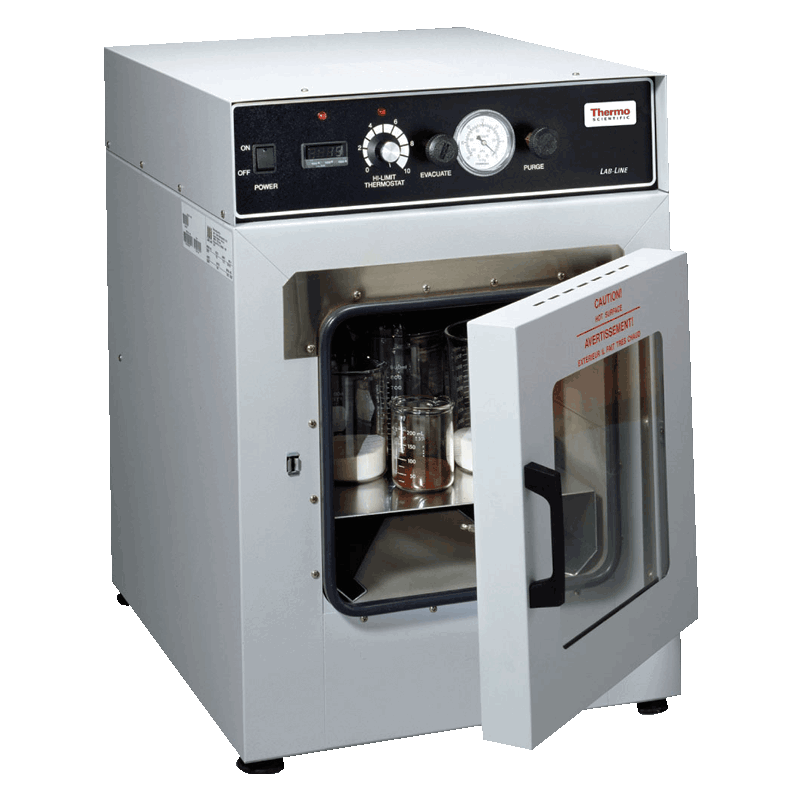

OTP Vacuum Oven
Manufacturer: Thermo Fisher
The Thermo Scientific™ OTP Vacuum Ovens have independent vacuum and purge needle valves. The warm-wall specifications saves chamber space for drying, curing, vacuum embedding and plating applications. The vacuum oven optimizes uniformity to give the best results while protecting your sample.
Description
Features:
- 3 convenient chamber sizes: 12.5L (0.44 cu.ft.), 19.8L (0.7 cu.ft.), 65.1L (2.3 cu.ft.)
- Temperature Range: Ambient +10° to 220°C
- Hydraulic thermostat temperature control with dial thermometer (5°C increments); medium and large units available with LED display (1°C increments)
- Polycarbonate safety shield protects door glass
- Silicone door gasket and positive latch door maintain seal at all vacuum levels ? use of vacuum grease is recommended
- Vacuum and air lines are corrosion-resistant stainless-steel tubing for optimum chamber cleanliness and long-term performance
- Two removable stacking aluminum shelves
- Powder-coated heavy-gauge steel exterior for durability
- Radiant warm-wall heating system helps optimize uniformity and conserve chamber space; 3 in.(7.6cm) glass wool insulation prevents heat loss
Small 3606 Models
- Top-mounted independent evacuation and venting vacuum fittings
Medium and large 3608 and 3618 Models
- Front-mounted three-way valve for evacuation, venting and purging of inert gases (e.g. Nitrogen or Argon) with vacuum fittings on the front of the unit
| SKU | Type | Temperature Resolution | Vacuum Range | # of Shelves |
|---|---|---|---|---|
| 3608-5 | OTP | ±1.0°C | 0 to 30 in. Hg | 2 Shelves |
| 3608-6CE | OTP | ±1.0°C | 0 to 30 in. Hg | 2 Shelves |
| 3618-1CE | OTP | ± 1.0°C | 0 to 30 in. Hg | 2 Shelves |
| 3618-5 | OTP | ± 1.0°C | 0 to 30 in. Hg | 2 Shelves |
| 3618-6CE | OTP | ± 1.0°C | 0 to 30 in. Hg | 2 Shelves |
|
Vacuum Oven Brochure | Download |
| SKU | Length | Width | Height |
|---|---|---|---|
| 3608-5 | 16 in | 19.8 in | 16.25 in |
| 3608-6CE | 16 in | 19.8 in | 16.25 in |
| 3618-1CE | 25 in | 25 in | 22 in |
| 3618-5 | 25 in | 25 in | 22 in |
| 3618-6CE | 25 in | 25 in | 22 in |
The Thermo Scientific™ OTP Vacuum Ovens have independent vacuum and purge needle valves. The warm-wall specifications saves chamber space for drying, curing, vacuum embedding and plating applications. The vacuum oven optimizes uniformity to give the best results while protecting your sample.
Starting at $6,750.00
