Friocell® EVO Freeze-Thaw Chambers
Manufacturer: BMT USA
The Friocell® EVO Freeze Thaw Chambers are designed explicitly for freeze thaw studies of asphalt, concrete, adhesives, coatings, and other materials. They are also ideal for testing products and packaging for food and beverage, pharmaceuticals, and cosmetics. These chambers come with BMT USA's EVO microprocessor temperature controller, which features exceptional temperature control and a 5.7 inch touchscreen display that supports many programs and segments. Other benefits include a removable AISI 304 stainless steel chamber, double wall chamber construction with five layers of insulation, an inner glass door for easy viewing without altering the internal conditions, and more.
Description
In Stock!
Lead Times May Vary
Friocell® EVO Freeze Thaw Chambers produce temperatures as low as -20°C up to 100°C, creating the optimal conditions for conducting freeze thaw studies of materials, including asphalt, concrete, adhesives, and coatings. The chambers are also ideal for testing food and beverage, pharmaceutical, and cosmetic products and packaging.
Features:
- EVO advanced microprocessor controller
- 5.7 inch color touchscreen with glove friendly operation
- 100 programs with 100 segments each for varying loads and parameters and unlimited cycles
- Real-time programming and cycling with temperature ramping settings
- Graphic display of cycle parameters
- DIN 12880 digital safety thermostat
- Delayed heating start and stop function
- Acoustic and digital alarms
- Keypad lock
- RS 232 port
- Pharmaceutical grade AISI 304 stainless steel chamber
- Removable inner chamber
- Molded brackets into the inner chamber walls
- Double wall chamber construction with 5 layers of insulation for more uniform internal chamber conditions
- Rounded interior corners
- Patented 4-point closing system that seals the door to the chamber gasket and enables hands-free opening and closing
- Inner glass door allows viewing into the chamber without affecting internal conditions
- 50 mm stainless steel port
Certifications:
- CE, UL, and CSA listed
- FDA CFR 21 Part 11 compliant microprocessor integrated data logger and remote access with multi-level authentication
| SKU | Model # | Hinge | Door Type | Heat-Up Time | Interior Material | Door Recovery Time |
|---|---|---|---|---|---|---|
| MC 001661-FT | Friocell EVO 55 Freeze-Thaw | Right | Solid Swing Door | <11 min to 37°C | AISI 304 Stainless Steel | <5 min to 37°C <6 min to 50°C |
| MC 001662-FT | Friocell EVO 111 Freeze-Thaw | Right | Solid Swing Door | <11 min to 37°C | AISI 304 Stainless Steel | <5 min to 37°C <6 min to 50°C |
| MC 001664-FT | Friocell EVO 222 Freeze-Thaw | Right | Solid Swing Door | <11 min to 37°C | AISI 304 Stainless Steel | <2 min to 37°C <3 min to 50°C |
| MC 001666-FT | Friocell EVO 404 Freeze-Thaw | Right | Solid Swing Door | <13 min to 37°C | AISI 304 Stainless Steel | <2 min to 37°C <4 min to 50°C |
| MC 001668-FT | Friocell EVO 707 Freeze-Thaw | Left and Right | Dual Solid Swing Door | <13 min to 37°C | AISI 304 Stainless Steel | <6 min to 37°C <6 min to 50°C |
|
Friocell Freeze-Thaw Chambers Data Sheet | Download |
| SKU | Max. # of Shelves | Shelf Capacity | Electrical Information | Dimensions | Internal Dimensions | Display | Shelf Type |
|---|---|---|---|---|---|---|---|
| MC 001661-FT | 4 Shelves | 44.1 lbs | 115V, 50/60Hz, 7.6A | 29.7 in x 25.2 in x 37.0 in | 15.7 in x 15.0 in x 14.0 in | Touch Screen | Adjustable |
| MC 001662-FT | 7 Shelves | 44.1 lbs | 115V, 50/60Hz, 10A | 30.7 in x 29.7 in x 46.7 in | 21.3 in x 15.0 in x 21.0 in | Touch Screen | Adjustable |
| MC 001664-FT | 10 Shelves | 66.1 lbs | 115V, 50/60Hz, 11.2A | 34.8 in x 30.7 in x 57.1 in | 21.3 in x 20.9 in x 30.1 in | Touch Screen | Adjustable |
| MC 001666-FT | 19 Shelves | 66.1 lbs | 115V, 50/60Hz, 16A | 43.3 in x 34.8 in x 74.4 in | 21.3 in x 20.9 in x 55.7 in | Touch Screen | Adjustable |
| MC 001668-FT | 19 Shelves | 110.2 lbs | 115V, 50/60Hz, 17.9A | 59.0 in x 34.8 in x 74.4 in | 37.0 in x 20.9 in x 55.7 in | Touch Screen | Adjustable |
The Friocell® EVO Freeze Thaw Chambers are designed explicitly for freeze thaw studies of asphalt, concrete, adhesives, coatings, and other materials. They are also ideal for testing products and packaging for food and beverage, pharmaceuticals, and cosmetics. These chambers come with BMT USA's EVO microprocessor temperature controller, which features exceptional temperature control and a 5.7 inch touchscreen display that supports many programs and segments. Other benefits include a removable AISI 304 stainless steel chamber, double wall chamber construction with five layers of insulation, an inner glass door for easy viewing without altering the internal conditions, and more.
Starting at $10,880.90
Request A Quote

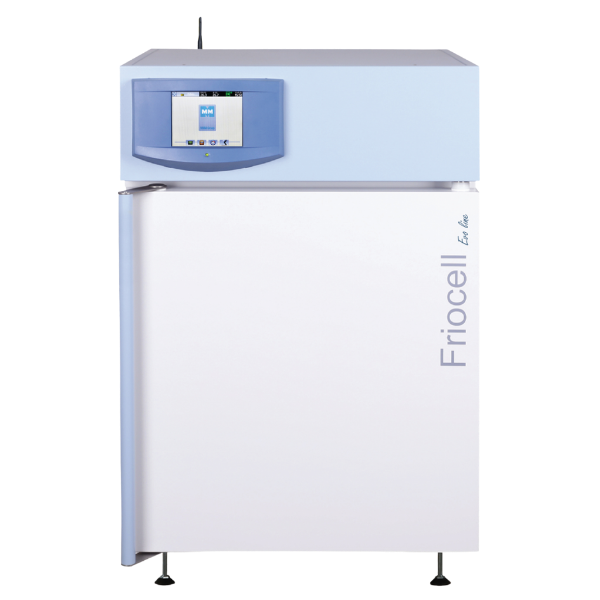

![BMT USA 55 L Friocell EVO Freeze Thaw Chamber, 115V]()
Select a product below and add it to your cart to request a quote.
