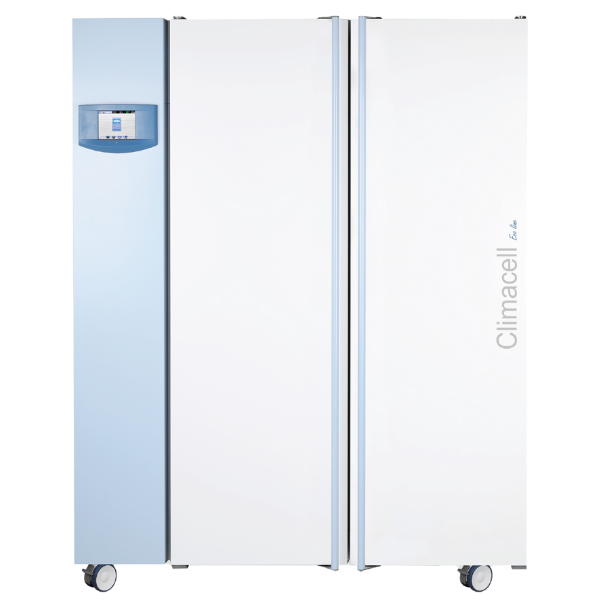

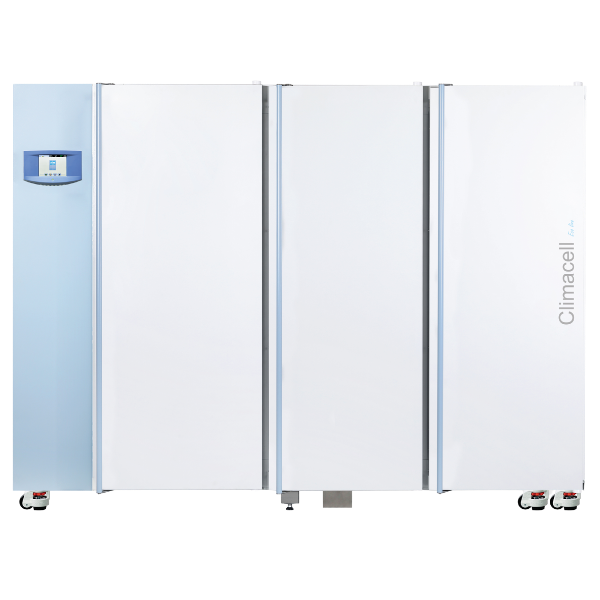

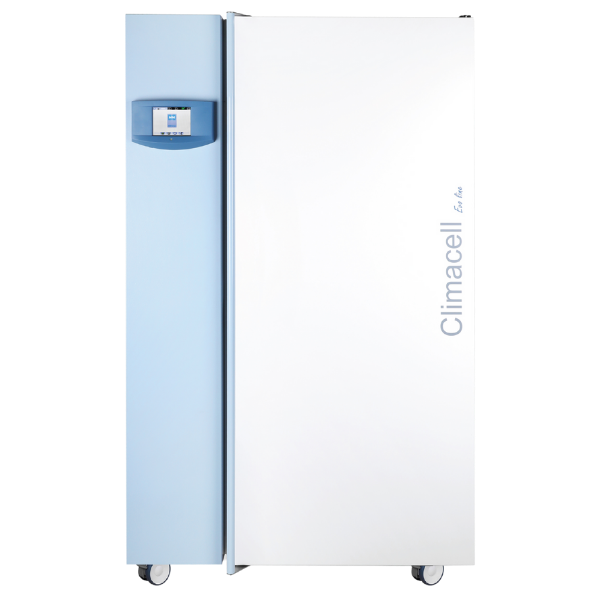

Climacell® EVO Temperature and Humidity Controlled Climate Chambers
Manufacturer: BMT USA
Elevate your product testing with Climacell® EVO Temperature and Humidity Controlled Climate Chambers. These chambers deliver unparalleled precision for ICH Q1A stability testing, shelf life studies, and material evaluations. The intuitive EVO controller, featuring a 5.7 inch touchscreen, simplifies complex programming with 100 programs, 100 segments, and unlimited cycles. Real-time programming, graphical displays, and a DIN 12880 safety thermostat provide exceptional control. Pharmaceutical grade stainless steel construction, five layers of insulation, and a patented door seal guarantee stability and reliability. FDA CFR 21 Part 11 compliance and CE, UL, and CSA listed make Climacell® EVO the ultimate choice for demanding applications.
Description
In Stock!
Lead Times May Vary
Climacell® Climate Chambers create reproducible simulations of environmental conditions through precise control of temperature humidity and optional lighting. The devices are ideal for ICH Q1A stability testing of pharmaceutical or cosmetic products and substances, shelf life testing of food and beverage products, and material quality and durability testing.
Features:
- EVO advanced microprocessor controller
- 5.7 inch color touchscreen with glove friendly operation
- 100 programs with 100 segments each for varying loads and parameters and unlimited cycles
- Real-time programming and cycling with temperature ramping settings
- Graphic display of cycle parameters
- DIN 12880 digital safety thermostat
- Delayed heating start and stop function
- Acoustic and digital alarms
- Keypad lock
- RS 232 port
- Pharmaceutical grade AISI 304 stainless steel chamber
- Removable inner chamber
- Molded brackets into the inner chamber walls
- Double wall chamber construction with 5 layers of insulation for more uniform internal chamber conditions
- Rounded interior corners
- Patented 4-point closing system that seals the door to the chamber gasket and enables hands-free opening and closing
- Inner glass door allows viewing into the chamber without affecting internal conditions
- 50 mm stainless steel port
Certifications:
- CE, UL, and CSA listed
- FDA CFR 21 Part 11 compliant microprocessor integrated data logger and remote access with multi-level authentication
Climate Chamber Model |
Max Consumption |
Electrical Information |
|---|---|---|
Climacell EVO 111 |
50/60Hz |
0°C: 230V, 8.9A, 2025W |
Climacell EVO 222 |
50/60Hz |
0°C: 230V, 9.6A, 2200W |
Climacell EVO 404 |
50/60Hz |
0°C: 230V, 13.7A, 3150W |
Climacell EVO 707 |
50/60Hz |
0°C: 230V, 14.8A, 3400W |
Climacell EVO 1212 |
50/60Hz |
0°C: 230V, 15.2A, 3500W |
*10°C up to 90°C with humidity
| SKU | Model # | Heat-Up Time | Door Recovery Time | Humidity Accuracy | CO2 Range | Control |
|---|---|---|---|---|---|---|
| MC 001663 | Climacell EVO 111 | <13 min to 37°C | <4 min to 37°C <5 min to 50°C |
2 % RH (≥21°C) | 0.1 - 20 % | N2/O2 0.1 - 20 % |
| MC 001665 | Climacell EVO 222 | <13 min to 37°C | <3 min to 37°C <6 min to 50°C |
2 % RH (≥21°C) | 0.1 - 20 % | N2/O2 0.1 - 20 % |
| MC 001667 | Climacell EVO 404 | <13 min to 37°C | <3 min to 37°C <7 min to 50°C |
2 % RH (≥21°C) | 0.1 - 20 % | N2/O2 0.1 - 20 % |
| MC 001669 | Climacell EVO 707 | <13 min to 37°C | <6 min to 37°C <6 min to 50°C |
2 % RH (≥21°C) | N2/O2 0.1 - 20 % | |
| MC 001657 | Climacell EVO 1212 | <13 min to 37°C | <10 min to 37°C <10 min to 50°C |
2 % RH (≥21°C) | N2/O2 0.1 - 20 % |
|
Climacell Temperature and Humidity Controlled Climate Chambers Data Sheet | Download |
| SKU | Max. # of Shelves | Shelf Capacity | Dimensions | Internal Dimensions | Display | Shelf Type | Interior Material | Hinge | Door Type |
|---|---|---|---|---|---|---|---|---|---|
| MC 001663 | 4 Shelves | 44.1 lbs | 30.7 in x 29.7 in x 47.8 in | 21.3 in x 15.0 in x 21.0 in | Touch Screen | Adjustable | AISI 304 Stainless Steel | Right | Solid Swing Door |
| MC 001665 | 7 Shelves | 44.1 lbs | 30.7 in x 34.8 in x 57.1 in | 21.3 in x 20.9 in x 30.1 in | Touch Screen | Adjustable | AISI 304 Stainless Steel | Right | Solid Swing Door |
| MC 001667 | 10 Shelves | 66.1 lbs | 43.1 in x 34.8 in x 74.4 in | 21.3 in x 20.9 in x 55.7 in | Touch Screen | Adjustable | AISI 304 Stainless Steel | Right | Solid Swing Door |
| MC 001669 | 19 Shelves | 66.1 lbs | 59.2 in x 34.8 in x 74.4 in | 37 in x 20.9 in x 55.7 in | Touch Screen | Adjustable | AISI 304 Stainless Steel | Right | Solid Swing Door |
| MC 001657 | 19 Shelves | 110.2 lbs | 99.6 in x 35.4 in x 75.6 in | 21.3 in (x3) x 20.9 in x 55.7 in | Touch Screen | Adjustable | AISI 304 Stainless Steel | Left and Right | Dual Solid Swing Door |
Elevate your product testing with Climacell® EVO Temperature and Humidity Controlled Climate Chambers. These chambers deliver unparalleled precision for ICH Q1A stability testing, shelf life studies, and material evaluations. The intuitive EVO controller, featuring a 5.7 inch touchscreen, simplifies complex programming with 100 programs, 100 segments, and unlimited cycles. Real-time programming, graphical displays, and a DIN 12880 safety thermostat provide exceptional control. Pharmaceutical grade stainless steel construction, five layers of insulation, and a patented door seal guarantee stability and reliability. FDA CFR 21 Part 11 compliance and CE, UL, and CSA listed make Climacell® EVO the ultimate choice for demanding applications.
Starting at $24,822.05
Request A Quote
![BMT USA 111 L Climacell EVO Temperature & Humidity Controlled Climate Chamber, 230V]()
Select a product below and add it to your cart to request a quote.
