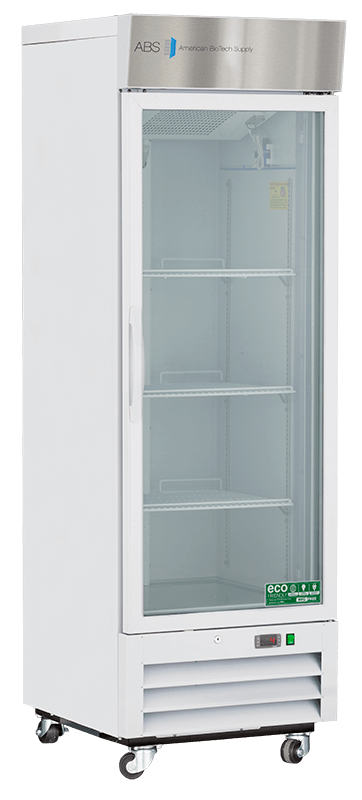

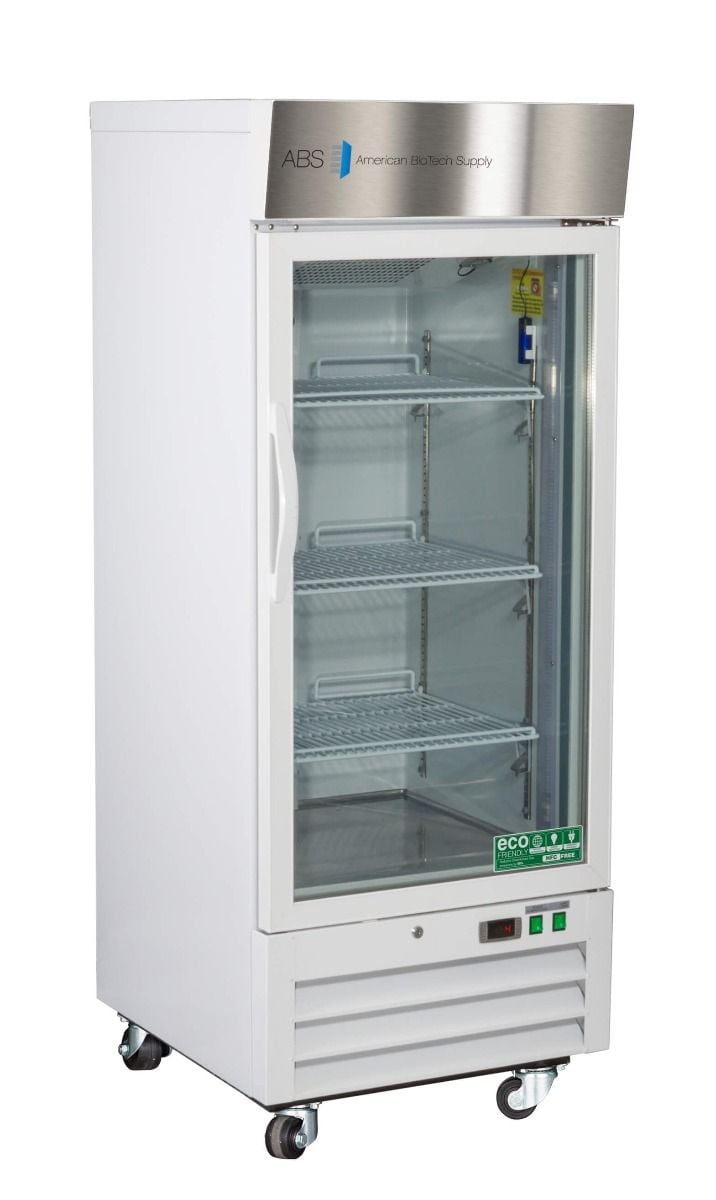

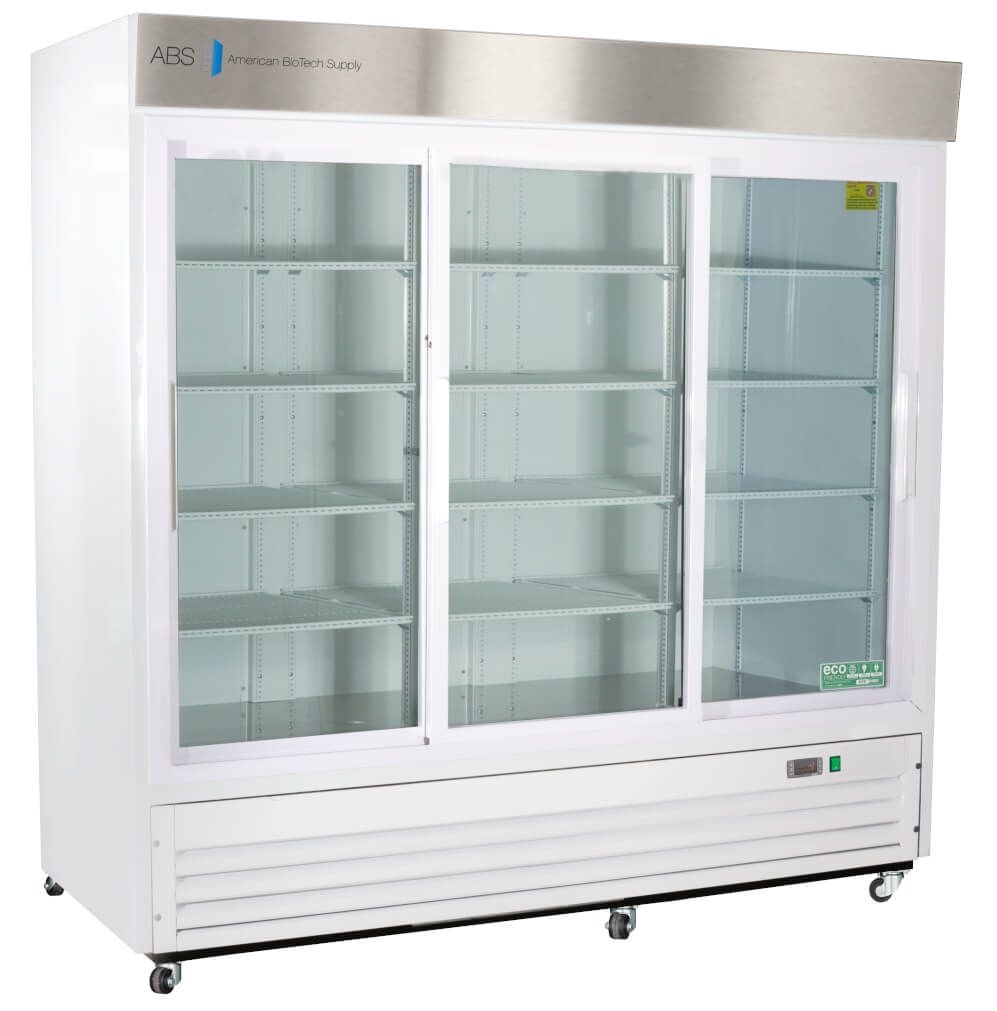

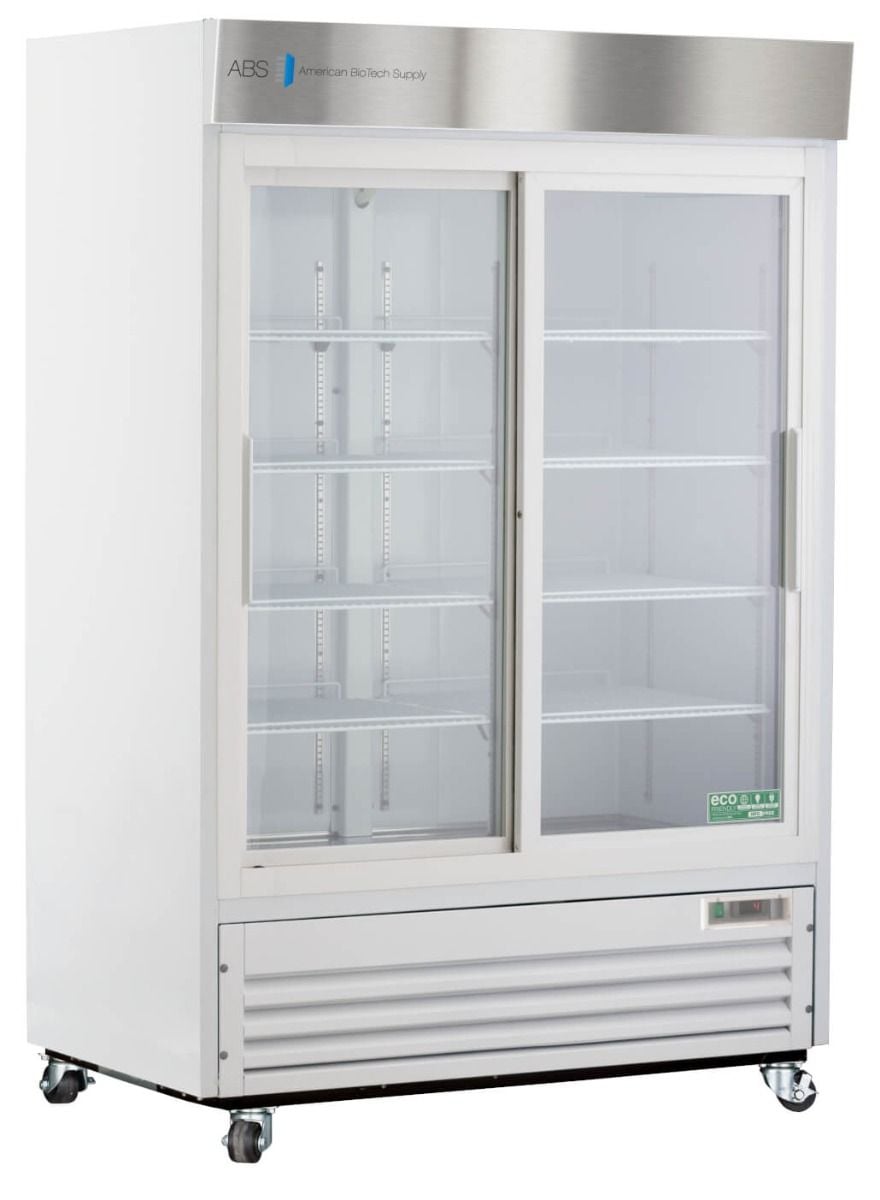

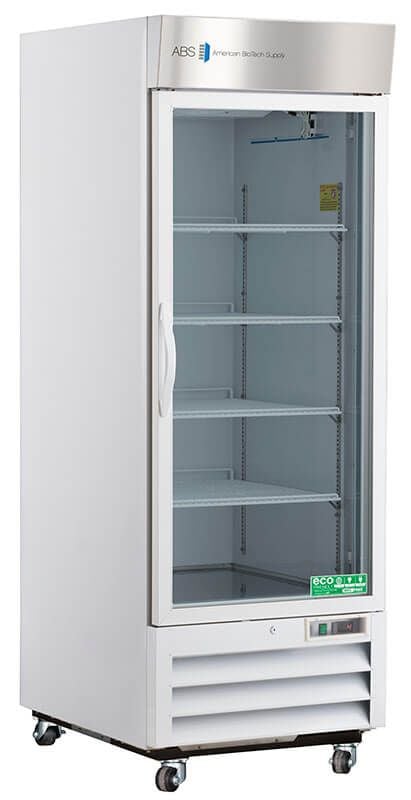

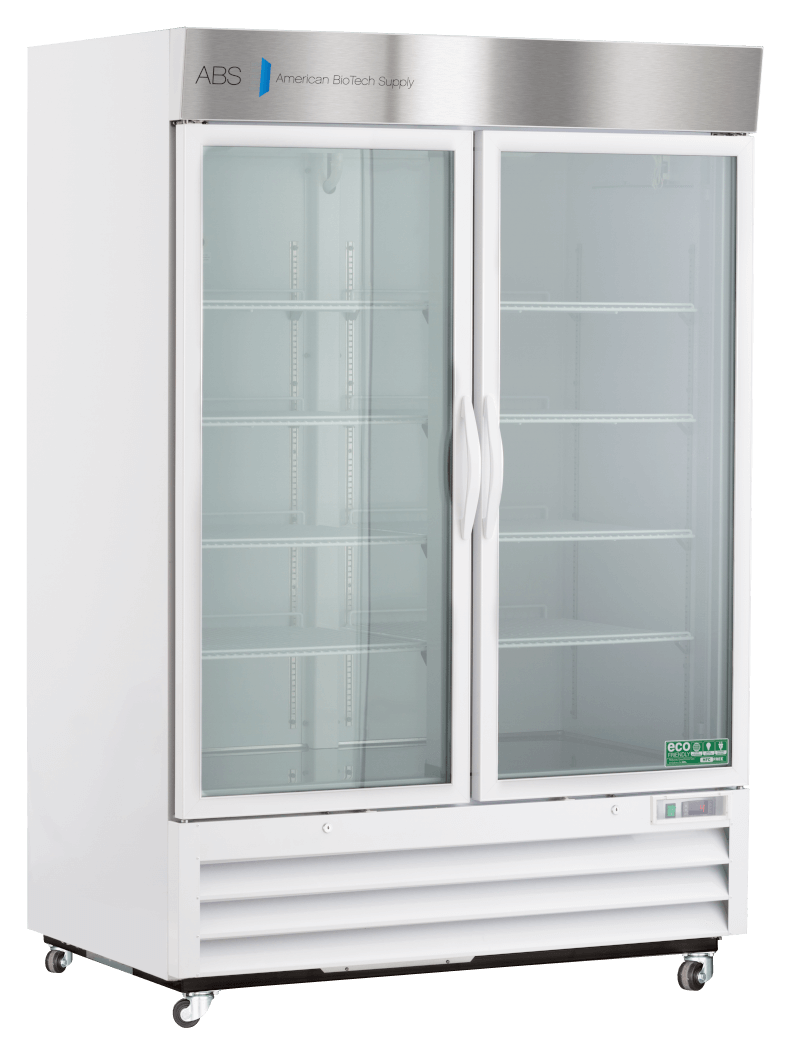

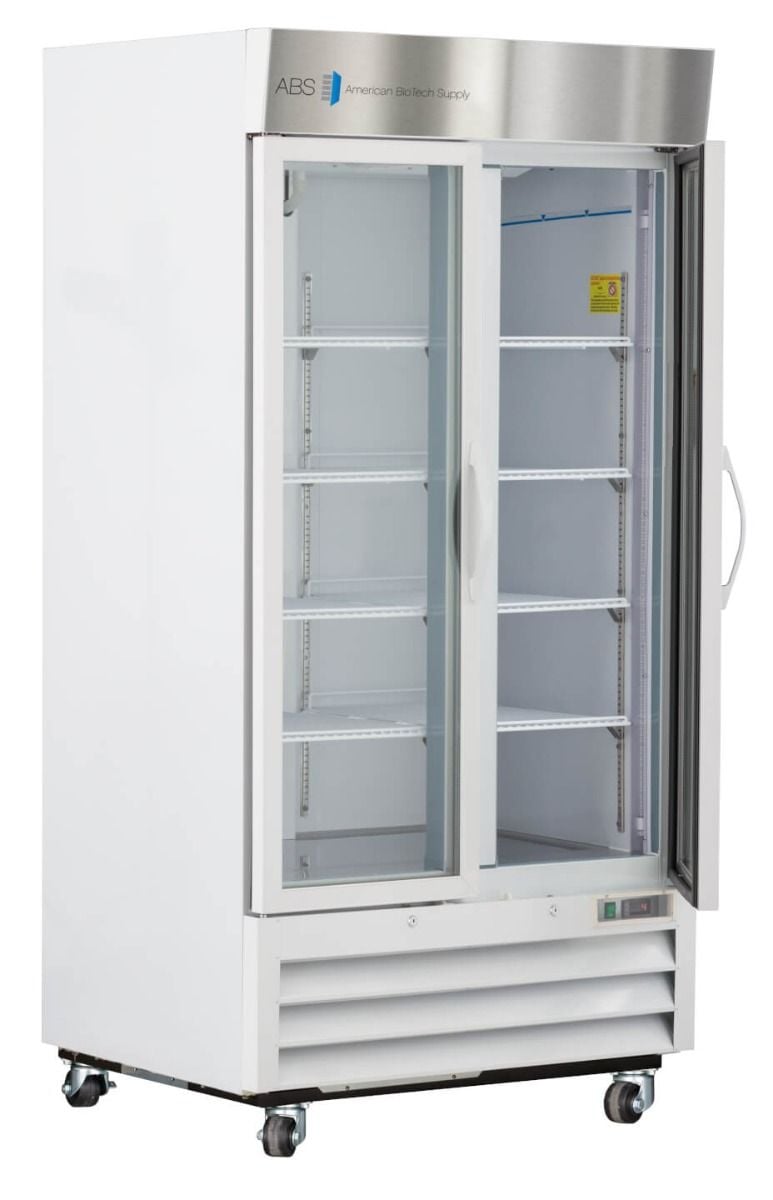

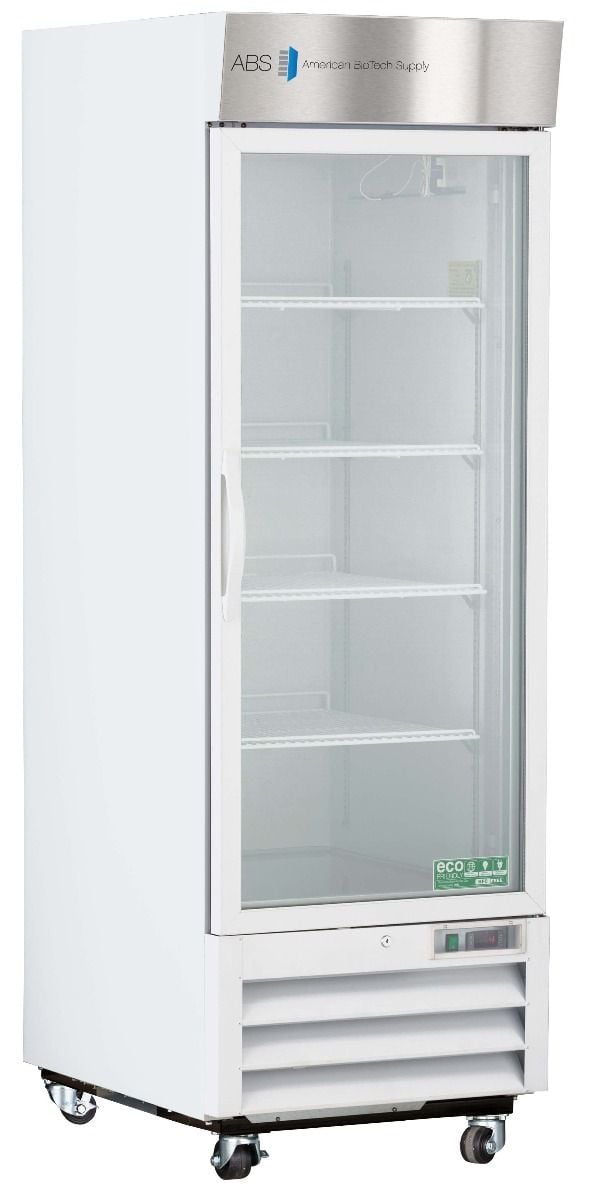

Standard Glass Door Laboratory Refrigerators
Manufacturer: American Biotech Supply
Description
The Standard Series Glass Laboratory Refrigerators are purpose-built for scientific and medical applications. They feature a digital microprocessor temperature controller, allowing for the precise temperature management necessary for critical samples and supplies. A forced air directional refrigeration system provides superior temperature uniformity and recovery after door openings.
Features:
- Microprocessor temperature controller
- Digital temperature display
- Audible and visual high and low-temperature alarms
- Remote alarm contacts
- Forced draft air circulation
- Keyed door lock
- Magnetic door gasket for positive seal
- Heavy duty door handle
- Swivel casters
- LED interior lights are safety-shielded and switch-controlled
- Probe access port
- Powder-coated steel white interior and exterior
- High density urethane foam cabinet insulation
- Hydrocarbon, natural refrigerant (R290)
Certification:
- ETL listed
- ENERGY STAR Certified for select units (ABT-HC-LS-16, ABT-HC-LS-26, and ABT-HC-LS-49)
Warranty:
- One year parts and labor warranty
- Five year compressor parts warranty
Please Note: ABT-HC-LS-12, ABT-HC-LS-16, ABT-HC-LS-26, and ABT-HC-LS-49 include Variable Speed Compressor (VSC) technology. Unlike traditional single-speed systems, VSC technology automatically adjusts compressor speed to match internal cooling demand, which helps deliver more precise temperature control, improved energy efficiency, quieter operation, and lower operating costs.
| SKU | Operating Temperature Range | Certification | Warranty | Hinge | Defrost |
|---|---|---|---|---|---|
| ABT-VS-LS-12 | 1°C to 10°C | ETL Listed | 1 Year | Right | Cycle |
| ABT-VS-LS-16 | 1°C to 10°C | ETL listed, ENERGY STAR Certified | 1 Year | Right | Cycle |
| ABT-HC-LS-23 | 1°C to 10°C | ETL Listed | 1 Year | Right | Cycle |
| ABT-VS-LS-26 | 1°C to 10°C | ETL listed, ENERGY STAR Certified | 1 Year | Right | Cycle |
| ABT-HC-LS-33 | 1°C to 10°C | ETL Listed | 1 Year | Left and Right | Cycle |
| ABT-HC-LS-36 | 1°C to 10°C | ETL Listed | 1 Year | Left and Right | Cycle |
| ABT-HC-LS-47 | 1°C to 10°C | ETL Listed | 1 Year | Left and Right | Cycle |
| ABT-VS-LS-49 | 1°C to 10°C | ETL listed, ENERGY STAR Certified | 1 Year | Left and Right | Cycle |
| ABT-HC-LS-69 | 1°C to 10°C | ETL Listed | 1 Year | Left and Right | Cycle |
| ABT-HC-LS-72 | 1°C to 10°C | ETL Listed | 1 Year | Left and Right | Cycle |
|
|
ABT-HC-LS-12 Data Sheet | Download |
|
|
ABT-HC-LS-12 Exterior Cut Sheet | Download |
|
|
ABT-HC-LS-12 Interior Cut Sheet | Download |
|
|
ABT-HC-LS-16 Data Sheet | Download |
|
|
ABT-HC-LS-16 Exterior Cut sheet | Download |
|
|
ABT-HC-LS-16 Interior Cut Sheet | Download |
|
|
ABT-HC-LS-23 Data Sheet | Download |
|
|
ABT-HC-LS-23 Exterior Cut Sheet | Download |
|
|
ABT-HC-LS-23 Interior Cut Sheet | Download |
|
|
ABT-HC-LS-26 Data Sheet | Download |
|
|
ABT-HC-LS-26 Exterior Cut Sheet | Download |
|
|
ABT-HC-LS-26 Interior Cut Sheet | Download |
|
|
ABT-HC-LS-33 Data Sheet | Download |
|
|
ABT-HC-LS-33 Exterior Cut Sheet | Download |
|
|
ABT-HC-LS-33 Interior Cut Sheet | Download |
|
|
ABT-HC-LS-36 Data Sheet | Download |
|
|
ABT-HC-LS-36 Exterior Cut Sheet | Download |
|
|
ABT-HC-LS-36 Interior Cut Sheet | Download |
|
|
ABT-HC-LS-47 Data Sheet | Download |
|
|
ABT-HC-LS-47 Exterior Cut Sheet | Download |
|
|
ABT-HC-LS-47 Interior Cut Sheet | Download |
|
|
ABT-HC-LS-49 Data Sheet | Download |
|
|
ABT-HC-LS-49 Exterior Cut Sheet | Download |
|
|
ABT-HC-LS-49 Interior Cut sheet | Download |
|
|
ABT-HC-LS-49 Data Sheet | Download |
|
|
ABT-HC-LS-69 Data Sheet | Download |
|
|
ABT-HC-LS-69 Exterior Cut Sheet | Download |
|
|
ABT-HC-LS-69 Interior Cut Sheet | Download |
|
|
ABT-HC-LS-72 Data Sheet | Download |
|
|
ABT-HC-LS-72 Exterior Cut Sheet | Download |
|
|
ABT-HC-LS-72 Interior Cut Sheet | Download |
| SKU | Dimensions | Electrical Information | Refrigerant | Controller |
|---|---|---|---|---|
| ABT-VS-LS-12 | 25.0 in x 29.75 in x 65.75 in | 115V, 60Hz, 3A, 1/5 HP | R290 | Microprocessor |
| ABT-VS-LS-16 | 25.0 in x 29.75 in x 79.0 in | 115V, 60Hz, 3A, 1/5 HP | R290 | Microprocessor |
| ABT-HC-LS-23 | 26.875 in x 34.75 in x 81.75 in | 115V, 60Hz, 3A, 1/5 HP | R290 | Microprocessor |
| ABT-VS-LS-26 | 28.375 in x 36.5 in x 81.75 in | 115V, 60Hz, 3A, 1/5 HP | R290 | Microprocessor |

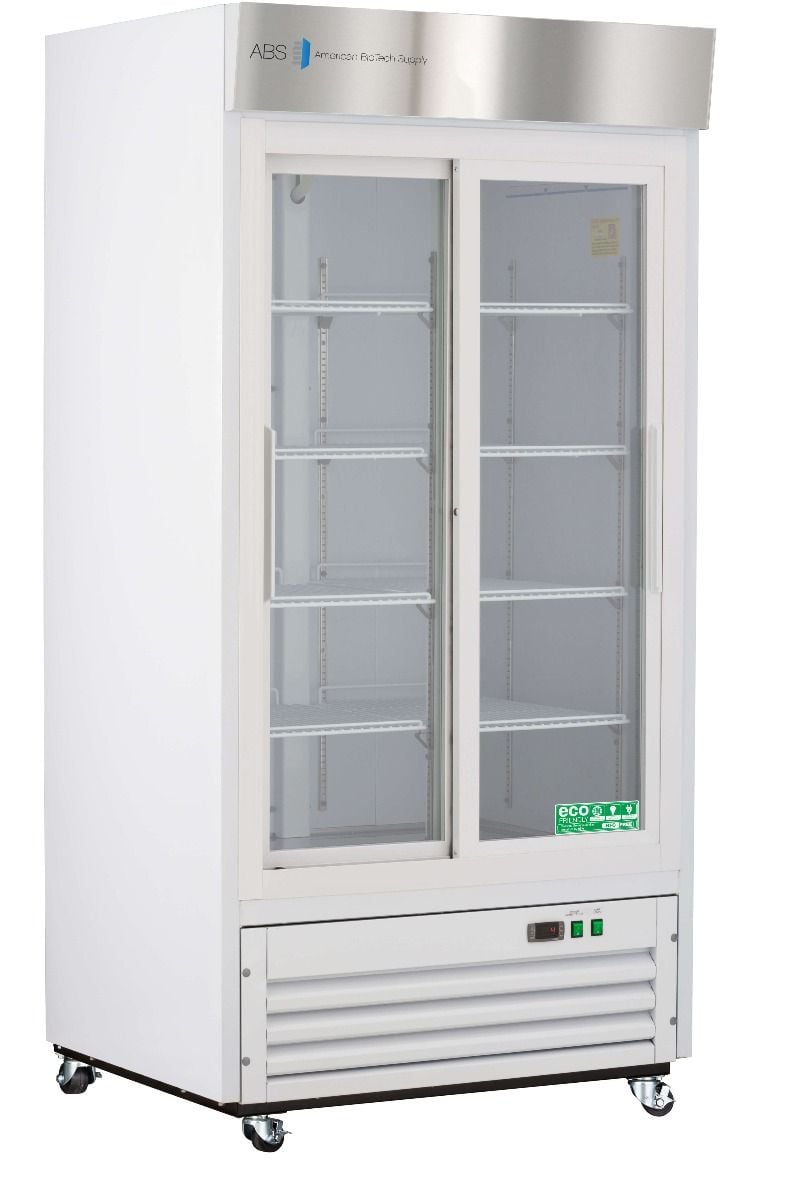

| ABT-HC-LS-33 | 39.625 in x 33.25 in x 81.75 in | 115V, 60Hz, 4.5A, 1/4 HP | R290 | Microprocessor |
| ABT-HC-LS-36 | 39.625 in x 34.75 in x 81.75 in | 115V, 60Hz, 4.5A, 1/4 HP | R290 | Microprocessor |
| ABT-HC-LS-47 | 54.125 in x 33.25 in x 81.75 in | 115V, 60Hz, 4.5A, 1/4 HP | R290 | Microprocessor |
| ABT-VS-LS-49 | 54.0 in x 34.75 in x 81.75 in | 115V, 60Hz, 4.5A, 1/4 HP | R290 | Microprocessor |
| ABT-HC-LS-69 | 81.0 in x 33.25 in x 81.75 in | 115V, 60Hz, 7.5A, 1/2 HP | R290 | Microprocessor |

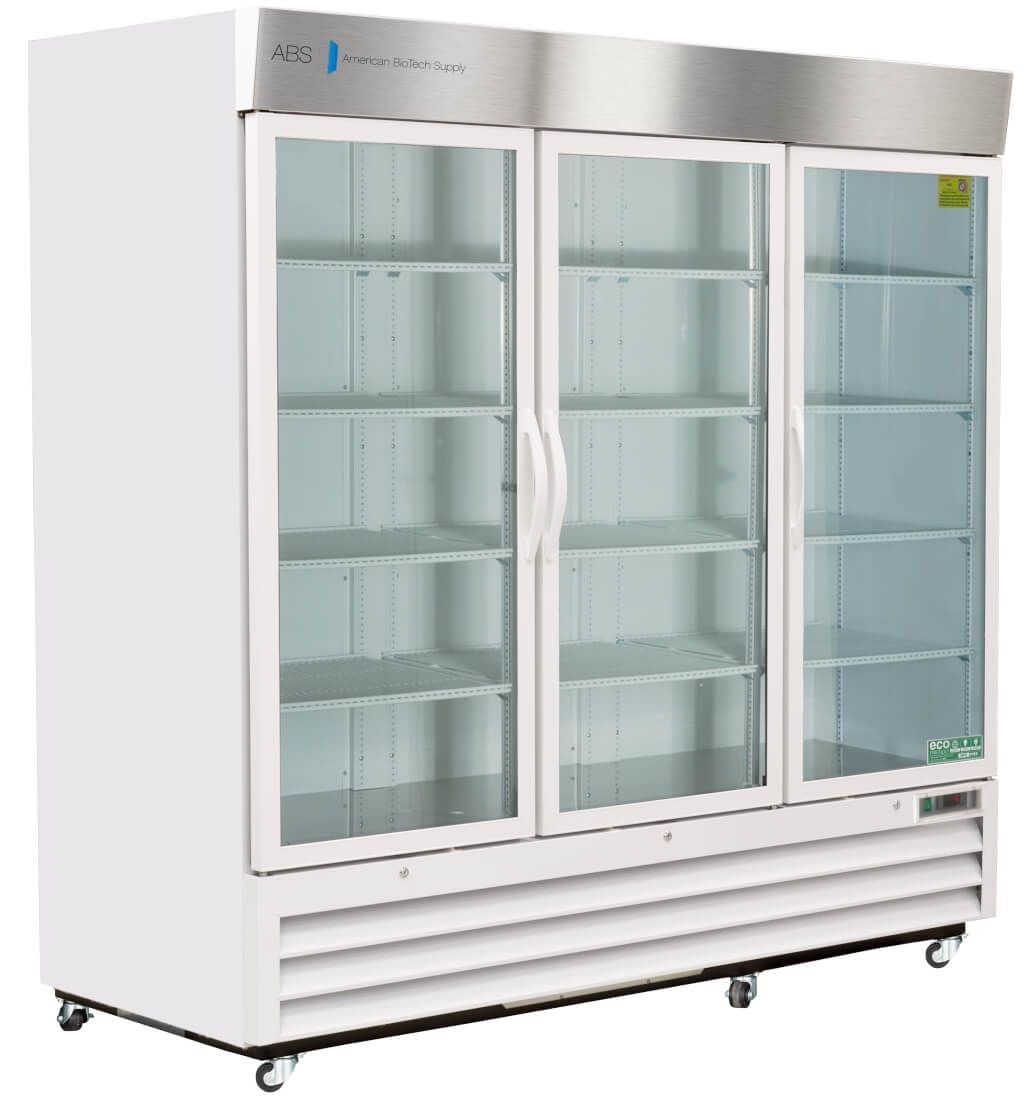

| ABT-HC-LS-72 | 81.0 in x 34.0 in x 71.75 in | 115V, 60Hz, 7.5A, 1/2 HP | R290 | Microprocessor |
Starting at from $4,426.00 Sale $4,204.70
