Short Path Digital Heating Mantles
Manufacturer: Across International
Starting at $690.00
Select a product below and add it to your cart to request a quote.
Short Path Digital Heating Mantles
Description
Across International heating and stirring mantles come standard with digital display for the most accurate control. The large display interface makes it easy to quickly and precisely adjust temperature and rotation speeds.
The DigiM mantle is equipped with two sets of thermocouples for proper temperature and speed detection. The heating jacket is pre-treated before shipment, which ensures that no smoke or odors (caused by heat) are released into your work environment.
Features
- PID control with digital temperature and rotation speed display
- PT100 external thermocouple
- CE certified
- One year warranty
SKU | Electrical Information | Flask Holder | Temperature Range | Stirring |
---|---|---|---|---|
DigiM2.110 | 110V, 60Hz, 1-Phase, 8A, 700W | 2 L | Ambient to 300°C | Min. speed: 110 rpm, max. speed: 1500 rpm |
DigiM10.220 | 220V, 50/60Hz, 1-Phase, 12A, 2050W | 10 L | Ambient to 300°C | Min. speed: 110 rpm, max. speed: 2000 rpm |
DigiM5.110 | 110V, 60Hz, 1-Phase, 12A, 1100W | 5 L | Ambient to 300°C | Min. speed: 110 rpm, max. speed: 2000 rpm |
DigiM2.220 | 220V, 50/60Hz, 1-Phase, 4A, 700W | 2 L | Ambient to 300°C | Min. speed: 110 rpm, max. speed: 1500 rpm |
DigiM10.110 | 110V, 60Hz, 1-Phase, 24A, 2050W | 10 L | Ambient to 300°C | Min. speed: 110 rpm, max. speed: 2000 rpm |
SKU | Inner Fabric | Outer Fabric | Insulation | For Use With | Material | Max Temperature |
---|---|---|---|---|---|---|

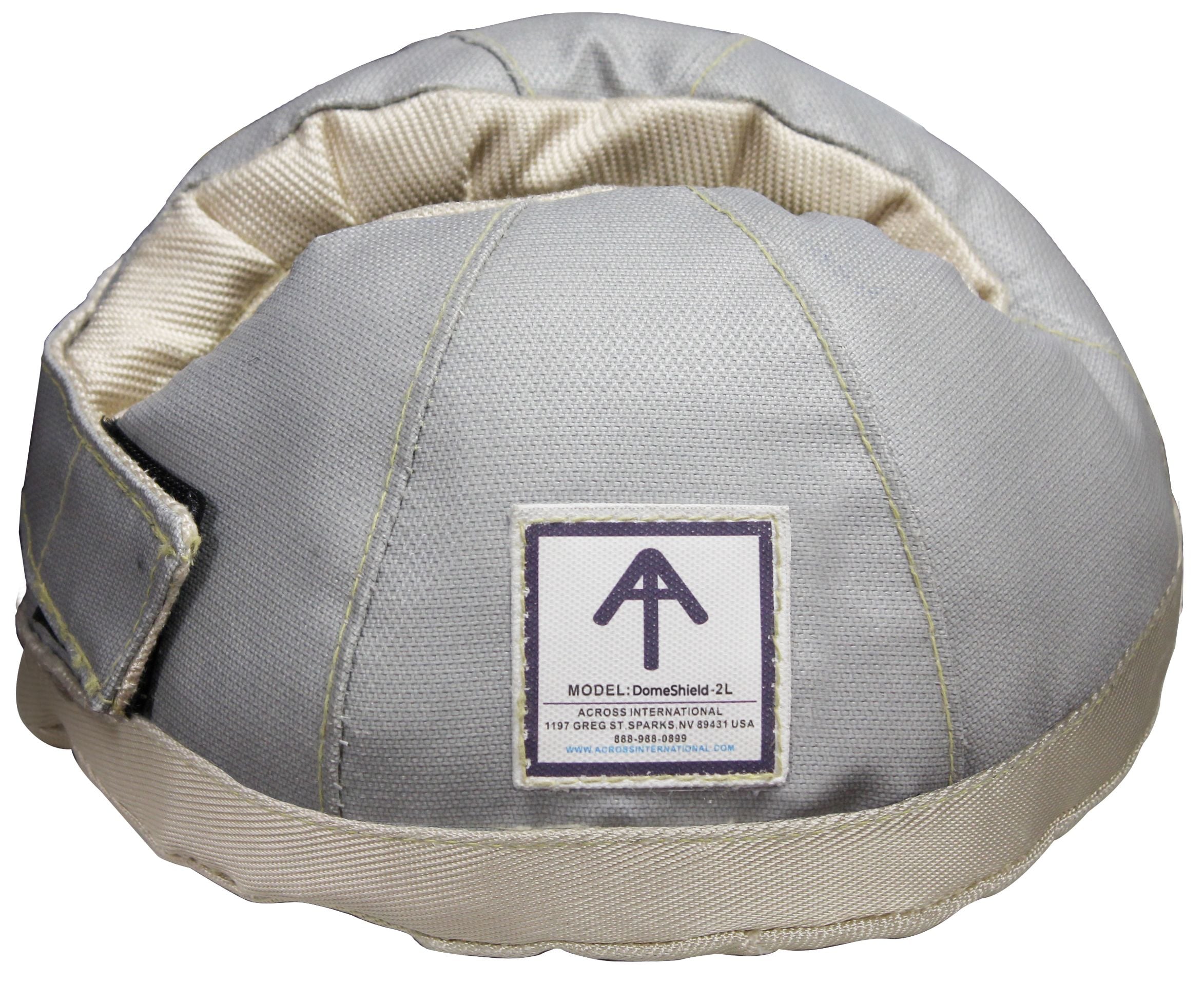

DomeShield-2L | Rated for 1000°C constant temperature (beige color) | Rated for 280°C (light grey) | Fiber glass insulation rated for 800°C | 1, 2 or 3-neck 2L flasks | - | |

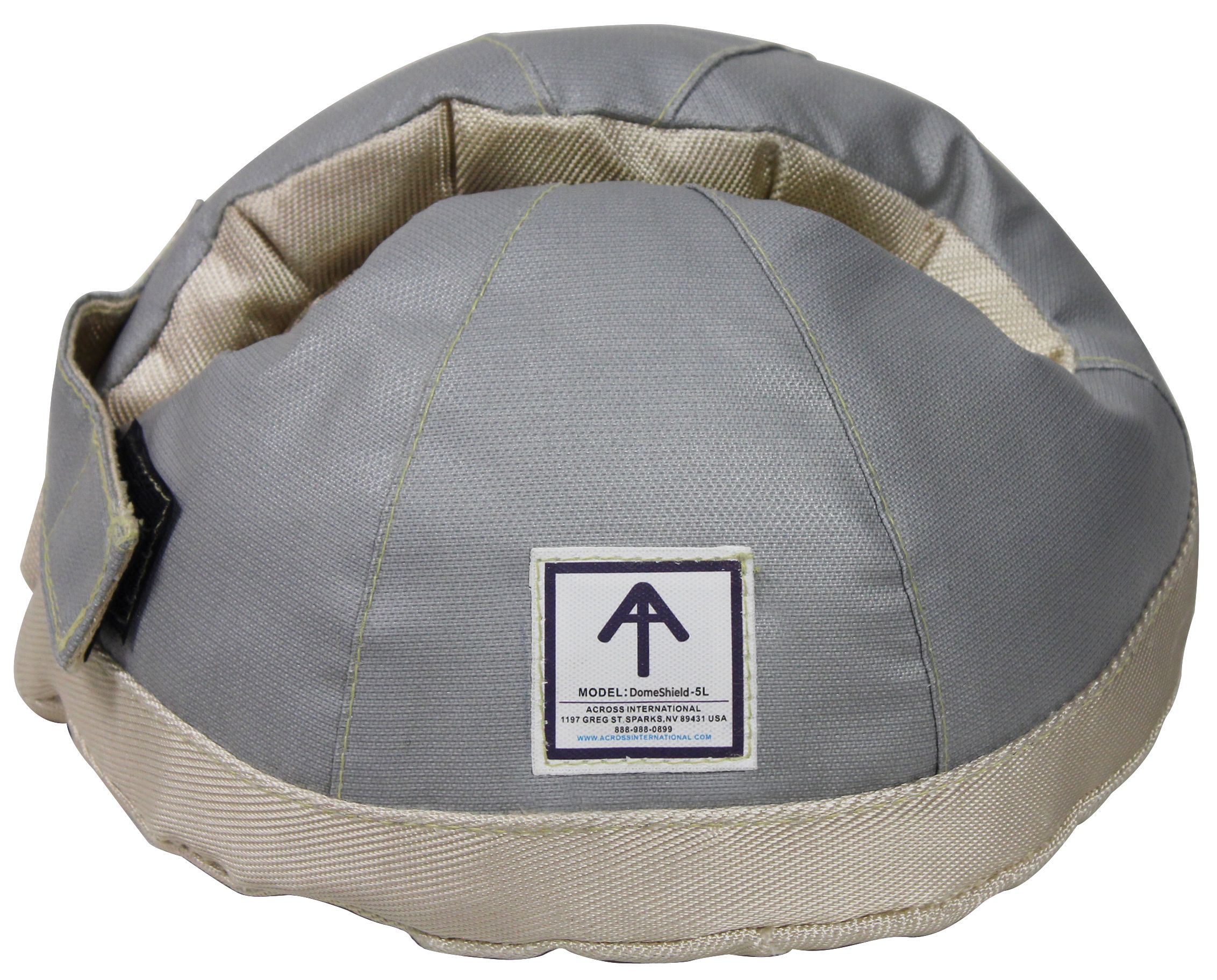

DomeShield-5L | Rated for 1000°C constant temperature (beige color) | Rated for 280°C (light grey) | Fiber glass insulation rated for 800°C | 1, 2 or 3-neck 5L flasks | - | |

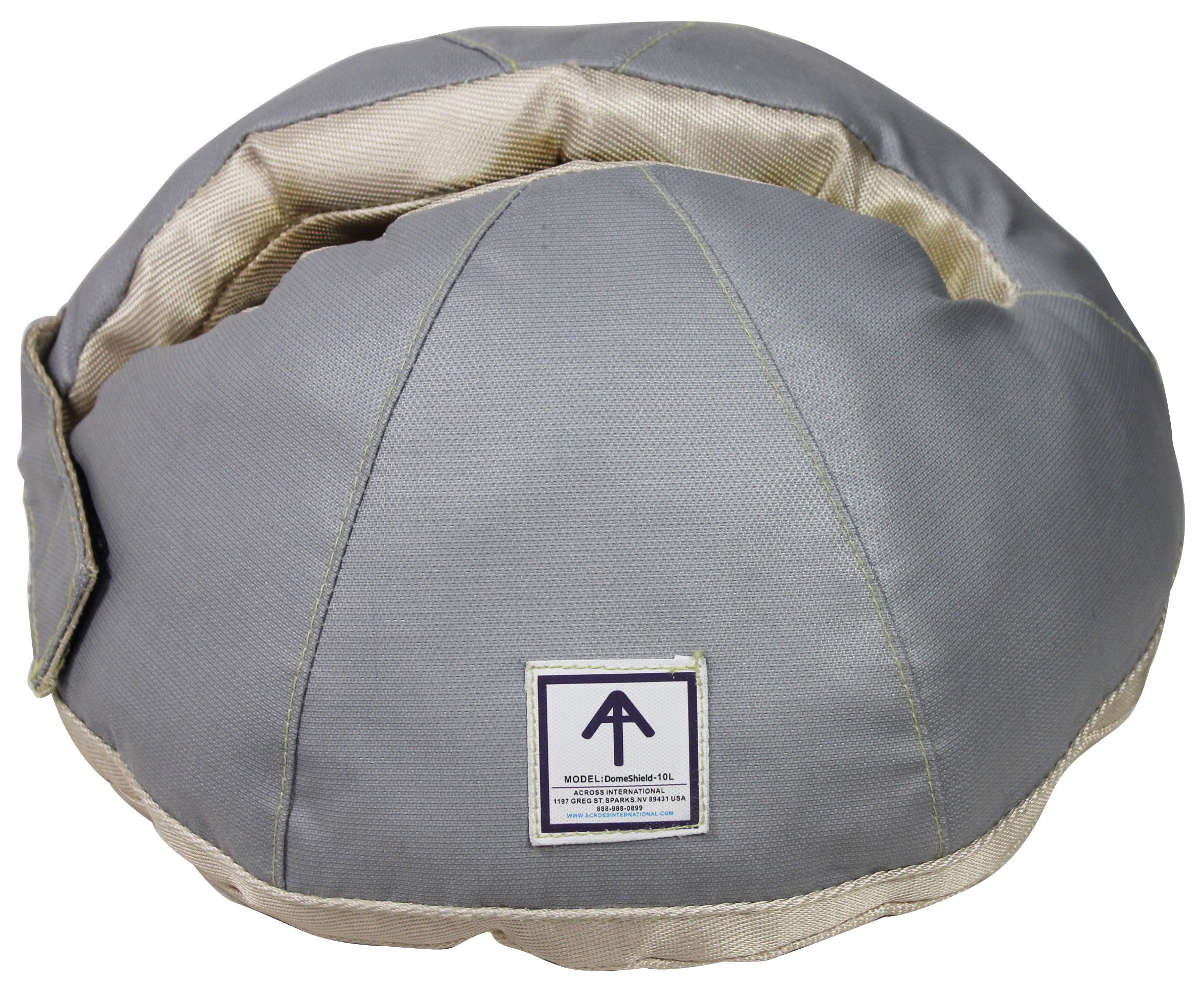

DomeShield-10L | Rated for 1000°C constant temperature (beige color) | Rated for 280°C (light grey) | Fiber glass insulation rated for 800°C | 1, 2 or 3-neck 10L flasks | - | |

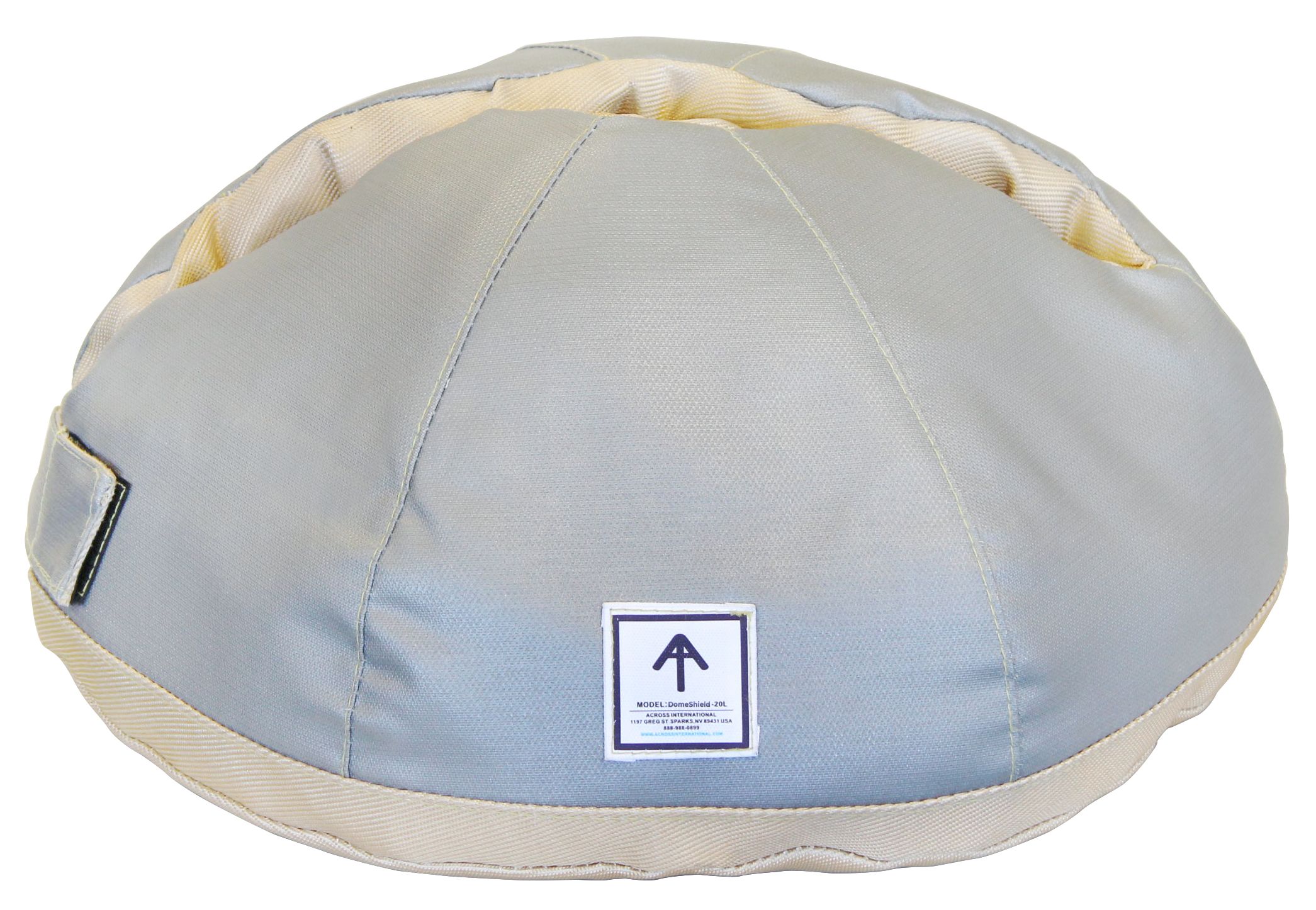

DomeShield-20L | Rated for 1000°C constant temperature (beige color) | Rated for 280°C (light grey) | Fiber glass insulation rated for 800°C | 1, 2 or 3-neck 20L flasks | - | |

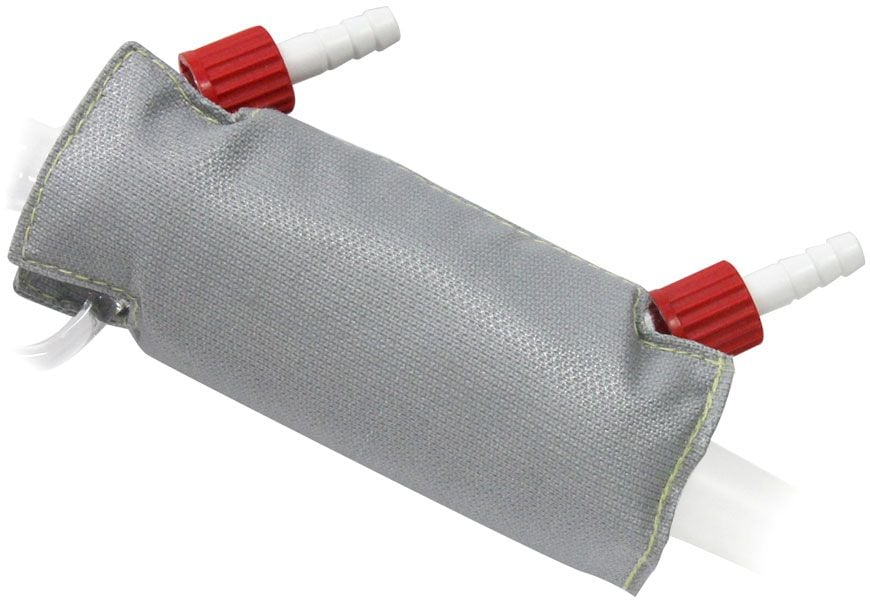

DrainShield-5L | - | Rated for 280°C (light grey) | Fiber glass insulation rated for 800°C | Ai 5L Head drain | - | |

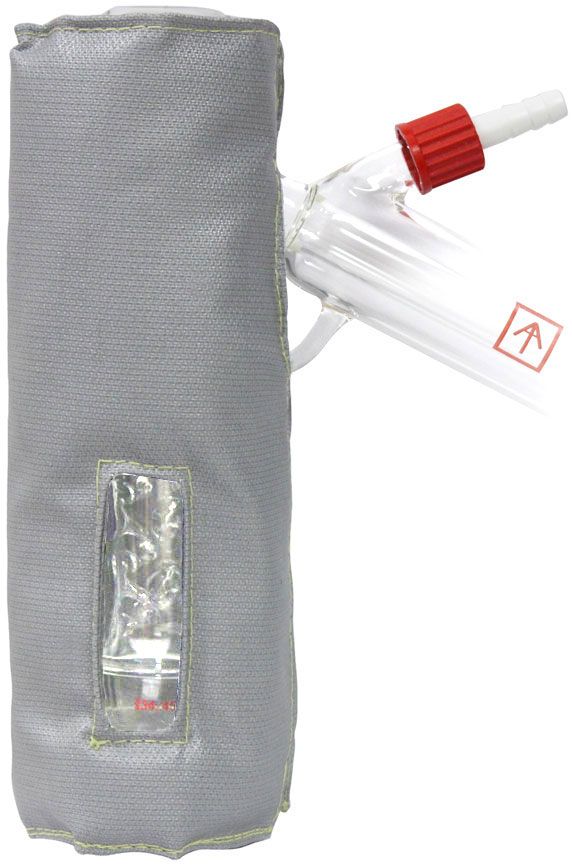

HeadShield-5L | - | Rated for 280°C (light grey) | Fiber glass insulation rated for 800°C | Ai 5L Head (window for viewing) | - | |
SP-FR10 | - | - | - | Solvents, acids, bleach | Fiberglass | 1000°F or 537°C |
SP-FR20 | - | - | - | Solvents, acids, bleach | Fiberglass | 1000°F or 537°C |
SP-FR30 | - | - | - | Solvents, acids, bleach | Fiberglass | 1000°F or 537°C |
