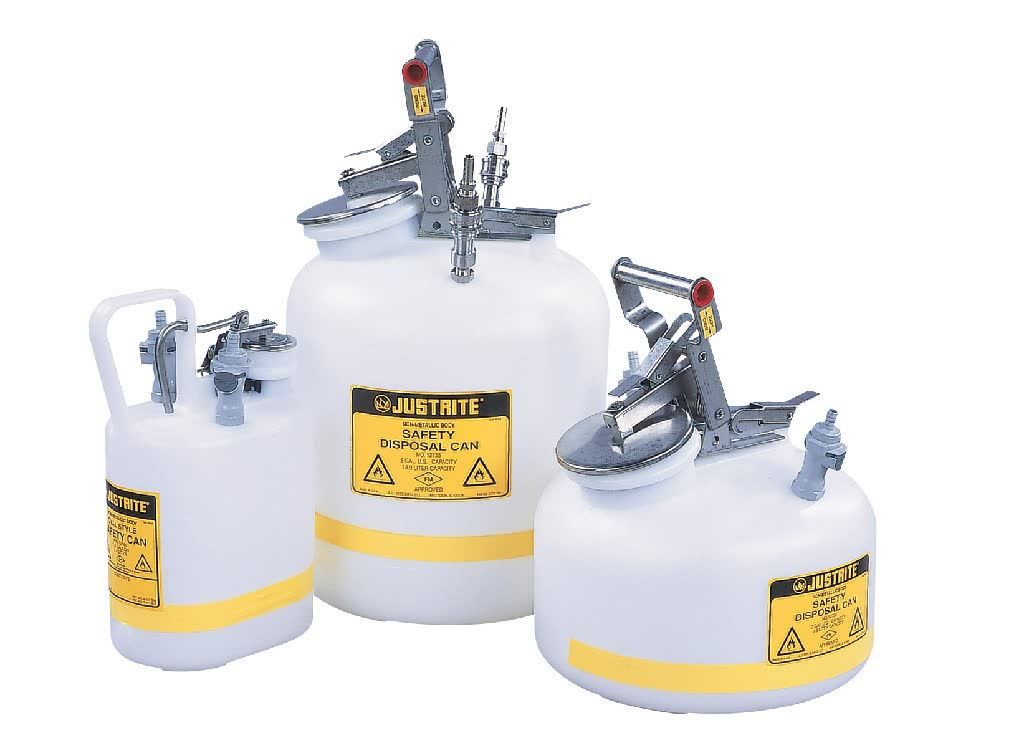

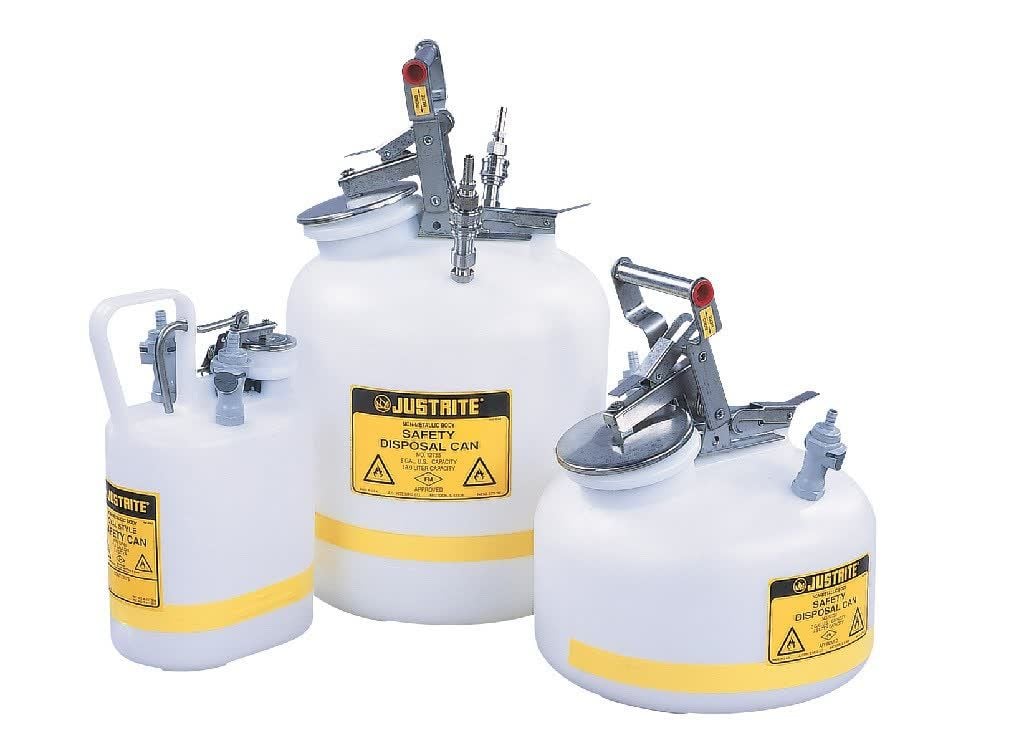

Justrite® Centura® Quick-Disconnect Disposal Safety Disposal Cans

Features:

• Ideal for HPLC waste applications
• Vapor and fire protection
• Safeguard against accidental spills
• Maximize safety and convenience
• Provide convenient, hands-free system for safe collection, transfer, and disposal of HPLC solvents
• Durable polyethylene safety cans are suitable for pump-fed or gravity-flow waste methods
• Safeguard against accidents and increase vapor and fire protection
• Outfitted with quick-disconnect intake and vapor release fittings
• Compliant with OSHA 29 CFR 1910.106; EPA 40 CFR 264.173
• FM approved

Hands-free solvent collection: Solvent flows freely from your process into the container through tubing making it suitable for either pump-fed or gravity-flow HPLC waste methods. Two disconnect fittings, one intake and one vent, eliminate back pressure in liquid flow disposal line and provide controlled handling of vapor.

Durability and safety: Translucent polyethylene container allows quick visual inspection of liquid level. Pouring spout is equipped with a stainless steel flame arrester, which reliably dissipates heat to prevent flashback ignition. Spring-loaded, sealed lid automatically vents to guard against explosion. Control odors with a coalescing/carbon filter.

Quick-disconnect fittings allow free flow of solvent into container through 1cm (3/8") tubing.

Quick-Disconnect System:

• Easy-on, easy-off mechanism offers detachment of the can from the process without leaks, drips or vapor release. Once disconnected, the container is automatically sealed to prevent spills
• Valved quick-disconnect fittings automatically close when decoupled to prevent vapor or liquid release
• Stainless-steel fittings offer PTFE O-rings on standard containers. Also available with EPDM O-ring seals on customized cans
• Coalescing carbon filterOptional filters are for use with only round style cans
• Easy-carrying handle with fixed position latch keeps spring loaded cover open for convenient pouring during disposal
• Economically priced polypropylene barbed fittings offer EPDM O-rings
• Translucent color lets you check liquid level at a glance

The HPLC Manifold Fit (Found in the Accessory Tab) enables up to four waste lines from HPLC processes to be fed into a single intake fitting. Kit includes enough fittings to accommodate tube lines either 1.6mm (1/16") or 3.2mm (1/8") OD. Approximately 89mm (3 1/2") long and made of 316 stainless steel, manifold comes with a pre-installed stainless steel disconnect plug that fits into the stainless steel fitting.

Please Note: Filters cannot be used with 3.8L (1gal.) oval style can 82013-208.
