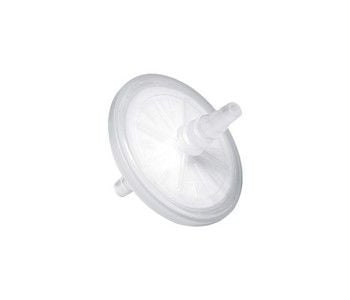

PTFE Vent Filter
Manufacturer: GVS
With a broad range of chemical resistance, the PTFE vent filter contains a PTFE membrane and uses a polypropylene housing. These filters are reusable up to ten times or disposable, depending upon the application. Easy to connect to a hose for an inlet or outlet. They are autoclavable up to ten times at 121°C. See below for a full list of recommended applications. Available in two different pore sizes and pack sizes.
Description
In Stock!
Lead Times May Vary
GVS Vent Filters are available with connectors 6-12mm and are individually packaged either sterile or non-sterile. These devices are available with PTFE membranes, Polypropylene housing, and 0.20µm or 0.45µm pore size.
Properties
- PTFE membrane and polypropylene housing have broad chemical resistance
- Large surface area provides greater throughput and high air flow rate
- Reusable and autoclavable
- Disposable
- Hose barb connection inlet /outlet (6-12mm)
Characteristics:
- Membrane Materials and diameter: Hydrophobic PTFE reinforced with polypropylene, diameter 50 mm
- Housing: Polypropylene Ultrasonically welded
- Filter Area: 19.6cm²
- Air Flow Rate: 27L and 32L /min @ 1bar
- Sterilization: Autoclave at 121°C or Et0. Autoclave up to 10 times
- Maximum Operating Pressure: 3.5bar
Applications:
- Autoclave venting
- In-line sterilization of and particulate removal from air and gases
- Sterile filtration of non-aqueous fluids
- Sterile venting
| SKU | Sterility |
|---|---|
| VF50ANPPT002AC01 | Non-sterile |
| VF50ASPPT002AX01 | Sterile |
| VF50ANPPT004AC01 | Non-sterile |
| VF50ASPPT004AX01 | Sterile |
|
Vent Filters Spectsheet | Download |
With a broad range of chemical resistance, the PTFE vent filter contains a PTFE membrane and uses a polypropylene housing. These filters are reusable up to ten times or disposable, depending upon the application. Easy to connect to a hose for an inlet or outlet. They are autoclavable up to ten times at 121°C. See below for a full list of recommended applications. Available in two different pore sizes and pack sizes.
Starting at $162.35
