DuraChill® CA Recirculating Chillers

Name: DuraChill® CA Recirculating Chillers
Brand: PolyScience
SKU: CA02A1P1-41AA1N-GROUP

Manufacturer: PolyScience

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Price Chart

Grouped product items
Cat Code	Description	Quantity	Capacity	Price	Qty
CA02A1P1-41AA1N CA02A1P1-41AA1N	DuraChill® Recirculating Chiller, Positive Displacement Pump, 850W, 60Hz	Each	4.2 L (1.1 gal)	$6,871.00	+ -
CA02A1T1-41AA1N CA02A1T1-41AA1N	DuraChill® Recirculating Chiller, Turbine Pump, 850W, 60Hz	Each	4.2 L (1.1 gal)	$7,331.25	+ -
CA02A2P1-41AA1N CA02A2P1-41AA1N	DuraChill® Recirculating Chiller, Positive Displacement Pump, 850W, 50Hz	Each	4.2 L (1.1 gal)	$6,871.00	+ -
CA02A2T1-41AA1N CA02A2T1-41AA1N	DuraChill® Recirculating Chiller, Turbine Pump, 850W, 50Hz	Each	4.2 L (1.1 gal)	$7,331.25	+ -
CA03A1P1-41AA1N CA03A1P1-41AA1N	DuraChill® Recirculating Chiller, Positive Displacement Pump, 1.4 kW, 60Hz	Each	4.2 L (1.1 gal)	$7,293.25	+ -
CA03A1T1-41AA1N CA03A1T1-41AA1N	DuraChill® Recirculating Chiller, Turbine Pump, 1.4 kW, 60Hz	Each	4.2 L (1.1 gal)	$7,792.00	+ -
CA03A2P1-41AA1N CA03A2P1-41AA1N	DuraChill® Recirculating Chiller, Positive Displacement Pump, 1.4 kW, 50Hz	Each	4.2 L (1.1 gal)	$7,293.25	+ -
CA03A2T1-41AA1N CA03A2T1-41AA1N	DuraChill® Recirculating Chiller, Turbine Pump, 1.4 kW, 50Hz	Each	4.2 L (1.1 gal)	$7,792.00	+ -
CA05A1P1-41AA1N CA05A1P1-41AA1N	DuraChill® Recirculating Chiller, Positive Displacement Pump, 1.74 kW, 60Hz	Each	4.2 L (1.1 gal)	$7,750.00	+ -
CA05A1T1-41AA1N CA05A1T1-41AA1N	DuraChill® Recirculating Chiller, Turbine Pump, 1.74 kW, 60 Hz	Each	4.2 L (1.1 gal)	$8,233.00	+ -
CA05A2P1-41AA1N CA05A2P1-41AA1N	DuraChill® Recirculating Chiller, Positive Displacement Pump, 1.74 kW, 50Hz	Each	4.2 L (1.1 gal)	$7,750.00	+ -
CA05A2T1-41AA1N CA05A2T1-41AA1N	DuraChill® Recirculating Chiller, Turbine Pump, 1.74 kW, 50 Hz	Each	4.2 L (1.1 gal)	$8,233.00	+ -
CA10A2P2-41AA1N CA10A2P2-41AA1N	DuraChill® Recirculating Chiller, Positive Displacement Pump, 2.9 kW, 50Hz	Each	4.2 L (1.1 gal)	$9,234.50	+ -
CA10A2T1-41AA1N CA10A2T1-41AA1N	DuraChill® Recirculating Chiller, Turbine Pump, 2.9 kW, 50Hz	Each	4.2 L (1.1 gal)	$9,692.00	+ -
CA10A3P2-41AA1N CA10A3P2-41AA1N	DuraChill® Recirculating Chiller, Positive Displacement Pump, 2.9 kW, 60Hz	Each	4.2 L (1.1 gal)	$9,234.50	+ -
CA10A3T1-41AA1N CA10A3T1-41AA1N	DuraChill® Recirculating Chiller, Turbine Pump, 2.9 kW, 60Hz	Each	4.2 L (1.1 gal)	$9,692.00	+ -
Total $0.00

Use the Quantity box to select product first.

Accessories

Grouped product items
Cat Code	Description	Diameter	Length	Material	Temperature Range	Price	Qty
060308 060308	13 mm Buna N Synthetic Rubber Tubing	0.5 in (13 mm)	1 m (39 in)	Rubber	-40°C to 120°C	$18.00	+ -
060316 060316	13 mm Viton® Tubing	0.5 in (13 mm)	1 m (39 in)	Rubber	-32°C to 120°C	$281.00	+ -

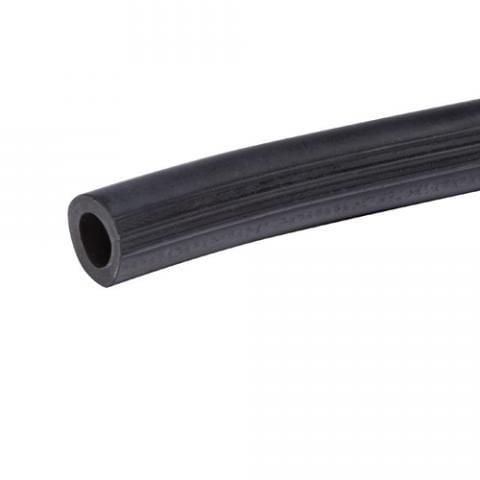

060319 060319	10 mm Viton® Tubing	0.375 in (10 mm)	1 m (39 in)	Rubber	-32°C to 200°C	$212.00	+ -

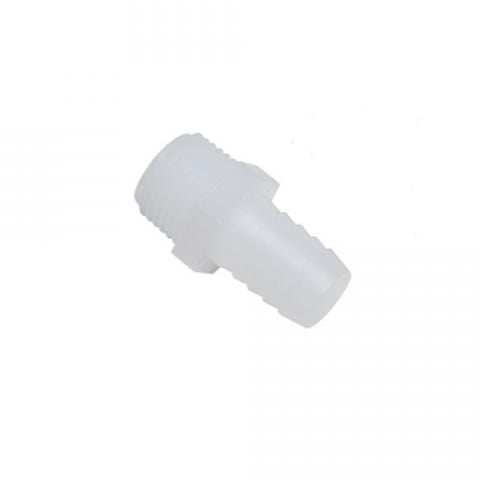

300-096 300-096	Integrated Cooling Coils Nylon Fitting, 0.5 in Male NPT to 0.5 in (13 mm) or 0.625 (16 mm)			Nylon		$14.00	+ -

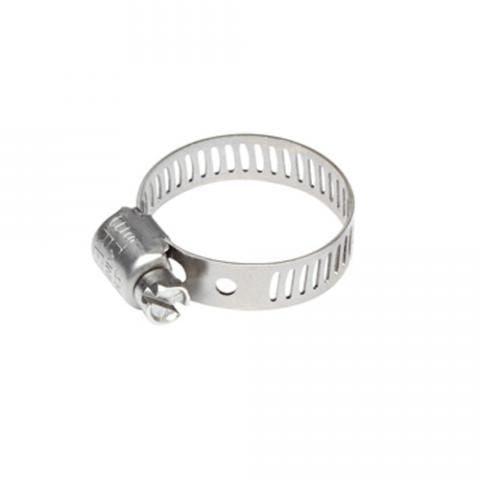

400-767 400-767	DuraChill® Tube Clamp			Stainless Steel		$3.25	+ -
Total $0.00

Use the Quantity box to select product first.

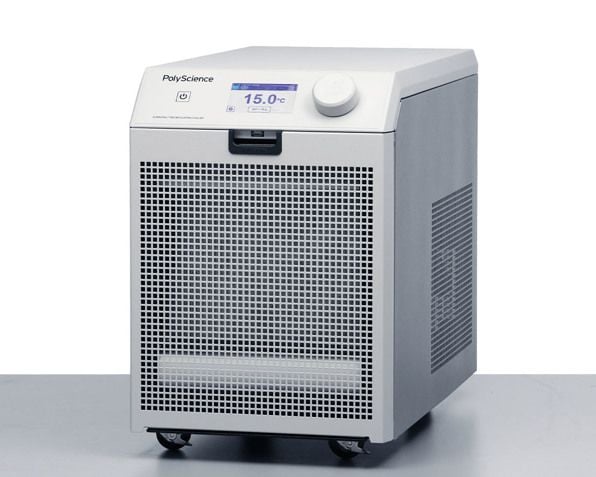

Engineered for today's most demanding laboratory and industrial applications, the DuraChill® CA Recirculating Chillers deliver powerful performance, intelligent control, and exceptional reliability. This advanced system is built to maximize uptime and minimize maintenance— setting a new benchmark in chiller technology. Whether you're cooling lasers, analytical instruments, or production equipment, this chiller is the ideal solution for consistent and reliable temperature control.

Description

Overview

In Stock!

Lead Times May Vary

The DuraChill® CA is packed with innovative features designed to promote ease of use and environmental safety. The exclusive DynamicFilter™ Self-changing Filter System is preprogrammed to change filters, relieving you of a routine maintenance burden. A state-of-the-art capacitance liquid level sensor provides continuous liquid level monitoring to protect the pump from premature failure, while an integrated UV Biological Growth Inhibitor controls biological growth in the fluid path without the need for chemical inhibitors. An intuitive full-color touch screen display provides all the information you need at a glance, and our patented WhisperCool® Noise Reduction system ensures the chiller runs at the minimum necessary fan speed, making it extremely quiet.

Features:

Compact, portable design takes up less floor space
Cooling capacities from 850W to 2.9 kW
Heats up to 70°C without additional options
Full-color touch screen display with 5 operating languages
DynamicFilter™ Self-changing Filter System for minimal maintenance
Continuous liquid level monitoring to prevent premature pump failure
UV Biological Growth Inhibitor controls biological growth without chemicals
WhisperCool® Noise Reduction for quieter operation
Convenient front fill reservoir

Specifications:

Cooling Capacity: 850W to 2.9 kW
Fluid Capacity: 4.2 L (1.1 gal)
Heating Capacity: Up to 70°C

Specifications

SKU	Max Flow	Max Pressure	Max Temperature	Temperature Range	Temperature Stability	Cooling Capacity
CA02A1P1-41AA1N	2.6 gpm/ 9.8 L/min	100 psi (6.89 bar)	Ambient: 40°C	-10°C to 70°C	±0.1°C	Up to 0.85kW @20°C
CA02A1T1-41AA1N	3.5 gpm/ 13.2 L/min	90 psi (6.89 bar)	Ambient: 40°C	-10°C to 70°C	±0.1°C	Up to 0.85kW @20°C
CA02A2P1-41AA1N	2.0 gpm/ 7.6 L/min	83 psi (5.72 bar)	Ambient: 40°C	-10°C to 70°C	±0.1°C	Up to 0.85kW @20°C
CA02A2T1-41AA1N	2.2 gpm/ 8.3 L/min	75 psi (6.21 bar)	Ambient: 40°C	-10°C to 70°C	±0.1°C	Up to 0.85kW @20°C
CA03A1P1-41AA1N	2.6 gpm/ 9.8 L/min	100 psi (6.89 bar)	Ambient: 40°C	-10°C to 70°C	±0.1°C	Up to 1.4kW @20°C
CA03A1T1-41AA1N	3.5 gpm/ 13.2 L/min	90 psi (6.89 bar)	Ambient: 40°C	-10°C to 70°C	±0.1°C	Up to 1.4kW @20°C
CA03A2P1-41AA1N	2.0 gpm/ 7.6 L/min	83 psi (5.72 bar)	Ambient: 40°C	-10°C to 70°C	±0.1°C	Up to 1.4kW @20°C
CA03A2T1-41AA1N	2.2 gpm/ 8.3 L/min	75 psi (6.21 bar)	Ambient: 40°C	-10°C to 70°C	±0.1°C	Up to 1.4kW @20°C
CA05A1P1-41AA1N	2.6 gpm/ 9.8 L/min	100 psi (6.89 bar)	Ambient: 40°C	-10°C to 70°C	±0.1°C	Up to 1.74kW @20°C
CA05A1T1-41AA1N	3.5 gpm/ 13.2 L/min	90 psi (6.89 bar)	Ambient: 40°C	-10°C to 70°C	±0.1°C	Up to 1.74kW @20°C
CA05A2P1-41AA1N	2.0 gpm/ 7.6 L/min	83 psi (5.72 bar)	Ambient: 40°C	-10°C to 70°C	±0.1°C	Up to 1.74kW @20°C
CA05A2T1-41AA1N	2.2 gpm/ 8.3 L/min	75 psi (6.21 bar)	Ambient: 40°C	-10°C to 70°C	±0.1°C	Up to 1.74kW @20°C
CA10A2P2-41AA1N	2.9 gpm/ 11.1 L/min	83 psi (5.72 bar)	Ambient: 40°C	-10°C to 70°C	±0.1°C	Up to 2.9kW @20°C
CA10A2T1-41AA1N	2.9 gpm/ 11.1 L/min	75 psi (6.21 bar)	Ambient: 40°C	-10°C to 70°C	±0.1°C	Up to 2.9kW @20°C
CA10A3P2-41AA1N	3.5 gpm/ 13.2 L/min	100 psi (6.89 bar)	Ambient: 40°C	-10°C to 70°C	±0.1°C	Up to 2.9kW @20°C
CA10A3T1-41AA1N	3.5 gpm/ 13.2 L/min	90 psi (6.89 bar)	Ambient: 40°C	-10°C to 70°C	±0.1°C	Up to 2.9kW @20°C

Downloads

	PolyScience Selection Guide	Download
	DuraChill® Recirculating Chillers Manual	Download

Additional Info

SKU	Electrical Information	Material	Type	Dimensions	Recirculating Pump Type	Certification	Refrigerant	Display
CA02A1P1-41AA1N	120VAC, 60Hz, 850W, 1 Phase, 13.6A	XLPE	Refrigeration, Postive Displacement	26.0 in x 15.0 in x 21.8 in	Pos Display Pump	cETLus	R513a	TFT LCD
CA02A1T1-41AA1N	120VAC, 60Hz, 1400W, 1 Phase, 13.7A	XLPE	Refrigeration, Turbine	26.0 in x 15.0 in x 21.8 in	Turbine Pump	cETLus	R513a	TFT LCD
CA02A2P1-41AA1N	240VAC, 50Hz, 700W, 1 Phase, 8.2A	XLPE	Refrigeration, Postive Displacement	26.0 in x 15.0 in x 21.8 in	Pos Display Pump	CE	R513a	TFT LCD
CA02A2T1-41AA1N	240VAC, 50Hz, 1280W, 1 Phase, 8.9A	XLPE	Refrigeration, Turbine	26.0 in x 15.0 in x 21.8 in	Turbine Pump	CE	R513a	TFT LCD
CA03A1P1-41AA1N	120VAC, 60Hz, 1400W, 1 Phase, 16.2A	XLPE	Refrigeration, Postive Displacement	26.0 in x 15.0 in x 21.8 in	Pos Display Pump	cETLus	R513a	TFT LCD
CA03A1T1-41AA1N	120VAC, 60Hz, 1400W, 1 Phase, 16.3A	XLPE	Refrigeration, Turbine	26.0 in x 15.0 in x 21.8 in	Turbine Pump	cETLus	R513a	TFT LCD
CA03A2P1-41AA1N	240VAC, 50Hz, 1280W, 1 Phase, 8.3A	XLPE	Refrigeration, Postive Displacement	26.0 in x 15.0 in x 21.8 in	Pos Display Pump	CE	R513a	TFT LCD
CA03A2T1-41AA1N	240VAC, 50Hz, 1280W, 1 Phase, 9.0A	XLPE	Refrigeration, Turbine	26.0 in x 15.0 in x 21.8 in	Turbine Pump	CE	R513a	TFT LCD
CA05A1P1-41AA1N	120VAC, 60Hz, 1740W, 1 Phase, 17.3A	XLPE	Refrigeration, Postive Displacement	26.0 in x 15.0 in x 21.8 in	Pos Display Pump	cETLus	R513a	TFT LCD
CA05A1T1-41AA1N	120VAC, 60Hz, 1750W, 1 Phase, 17.4A	XLPE	Refrigeration, Turbine	26.0 in x 15.0 in x 21.8 in	Turbine Pump	cETLus	R513a	TFT LCD
CA05A2P1-41AA1N	240VAC, 50Hz, 1840W, 1 Phase, 8.5A	XLPE	Refrigeration, Postive Displacement	26.0 in x 15.0 in x 21.8 in	Pos Display Pump	CE	R513a	TFT LCD
CA05A2T1-41AA1N	240VAC, 50Hz, 1550W, 1 Phase, 9.2A	XLPE	Refrigeration, Turbine	26.0 in x 15.0 in x 21.8 in	Turbine Pump	CE	R513a	TFT LCD
CA10A2P2-41AA1N	240VAC, 50Hz, 2650W, 1 Phase, 12.0A	XLPE	Refrigeration, Postive Displacement	26.0 in x 15.0 in x 21.8 in	Pos Display Pump	CE	R513a	TFT LCD
CA10A2T1-41AA1N	240VAC, 50Hz, 2500W, 1 Phase, 12.0A	XLPE	Refrigeration, Turbine	26.0 in x 15.0 in x 21.8 in	Turbine Pump	CE	R513a	TFT LCD
CA10A3P2-41AA1N	230VAC, 60Hz, 2900W, 1 Phase, 13.4A	XLPE	Refrigeration, Postive Displacement	26.0 in x 15.0 in x 21.8 in	Pos Display Pump	cETLus	R513a	TFT LCD
CA10A3T1-41AA1N	230VAC, 60Hz, 2750W, 1 Phase, 13.5A	XLPE	Refrigeration, Turbine	26.0 in x 15.0 in x 21.8 in	Turbine Pump	cETLus	R513a	TFT LCD

Starting at $6,871.00

Select a product below and add it to your cart to request a quote.

DuraChill® CA Recirculating Chillers

Description

DuraChill® CA Recirculating Chillers

Request A Quote
