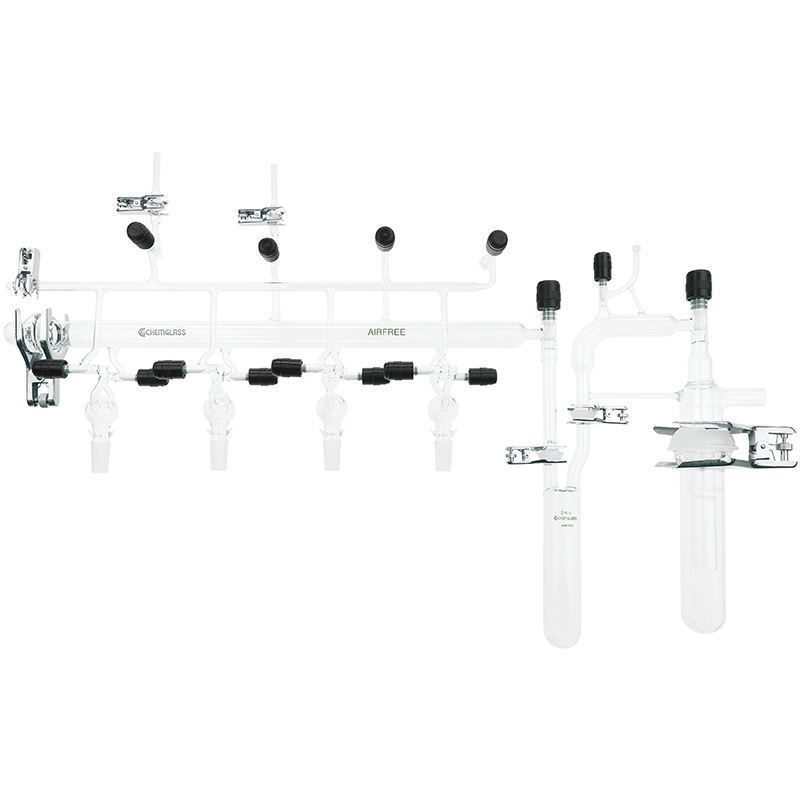

The 4-Ports Vacuum/Inert Manifold, Airfree, Schlenk has 0-4mm valves. The line uses the same main and pre-trap as the AF-0450 line and is 34 inches in width and 24 inches in height.
The 4-Ports Vacuum/Inert Manifold, Airfree, Schlenk has 0-4mm valves. The line uses the same main and pre-trap as the AF-0450 line and is 34 inches in width and 24 inches in height.
Line is constructed using 0-4mm Chem-Vac™ Chem-Cap® valves
End cap on the vacuum line is a #30 o-ring joint while the inert gas line has a #9 o-ring joint
All gauging ports are constructed using #9 o-ring joints and are supplied complete with adapters from the o-ring joint to 9mm outer diameter tubulation for use with 3/8" Cajon® fittings
Line uses the same main and pre-trap as the AF-0450 line
34 in width x 24 in height
Complete System:
One 4-port vacuum/inert manifold
One pre-trap
One main trap assembly
One main trap body
Two CG-150-05 #28 S.S. pinch clamps
One CG-150-08 #50 S.S. pinch clamp
One CG-150-21 #75 S.S. pinch clamp
Four CG-150-04 #18-L S.S. pinch clamps
One AF-0451-05 #9 o-ring joint cap stopper
One AF-0451-21 #30 o-ring joint cap stopper
Three AF-0451-08 #9 o-ring joint to 3/8" tubulation for Cajon® adapters
Four CG-305-12 #112 Viton o-rings
One CG-305-32 #223 Viton o-ring
