Oil Diffusion Pumps with Bypass, Airfree, Schlenk
Manufacturer: Chemglass
Starting at $1,311.70
Select a product below and add it to your cart to request a quote.
Oil Diffusion Pumps with Bypass, Airfree, Schlenk
Description

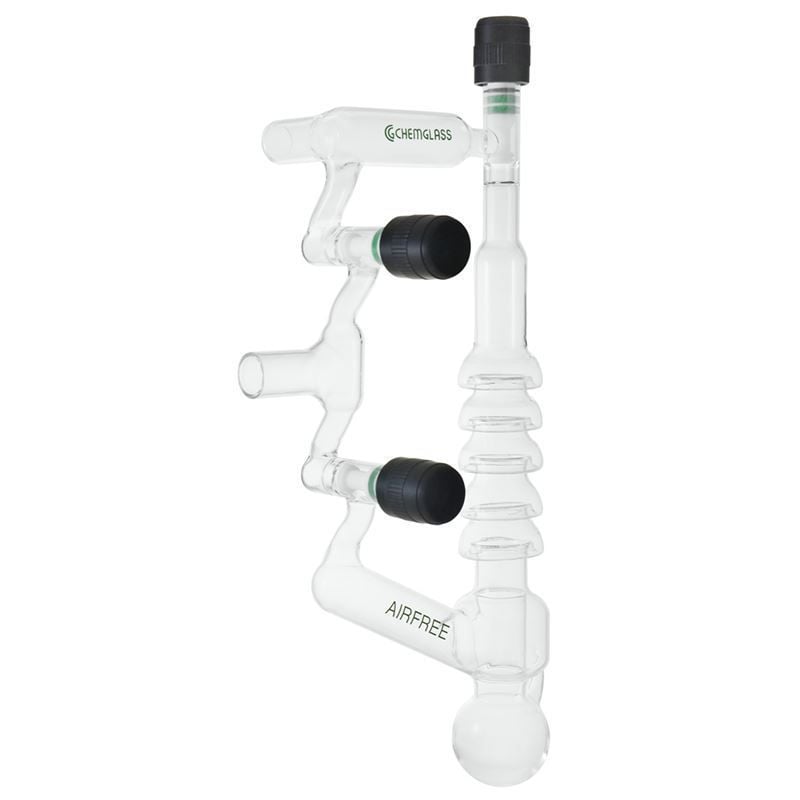

Chemglass Oil Diffusion Pumps with Bypass, Airfree, Schlenk
Features:
- Useful with manifolds such as AF-0450 through AF-0454
- vacuum of 10 -5 torr, at a pumping rate of approx 8L/sec
- Boiler has a round bottom for use with CG-10000-02 or CG-12000-02 100mL heating mantle
- Use of the mantle eliminates costly repairs of boiler due to breakage
- Supplied complete with a bypass which isolates the oil diffusion pump from the mechanical pump while it rough pumps the system to prevent the hot pumping fluid from being degraded by chemical oxidative process
- All valves are 0-12mm Chem-Vac™ Chem-Cap®
- Tubular connections are 1" outer diameter for use with AF-0066 1" Cajon® connectors, or 1" inner diameter heavy wall vacuum tubing
Operation:
- In the bypass mode, valves A and B are closed isolating the diffusion pump from the system while valve C is open
- Once the system has reached 1 x 10-5 Torr, valve C is closed and A and B are opened, restoring the diffusion pump to the pumping circuit
Please note: Heating mantle must be ordered separately.
When ordering the diffusion pump to mate with the AF-0450 manifold, please use the same code for both items. For example, AF-0460-01 left handed diffusion pump should be ordered with the AF-0450-01 right handed manifold.
