High Capacity, Check Valves Bubblers, 1/2" Swagelock
High Capacity, Check Valves Bubblers, 1/2" Swagelock
Manufacturer:
Chemglass

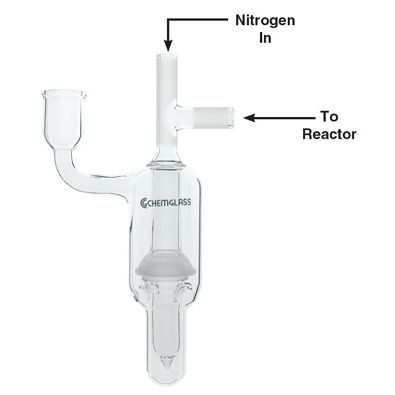

The High-Capacity, Check Valve Bubblers keeps oil and air from being drawn into a reaction system when negative pressure is developed. The bubbler has two 1/2" swagelock type fittings on top permitting one side to be connected to the nitrogen source and one side to the reaction system. The bubbler is filled with oil (mineral or silicone) to a level slightly above the top socket joint. Under negative pressure, the float is drawn up to seal the outlet and prevent backflow. When exposed to positive pressure, the float is pushed down opening the seal between the spherical ball float and socket joint providing for a high-capacity outlet.
The High-Capacity, Check Valve Bubblers keeps oil and air from being drawn into a reaction system when negative pressure is developed. The bubbler has two 1/2" swagelock type fittings on top permitting one side to be connected to the nitrogen source and one side to the reaction system. The bubbler is filled with oil (mineral or silicone) to a level slightly above the top socket joint. Under negative pressure, the float is drawn up to seal the outlet and prevent backflow. When exposed to positive pressure, the float is pushed down opening the seal between the spherical ball float and socket joint providing for a high-capacity outlet.
Keeps oil and air from being drawn into a system when negative pressure is developed
Bubbler has two 1/2" swagelock type fittings on top permitting one side to be connected to the nitrogen source and one side to the reaction system
Bubbler is filled with oil (mineral or silicone) to a level slightly above the top socket joint
Under negative pressure, the float is drawn up to seal the outlet and prevents backflow
When exposed to positive pressure, the float is pushed down opening the seal between the spherical ball float and socket joint providing for a high-capacity outlet
