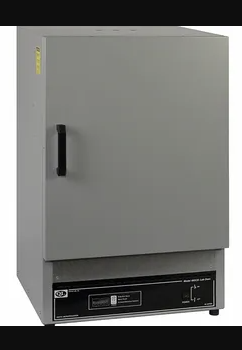

GCE Series Digital Gravity Convection Ovens
Manufacturer: Quincy Lab
Starting at $975.00
Select a product below and add it to your cart to request a quote.
GCE Series Digital Gravity Convection Ovens
Description
Quincy Lab uses only quality UL and CSA recognized components in all ovens. The 'GCE' series gravity convection ovens are designed to meet the laboratory needs of industry, research organizations, and schools. Well-crafted and versatile, they are used for part drying, baking, curing, sterilizing, evaporating, heat treating, annealing, and testing. The GCE series ovens have temperature ranges of: ambient +25°F minimum, to 450°F/232°C maximum, and are competitively priced and offer exceptional value and reliability.
Features:
- Digital Microprocessor Control
- Air Forced Gravity Convection
- Durable Double-Wall Construction
- Scratch-resistant Hammer Finish
- Corrosion-resistant Aluminized Interior
- Full 18-month Factory Warranty
- Proven Reliability
Advanced Design
-
Cabinets are as attractive as they are durable. Exteriors are painted light gray and have a hard, scratch-resistant hammer finish. Doors open with high-impact thermoplastic handles. Cabinets have heavy steel double-wall construction. Work space is insulated from the outer cabinet with one inch of high-density mineral wool, and interiors are made of corrosion-resistant aluminized steel.
Controls
-
The digital control combines the features of the analog model but offers the ease of temperature setting and the stability of a full PID microprocessor that accurately maintains settings within +/- 0.5oC (1oF), even in varying ambient or power supply conditions. This feature helps to confirm stability or indicate any control malfunction or power loss throughout a process period. The digital controller features large LED's that continuously display set temperature and process temperature, as well as a setting lock mode that provides protection against accidental or inadvertent adjustment.
Heating Elements
-
Energy-efficient, low-watt density, incoloy sheathed elements are engineered into a compact design for quick run-up and recovery times. Temperature uniformity is greatly improved by a perforated heat shield which absorbs radiant heat and distributes it more evenly throughout the product chamber.
*Accessory options are a custom-made item and are built into your unit, resulting in a 3-4 week lead time. Shelves and Shelf supports are not custom-made and will be shipped separately.
SKU | Controller | Material | Max Temperature | Temperature Range | Dimensions | Shelf Capacity | Internal Dimensions | Max. # of Shelves |
---|---|---|---|---|---|---|---|---|
10GCE | Digital PID Microprocessor Control | Aluminum, Solid Steel | 450°F (232°C) | Ambient +25°F to 450°F | 14 in x 17.5 in x 12.3 in | 35 lbs | 12 in x 10 in x 10 in | 10 |
20GCE | Digital PID Microprocessor Control | Aluminum, Solid Steel | 450°F (232°C) | Ambient +25°F to 450°F | 15 in x 21.5 in x 15.3 in | 35 lbs | 13 in x 13 in x 13 in | 13 |
30GCE | Digital PID Microprocessor Control | Aluminum, Solid Steel | 450°F (232°C) | Ambient +25°F to 450°F | 20 in x 25.5 in x 14.3 in | 35 lbs | 18 in x 15.6 in x 12 in | 16 |
40GCE | Digital PID Microprocessor Control | Aluminum, Solid Steel | 450°F (232°C) | Ambient +25°F to 450°F | 20 in x 31.5 in x 16.3 in | 35 lbs | 18 in x 21.8 in x 14 in | 22 |
SKU | Model # | Electrical Information | Plug Type | Temperature Stability | Time to Reach Temperature | Door Recovery Time | Warranty |
---|---|---|---|---|---|---|---|
10GCE | 10GCE | 115V, 5.2A, 600W | 5-15P | ± 1.0°F (± 0.5°C) | Ambient to Max: 43 min. | @300°F (Door Open 15 Sec.) 9 min. @300°F (Door Open 30 Sec.) 13 min. |
18 Months |
20GCE | 20GCE | 115V, 6.3A, 750W | 5-15P | ± 1.0°F (± 0.5°C) | Ambient to Max: 52 min. | @300°F (Door Open 15 Sec.) 11 min. @300°F (Door Open 30 Sec.) 14 min. |
18 Months |
30GCE | 30GCE | 115V, 10.5A, 1200W | 5-15P | ± 1.0°F (± 0.5°C) | Ambient to Max: 37 min. | @300°F (Door Open 15 Sec.) 10 min. @300°F (Door Open 30 Sec.) 11 min. |
18 Months |
40GCE | 40GCE | 115V, 12.5A, 1500W | 5-15P | ± 1.0°F (± 0.5°C) | Ambient to Max: 42 min. | @300°F (Door Open 15 Sec.) 10 min. @300°F (Door Open 30 Sec.) 14 min. |
18 Months |
