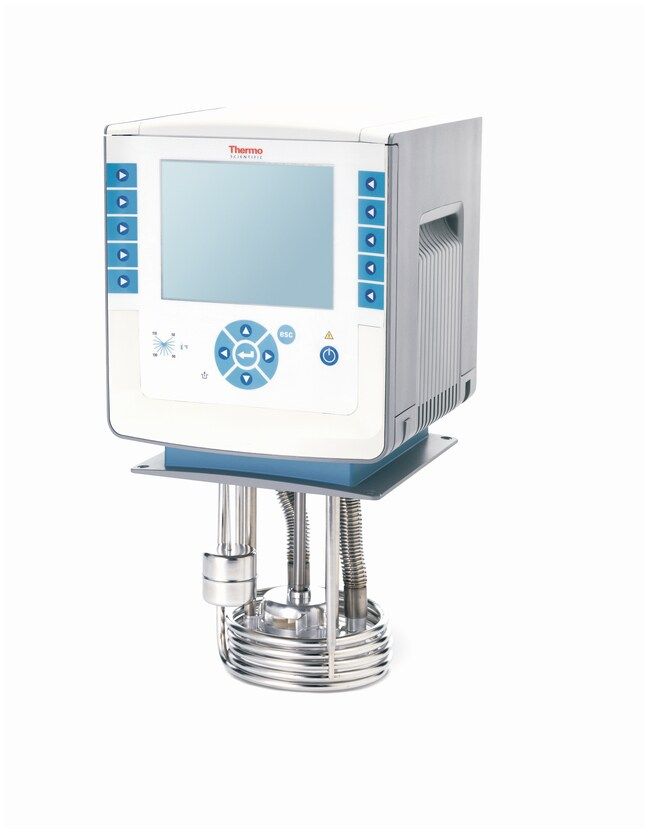

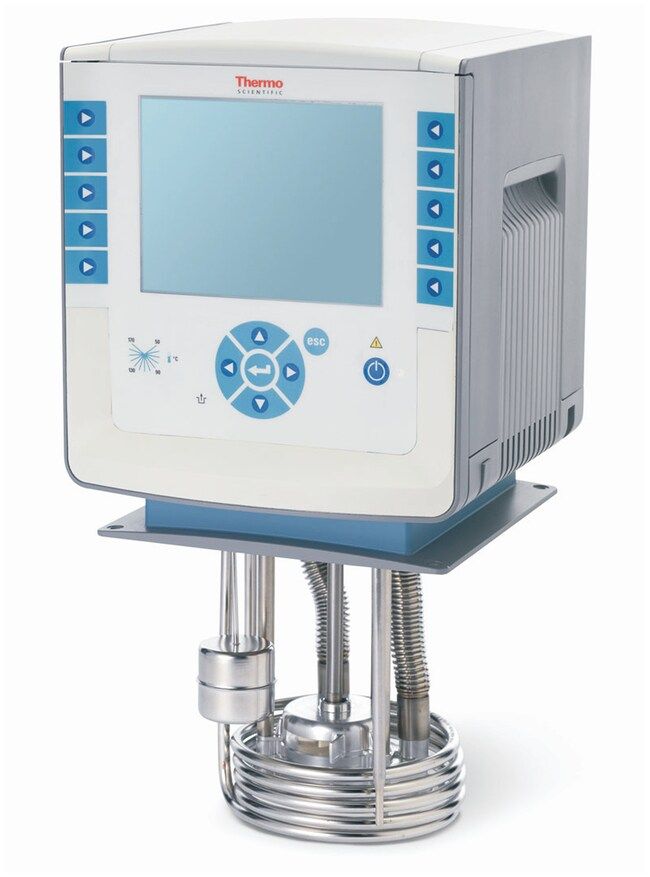

PC200 Immersion Circulators
Manufacturer: Thermo Fisher
Starting at $3,766.00
Select a product below and add it to your cart to request a quote.
PC200 Immersion Circulators
Description
Thermo Temperature Control Specifications
Thermo Scientific™ PC200 Immersion Circulators are ideal for applications that require sophisticated control, multiple ramp programming and extreme temperature performance ranging from −50° to +200°C. Features include an enhanced digital display and easy–to–use touchpad settings, allowing you to easily tune the temperature to meet your specific application requirements.
- Max. temperature: 200°C
- Temp. stability: 0.015
- Force/suction pump with 560mbar pressure and 24L/min flow
- Heating capacity 1.2kW
- External T control via PT100 sensor port
- Application threshold alarms to safeguard experiments
- Temperature high and low limits
- Seven languages (English, German, French, Spanish, Italian, Chinese and Japanese)
- Ten ramp programs with edit during run or pause
- USB port for remote control
- Real-time clock
+ Multifunction port connects
+ Booster pump (1 bar extra)
+ Booster heater (2kW extra)
+ Auto refill device
+ Magnetic/solenoid valve box (e.g. control tap-water cooling)
Includes: 8mm and 12mm hose barbs with bridge (–0022 and –0025 only), pump plug for external circulation, and 6ft. power cord.
Specifications | 1570002 | 1570005 | 1570022 | 1570025 |
Heating Capacity (Metric) | 2kW/1.2kW | 2kW/1.2kW | 2kW/1.2kW | 2kW/1.2kW |
---|---|---|---|---|
Height (English) Exterior | 16.6 in. | 16.6 in. | 16.6 in. | 16.6 in. |
Height (Metric) Exterior | 42.1cm | 42.1cm | 42.1cm | 42.1cm |
Voltage | 100 to 115V | 200 to 230V | 100 to 115V | 200 to 230V |
Hertz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
Length (English) Exterior | 9.2 in. | 9.2 in. | 9.2 in. | 9.2 in. |
Length (Metric) Exterior | 23.3cm | 23.3cm | 23.3cm | 23.3cm |
Flow Rate | 24L/min. | 24L/min. | 24L/min. | 24L/min. |
Max. Pressure | 500mbar/8.12psi | 500mbar/8.12psi | 500mbar/8.12psi | 500mbar/8.12psi |
Max. Temperature (Metric) | 200°C | 200°C | 200°C | 200°C |
Model | PC200 | PC200 | PC200 with bridge | PC200 with bridge |
Temperature Stability | 0.01°C | 0.01°C | 0.01°C | 0.01°C |
Width (English) Exterior | 7.4 in. | 7.4 in. | 7.4 in. | 7.4 in. |
Width (Metric) Exterior | 18.9cm | 18.9cm | 18.9cm | 18.9cm |
Safety Class | 3/FL | 3/FL | 3/FL | 3/FL |
Item Description | PC200; Max. Temp: 200°C; 100-115V/50-60Hz | PC200; 200-230V/50-60Hz | PC200 w/bridge; Max. Temp: 200°C; 100-115V/50-60Hz | PC200 w/bridge; 200-230V/50-60Hz |
Certifications/Compliance | CE, RoHS | CE, RoHS | CE, RoHS | CE, RoHS |
Dimensions (L x W x H) Exterior | 9.2 x 7.4 x 16.6 in. (23.3 x 18.9 x 42.1cm) | 9.2 x 7.4 x 16.6 in. (23.3 x 18.9 x 42.1cm) | 9.2 x 7.4 x 16.6 in. (23.3 x 18.9 x 42.1cm) | 9.2 x 7.4 x 16.6 in. (23.3 x 18.9 x 42.1cm) |
Electrical Requirements | 100 to 115V 50/60Hz | 200 to 230V 50/60Hz | 100 to 115V 50/60Hz | 200 to 230V 50/60Hz |
