SC150L Immersion Circulators
Manufacturer: Thermo Fisher
Starting at $2,449.00
Select a product below and add it to your cart to request a quote.

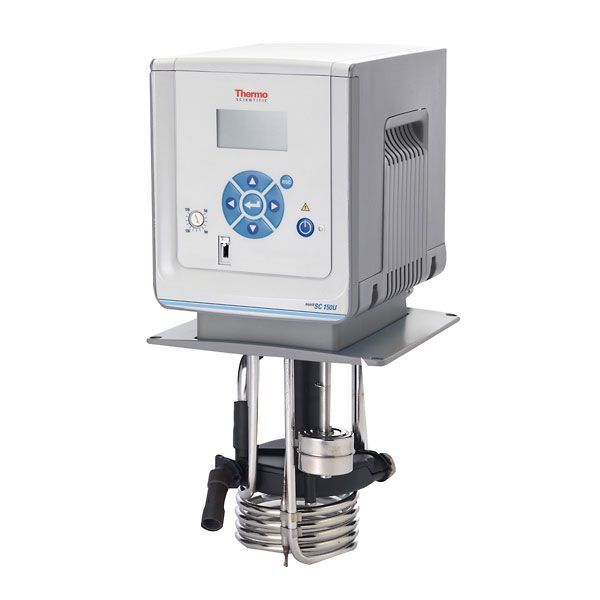

SC150L Immersion Circulators
Description
Thermo Temperature Control Specifications
Maintain temperature from −28° to +150°C, while increasing immersion depth to accomodate larger or deeper baths. The Thermo Scientific™ SC150L Immersion Circulator, one of the basic models in the new generation of superior quality thermostats, features an enhanced digital display and easy–to–use touchpad settings, allowing you to easily tune the temperature to meet your specific application requirements.
- Max. temperature: 150°C
- Increased immersion depth to accommodate larger or deeper baths
- Low-liquid level alarm for Safety Class III
- Automatic controller shutdown at detection of excessive high temperature, low liquid level or motor overload
- USB communication port and options for RS-232, RS-485, Ethernet/LAN, Analog I/O
- Self-Tuning PID controller for optimized temperature control
- Five programmable set point temperatures
- RTA (Real Temperature Adjustment) for calibration
- Two levels of pump speed adjustment to increase flow or bath agitation
- Three languages (English, German, French)
- Change digital display resolution between 0.1 and 0.01 and between °C — °F — °K
- Acoustic and optical alarm
- Auto-Restart feature after power failure
Includes: 8 and 12mm hose barbs with clamp (–0016, –0018, –0011 only), pump plug for external circulation, 6ft. power cord.
Specifications | 1540001 | 1540006 | 1540008 | 1540011 | 1540016 | 1540018 |
Heating Capacity (Metric) | 2kW/1.2kW | 2kW/1.2kW | 2kW/1.2kW | 2kW/1.2kW | 2kW/1.2kW | 2kW/1.2kW |
---|---|---|---|---|---|---|
Height (English) Exterior | 15.1 in. | 15.1 in. | 15.1 in. | 15.1 in. | 15.1 in. | 15.1 in. |
Height (Metric) Exterior | 38.4cm | 38.4cm | 38.4cm | 38.4cm | 38.4cm | 38.4cm |
Voltage | 230V | 100V | 115V | 230V | 100V | 115V |
Hertz | 50Hz | 50/60Hz | 60Hz | 50Hz | 50/60Hz | 60Hz |
Length (English) Exterior | 7.8 in. | 7.8 in. | 7.8 in. | 7.8 in. | 7.8 in. | 7.8 in. |
Length (Metric) Exterior | 19.9cm | 19.9cm | 19.9cm | 19.9cm | 19.9cm | 19.9cm |
Flow Rate | 17L/min. | 17L/min. | 17L/min. | 17L/min. | 17L/min. | 17L/min. |
Max. Pressure | 300mbar/4.35psi | 300mbar/4.35psi | 300mbar/4.35psi | 300mbar/4.35psi | 300mbar/4.35psi | 300mbar/4.35psi |
Max. Temperature (Metric) | 150°C | 150°C | 150°C | 150°C | 150°C | 150°C |
Model | SC150L | SC150L | SC150L | SC150L with clamp | SC150L with clamp | SC150L with clamp |
Net Weight (English) | 3.3 lb. | 3.3 lb. | 3.3 lb. | 3.3 lb. | 3.3 lb. | 3.3 lb. |
Net Weight (Metric) | 7.3kg | 7.3kg | 7.3kg | 7.3kg | 7.3kg | 7.3kg |
Temperature Stability | 0.02°C | 0.02°C | 0.02°C | 0.02°C | 0.02°C | 0.02°C |
Width (English) Exterior | 5.4 in. | 5.4 in. | 5.4 in. | 5.4 in. | 5.4 in. | 5.4 in. |
Width (Metric) Exterior | 13.8cm | 13.8cm | 13.8cm | 13.8cm | 13.8cm | 13.8cm |
Safety Class | 3/FL | 3/FL | 3/FL | 3/FL | 3/FL | 3/FL |
Item Description | 230V/50Hz | 100V/50-60Hz | 115V/60Hz | With clamp; 230V/50Hz | With clamp; 100V/50-60Hz | With clamp; 115V/60Hz |
Certifications/Compliance | CE, RoHS | CE, RoHS | CE, RoHS | CE, RoHS | CE, RoHS | CE, RoHS |
Dimensions (L x W x H) Exterior | 7.8 x 5.4 x 15.1 in. (19.9 x 13.8 x 38.4cm) | 7.8 x 5.4 x 15.1 in. (19.9 x 13.8 x 38.4cm) | 7.8 x 5.4 x 15.1 in. (19.9 x 13.8 x 38.4cm) | 7.8 x 5.4 x 15.1 in. (19.9 x 13.8 x 38.4cm) | 7.8 x 5.4 x 15.1 in. (19.9 x 13.8 x 38.4cm) | 7.8 x 5.4 x 15.1 in. (19.9 x 13.8 x 38.4cm) |
Electrical Requirements | 230V 50Hz | 100V 50/60Hz | 115V 60Hz | 230V 50Hz | 100V 50/60Hz | 115V 60Hz |
