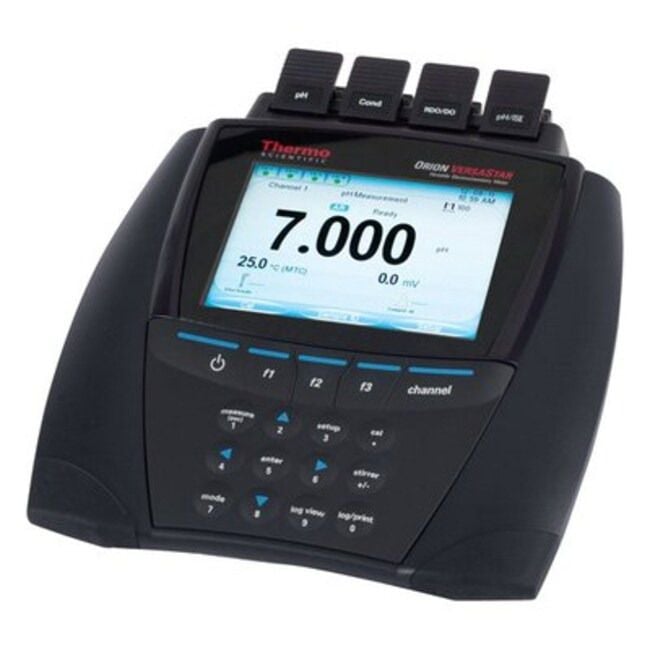

Orion™ Versa Star Benchtop Meter Without Modules
Manufacturer: Thermo Orion
For the ultimate flexibility, combine the Thermo Scientific™ Orion™ Versa Star Benchtop Meter Without Modules with up to four Orion™ Versa Star measurement modules to build your ideal electrochemistry measurement system.
Key Features::
ul.featureList{padding-left: 10px;}
ul.featureList li {list-style-type: disc;}
Large, color graphic LCD display shows readings, connections, time, date, sample ID, user ID and calibration information.
Meter includes plain language screen prompts and soft keys to update for ... Read more
Description
For the ultimate flexibility, combine the Thermo Scientific™ Orion™ Versa Star Benchtop Meter Without Modules with up to four Orion™ Versa Star measurement modules to build your ideal electrochemistry measurement system.
Key Features:
- Large, color graphic LCD display shows readings, connections, time, date, sample ID, user ID and calibration information.
- Meter includes plain language screen prompts and soft keys to update for easy selection.
- Multilanguage interface supports English, Spanish, French, Italian, German and Chinese.
- Electrode arm and newly designed probe holder make it easier to maintain and place probes into samples.
- Universal power adapter works with almost every AC power source.
- IP54-rated housing handles splashes.
Data Management
- Nonvolatile memory holds up to 2000 data points with time and date stamp.
- Two USB and RS232 ports facilitates easy data transfer and meter software updates.
- Data analysis software transfers stored results and displays readings in real time.
Click here to view all specifications Close
| Specifications | VSTAR00 |
| AC Adapter | Universal 50-60 Hz, 100-240 VAC power adapter (Cat. No. STARA-PWR) |
|---|---|
| Alarm Output | Set point alarm, high/low limit alarm, calibration due alarm |
| Backlight | Yes |
| Certifications Compliance | CE, TUV 3-1, FCC Class A |
| Channels | 4 - customizable with modules |
| Data Log Function Type | Automatic data logging with Auto-Read, Timed and Single Shot measure modes; manual data logging with Continuous measure mode |
| Data Management Details | Transfer single, range or all data points to printer or computer |
| Data Points | 2000 with date and time stamp |
| Description | Orion Versa Star benchtop meter with stand (modules sold separately) |
| Dimensions LxWxH | 28 cm x 24 cm x 10 cm (11" x 9.5" x 3.9") |
| Display Type | Color graphic LCD with user-customizable options |
| Includes | Versa Star meter, electrode stand, universal power adapter, literature, computer cable and calibration test certificate |
| Inputs | Two stirrer inputs (stirrer probe) |
| IP Rating | IP-54 |
| Keypad | Numeric with menu-specific function keys and dual purpose scroll/shortcut keys |
| Languages | English, Spanish, French, Italian, German, Chinese, Portuguese and Korean |
| Memory | Non-volatile memory preserves data log, calibration log and meter settings |
| Methods | 10 per channel with password protection |
| Model | Orion Versa Star Benchtop Meter |
| Outputs | USB (2), RS232 |
| Power Supply | Universal AC adapter (included) |
| Relative Humidity Range | 5 to 85 %, non-condensing |
| Stability | Selectable fast, medium, slow or Smart Stability setting; Selectable off or Automatic Smart averaging setting |
| Temperature Ambient Operating | 5 to 45°C, 41° to 113°F |
| Warranty | 3 year meter warranty |
| Weight | 1.2 kg, 2.5 lbs |
|
Smart Notes: How do you account for temperature differences when measuring water conductivity? | Download |
