Orion™ Versa Star pH / ISE Measurement Module
Manufacturer: Thermo Orion
Starting at from $1,460.00 Sale $1,387.00
Select a product below and add it to your cart to request a quote.

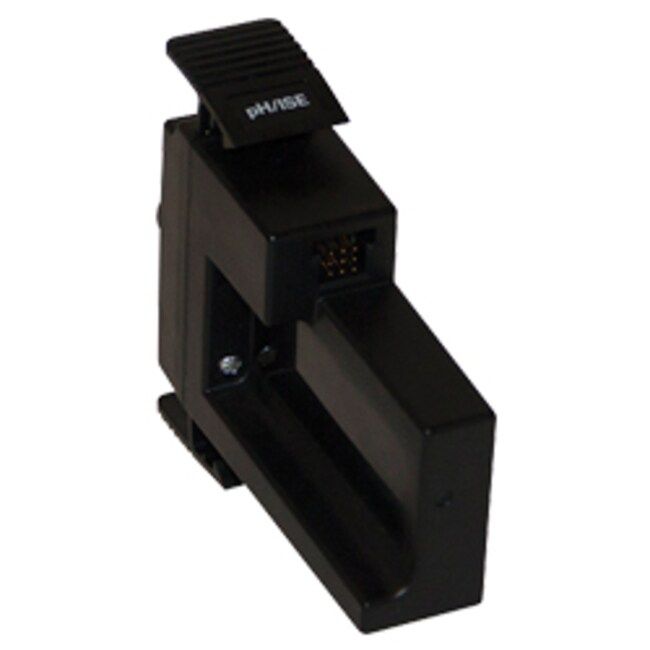

Orion™ Versa Star pH / ISE Measurement Module
Description
Add pH, ion concentration, mV, ORP and temperature measurement capabilities to your Thermo Scientific™ Orion™ Versa Star meter using the Thermo Scientific™ Orion™ Versa Star pH / ISE Measurement Module. Each Orion™ Versa Star meter has four channels that can be customized with interchangeable measurement modules. The Versa Star pH/ISE module offers up to six point pH and ISE calibrations and advanced ISE features including incremental techniques (single and double known addition and subtraction, analate addition and subtraction), low range stability and electrode ID with calibration verification.
Specifications | pH/ISE Module (VSTAR-ISE) | |
pH | Range | -2.000 to 20.000 |
---|---|---|
Resolution | 0.1, 0.01, 0.001 | |
Relative Accuracy | ±0.002 | |
Calibration Points | Up to 6 | |
Calibration Editing | Yes | |
Adjustable ISO Point | Yes | |
mV/Rel/mV/ORP | Range | ±2000.0 mV |
Resolution | 0.1 | |
Relative Accuracy | ±0.2 mV or ±0.05 % of reading whichever is greater | |
EHORP Mode | Yes | |
ISE | Range | 0 to 19999 |
Resolution | Up to 4 significant digits | |
Relative Accuracy | ±0.2 mV or ±0.05 % of reading whichever is greater | |
Units | ppm, M, mg/L, %, ppb, none | |
Calibration Points | Up to 6 | |
Calibration Editing | Yes | |
Adjustable ISO Point | Yes | |
Calibration Features | Timed end point, linear point to point, non-linear selectable auto-blank, low concentration range stability |
|
Incremental Techniques | Single known addition & subtraction, double known addition & subtraction, single analate addition & subtraction |
|
Advanced Features | Displays electrode type, temperature compensation | |
Temperature | Range | -5 to 105 ºC, 23 to 221 ºF |
Resolution | 0.1 | |
Relative Accuracy | ±0.1 | |
Offset Calibration | 1 point | |
Inputs | pH/ISE | BNC, reference pin |
ATC | 8-pin mini-DIN |
