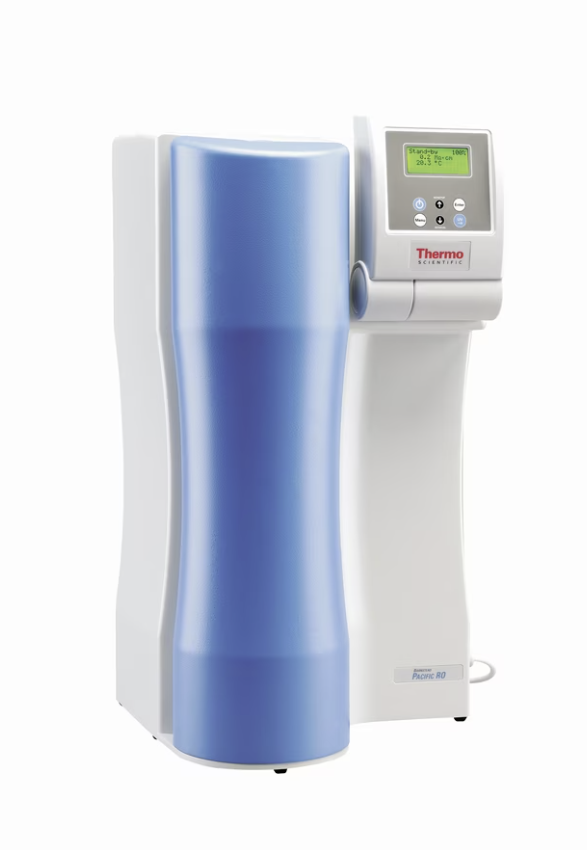

Barnstead™ Pacific™ RO

The Thermo Scientific™ Barnstead Pacific RO is a modularly designed laboratory reverse osmosis system specifically developed for functional and economical production of high-purity water. One year warranty.

Features:

• Five system options with permeate flows of 3, 7, 12, or 20, or 40L/hr.
• Space-saving design allows system to sit on the laboratory bench or be mounted on the wall
• Simple system upgrade accommodates future pure water capacity requirements

Reliable operation

• Microprocessor control offers automatic operation with continual monitoring of all important parameters
• Required filling level of the reservoir can be customized
• Automatic return to operating mode ensures recirculation during periods of standstill

Easy-to-operate clear display

• Resistivity/conductivity clearly displayed on large back-lit control panel that tilts for optimum viewing
• Status of current operating mode clearly indicates "production", "stand-by", "cleaning" modes
• Reservoir fill-level shown as %

Integrated feed water monitoring:

• Good quality feed water is a prerequisite for high purity water and extends cartridge service life

GLP-compliant documentation

• Real-time clock records system errors and faults
• Ongoing data storage collects four weeks information displayed in clear text
• Operating system is code-protected to prevent unauthorized changes to system settings
• RS-232 interface with adjustable sender interval allows for customized timing of data transmission of measured values and faults to a PC or data printer
• Cell constant of 0.16 cm-1 ensures precise conductivity measurements

Pacific RO pretreatment

• Two 10 in. (25.4cm) cartridge filter housings with a 5Glc mum prefilter plus activated carbon to prevent entry of particles greater-than 5Glc mum and high concentrations of free chlorine includes hardness stabilizer cartridge which binds calcium and prevents its precipitation.

Worry-free pure water storage

• Reservoir are constructed of pigment-free polyethylene
• Conical bottom allows for easy cleaning, disinfecting and complete emptying

Optional Hand Dispenser

• Gain increased flexibility by adding a hand dispenser with 3 meter cord which connects to tank. Use only with a tank equipped with a pressure pump (06.5032, 06.5062, 06.5082)
• Ships with a 0.2 micron final filter
