High Performance Ovens
Manufacturer: Sheldon Manufacturing
Starting at from $7,415.58 Sale $7,044.80
Select a product below and add it to your cart to request a quote.
High Performance Ovens
Description
SHEL LAB High Performance Ovens are engineered to meet the most critical temperature requirements. They are designed for continuous drying operations at temperatures up to 260°C. Factory-set overtemperature protection prevents control failure from damaging contents and guards against burnout. The controller provides a 24-step ramp and soak, 0.1°C control, multiple levels of operator access and automatic resumption of program following a power failure. Time and temperature are displayed in a three-digit LED readout for fast and accurate setting. In addition, the sealed membrane touch-pad control panel is water and acid resistant.
Horizontal air flow provides fast heat-up and recovery and ensures rapid drying. Heated air is continuously circulated by twin turbo blowers. Punched stainless steel shelves are adjustable on 1/2 inch centers. Adjustable three air intake and exhaust ports can be opened for fast drying of high-moisture content samples. A high temperature gasket door seal eliminates air leakage and ensures longer gasket life while being subjected to extreme operational temperatures. This unit includes long-lasting, low-watt density heating elements. It also has adjustable heavy-duty hinges, optional factory installed reversible door, and a door latch that is designed for lifetime service. These ovens have rugged, welded construction with a double-walled, corrosion-resistant stainless steel interior and a powder-coated exterior.
Features:- Precise Temperature Control - Superior Uniformity
- Temperature Control 0.1°C
- Temperature Range Ambient + 15°C to 306°C (except SMO38HP-2)
SKU | Display Resolution | Internal Dimensions | External Dimensions | Weight, lbs |
---|---|---|---|---|

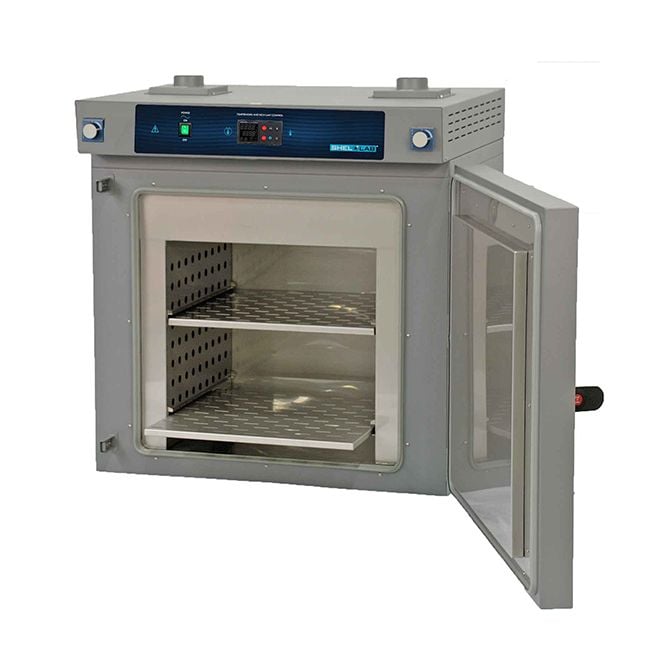

SMO5HP-2 | 0.1°C | 20.5" W x 20.7" D x 20" H | 35" W x 30.5" D x 37.5" H | 325 lbs |

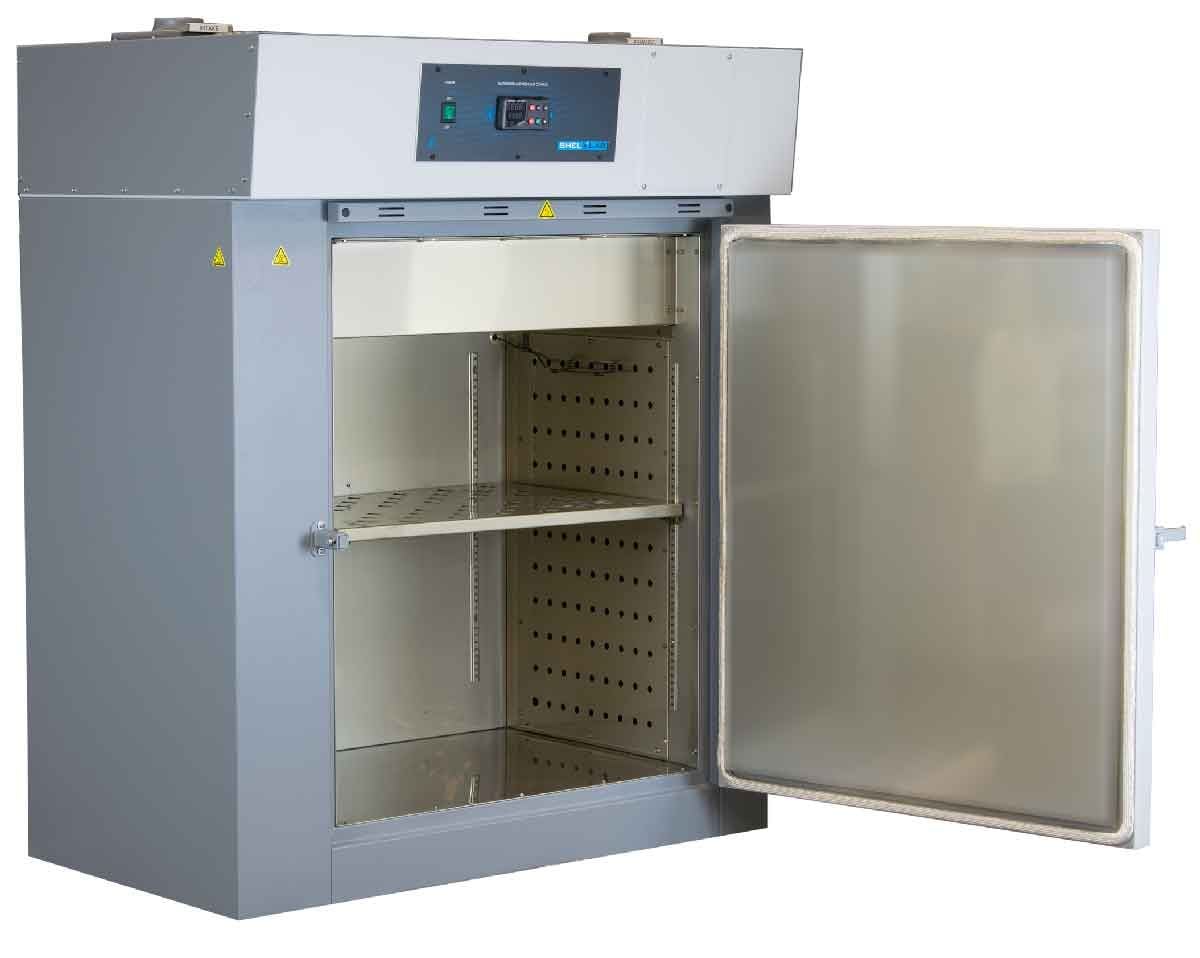

SMO10HP-2 | 0.1°C | 30" W x 19.75" D x 30.1" H | 44" W x 28.25" D x 55.1" H | 357 lbs |

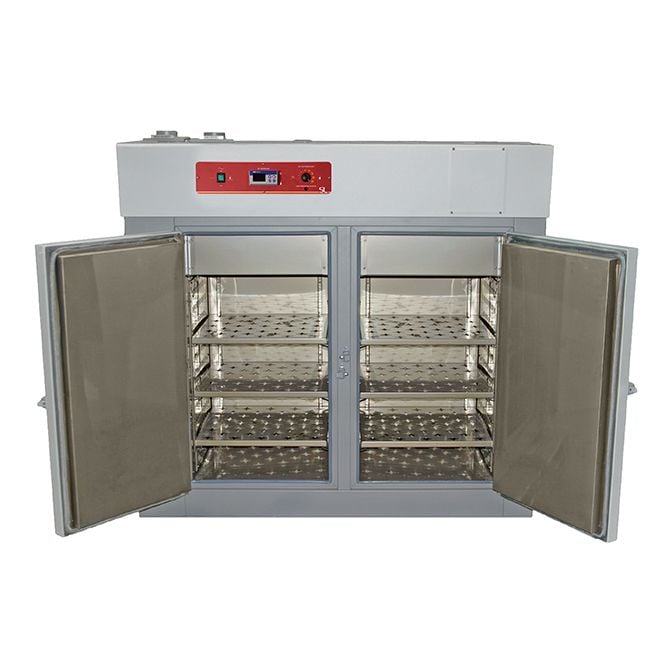

SMO14HP-2 | 0.1°C | 44" W x 20.5" D x 36" H | 59" W x 29" D x 57" H | 280 lbs |
SMO28HP-2 | 0.1°C | 31.5" W x 26" D x 60.5" H | 43" W x 34.3" D x 85.5" H | 563 lbs |

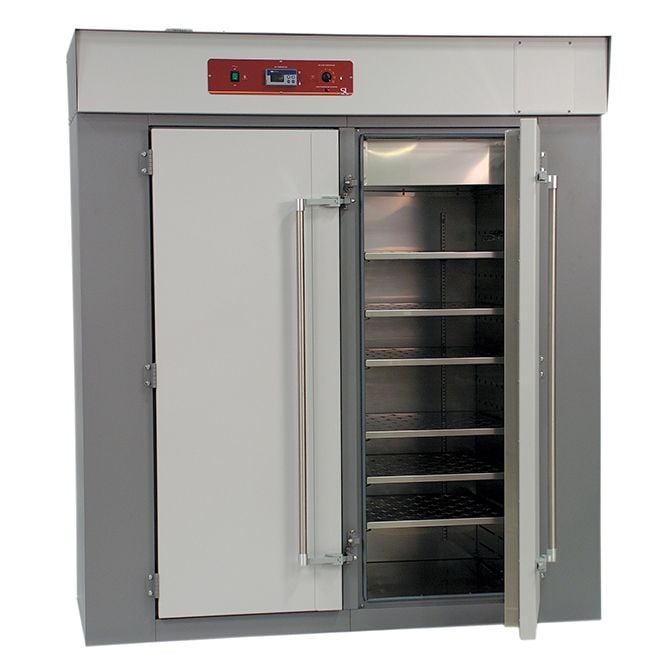

SMO38HP-2 | 1°C | 48" W x 25.5" D x 54" H | 68.5" W x 33.8" D x 78.5" H | 1078 lbs |
