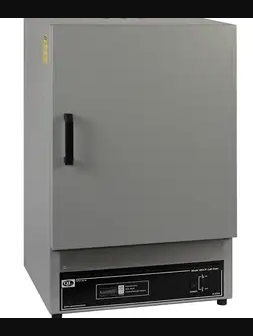

GCE Series Low Temperature Digital Gravity Convection Ovens
Manufacturer: Quincy Lab
Starting at $993.00
Select a product below and add it to your cart to request a quote.
GCE Series Low Temperature Digital Gravity Convection Ovens
Description
Features:
- Digital Microprocessor Control
- Gravity Convection
- Durable Double-wall Construction
- Scratch-resistant Hammer Finish
- Corrosion-resistant Aluminized Interior
- Full 18-month Factory Warranty
- Proven Reliability
Advanced Design
- Cabinets are as attractive as they are durable. Exteriors are painted light gray and have a hard, scratch-resistant hammer finish. Doors open with high-impact thermoplastic handles. Cabinets have heavy steel double-wall construction. Work space is insulated from the outer cabinet with one inch of high-density mineral wool, and interiors are made of corrosion-resistant aluminized steel.
Controls
- The digital control combines the features of the analog model but offers the ease of temperature setting and the stability of a full PID microprocessor that accurately maintains settings within ±1.0°C, even in varying ambient or power supply conditions. A temperature-tracking feature stores temperature deviation from set point. This feature helps to confirm stability or indicate any control malfunction or power loss throughout a process period. The digital controller features large LED's that continuously display process temperature as well as a setting lock mode that provides protection against accidental or inadvertent adjustment.
Heating Elements
- Energy-efficient, low-watt density incoloy sheathed elements are engineered into a compact design for quick run-up and recovery times. Temperature uniformity is greatly improved by a perforated heat shield which absorbs radiant heat and distributes it more evenly.
*Accessory options are a custom-made item and are built into your unit, resulting in a 3-4 week lead time. Shelves and Shelf supports are not custom-made and will be shipped separately.
SKU | Controller | Material | Max Temperature | Temperature Range | Dimensions | Shelf Capacity | Internal Dimensions | Max. # of Shelves |
---|---|---|---|---|---|---|---|---|
10GCE-LT | Digital PID Microprocessor Control | Aluminum, Solid Steel | 210°F (99°C) | Ambient +15°F to 210°F | 14 in x 17.5 in x 12.3 in | 35 lbs | 12 in x 10 in x 10 in | 10 |
20GCE-LT | Digital PID Microprocessor Control | Aluminum, Solid Steel | 210°F (99°C) | Ambient +15°F to 210°F | 15 in x 21.5 in x 15.3 in | 35 lbs | 13 in x 13 in x 13 in | 13 |
30GCE-LT | Digital PID Microprocessor Control | Aluminum, Solid Steel | 210°F (99°C) | Ambient +15°F to 210°F | 15 in x 21.5 in x 15.3 in | 35 lbs | 18 in x 15.6 in x 12 in | 16 |
40GCE-LT | Digital PID Microprocessor Control | Aluminum, Solid Steel | 210°F (99°C) | Ambient +15°F to 210°F | 20 in x 31.5 in x 16.3 in | 35 lbs | 18 in x 21.8 in x 14 in | 22 |
SKU | Model # | Electrical Information | Plug Type | Temperature Stability | Time to Reach Temperature | Door Recovery Time | Warranty |
---|---|---|---|---|---|---|---|
10GCE-LT | 10GCE-LT | 115V, 2.6A, 250W | 5-15P | ±0.8°C | Ambient to Max: 27 min. | @200°F (Door Open 15 Sec.) 4 min. @200°F (Door Open 30 Sec.) 8 min. |
18 Months |
20GCE-LT | 20GCE-LT | 115V, 2.6A, 360W | 5-15P | ±0.8°C | Ambient to Max: 30 min. | @200°F (Door Open 15 Sec.) 5.5 min. @200°F (Door Open 30 Sec.) 8 min. |
18 Months |
30GCE-LT | 30GCE-LT | 115V, 5.2A, 360W | 5-15P | ± 1.0°F (± 0.5°C) | Ambient to Max: 28 min. | @200°F (Door Open 15 Sec.) 5 min. @200°F (Door Open 30 Sec.) 8 min. |
18 Months |
40GCE-LT | 40GCE-LT | 115V, 5.2A, 360W | 5-15P | ± 1.0°F (± 0.5°C) | Ambient to Max: 64 min. | @200°F (Door Open 15 Sec.) 8 min. @200°F (Door Open 30 Sec.) 14 min. |
18 Months |
