Complete Soxhlet Extraction Apparatus, Round Bottom Flask

Name: Complete Soxhlet Extraction Apparatus, Round Bottom Flask
Brand: Chemglass Life Sciences
SKU: CG-1369-01-GROUP

Manufacturer: Chemglass Life Sciences

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Price Chart

Grouped product items
Cat Code	Description	Capacity	Joint Size	Size	Price	Qty
CG-1369-01 CG-1369-01	Small Complete Soxhlet Extraction Apparatus	Extractor: 50 mL Flask: 125 mL	Top: 34/45 Lower: 24/40	Small	$430.45	+ -
CG-1369-02 CG-1369-02	Medium Complete Soxhlet Extraction Apparatus	Extractor: 85 mL Flask: 250 mL	Top: 45/50 Lower: 24/40	Medium	$508.05	+ -
CG-1369-03 CG-1369-03	Large Complete Soxhlet Extraction Apparatus	Extractor: 200 mL Flask: 300 mL	Top: 55/50 Lower: 24/40	Large	$578.75	+ -
Total $0.00

Use the Quantity box to select product first.

Accessories

Grouped product items
Cat Code	Description	Quantity	Joint Size	Price	Qty
CG-1368-04 CG-1368-04	Small Soxhlet Condenser Only	Each	34/45	$166.65	+ -
CG-1368-05 CG-1368-05	Medium Soxhlet Condenser Only	Each	45/50	$199.70	+ -
CG-1368-06 CG-1368-06	Large Soxhlet Condenser Only	Each	55/50	$242.05	+ -
CG-1368-07 CG-1368-07	Small Soxhlet Extractor Only	Each	34/45	$242.25	+ -
CG-1368-08 CG-1368-08	Medium Soxhlet Extractor Only	Each	45/50	$281.20	+ -
CG-1368-09 CG-1368-09	Large Soxhlet Extractor Only	Each	55/50	$311.50	+ -
Total $0.00

Use the Quantity box to select product first.

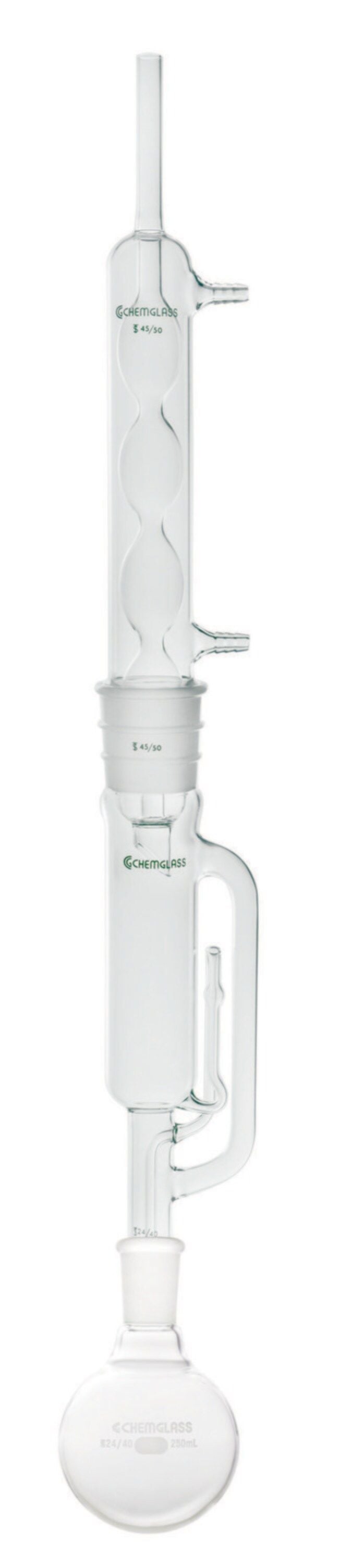

This complete Soxhlet extraction apparatus has a round bottom flask as its receiving container. This unit supports the continuous extraction of solids in conjunction with a suitable solvent. In addition to the round bottom flask, the full apparatus package also contains an Allihn condenser with an enlarged uptake tube and an extractor that can use glass or paper thimbles. Thimbles and replacement parts are sold separately. Available in three sizes.

Description

Overview

In Stock!

Lead Times May Vary.

The Chemglass Soxhlet Extraction Apparatus, Complete, Round Bottom Flask is similar to CG-1368, but supplied with a round bottom instead of a flat bottom flask.

Features:

Continuous extraction of solids with suitable solvent
Units supplied complete with a round bottom boiling flask, Soxhlet extractor, and Allihn condenser
Extractor capacity shown is the solvent volume held in the extractor to the top of the siphon tube
Siphon tube is protected from accidental damage by the vapor tube
Extractor has a standard taper outer joint at the top for connection to the condenser and standard taper inner joint at the bottom for connection to the round bottom boiling flask
Additional replacement parts are available

Soxhlet extraction apparatus uses cellulose, glass microfiber or fritted glass extraction thimbles (not supplied).

Specifications

SKU	Inner Diameter	For Use With
CG-1369-01	Extractor: 38 mm	Glass Thimble: 35 x 90 Paper Thimble: 33 x 80
CG-1369-02	Extractor: 50 mm	Glass Thimble: 45 x 130 Paper Thimble: 43 x 123
CG-1369-03	Extractor: 30 mm	Glass Thimble: 25 x 85 Paper Thimble: 25 x 80
