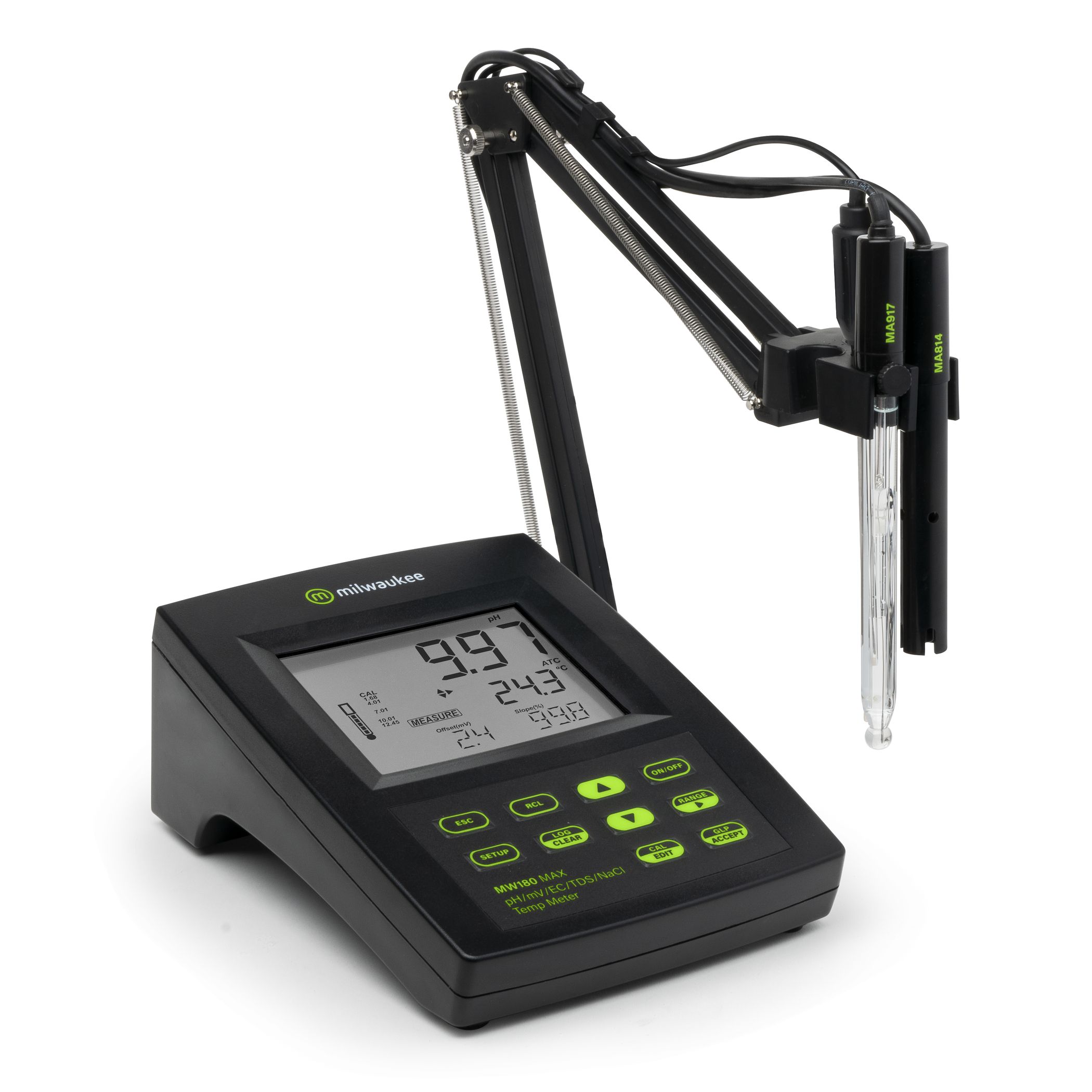

MAX 6-in-1 (pH, mV, EC, TDS, NaCl, Temperature) Two-Channel Multiparameter Benchtop Meters
Manufacturer: Milwaukee Instruments
Description
The Milwaukee MW180 MAX 5-in-1 pH/ORP/EC/TDS/NaCl/Temp Logging Bench Meter is Milwaukee's most comprehensive benchtop water quality meter, combining full pH, ORP, conductivity, and salinity measurement in a single sleek unit with a small footprint. Accurate to ±0.002 pH and ±1% of reading for EC/TDS/NaCl, the MW180 is trusted by aquaculture professionals, horticulturalists, environmental researchers, educators, food processors, and water treatment facilities who need a cost-effective all-in-one bench solution. It includes Milwaukee's top-selling lab-grade MA917B/1 refillable double junction glass pH electrode, MA814DB/1 4-ring combination EC/temp probe, and MA831R stainless steel temperature probe, and logs up to 50 records per parameter with RS232/USB opto-isolated data export.
Features:
- Measures pH, ORP, EC, TDS, NaCl, and temperature in a single 5-in-1 bench meter
- pH range -2.00 to 20.00; ORP range ±699.9 mV / ±2000 mV; EC range 0.00 µS/cm to 500.0 mS/cm (uncompensated); TDS range 0.00 ppm to 400 g/L (with 0.80 factor); NaCl range 0.0-400.0%; temperature range -20.0 to 120.0°C
- pH accuracy ±0.002 pH; EC/TDS/NaCl accuracy ±1% of reading; temperature accuracy ±0.4°C (±0.8°F)
- Up to 3-point automatic pH calibration with 7 memorized standard buffer choices; single-point EC/TDS/NaCl calibration with 6 memorized EC calibration solutions; 2-point temperature calibration for enhanced ATC accuracy
- Automatic and manual Temperature Compensation (ATC)
- Includes MA917B/1 refillable double junction lab-grade glass pH electrode, MA814DB/1 4-ring combination EC/temp probe, and MA831R stainless steel temperature probe
- Log-on-demand or automatic logging up to 50 records per parameter with RS232/USB opto-isolated data export
- Dedicated GLP key with date and time tracking
- Internal clock for calibration timestamps and calibration timeout tracking
- Large dual-level digital LCD readout for fast, easy-to-read results
- Lightweight, sleek design with a small benchtop footprint
- 12 VDC power supply included
- 3-foot probe cables; includes MA9315 electrode holder, pipets, initial calibration solutions, software, and all cables
- ORP probes sold separately
- Store pH probe upright in storage solution MA9015; store EC probe dry; never store pH probe in distilled or RO water; clean pH electrode regularly with MA9016 cleaning solution; clean EC probe rings with DI water and a soft cloth
| SKU | pH Accuracy | Resolution | Conductivity Accuracy | Temperature Range | Temperature Accuracy | Temperature Resolution | Temperature Compensation | Type |
|---|---|---|---|---|---|---|---|---|
| MW180US | ±0.01 pH | 0.01 pH | ±1% of reading | -20 to 120°C | ±0.4°C | 0.1°C | Automatic or Manual | pH/mV/EC/TDS/NaCl/Temp |
|
|
MAX 6-in-1 (pH, mV, EC, TDS, NaCl, Temperature) Two-Channel Multiparameter Benchtop Meter Product Manual | Download |
| SKU | Calibration | Working Environment | Power Requirement | Warranty | Dimensions |
|---|---|---|---|---|---|
| MW180US | Up to 3 points | 0 to 50°C; max RH 95% | 12 VDC Included | 3 Years (Meter) | 9.0 in x 6.3 in x 3.7 in |
Starting at $1,017.75
Select a product below and add it to your cart to request a quote.
