VO Series Vacuum Ovens
Manufacturer: Memmert
Memmert VO Series Vacuum Ovens are world-class solutions for drying heat-sensitive materials, granulates, and delicate electronic components. By combining digital pressure control with a unique Multi-Level-Heating system, this oven ensures that your load is dried at maximum speed without compromising structural integrity. Unlike standard vacuum ovens, the VO series utilizes individually heated thermoshelves with their own dedicated sensors. This direct contact heating practically eliminates heat loss and allows for significantly shorter processing times. When paired with the speed-controlled vacuum pump, the system achieves approximately 70% energy savings compared to uncontrolled pump setups.
Description
In Stock!
2 Business Days
Engineered for precision and thermal safety in pharmaceutical, cosmetic, and semiconductor manufacturing.
Key Technical Benefits:
- Vacuum Cycles: Memmert is the only manufacturer to offer controlled pressure oscillation. By cycling between two vacuum values, large amounts of dry air are admitted to absorb humidity and then immediately extracted, drastically reducing drying times for powders.
- Intelligent Direct Heating: Each thermoshelf can be individually calibrated and reacts precisely to different loads or moisture levels, ensuring a constant set temperature across all levels.
- Climate-Friendly Pump Control: The speed-controlled, chemical-resistant pump (optional accessory) is automatically detected by the oven. It only runs at the speed necessary to maintain the vacuum, significantly extending membrane service life.
- Superior Safety: The door construction is VDE-tested to be anti-splinter, providing peace of mind during high-vacuum operations.
Laboratory Maintenance & Safety:
- Pump Maintenance: Utilize the "Pump Flushing" program via the ControlCOCKPIT. This removes solvent residues from the pump membranes after a run, ensuring a significantly longer service life and maintaining a low ultimate vacuum of 2 mbar.
- Direct Contact: Since heat is transferred via the shelves, ensure your containers have flat bottoms for maximum contact. Using the thermoshelves directly for sample placement results in the fastest possible heat-up times.
- Documentation: The TwinDISPLAY includes a USB port and Ethernet interface. For regulated industries (FDA/GLP), use the AtmoCONTROL software to create validated documentation of both temperature and vacuum levels.
| SKU | Connection Type | Working Environment | Temperature Range | Temperature Accuracy | Temperature Sensor | Maximum Load | Relative Humidity |
|---|---|---|---|---|---|---|---|
| VO 101 230V | DN16, Gas Inlet | 5°C Above Ambient to 200°C | 20°C to 200°C | 0.1°C/0.5°C | 20 kg | Max. 80%, Non-Condensing | |
| VO 29 230V | DN16, Gas Inlet | 5°C Above Ambient to 200°C | 20°C to 200°C | 0.1°C/0.5°C | 20 kg | Max. 80%, Non-Condensing | |
| VO 49 230V | DN16, Gas Inlet | 5°C Above Ambient to 200°C | 20°C to 200°C | 0.1°C/0.5°C | 20 kg | Max. 80%, Non-Condensing |
|
VO29 Vacuum Oven Specification Sheet | Download |
|
|
VO49 Vacuum Oven Specification Sheet | Download |
|
|
VO101 Vacuum Oven Specification Sheet | Download |
| SKU | Dimensions | Internal Dimensions | Certification | Controller | Display | Type |
|---|---|---|---|---|---|---|
| VO 101 230V | 21.7 in x 28.0 in x 30.2 in (551.18 mm x 711.20 mm x 767.08 mm) |
21.46 in x 18.31 in x 15.75 in (545 mm x 465 mm x 400 mm) |
CE, VDE, GS, cMETus, EAC | PID-Microprocessor Controller | Dual TFT-Color | Vacuum |
| VO 29 230V | 15.7 in x 21.7 in x 23.9 in (398.78 in x 551.18 mm x 607.06 mm) |
15.16 in x 12.01 in 9.84 in (385 mm x 305 mm x 250 mm) |
CE, VDE, GS, cMETus, EAC | PID-Microprocessor Controller | Dual TFT-Color | Vacuum |
| VO 49 230V | 18.9 in x 21.7 in x 27.0 in (480.06 in x 551.18 mm x 685.80 mm) |
15.16 in x 15.16 in x 12.99 in (385 mm x 385 mm x 330 mm) |
CE, VDE, GS, cMETus, EAC | PID-Microprocessor Controller | Dual TFT-Color | Vacuum |
Memmert VO Series Vacuum Ovens are world-class solutions for drying heat-sensitive materials, granulates, and delicate electronic components. By combining digital pressure control with a unique Multi-Level-Heating system, this oven ensures that your load is dried at maximum speed without compromising structural integrity. Unlike standard vacuum ovens, the VO series utilizes individually heated thermoshelves with their own dedicated sensors. This direct contact heating practically eliminates heat loss and allows for significantly shorter processing times. When paired with the speed-controlled vacuum pump, the system achieves approximately 70% energy savings compared to uncontrolled pump setups.
Starting at $13,987.00
Request A Quote

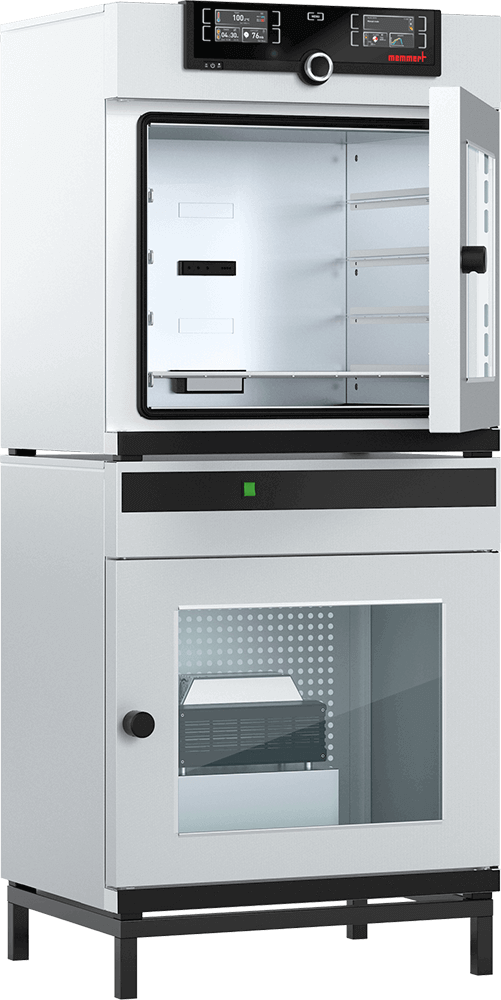

![Memmert 101 L VO 101 Vacuum Oven]()
Select a product below and add it to your cart to request a quote.
