UF Series TS Pass-Through Ovens
Manufacturer: Memmert
Memmert UF TS Pass-Through Ovens are the definitive solution for contamination-free sample and component transfer between greyrooms and cleanrooms. Engineered specifically for the semiconductor, electronics, medical, and pharmaceutical industries, this oven acts as a temperature-controlled bridge that maintains environmental integrity while providing precise thermal treatment. Based on the premium UFplus technology, the UF TS features doors on both sides and utilizes forced air circulation for rapid temperature recovery times after opening. The integrated TwinDISPLAY control system provides the high-level precision and thermal safety required for mission-critical cleanroom applications.
Description
In Stock!
2 Business Days (Note: 8-10 weeks for UF 160 TS)
These specialized units are built to maintain stringent environmental standards during material transfer.
Key Technical Benefits:
- Contamination Minimization: Serves as a thermal material lock, ensuring that the cleanroom environment is never directly exposed to the greyroom during component loading.
- Rapid Recovery: The forced-air turbine ensures that the internal temperature homogenized and stabilizes almost immediately after a door is closed, maintaining process continuity.
- Advanced Safety: Features an integrated auto-diagnostic system, electronic temperature monitoring, and a mechanical temperature limiter to protect both users and sensitive chamber loads.
- Audit-Ready Documentation: The TwinDISPLAY includes an integrated data logger (10+ years storage) and state-of-the-art interfaces for compliance with pharmaceutical and medical documentation requirements (IQ/OQ/PQ available).
Laboratory Maintenance & Safety:
- Customized Solutions: Pass-through ovens typically require specific adaptation to the wall thickness and mounting requirements of your facility. It is highly recommended to consult with our experts for individual site-specific solutions.
- Software Advantage: Use the AtmoCONTROL software to program complex temperature ramps that synchronize with your standard operating procedures (SOPs) for material entry.
- Hygienic Maintenance: The easy-to-clean stainless steel interior is designed for rapid decontamination, supporting the stringent hygiene protocols of semiconductor and pharmaceutical production.
| SKU | Working Environment | Temperature Range | Temperature Accuracy | Temperature Sensor | Maximum Load | Relative Humidity |
|---|---|---|---|---|---|---|

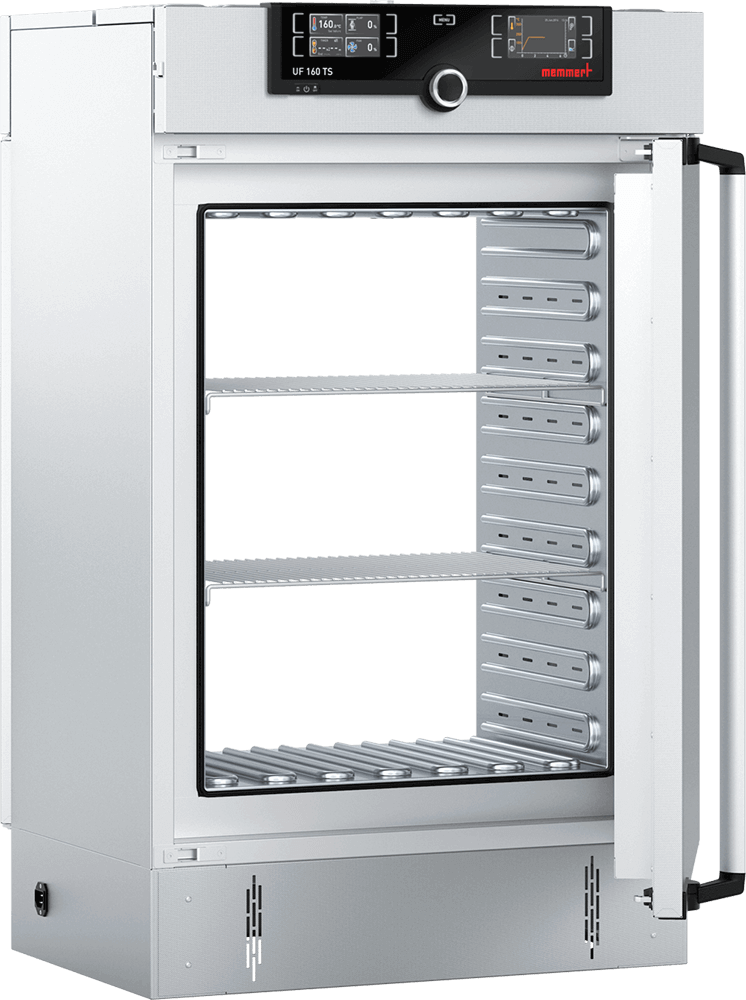

| UF 160 TS 115V | 10°C Above Ambient to 250°C | 20°C to 250°C | 0.1°C/0.5°C | Dual Pt100 Sensor DIN Class A (4-Wire-Circuit) | 210 kg | Max. 80%, Non-Condensing |
| UF 160 TS 230V | 10°C Above Ambient to 250°C | 20°C to 250°C | 0.1°C/0.5°C | Dual Pt100 Sensor DIN Class A (4-Wire-Circuit) | 300 kg | Max. 80%, Non-Condensing |
| UF 260 TS 115V | 10°C Above Ambient to 250°C | 20°C to 250°C | 0.1°C/0.5°C | Dual Pt100 Sensor DIN Class A (4-Wire-Circuit) | 300 kg | Max. 80%, Non-Condensing |
| UF 260 TS 230V | 10°C Above Ambient to 250°C | 20°C to 250°C | 0.1°C/0.5°C | Dual Pt100 Sensor DIN Class A (4-Wire-Circuit) | 300 kg | Max. 80%, Non-Condensing |

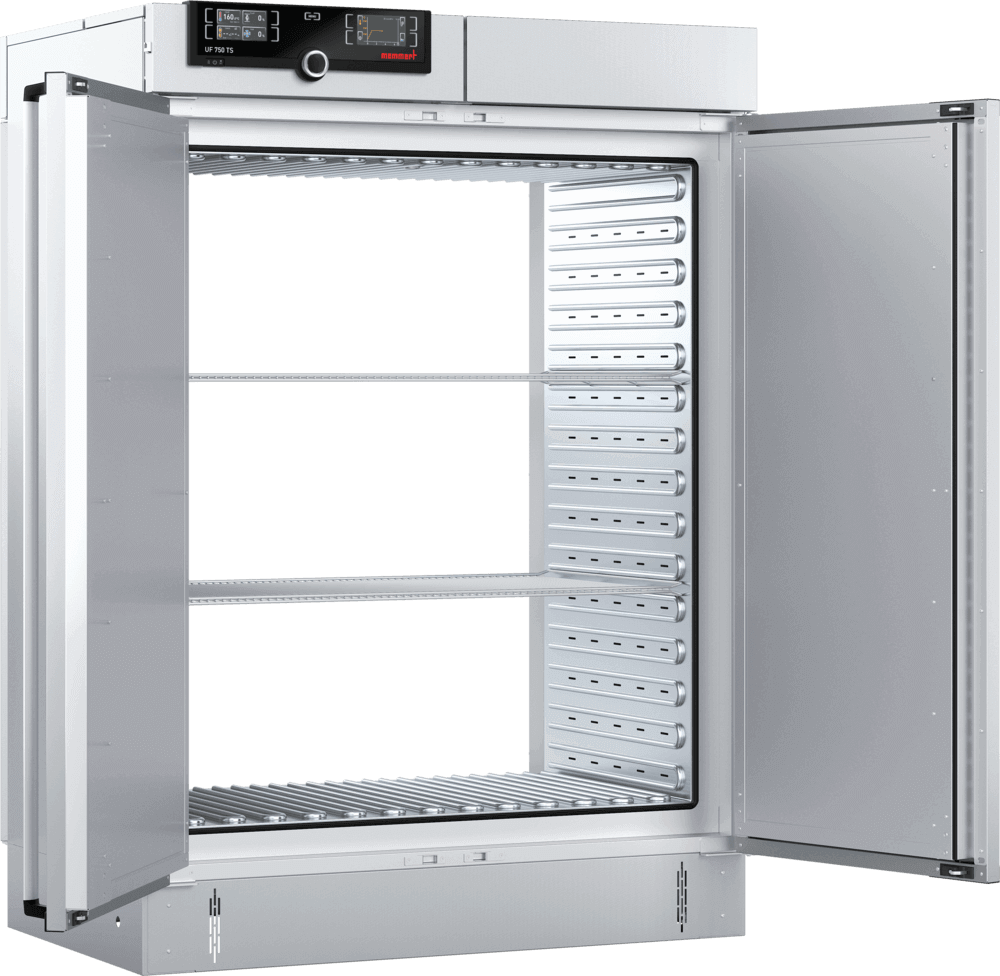

| UF 750 TS 208V | 10°C Above Ambient to 250°C | 20°C to 250°C | 0.1°C/0.5°C | Dual Pt100 Sensor DIN Class A (4-Wire-Circuit) | 300 kg | Max. 80%, Non-Condensing |

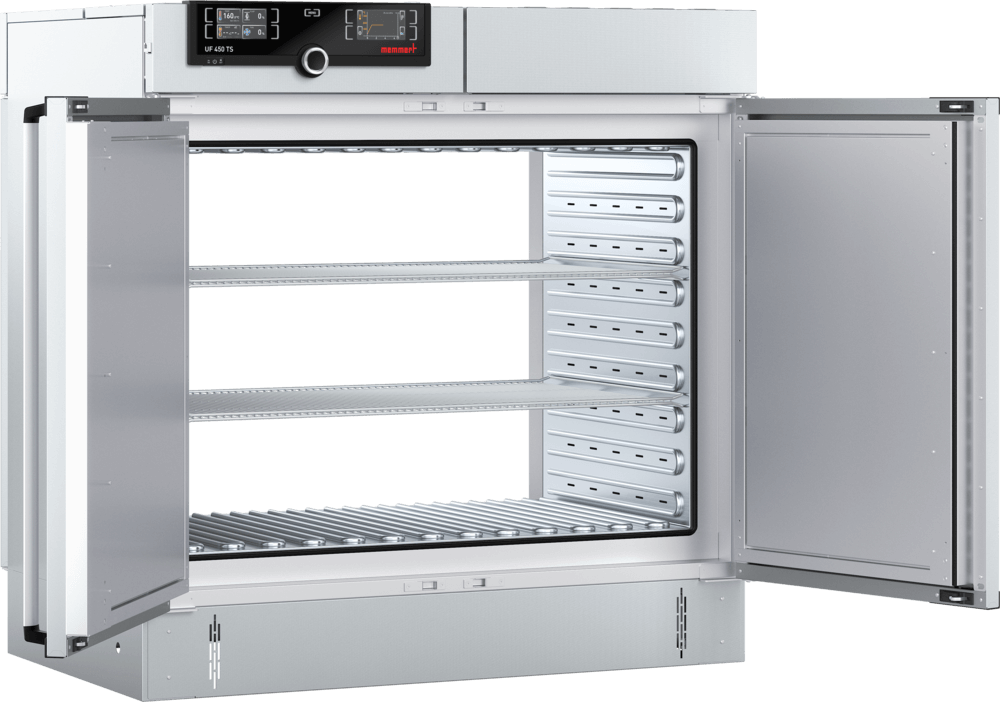

| UF 450 TS 208V | 10°C Above Ambient to 250°C | 20°C to 250°C | 0.1°C/0.5°C | Dual Pt100 Sensor DIN Class A (4-Wire-Circuit) | 300 kg | Max. 80%, Non-Condensing |
|
UN & UF Series Universal Oven Specification Sheet | Download |
|
|
UF750 TS Pass-Through Oven Specification Sheet | Download |
|
|
UF450 TS Pass-Through Oven Specification Sheet | Download |
|
|
UF260 TS Pass-Through Oven Specification Sheet | Download |
|
|
UF160 TS Pass-Through Oven Specification Sheet | Download |
| SKU | Dimensions | Internal Dimensions | Certification | Controller | Display | Type |
|---|---|---|---|---|---|---|
| UF 160 TS 115V | 22.9 in x 29.3 in x 48.5 in (581.66 mm x 744.22 mm x 1231.90 mm) |
22.05 in x 28.35 in x 15.75 in (560 mm x 720 mm x 400 mm) |
CE, EAC | PID-Microprocessor Controller | Dual TFT-Color | Forced Circulation |
| UF 160 TS 230V | 22.9 in x 29.3 in x 48.5 in (581.66 mm x 744.22 mm x 1231.90 mm) |
22.05 in x 28.35 in x 15.75 in (560 mm x 720 mm x 400 mm) |
CE, EAC | PID-Microprocessor Controller | Dual TFT-Color | Forced Circulation |
| UF 260 TS 115V | 26.9 in x 32.5 in x 51.7 in (683.26 mm x 825.50 mm x 1313.18 mm) |
25.20 in x 31.50 in x 19.69 in (640 mm x 800 mm x 500 mm) |
CE, EAC | PID-Microprocessor Controller | Dual TFT-Color | Forced Circulation |
| UF 260 TS 230V | 26.9 in x 32.5 in x 51.7 in (683.26 mm x 825.50 mm x 1313.18 mm) |
25.20 in x 31.50 in x 19.69 in (640 mm x 800 mm x 500 mm) |
CE, EAC | PID-Microprocessor Controller | Dual TFT-Color | Forced Circulation |
| UF 750 TS 208V | 30.8 in x 48.2 in x 67.5 in (782.32 mm x 1224.28 mm x 1714.50 mm) |
40.94 in x 47.24 in x 23.62 in (1040 mm x 1200 mm x 600 mm) |
CE, EAC | PID-Microprocessor Controller | Dual TFT-Color | Forced Circulation |
| UF 450 TS 208V | 30.8 in x 48.2 in x 48.5 in (782.32 mm x 1224.28 mm x 1231.90 mm) |
40.94 in x 28.35 in x 23.62 in (1040 mm x 720 mm x 600 mm) |
CE, EAC | PID-Microprocessor Controller | Dual TFT-Color | Forced Circulation |
Memmert UF TS Pass-Through Ovens are the definitive solution for contamination-free sample and component transfer between greyrooms and cleanrooms. Engineered specifically for the semiconductor, electronics, medical, and pharmaceutical industries, this oven acts as a temperature-controlled bridge that maintains environmental integrity while providing precise thermal treatment. Based on the premium UFplus technology, the UF TS features doors on both sides and utilizes forced air circulation for rapid temperature recovery times after opening. The integrated TwinDISPLAY control system provides the high-level precision and thermal safety required for mission-critical cleanroom applications.
Starting at $16,039.00
Request A Quote

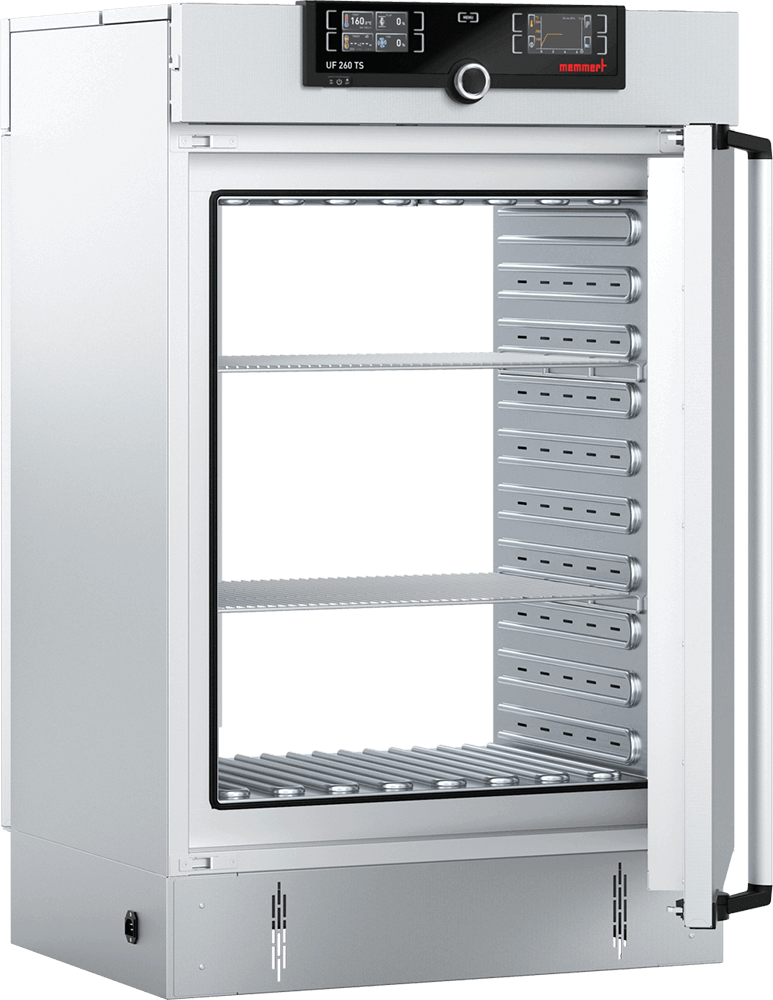

![Memmert 115V 256 L UF 260 TS Pass-Through Oven]()
Select a product below and add it to your cart to request a quote.
