UF Series Forced Circulation Universal Ovens
Manufacturer: Memmert
Memmert UF Series Forced Circulation Universal Ovens are engineered for applications where speed, efficiency, and absolute temperature uniformity are paramount. Unlike natural convection models, the UF series utilizes forced air circulation via a quiet, high-performance turbine. This ensures rapid heat-up times, faster drying of moist loads, and superior temperature homogenization throughout the entire chamber, even when the oven is fully loaded. Constructed with Memmert's signature scratch-resistant and hygienic stainless steel, these ovens are ideal for material testing, tempering electronic components, and hardening resins. The intuitive ControlCOCKPIT SingleDISPLAY interface allows for "Touch, Turn & Go" operation, making complex thermal tasks accessible and repeatable.
Description
In Stock!
2 Business Days (Note: 8-10 weeks for UF 110 115V & UF 750)
Available in a wide variety of sizes and electrical configurations to meet the demands of any laboratory or industrial facility.
Key Technical Benefits:
- Optimized Airflow: The forced circulation turbine can be adjusted in 10% steps via the ControlCOCKPIT, allowing you to tailor the air exchange rate to the specific sensitivity of your load.
- Pre-Heated Fresh Air: To prevent temperature dips, incoming air is passed through a pre-heating chamber, ensuring that the internal environment remains stable even during high air-exchange protocols.
- Robust Construction: The use of high-quality stainless steel for both the housing and the working chamber ensures an "ever-lasting" service life and easy decontamination.
- Documentation Ready: Every unit features an integrated data logger and an Ethernet interface for seamless integration into laboratory information management systems (LIMS).
Laboratory Maintenance & Safety:
- Drying Efficiency: For heavy or very moist loads, the UF series is significantly more effective than natural convection (UN) models. The forced airflow actively strips moisture from the surface of the samples, exhausted through the electronically controlled air flap.
- Fan Sensitivity: While forced air is excellent for uniformity, be cautious with extremely light powders or delicate films; in these cases, you should reduce the fan speed to the minimum (10%) or consider a natural convection UN model.
- Safety: The UF series features electronic over-temperature monitoring and a mechanical temperature limiter (TB) for double-layered protection of your samples and facility.
| SKU | Working Environment | Temperature Range | Temperature Accuracy | Temperature Sensor | Maximum Load | Relative Humidity |
|---|---|---|---|---|---|---|

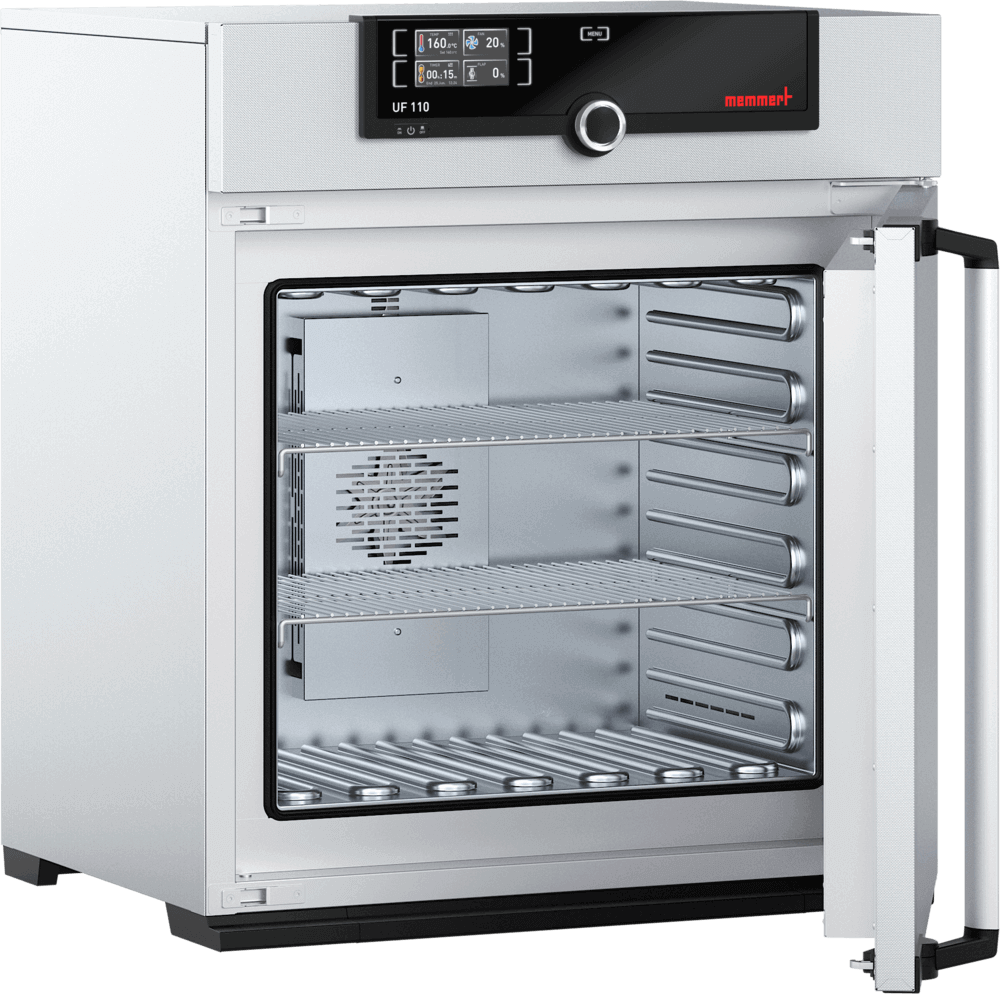

| UF 110 115V | 10°C Above Ambient to 300°C | 20°C to 300°C | 0.1°C/0.5°C | Single Pt100 Sensor DIN Class A (4-Wire-Circuit) | 175 kg | Max. 80%, Non-Condensing |
| UF 110 230V | 10°C Above Ambient to 300°C | 20°C to 300°C | 0.1°C/0.5°C | Single Pt100 Sensor DIN Class A (4-Wire-Circuit) | 175 kg | Max. 80%, Non-Condensing |

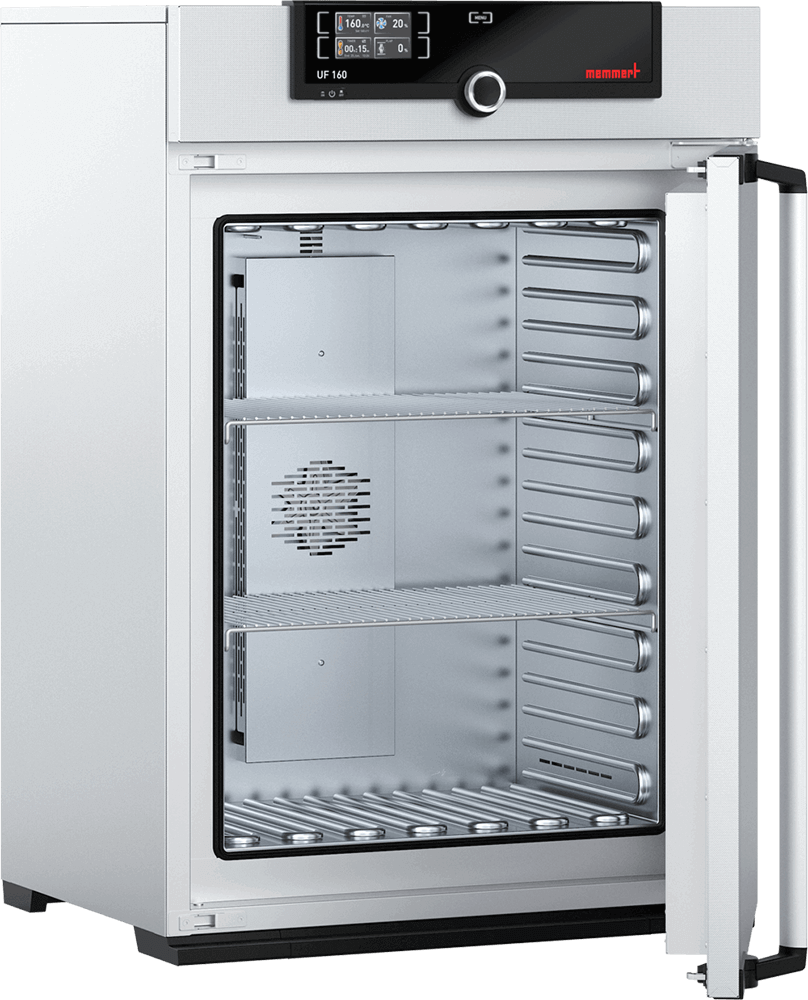

| UF 160 115V | 10°C Above Ambient to 300°C | 20°C to 300°C | 0.1°C/0.5°C | Single Pt100 Sensor DIN Class A (4-Wire-Circuit) | 210 kg | Max. 80%, Non-Condensing |
| UF 160 230V | 10°C Above Ambient to 300°C | 20°C to 300°C | 0.1°C/0.5°C | Single Pt100 Sensor DIN Class A (4-Wire-Circuit) | 210 kg | Max. 80%, Non-Condensing |

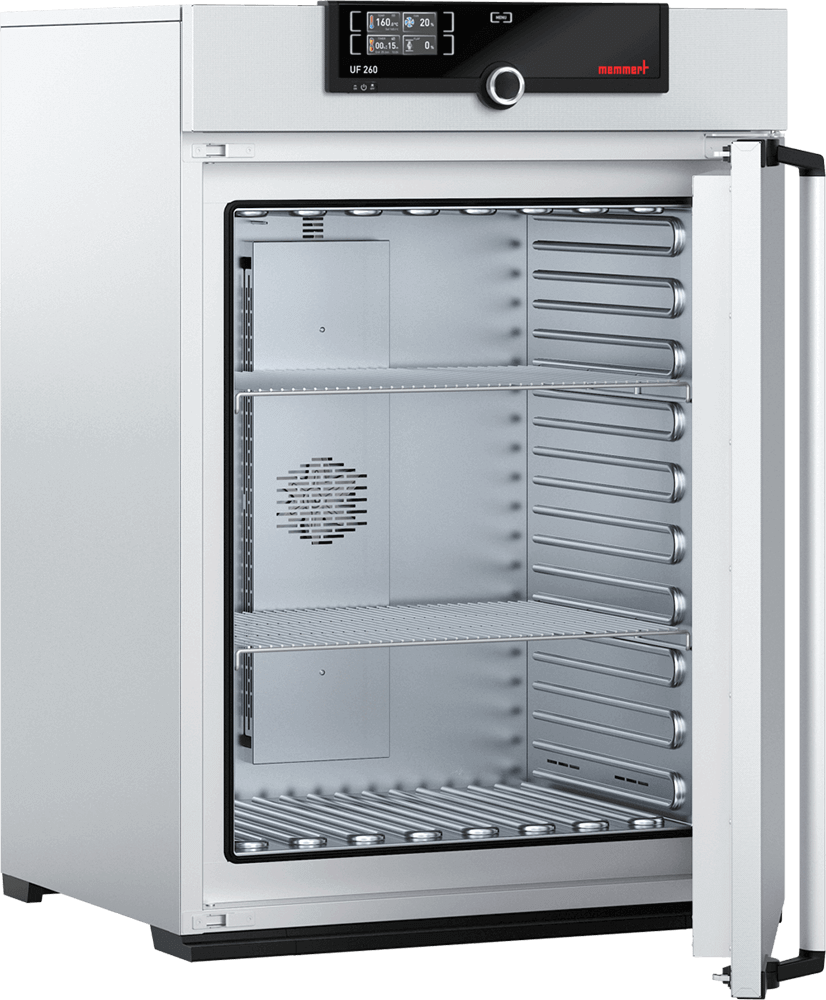

| UF 260 115V | 10°C Above Ambient to 300°C | 20°C to 300°C | 0.1°C/0.5°C | Single Pt100 Sensor DIN Class A (4-Wire-Circuit) | 300 kg | Max. 80%, Non-Condensing |
| UF 260 230V | 10°C Above Ambient to 300°C | 20°C to 300°C | 0.1°C/0.5°C | Single Pt100 Sensor DIN Class A (4-Wire-Circuit) | 300 kg | Max. 80%, Non-Condensing |

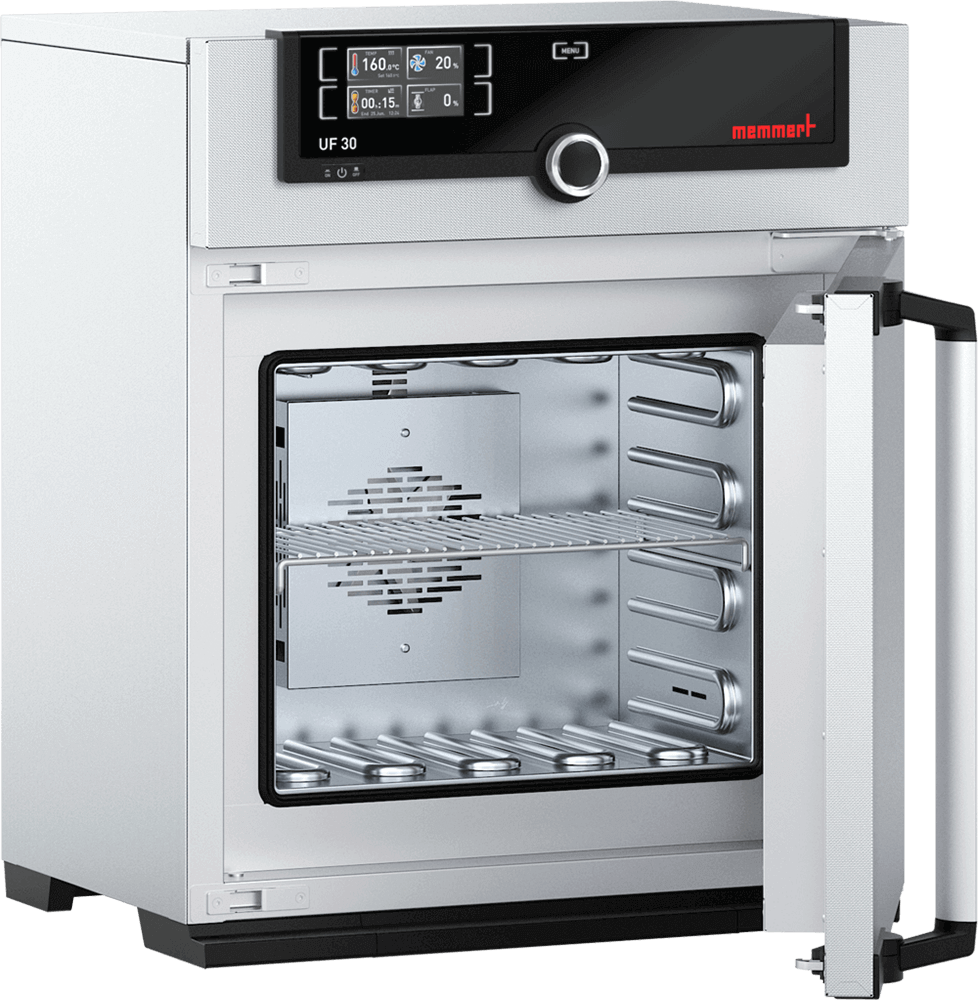

| UF 30 115V | 10°C Above Ambient to 300°C | 20°C to 300°C | 0.1°C/0.5°C | Single Pt100 Sensor DIN Class A (4-Wire-Circuit) | 60 kg | Max. 80%, Non-Condensing |
| UF 30 230V | 10°C Above Ambient to 300°C | 20°C to 300°C | 0.1°C/0.5°C | Single Pt100 Sensor DIN Class A (4-Wire-Circuit) | 60 kg | Max. 80%, Non-Condensing |

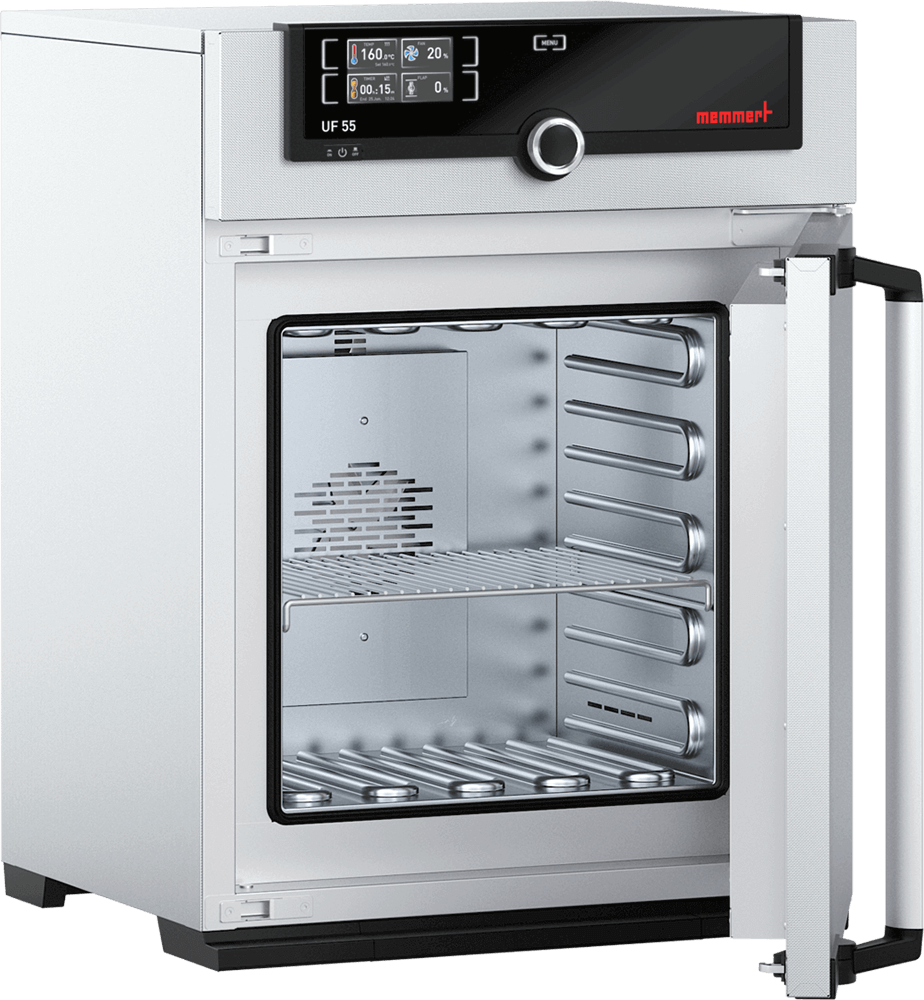

| UF 55 115V | 10°C Above Ambient to 300°C | 20°C to 300°C | 0.1°C/0.5°C | Single Pt100 Sensor DIN Class A (4-Wire-Circuit) | 80 kg | Max. 80%, Non-Condensing |
| UF 55 230V | 10°C Above Ambient to 300°C | 20°C to 300°C | 0.1°C/0.5°C | Single Pt100 Sensor DIN Class A (4-Wire-Circuit) | 80 kg | Max. 80%, Non-Condensing |

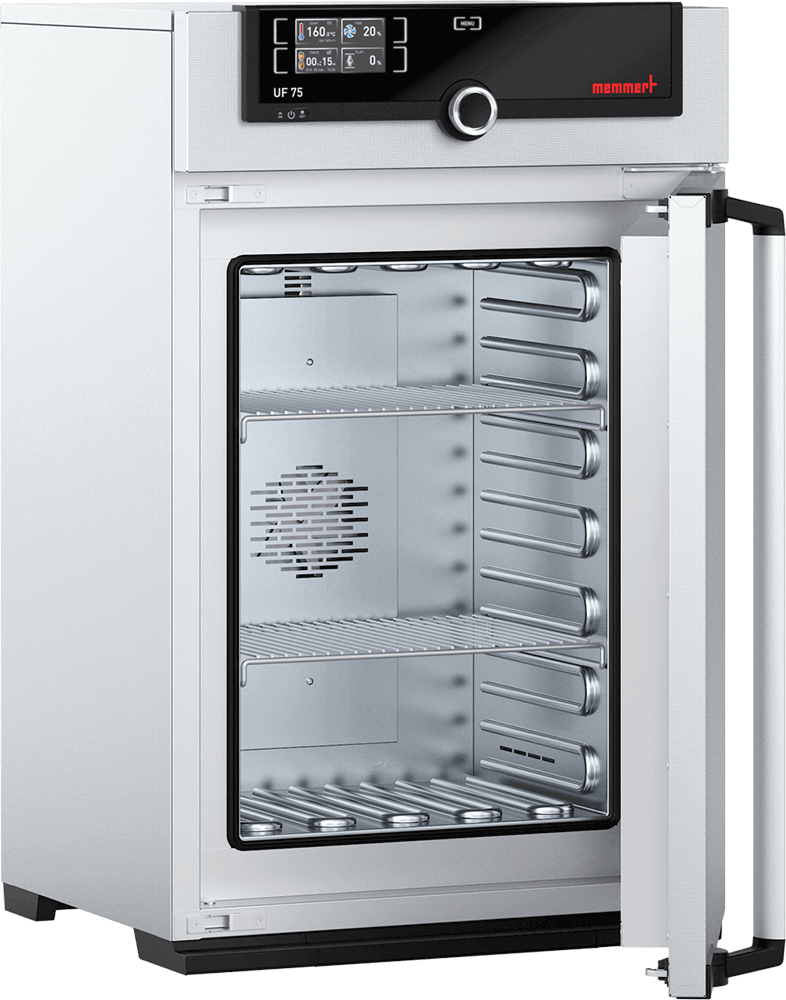

| UF 75 115V | 10°C Above Ambient to 300°C | 20°C to 300°C | 0.1°C/0.5°C | Single Pt100 Sensor DIN Class A (4-Wire-Circuit) | 120 kg | Max. 80%, Non-Condensing |
| UF 75 230V | 10°C Above Ambient to 300°C | 20°C to 300°C | 0.1°C/0.5°C | Single Pt100 Sensor DIN Class A (4-Wire-Circuit) | 120 kg | Max. 80%, Non-Condensing |
| UF 1060 208V | 10°C Above Ambient to 300°C | 20°C to 300°C | 0.1°C/0.5°C | Single Pt100 Sensor DIN Class A (4-Wire-Circuit) | 300 kg | Max. 80%, Non-Condensing |

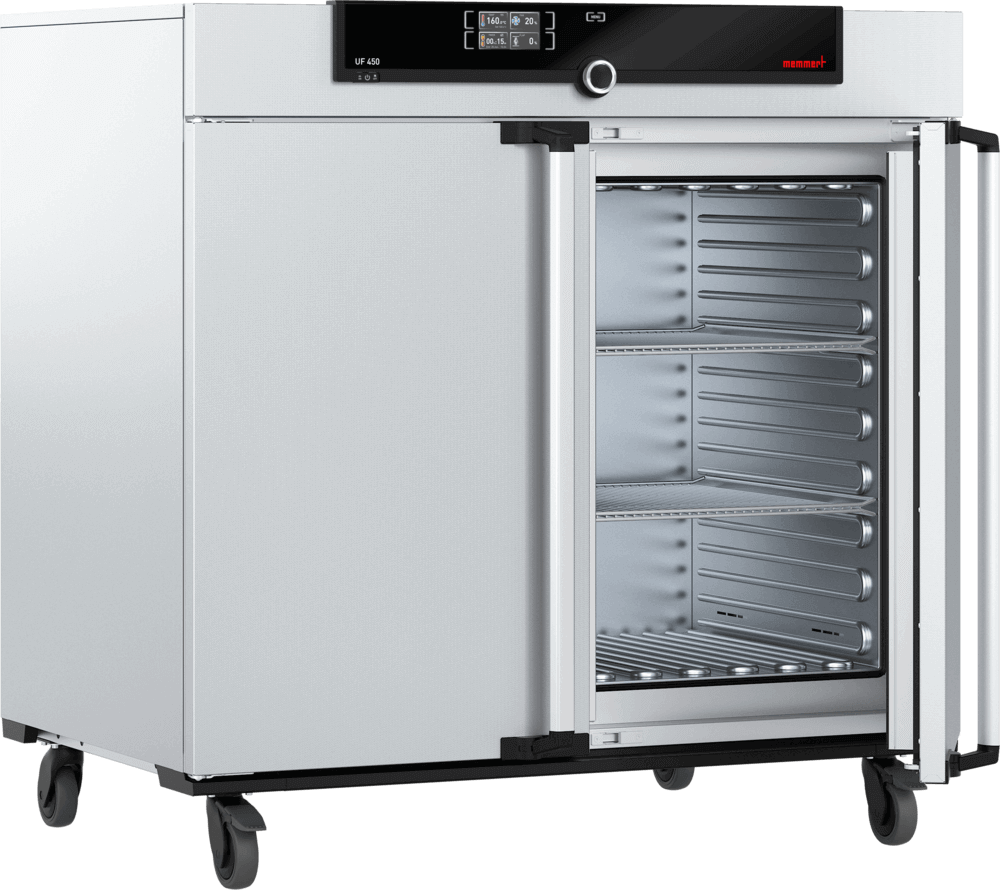

| UF 450 208V | 10°C Above Ambient to 300°C | 20°C to 300°C | 0.1°C/0.5°C | Single Pt100 Sensor DIN Class A (4-Wire-Circuit) | 300 kg | Max. 80%, Non-Condensing |

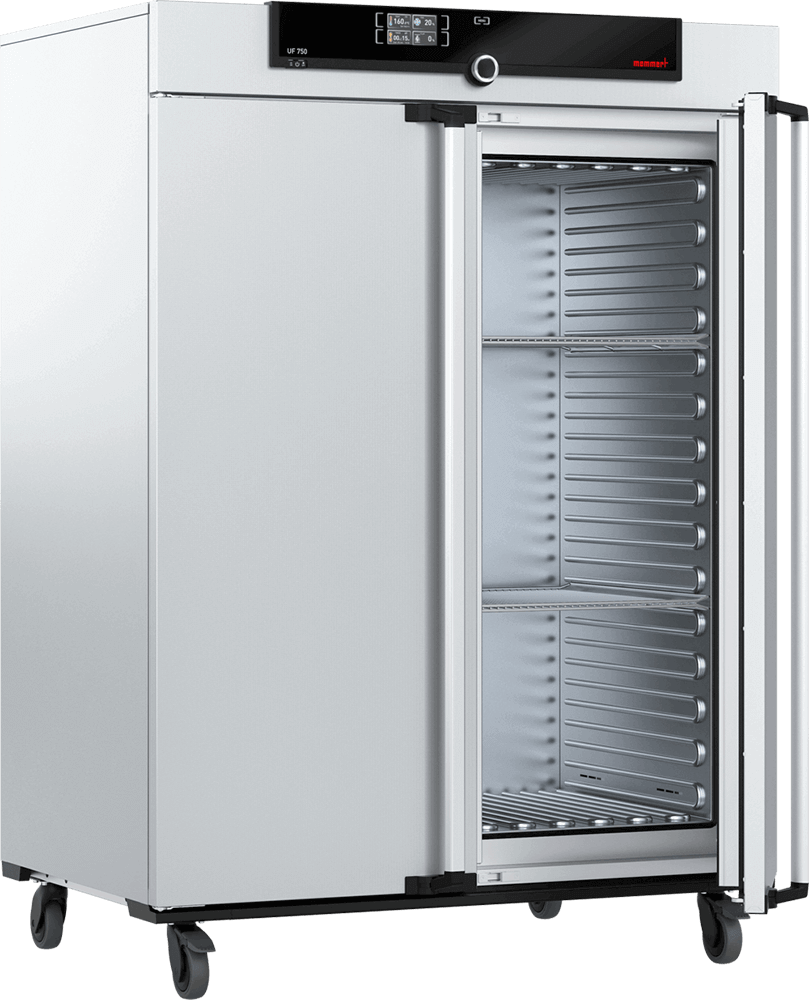

| UF 750 208V | 10°C Above Ambient to 300°C | 20°C to 300°C | 0.1°C/0.5°C | Single Pt100 Sensor DIN Class A (4-Wire-Circuit) | 300 kg | Max. 80%, Non-Condensing |
|
UF1060 Forced Circulation Universal Oven Specification Sheet | Download |
|
|
UF750 Forced Circulation Universal Oven Specification Sheet | Download |
|
|
UF450 Forced Circulation Universal Oven Specification Sheet | Download |
|
|
UF260 Forced Circulation Universal Oven Specification Sheet | Download |
|
|
UF160 Forced Circulation Universal Oven Specification Sheet | Download |
|
|
UF110 Forced Circulation Universal Oven Specification Sheet | Download |
|
|
UF75 Forced Circulation Universal Oven Specification Sheet | Download |
|
|
UF55 Forced Circulation Universal Oven Specification Sheet | Download |
|
|
UF30 Forced Circulation Universal Oven Specification Sheet | Download |
|
|
UN & UF Series Universal Oven Specification Sheet | Download |
| SKU | Dimensions | Internal Dimensions | Certification | Controller | Display | Type |
|---|---|---|---|---|---|---|
| UF 110 115V | 23.0 in x 29.3 in x 34.0 in (584.20 mm x 744.22 mm x 863.60 mm) |
22.05 in x 18.90 in x 15.75 in (560 mm x 480 mm x 400 mm) |
CE, VDE, GS, cULus, EAC | PID-Microprocessor Controller | Single TFT-Color | Forced Circulation |
| UF 110 230V | 23.0 in x 29.3 in x 34.0 in (584.20 mm x 744.22 mm x 863.60 mm) |
22.05 in x 18.90 in x 15.75 in (560 mm x 480 mm x 400 mm) |
CE, VDE, GS, cULus, EAC | PID-Microprocessor Controller | Single TFT-Color | Forced Circulation |
| UF 160 115V | 23.0 in x 29.3 in x 43.5 in (584.20 mm x 744.22 mm x 1104.90 mm) |
22.05 in x 28.35 in x 15.75 in (560 mm x 720 mm x 400 mm) |
CE, VDE, GS, cULus, EAC | PID-Microprocessor Controller | Single TFT-Color | Forced Circulation |
| UF 160 230V | 23.0 in x 29.3 in x 43.5 in (584.20 mm x 744.22 mm x 1104.90 mm) |
22.05 in x 28.35 in x 15.75 in (560 mm x 720 mm x 400 mm) |
CE, VDE, GS, cULus, EAC | PID-Microprocessor Controller | Single TFT-Color | Forced Circulation |
| UF 260 115V | 26.9 in x 32.4 in x 46.6 in (683.26 mm x 822.96 mm x 1183.64 mm) |
25.20 in x 31.50 in x 19.69 in (640 mm x 800 mm x 500 mm) |
CE, VDE, GS, cULus, EAC | PID-Microprocessor Controller | Single TFT-Color | Forced Circulation |
| UF 260 230V | 26.9 in x 32.4 in x 46.6 in (683.26 mm x 822.96 mm x 1183.64 mm) |
25.20 in x 31.50 in x 19.69 in (640 mm x 800 mm x 500 mm) |
CE, VDE, GS, cULus, EAC | PID-Microprocessor Controller | Single TFT-Color | Forced Circulation |
| UF 30 115V | 17.1 in x 23.0 in x 27.7 in (434.30 mm x 584.20 mm x 703.60 mm) |
15.75 in x 12.60 in x 9.84 in (400 mm x 320 mm x 250 mm) |
CE, VDE, GS, cULus, EAC | PID-Microprocessor Controller | Single TFT-Color | Forced Circulation |
| UF 30 230V | 17.1 in x 23.0 in x 27.7 in (434.30 mm x 584.20 mm x 703.60 mm) |
15.75 in x 12.60 in x 9.84 in (400 mm x 320 mm x 250 mm) |
CE, VDE, GS, cULus, EAC | PID-Microprocessor Controller | Single TFT-Color | Forced Circulation |
| UF 55 115V | 20.2 in x 23.0 in x 30.9 in (513.08 mm x 584.20 mm x 784.86 mm) |
15.75 in x 15.75 in x 12.99 in (400 mm x 400 mm x 330 mm) |
CE, VDE, GS, cULus, EAC | PID-Microprocessor Controller | Single TFT-Color | Forced Circulation |
| UF 55 230V | 20.2 in x 23.0 in x 30.9 in (513.08 mm x 584.20 mm x 784.86 mm) |
15.75 in x 15.75 in x 12.99 in (400 mm x 400 mm x 330 mm) |
CE, VDE, GS, cULus, EAC | PID-Microprocessor Controller | Single TFT-Color | Forced Circulation |
| UF 75 115V | 20.2 in x 23.0 in x 37.2 in (513.08 mm x 584.20 mm x 944.88 mm) |
15.75 in x 22.05 in x 12.99 in (400 mm x 560 mm x 330 mm) |
CE, VDE, GS, cULus, EAC | PID-Microprocessor Controller | Single TFT-Color | Forced Circulation |
| UF 75 230V | 20.2 in x 23.0 in x 37.2 in (513.08 mm x 584.20 mm x 944.88 mm) |
15.75 in x 22.05 in x 12.99 in (400 mm x 560 mm x 330 mm) |
CE, VDE, GS, cULus, EAC | PID-Microprocessor Controller | Single TFT-Color | Forced Circulation |
| UF 1060 208V | 40.7 in x 48.2 in x 67.7 in (1033.78 mm x 1224.28 mm x 1719.58 mm) |
40.94 in x 47.24 in x 33.46 in (1040 mm x 1200 mm x 850 mm) |
CE, VDE, GS, cULus, EAC | PID-Microprocessor Controller | Single TFT-Color | Forced Circulation |
| UF 450 208V | 30.9 in x 48.2 in x 49.1 in (784.86 mm x 1224.28 mm x 1247.14 mm) |
40.94 in x 28.35 in x 23.62 in (1040 mm x 720 mm x 600 mm) |
CE, VDE, GS, cULus, EAC | PID-Microprocessor Controller | Single TFT-Color | Forced Circulation |
| UF 750 208V | 30.9 in x 48.2 in x 67.7 in (784.86 mm x 1224.28 mm x 1719.58 mm) |
40.94 in x 47.24 in x 23.62 in (1040 mm x 1200 mm x 600 mm) |
CE, VDE, GS, cULus, EAC | PID-Microprocessor Controller | Single TFT-Color | Forced Circulation |
Memmert UF Series Forced Circulation Universal Ovens are engineered for applications where speed, efficiency, and absolute temperature uniformity are paramount. Unlike natural convection models, the UF series utilizes forced air circulation via a quiet, high-performance turbine. This ensures rapid heat-up times, faster drying of moist loads, and superior temperature homogenization throughout the entire chamber, even when the oven is fully loaded. Constructed with Memmert's signature scratch-resistant and hygienic stainless steel, these ovens are ideal for material testing, tempering electronic components, and hardening resins. The intuitive ControlCOCKPIT SingleDISPLAY interface allows for "Touch, Turn & Go" operation, making complex thermal tasks accessible and repeatable.
Starting at $2,543.00
Request A Quote

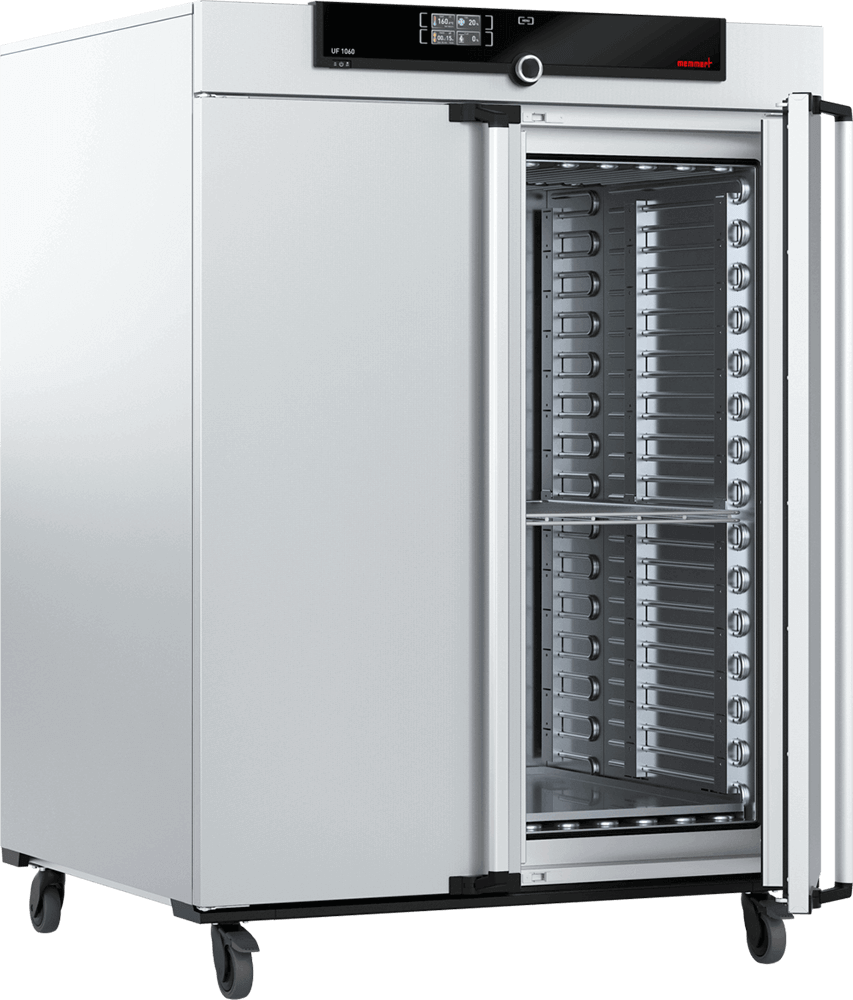

![Memmert 1060 L UF1060 Forced Circulation Universal Oven]()
