UF Plus Series Forced Circulation Universal Ovens
Manufacturer: Memmert
Memmert UF Plus Series Forced Circulation Universal Ovens combine the rapid thermal exchange of forced air circulation with the sophisticated control of the TwinDISPLAY interface. Designed for high-throughput laboratories and industrial settings that cannot compromise on speed or documentation, the UF Plus ensures that even the most complex heating and drying profiles are executed with surgical precision. By utilizing a high-performance turbine and Dual Pt100 sensors, these ovens offer mutual monitoring to protect sensitive loads. Whether you are hardening plastic resins under strict ramp conditions or performing rapid material tests on electronic components, the UF Plus delivers a "Plus" in safety, speed, and communication.
Description
In Stock!
2 Business Days (Note: 8-10 weeks for UF 75 Plus 230V, UF 110 Plus 230V & UF 160 Plus 230V)
Advanced forced-air solutions for mission-critical industrial and research applications.
Key Technical Benefits:
- Advanced Ramping: The TwinDISPLAY allows for complex temperature and air-exchange ramps. You can synchronize the air flap position and fan speed with specific temperature steps via the AtmoCONTROL software.
- Rapid Homogenization: The forced air turbine eliminates temperature gradients, ensuring that the top shelf is just as precise as the bottom, even when the chamber is loaded to its maximum capacity.
- User ID Management: For regulated environments, the TwinDISPLAY supports individual user IDs to prevent unauthorized changes to sensitive program parameters.
- HeatBALANCE Function: Unique to the TwinDISPLAY models, this allows you to adjust the distribution of heating power between the upper and lower heating groups to compensate for specific load configurations.
Laboratory Maintenance & Safety:
- Set-Point Wait: In the Plus series, utilize the "Set-point wait" feature. This ensures that the process time (e.g., a 2-hour burn-in) only starts once the sensors confirm the internal chamber has actually reached the target temperature, ensuring validated results.
- Documentation: Use the Ethernet interface for online monitoring or the USB port to export data logs for GLP/GMP compliance.
- Turbine Control: Remember that while forced air is faster, it can be adjusted. If your load is prone to "blowing," use the ControlCOCKPIT to drop the turbine speed down to 10% while still maintaining a gentle, forced circulation.
| SKU | Working Environment | Temperature Range | Temperature Accuracy | Temperature Sensor | Maximum Load | Relative Humidity |
|---|---|---|---|---|---|---|
| UF 75 Plus 115V | 10°C Above Ambient to 300°C | 20°C to 300°C | 0.1°C/0.5°C | Dual Pt100 Sensor DIN Class A (4-Wire-Circuit) | 120 kg | Max. 80%, Non-Condensing |
| UF 75 Plus 230V | 10°C Above Ambient to 300°C | 20°C to 300°C | 0.1°C/0.5°C | Dual Pt100 Sensor DIN Class A (4-Wire-Circuit) | 120 kg | Max. 80%, Non-Condensing |
| UF 55 Plus 115V | 10°C Above Ambient to 300°C | 20°C to 300°C | 0.1°C/0.5°C | Dual Pt100 Sensor DIN Class A (4-Wire-Circuit) | 80 kg | Max. 80%, Non-Condensing |
| UF 55 Plus 230V | 10°C Above Ambient to 300°C | 20°C to 300°C | 0.1°C/0.5°C | Dual Pt100 Sensor DIN Class A (4-Wire-Circuit) | 80 kg | Max. 80%, Non-Condensing |
| UF 30 Plus 115V | 10°C Above Ambient to 300°C | 20°C to 300°C | 0.1°C/0.5°C | Dual Pt100 Sensor DIN Class A (4-Wire-Circuit) | 60 kg | Max. 80%, Non-Condensing |
| UF 30 Plus 230V | 10°C Above Ambient to 300°C | 20°C to 300°C | 0.1°C/0.5°C | Dual Pt100 Sensor DIN Class A (4-Wire-Circuit) | 60 kg | Max. 80%, Non-Condensing |
| UF 260 Plus 115V | 10°C Above Ambient to 300°C | 20°C to 300°C | 0.1°C/0.5°C | Dual Pt100 Sensor DIN Class A (4-Wire-Circuit) | 300 kg | Max. 80%, Non-Condensing |
| UF 260 Plus 230V | 10°C Above Ambient to 300°C | 20°C to 300°C | 0.1°C/0.5°C | Dual Pt100 Sensor DIN Class A (4-Wire-Circuit) | 300 kg | Max. 80%, Non-Condensing |
| UF 160 Plus 115V | 10°C Above Ambient to 300°C | 20°C to 300°C | 0.1°C/0.5°C | Dual Pt100 Sensor DIN Class A (4-Wire-Circuit) | 210 kg | Max. 80%, Non-Condensing |
| UF 160 Plus 230V | 10°C Above Ambient to 300°C | 20°C to 300°C | 0.1°C/0.5°C | Dual Pt100 Sensor DIN Class A (4-Wire-Circuit) | 210 kg | Max. 80%, Non-Condensing |
| UF 110 Plus 115V | 10°C Above Ambient to 300°C | 20°C to 300°C | 0.1°C/0.5°C | Dual Pt100 Sensor DIN Class A (4-Wire-Circuit) | 175 kg | Max. 80%, Non-Condensing |
| UF 110 Plus 230V | 10°C Above Ambient to 300°C | 20°C to 300°C | 0.1°C/0.5°C | Dual Pt100 Sensor DIN Class A (4-Wire-Circuit) | 175 kg | Max. 80%, Non-Condensing |
| UF 1060 Plus 208V | 10°C Above Ambient to 300°C | 20°C to 300°C | 0.1°C/0.5°C | Dual Pt100 Sensor DIN Class A (4-Wire-Circuit) | 300 kg | Max. 80%, Non-Condensing |
| UF 450 Plus 208V | 10°C Above Ambient to 300°C | 20°C to 300°C | 0.1°C/0.5°C | Dual Pt100 Sensor DIN Class A (4-Wire-Circuit) | 300 kg | Max. 80%, Non-Condensing |
| UF 750 Plus 208V | 10°C Above Ambient to 300°C | 20°C to 300°C | 0.1°C/0.5°C | Dual Pt100 Sensor DIN Class A (4-Wire-Circuit) | 300 kg | Max. 80%, Non-Condensing |
|
UF1060 Plus Forced Circulation Universal Oven Specification Sheet | Download |
|
|
UF750 Plus Forced Circulation Universal Oven Specification Sheet | Download |
|
|
UF450 Plus Forced Circulation Universal Oven Specification Sheet | Download |
|
|
UF260 Plus Forced Circulation Universal Oven Specification Sheet | Download |
|
|
UF160 Plus Forced Circulation Universal Oven Specification Sheet | Download |
|
|
UF110 Plus Forced Circulation Universal Oven Specification Sheet | Download |
|
|
UF75 Plus Forced Circulation Universal Oven Specification Sheet | Download |
|
|
UF55 Plus Forced Circulation Universal Oven Specification Sheet | Download |
|
|
UF30 Plus Forced Circulation Universal Oven Specification Sheet | Download |
|
|
UN & UF Series Universal Oven Specification Sheet | Download |
| SKU | Dimensions | Internal Dimensions | Certification | Controller | Display | Type |
|---|---|---|---|---|---|---|
| UF 75 Plus 115V | 20.2 in x 23.0 in x 37.2 in (513.08 mm x 584.20 mm x 944.88 mm) |
15.75 in x 22.05 in x 12.99 in (400 mm x 560 mm x 330 mm) |
CE, VDE, GS, cULus, EAC | PID-Microprocessor Controller | Dual TFT-Color | Forced Circulation |
| UF 75 Plus 230V | 20.2 in x 23.0 in x 37.2 in (513.08 mm x 584.20 mm x 944.88 mm) |
15.75 in x 22.05 in x 12.99 in (400 mm x 560 mm x 330 mm) |
CE, VDE, GS, cULus, EAC | PID-Microprocessor Controller | Dual TFT-Color | Forced Circulation |
| UF 55 Plus 115V | 20.2 in x 23.0 in x 30.9 in (513.08 mm x 584.20 mm x 784.86 mm) |
15.75 in x 15.75 in x 12.99 in (400 mm x 400 mm x 330 mm) |
CE, VDE, GS, cULus, EAC | PID-Microprocessor Controller | Dual TFT-Color | Forced Circulation |
| UF 55 Plus 230V | 20.2 in x 23.0 in x 30.9 in (513.08 mm x 584.20 mm x 784.86 mm) |
15.75 in x 15.75 in x 12.99 in (400 mm x 400 mm x 330 mm) |
CE, VDE, GS, cULus, EAC | PID-Microprocessor Controller | Dual TFT-Color | Forced Circulation |
| UF 30 Plus 115V | 17.1 in x 23.0 in x 27.7 in (434.30 mm x 584.20 mm x 703.60 mm) |
15.75 in x 12.60 in x 9.84 in (400 mm x 320 mm x 250 mm) |
CE, VDE, GS, cULus, EAC | PID-Microprocessor Controller | Dual TFT-Color | Forced Circulation |
| UF 30 Plus 230V | 17.1 in x 23.0 in x 27.7 in (434.30 mm x 584.20 mm x 703.60 mm) |
15.75 in x 12.60 in x 9.84 in (400 mm x 320 mm x 250 mm) |
CE, VDE, GS, cULus, EAC | PID-Microprocessor Controller | Dual TFT-Color | Forced Circulation |
| UF 260 Plus 115V | 26.9 in x 32.4 in x 46.6 in (683.26 mm x 822.96 mm x 1183.64 mm) |
25.20 in x 31.50 in x 19.69 in (640 mm x 800 mm x 500 mm) |
CE, VDE, GS, cULus, EAC | PID-Microprocessor Controller | Dual TFT-Color | Forced Circulation |
| UF 260 Plus 230V | 26.9 in x 32.4 in x 46.6 in (683.26 mm x 822.96 mm x 1183.64 mm) |
25.20 in x 31.50 in x 19.69 in (640 mm x 800 mm x 500 mm) |
CE, VDE, GS, cULus, EAC | PID-Microprocessor Controller | Dual TFT-Color | Forced Circulation |
| UF 160 Plus 115V | 23.0 in x 29.3 in x 43.5 in (584.20 mm x 744.22 mm x 1104.90 mm) |
22.05 in x 28.35 in x 15.75 in (560 mm x 720 mm x 400 mm) |
CE, VDE, GS, cULus, EAC | PID-Microprocessor Controller | Dual TFT-Color | Forced Circulation |
| UF 160 Plus 230V | 23.0 in x 29.3 in x 43.5 in (584.20 mm x 744.22 mm x 1104.90 mm) |
22.05 in x 28.35 in x 15.75 in (560 mm x 720 mm x 400 mm) |
CE, VDE, GS, cULus, EAC | PID-Microprocessor Controller | Dual TFT-Color | Forced Circulation |
| UF 110 Plus 115V | 23.0 in x 29.3 in x 34.0 in (584.20 mm x 744.22 mm x 863.60 mm) |
22.05 in x 18.90 in x 15.75 in (560 mm x 480 mm x 400 mm) |
CE, VDE, GS, cULus, EAC | PID-Microprocessor Controller | Dual TFT-Color | Forced Circulation |
| UF 110 Plus 230V | 23.0 in x 29.3 in x 34.0 in (584.20 mm x 744.22 mm x 863.60 mm) |
22.05 in x 18.90 in x 15.75 in (560 mm x 480 mm x 400 mm) |
CE, VDE, GS, cULus, EAC | PID-Microprocessor Controller | Dual TFT-Color | Forced Circulation |
| UF 1060 Plus 208V | 40.7 in x 48.2 in x 67.7 in (1033.78 mm x 1224.28 mm x 1719.58 mm) |
40.94 in x 47.24 in x 33.46 in (1040 mm x 1200 mm x 850 mm) |
CE, VDE, GS, cULus, EAC | PID-Microprocessor Controller | Dual TFT-Color | Forced Circulation |
| UF 450 Plus 208V | 30.9 in x 48.2 in x 49.1 in (784.86 mm x 1224.28 mm x 1247.14 mm) |
40.94 in x 28.35 in x 23.62 in (1040 mm x 720 mm x 600 mm) |
CE, VDE, GS, cULus, EAC | PID-Microprocessor Controller | Dual TFT-Color | Forced Circulation |
| UF 750 Plus 208V | 30.9 in x 48.2 in x 67.7 in (784.86 mm x 1224.28 mm x 1719.58 mm) |
40.94 in x 47.24 in x 23.62 in (1040 mm x 1200 mm x 600 mm) |
CE, VDE, GS, cULus, EAC | PID-Microprocessor Controller | Dual TFT-Color | Forced Circulation |
Memmert UF Plus Series Forced Circulation Universal Ovens combine the rapid thermal exchange of forced air circulation with the sophisticated control of the TwinDISPLAY interface. Designed for high-throughput laboratories and industrial settings that cannot compromise on speed or documentation, the UF Plus ensures that even the most complex heating and drying profiles are executed with surgical precision. By utilizing a high-performance turbine and Dual Pt100 sensors, these ovens offer mutual monitoring to protect sensitive loads. Whether you are hardening plastic resins under strict ramp conditions or performing rapid material tests on electronic components, the UF Plus delivers a "Plus" in safety, speed, and communication.
Starting at $3,798.00
Request A Quote

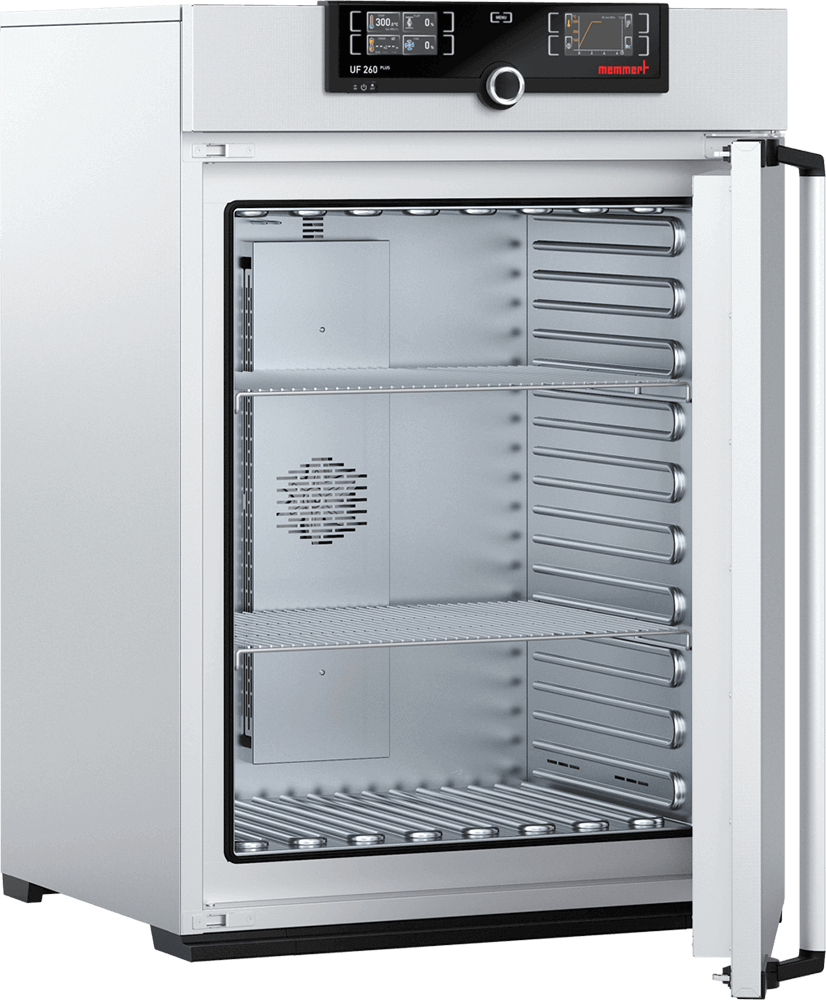

![Memmert 115V 256 L UF 260 Plus Forced Circulation Universal Oven]()
