IF Plus Series Forced Circulation Incubators
Manufacturer: Memmert
Memmert IF Plus Series Forced Circulation Incubators are the premier choice for laboratories that demand both the rapid recovery times of forced air circulation and the sophisticated control of the TwinDISPLAY interface. Designed for highly sensitive applications in pharmaceuticals, medicine, and food analytics, these incubators ensure that living cultures, specifically at the critical +37°C setpoint, are protected from temperature overshoots. The "Plus" series stands out by providing a 160°C sterilization routine, a mechanical temperature limiter, and Dual Pt100 sensors that monitor each other constantly. If your workflow involves frequent door openings or fully loaded chambers, the adjustable fan ensures optimum air circulation and homogenous temperature distribution without compromising the integrity of your samples.
Description
In Stock!
2 Business Days
Professional thermal solutions with enhanced redundancy and programming for mission-critical loads.
Key Technical Benefits:
- Sterilization via ControlCOCKPIT: The TwinDISPLAY allows for the activation of a 4-hour, 160°C sterilization cycle, ensuring the chamber is microbiologically clean before a new series of cultures begins.
- Rapid Recovery: The forced air turbine actively minimizes the temperature drop caused by door openings, making this model superior for high-traffic laboratories.
- AtmoCONTROL Software: Program complex temperature ramps and document every second of your process via USB or Ethernet interfaces to meet strict GLP/GMP requirements.
- Pre-Heated Fresh Air: To prevent cold spots, incoming air is pre-heated before entering the chamber, maintaining a stable environment for sensitive biological loads.
Laboratory Maintenance & Safety:
- Medical Device Certification: The IFmplus variant is certified for the temperature control of infusion solutions, contrast agents, and rinsing solutions in clinical settings.
- Data Integrity: The integrated data logger stores up to 10 years of data. Use the AtmoCONTROL software to export these logs for audit trails.
- Set-Point Wait: Always use the "Set-point wait" feature to ensure your incubation timer only begins when the internal chamber has actually stabilized at the target temperature.
| SKU | Working Environment | Temperature Range | Temperature Accuracy | Temperature Sensor | Maximum Load | Relative Humidity |
|---|---|---|---|---|---|---|
| IF 750 Plus 115V | 10°C (Above Ambient) to 80°C | 20°C to 80°C | 0.1°C | Dual Pt100 Sensor DIN Class A (4-Wire-Circuit) | 300 kg | Max. 80%, Non-Condensing |
| IF 750 Plus 230V | 10°C (Above Ambient) to 80°C | 20°C to 80°C | 0.1°C | Dual Pt100 Sensor DIN Class A (4-Wire-Circuit) | 300 kg | Max. 80%, Non-Condensing |
| IF 30 Plus 115V | 10°C (Above Ambient) to 80°C | 20°C to 80°C | 0.1°C | Dual Pt100 Sensor DIN Class A (4-Wire-Circuit) | 60 kg | Max. 80%, Non-Condensing |
| IF 30 Plus 230V | 10°C (Above Ambient) to 80°C | 20°C to 80°C | 0.1°C | Dual Pt100 Sensor DIN Class A (4-Wire-Circuit) | 60 kg | Max. 80%, Non-Condensing |
| IF 55 Plus 115V | 10°C (Above Ambient) to 80°C | 20°C to 80°C | 0.1°C | Dual Pt100 Sensor DIN Class A (4-Wire-Circuit) | 80 kg | Max. 80%, Non-Condensing |
| IF 55 Plus 230V | 10°C (Above Ambient) to 80°C | 20°C to 80°C | 0.1°C | Dual Pt100 Sensor DIN Class A (4-Wire-Circuit) | 80 kg | Max. 80%, Non-Condensing |
| IF 75 Plus 115V | 10°C (Above Ambient) to 80°C | 20°C to 80°C | 0.1°C | Dual Pt100 Sensor DIN Class A (4-Wire-Circuit) | 120 kg | Max. 80%, Non-Condensing |
| IF 75 Plus 230V | 10°C (Above Ambient) to 80°C | 20°C to 80°C | 0.1°C | Dual Pt100 Sensor DIN Class A (4-Wire-Circuit) | 120 kg | Max. 80%, Non-Condensing |
| IF 110 Plus 115V | 10°C (Above Ambient) to 80°C | 20°C to 80°C | 0.1°C | Dual Pt100 Sensor DIN Class A (4-Wire-Circuit) | 175 kg | Max. 80%, Non-Condensing |
| IF 110 Plus 230V | 10°C (Above Ambient) to 80°C | 20°C to 80°C | 0.1°C | Dual Pt100 Sensor DIN Class A (4-Wire-Circuit) | 175 kg | Max. 80%, Non-Condensing |
| IF 160 Plus 115V | 10°C (Above Ambient) to 80°C | 20°C to 80°C | 0.1°C | Dual Pt100 Sensor DIN Class A (4-Wire-Circuit) | 210 kg | Max. 80%, Non-Condensing |
| IF 160 Plus 230V | 10°C (Above Ambient) to 80°C | 20°C to 80°C | 0.1°C | Dual Pt100 Sensor DIN Class A (4-Wire-Circuit) | 210 kg | Max. 80%, Non-Condensing |
| IF 260 Plus 115V | 10°C (Above Ambient) to 80°C | 20°C to 80°C | 0.1°C | Dual Pt100 Sensor DIN Class A (4-Wire-Circuit) | 300 kg | Max. 80%, Non-Condensing |
| IF 260 Plus 230V | 10°C (Above Ambient) to 80°C | 20°C to 80°C | 0.1°C | Dual Pt100 Sensor DIN Class A (4-Wire-Circuit) | 300 kg | Max. 80%, Non-Condensing |
| IF 450 Plus 115V | 10°C (Above Ambient) to 80°C | 20°C to 80°C | 0.1°C | Dual Pt100 Sensor DIN Class A (4-Wire-Circuit) | 300 kg | Max. 80%, Non-Condensing |
| IF 450 Plus 230V | 10°C (Above Ambient) to 80°C | 20°C to 80°C | 0.1°C | Dual Pt100 Sensor DIN Class A (4-Wire-Circuit) | 300 kg | Max. 80%, Non-Condensing |
|
IF450 Plus Forced Circulation Incubator Specification Sheet | Download |
|
|
IF260 Plus Forced Circulation Incubator Specification Sheet | Download |
|
|
IF160 Plus Forced Circulation Incubator Specification Sheet | Download |
|
|
IF75 Plus Forced Circulation Incubator Specification Sheet | Download |
|
|
IF55 Plus Forced Circulation Incubator Specification Sheet | Download |
|
|
IF30 Plus Forced Circulation Incubator Specification Sheet | Download |
| SKU | Dimensions | Internal Dimensions | Certification | Controller | Display | Type |
|---|---|---|---|---|---|---|
| IF 750 Plus 115V | 30.9 in x 48.2 in x 67.7 in (784.86 mm x 1224.28 mm x 1719.58 mm) |
40.94 in x 47.24 in x 23.62 in (1040 mm x 1200 mm x 600 mm) |
CE, VDE, GS, cULus, EAC | PID-Microprocessor Controller | Dual TFT-Color | Forced Air |
| IF 750 Plus 230V | 30.9 in x 48.2 in x 67.7 in (784.86 mm x 1224.28 mm x 1719.58 mm) |
40.94 in x 47.24 in x 23.62 in (1040 mm x 1200 mm x 600 mm) |
CE, VDE, GS, cULus, EAC | PID-Microprocessor Controller | Dual TFT-Color | Forced Air |
| IF 30 Plus 115V | 17.1 in x 23.0 in x 27.7 in (434.30 mm x 584.20 mm x 703.60 mm) |
15.75 in x 12.60 in x 9.84 in (400 mm x 320 mm x 250 mm) |
CE, VDE, GS, cULus, EAC | PID-Microprocessor Controller | Dual TFT-Color | Forced Air |
| IF 30 Plus 230V | 17.1 in x 23.0 in x 27.7 in (434.30 mm x 584.20 mm x 703.60 mm) |
15.75 in x 12.60 in x 9.84 in (400 mm x 320 mm x 250 mm) |
CE, VDE, GS, cULus, EAC | PID-Microprocessor Controller | Dual TFT-Color | Forced Air |
| IF 55 Plus 115V | 20.2 in x 23.0 in x 30.9 in (513.08 mm x 584.20 mm x 784.86 mm) |
15.75 in x 15.75 in x 13.00 in (400 mm x 400 mm x 330 mm) |
CE, VDE, GS, cULus, EAC | PID-Microprocessor Controller | Dual TFT-Color | Forced Air |
| IF 55 Plus 230V | 20.2 in x 23.0 in x 30.9 in (513.08 mm x 584.20 mm x 784.86 mm) |
15.75 in x 15.75 in x 13.00 in (400 mm x 400 mm x 330 mm) |
CE, VDE, GS, cULus, EAC | PID-Microprocessor Controller | Dual TFT-Color | Forced Air |
| IF 75 Plus 115V | 20.2 in x 23.0 in x 37.2 in (513.08 mm x 584.20 mm x 944.88 mm) |
15.75 in x 16.73 in x 13.00 in (400 mm x 425 mm x 330 mm) |
CE, VDE, GS, cULus, EAC | PID-Microprocessor Controller | Dual TFT-Color | Forced Air |
| IF 75 Plus 230V | 20.2 in x 23.0 in x 37.2 in (513.08 mm x 584.20 mm x 944.88 mm) |
15.75 in x 16.73 in x 13.00 in (400 mm x 425 mm x 330 mm) |
CE, VDE, GS, cULus, EAC | PID-Microprocessor Controller | Dual TFT-Color | Forced Air |
| IF 110 Plus 115V | 23.0 in x 29.3 in x 34.0 in (584.20 mm x 744.22 mm x 863.60 mm) |
22.05 in x 18.90 in x 15.75 in (560 mm x 480 mm x 400 mm) |
CE, VDE, GS, cULus, EAC | PID-Microprocessor Controller | Dual TFT-Color | Forced Air |
| IF 110 Plus 230V | 23.0 in x 29.3 in x 34.0 in (584.20 mm x 744.22 mm x 863.60 mm) |
22.05 in x 18.90 in x 15.75 in (560 mm x 480 mm x 400 mm) |
CE, VDE, GS, cULus, EAC | PID-Microprocessor Controller | Dual TFT-Color | Forced Air |
| IF 160 Plus 115V | 23.0 in x 29.3 in x 43.5 in (584.20 mm x 744.22 mm x 1104.90 mm) |
22.05 in x 28.35 in x 15.75 in (560 mm x 720 mm x 400 mm) |
CE, VDE, GS, cULus, EAC | PID-Microprocessor Controller | Dual TFT-Color | Forced Air |
| IF 160 Plus 230V | 23.0 in x 29.3 in x 43.5 in (584.20 mm x 744.22 mm x 1104.90 mm) |
22.05 in x 28.35 in x 15.75 in (560 mm x 720 mm x 400 mm) |
CE, VDE, GS, cULus, EAC | PID-Microprocessor Controller | Dual TFT-Color | Forced Air |
| IF 260 Plus 115V | 27.0 in x 32.4 in x 46.6 in (685.80 mm x 822.96 mm x 1183.64 mm) |
25.20 in x 31.50 in x 19.70 in (640 mm x 800 mm x 500 mm) |
CE, VDE, GS, cULus, EAC | PID-Microprocessor Controller | Dual TFT-Color | Forced Air |
| IF 260 Plus 230V | 27.0 in x 32.4 in x 46.6 in (685.80 mm x 822.96 mm x 1183.64 mm) |
25.20 in x 31.50 in x 19.70 in (640 mm x 800 mm x 500 mm) |
CE, VDE, GS, cULus, EAC | PID-Microprocessor Controller | Dual TFT-Color | Forced Air |
| IF 450 Plus 115V | 30.9 in x 48.2 in x 49.1 in (784.86 mm x 1224.28 mm x 1247.14 mm) |
40.94 in x 28.35 in x 23.62 in (1040 mm x 720 mm x 600 mm) |
CE, VDE, GS, cULus, EAC | PID-Microprocessor Controller | Dual TFT-Color | Forced Air |
| IF 450 Plus 230V | 30.9 in x 48.2 in x 49.1 in (784.86 mm x 1224.28 mm x 1247.14 mm) |
40.94 in x 28.35 in x 23.62 in (1040 mm x 720 mm x 600 mm) |
CE, VDE, GS, cULus, EAC | PID-Microprocessor Controller | Dual TFT-Color | Forced Air |
Memmert IF Plus Series Forced Circulation Incubators are the premier choice for laboratories that demand both the rapid recovery times of forced air circulation and the sophisticated control of the TwinDISPLAY interface. Designed for highly sensitive applications in pharmaceuticals, medicine, and food analytics, these incubators ensure that living cultures, specifically at the critical +37°C setpoint, are protected from temperature overshoots. The "Plus" series stands out by providing a 160°C sterilization routine, a mechanical temperature limiter, and Dual Pt100 sensors that monitor each other constantly. If your workflow involves frequent door openings or fully loaded chambers, the adjustable fan ensures optimum air circulation and homogenous temperature distribution without compromising the integrity of your samples.
Starting at $3,453.00
Request A Quote

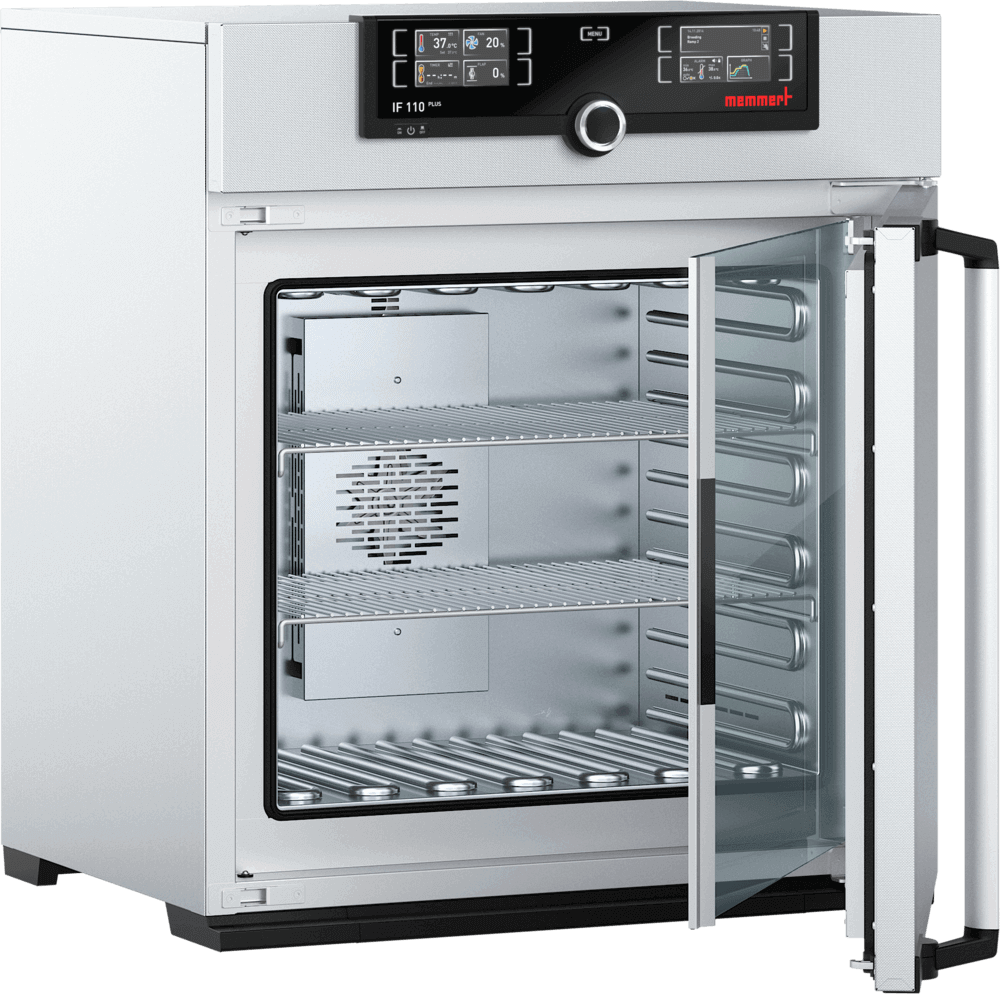

![Memmert 108 L IF110 Plus Forced Circulation Incubator]()
Select a product below and add it to your cart to request a quote.
