TSX™ Universal Series Ultra-Low Temperature (ULT) Freezers
Manufacturer: Thermo Fisher
The TSX Series Universal Ultra Low Freezers from Thermo Scientific™ boast sustainability with its ENERGYSTAR certification and ACT label. These units now utilize universal voltage, operating on 100-230V and 50/60Hz with NEMA 5-15 plugs. They also feature V-drive technology for temperature control and recovery, a touchscreen LCD, and various security features, including alarms and padlocks. Other certifications include UL 61010, CE, ISO 13485, and ISO 5.5 Cleanroom. Each lab freezer comes with a 5-year parts and labor warranty and a 12-year compressor warranty.
Description
In Stock!
Lead Times May Vary
The TSX Series Universal Ultra Low Freezers from Thermo Scientific™ keep samples protected and safely stored with minimal temperature variations throughout the entire cabinet space. The ULT freezer is quiet enough to reside directly in the laboratory, with a noise level of less than 44 dBA. It contains V-drive technology with an adaptive controller to detect usage patterns, such as door openings or periods of stability. This unique performance allows for energy saving without compromising protection.
View: TSX Universal ULT 3D Tour
Features:
- Universal V-Drive technology
- Touchscreen LCD
- Thermo Scientific™ Instrument Connect Compatible
- Fast recovery time
- Audible and visual high and low-temperature alarms, wireless
- System, environmental, and connectivity alarms
- Two rear probe access port
- Low peak variation
- Stainless steel shelves
- Standard key lock, padlock loop, setpoint and settings security (optional NFC key card access)
- Touch-screen interface, even when wearing latex gloves
- Minimum 16 open-air probes
- Single solid exterior swing door, two interior doors
Certifications:
- ENERGYSTAR Certified
- ACT labeled
- UL 61010, CE, and ISO 13485 listed
- ISO 5.5 Cleanroom
Holds:
- CryoBoxes™ (quantity depends on Unit)
- 400 CryoBoxes™ - TSX40086FA*
- 500 CryoBoxes™ - TSX50086FA*
- 600 CryoBoxes™ - TSX60086FA*
- 700 CryoBoxes™ - TSX70086FA*
Available Accessories:
- Factory installed access card system with 5 access cards
- Factory installed CO2 backup system for maintaining temperatures down to -67°C
- Factory installed LN2 backup system for maintaining temperatures down to -80°C
Warranty:
- 5-year parts and labor warranty
- 12-year compressor parts warranty
- Warranty is void if the unit is not maintained as set forth in the operation and service manuals.
- *CryoBoxes™ that measure 5 in x 5 in x 2 in.
| SKU | Door Type | Operating Temperature Range | Warranty | Certification | Hinge |
|---|---|---|---|---|---|
| TSX40086FA | Solid Swing Door | -40°C to -86°C | 5 Year | ENERGYSTAR, ACT Labeled | Right |
| TSX50086FA | Solid Swing Door | -40°C to -86°C | 5 Year | ENERGYSTAR, ACT Labeled | Right |
| TSX60086FA | Solid Swing Door | -40°C to -86°C | 5 Year | ENERGYSTAR, ACT Labeled | Right |
| TSX70086FA | Solid Swing Door | -40°C to -86°C | 5 Year | ENERGYSTAR, ACT Labeled | Right |
|
TSX Series Universal Ultra-Low Temperature Freezer Brochure | Download |
|
|
TSX Series Universal Ultra-Low Temperature Freezer Green Fact Sheet | Download |
|
|
TSX Series Ultra Low Temperature Freezer Green Fact Sheet | Download |
| SKU | Electrical Information | Dimensions | Refrigerant | Plug Type |
|---|---|---|---|---|
| TSX40086FA | 100-230V, 50/60Hz, 1-PH | 37.6 in x 28.3 in x 78.0 in | R290 (1st Stage), R170 + R290 Mix (2nd Stage) | NEMA 5-15 |
| TSX50086FA | 100-230V, 50/60Hz, 1-PH | 37.6 in x 34.0 in x 78.0 in | R290 (1st Stage), R170 + R290 Mix (2nd Stage) | NEMA 5-15 |
| TSX60086FA | 100-230V, 50/60Hz, 1-PH | 37.6 in x 39.6 in x 78.0 in | R290 (1st Stage), R170 + R290 Mix (2nd Stage) | NEMA 5-15 |
| TSX70086FA | 100-230V, 50/60Hz, 1-PH | 37.6 in x 45.2 in x 78.0 in | R290 (1st Stage), R170 + R290 Mix (2nd Stage) | NEMA 5-15 |
The TSX Series Universal Ultra Low Freezers from Thermo Scientific™ boast sustainability with its ENERGYSTAR certification and ACT label. These units now utilize universal voltage, operating on 100-230V and 50/60Hz with NEMA 5-15 plugs. They also feature V-drive technology for temperature control and recovery, a touchscreen LCD, and various security features, including alarms and padlocks. Other certifications include UL 61010, CE, ISO 13485, and ISO 5.5 Cleanroom. Each lab freezer comes with a 5-year parts and labor warranty and a 12-year compressor warranty.
Starting at $28,000.00
Request A Quote

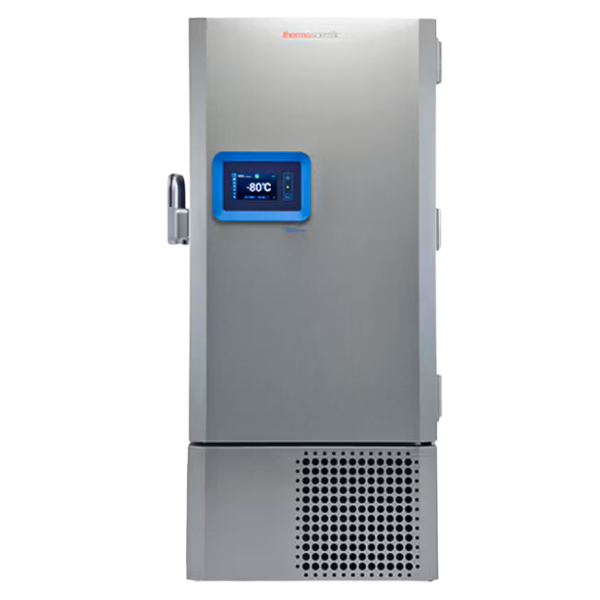

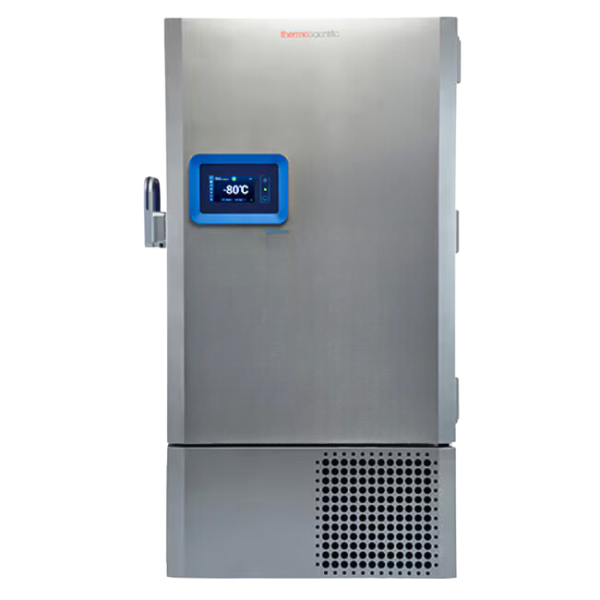

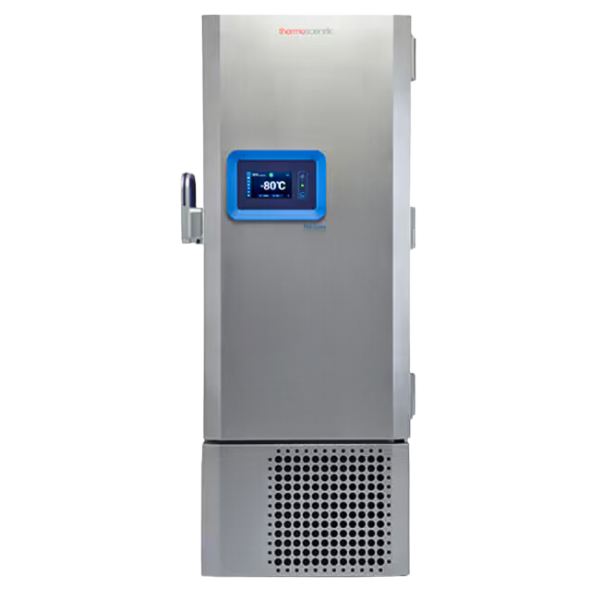

![19.3 cu ft. TSX Series Universal Ultra Low Freezer]()
Select a product below and add it to your cart to request a quote.
