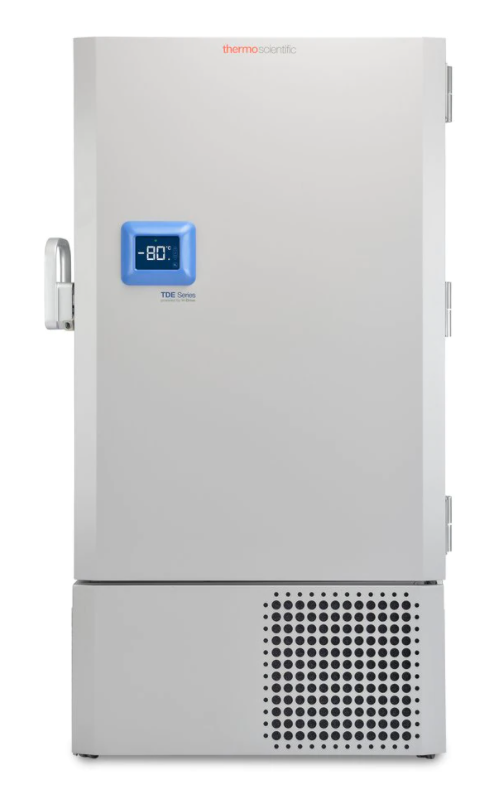

TDE Series Ultra-Low Freezers With Chart Recorder
Manufacturer: Thermo Fisher
The TDE Series Ultra-Low Freezers With Chart Recorder from Thermo Fisher™ are available in 24.1 cu ft. or 28.8 cu ft. sizes. The 24.1 cu ft. capacity freezer has a 10-rack capacity, comes with 250 CryoBoxes™, and can hold up to 500 CryoBoxes™. The 28.8 cu ft. capacity freezer has a 12-rack capacity, comes with 300 CryoBoxes™, and can hold up to 600 CryoBoxes™. These freezers have a temperature range of -50°C to -86°C and noise levels of 50 dBA. These units come with a 5-year standard warranty.
Description
Part of the Standard Performance (STP) family, Thermo Scientific™ TDE ultra-low temperature freezer packages feature an H-drive hydrocarbon refrigeration system that provides sustainable performance with the reliability you can count on. They also come with low peak variation, which helps ensure sample temperature protection throughout the entire cabinet.
Features:
- Four inner doors minimize ambient temperature during sample retrieval
- Advanced security features with alarm settings, setpoint security passcode, and padlock-compatible doors
- Single-hand door operation
- Eye-level display
- Shelf-level placement which does not require floor-level loading of racks
- Plug in and go, no setup required
- Low noise level of 50 dBA
Includes:
- Chart Recorder (All Units)
- CryoBoxes™ (Quantity depends on Unit)
- 250 CryoBoxes™ (TDE50086FARCR, TDE50086FDRCR, TDE50086LARCR, & TDE50086LDRCR - Units hold up to 500 CryoBoxes™)*
- 300 CryoBoxes™ (TDE60086FARCR, TDE60086FDRCR, TDE60086LARCR, & TDE60086LDRCR - Units hold up to 600 CryoBoxes™)*
Certification:
- cULus
- FDA Class II (for TDE50086LARCR, TDE50086LDRCR, TDE60086LARCR, TDE60086LDRCR only)
Warranty:
- 5-year standard warranty
| SKU | # of Shelves | Door Type | Operating Temperature Range | Warranty | Hinge |
|---|---|---|---|---|---|
| TDE50086FARCR | 2 Shelves | Solid Swing Door, 4 Inner Doors | -50°C to -86°C | 5 Year | Right |
| TDE50086FDRCR | 2 Shelves | Solid Swing Door, 4 Inner Doors | -50°C to -86°C | 5 Year | Right |
| TDE50086LARCR | 2 Shelves | Solid Swing Door, 4 Inner Doors | -50°C to -86°C | 5 Year | Right |
| TDE50086LDRCR | 2 Shelves | Solid Swing Door, 4 Inner Doors | -50°C to -86°C | 5 Year | Right |
| TDE60086FARCR | 2 Shelves | Solid Swing Door, 4 Inner Doors | -50°C to -86°C | 5 Year | Right |
| TDE60086FDRCR | 2 Shelves | Solid Swing Door, 4 Inner Doors | -50°C to -86°C | 5 Year | Right |
| TDE60086LARCR | 2 Shelves | Solid Swing Door, 4 Inner Doors | -50°C to -86°C | 5 Year | Right |
| TDE60086LDRCR | 2 Shelves | Solid Swing Door, 4 Inner Doors | -50°C to -86°C | 5 Year | Right |
|
FDA Class III TDE Series Ultra-Low Temperature Freezer SpecSheet | Download |
|
|
General Purpose TDE Series Ultra-Low Temperature Freezer SpecSheet | Download |
| SKU | Dimensions | Electrical Information | Refrigerant | Plug Type |
|---|---|---|---|---|
| TDE50086FARCR | 38.5 in x 34.0 in x 78.0 in | 115V, 60Hz | R290 (1st stage), R170 + R290 mix (2nd stage) | NEMA 5-20 |
| TDE50086FDRCR | 38.5 in x 34.0 in x 78.0 in | 208-230V, 60Hz | R290 (1st stage), R170 + R290 mix (2nd stage) | NEMA 6-15 |
| TDE50086LARCR | 38.5 in x 34.0 in x 78.0 in | 115V, 60Hz | R290 (1st stage), R170 + R290 mix (2nd stage) | NEMA 5-20 |
| TDE50086LDRCR | 38.5 in x 34.0 in x 78.0 in | 208-230V, 60Hz | R290 (1st stage), R170 + R290 mix (2nd stage) | NEMA 6-15 |
| TDE60086FARCR | 38.5 in x 39.6 in x 78.0 in | 115V, 60Hz | R290 (1st stage), R170 + R290 mix (2nd stage) | NEMA 5-20 |
| TDE60086FDRCR | 38.5 in x 39.6 in x 78.0 in | 208-230V, 60Hz | R290 (1st stage), R170 + R290 mix (2nd stage) | NEMA 6-15 |
| TDE60086LARCR | 38.5 in x 39.6 in x 78.0 in | 115V, 60Hz | R290 (1st stage), R170 + R290 mix (2nd stage) | NEMA 5-20 |
| TDE60086LDRCR | 38.5 in x 39.6 in x 78.0 in | 208-230V, 60Hz | R290 (1st stage), R170 + R290 mix (2nd stage) | NEMA 6-15 |
