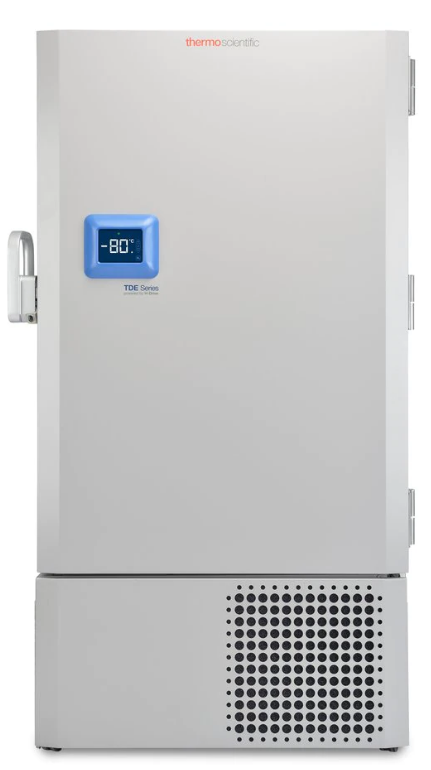

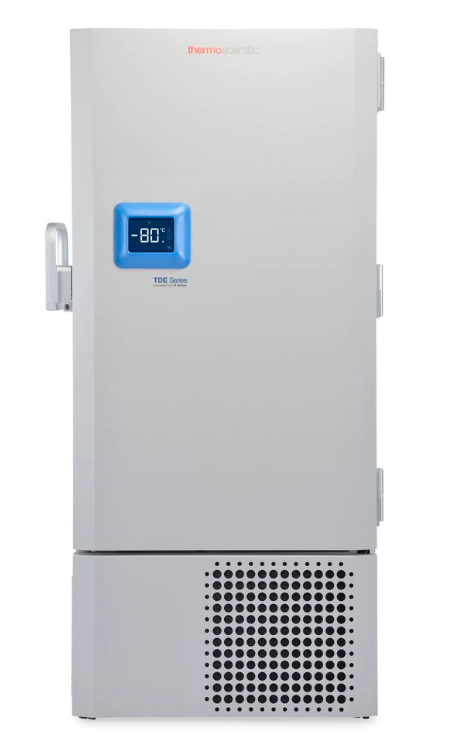

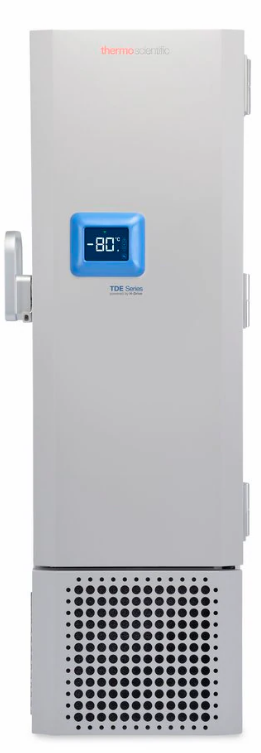

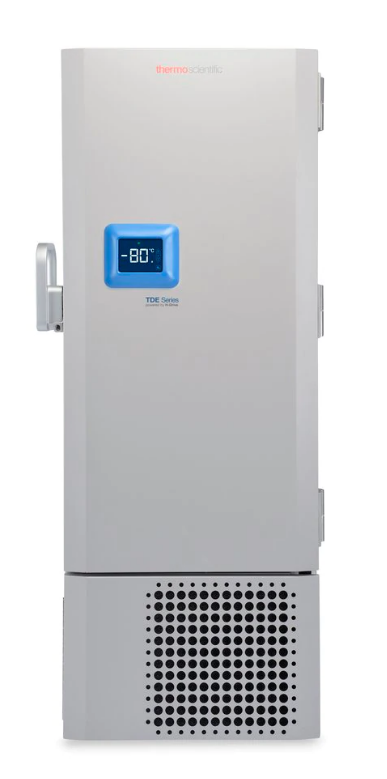

TDE Series Ultra-Low Freezers

Name: TDE Series Ultra-Low Freezers
Brand: Thermo Fisher
SKU: TDE60086FA-GROUP

Manufacturer: Thermo Fisher

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Price Chart

Grouped product items
Cat Code	Description	Capacity	Certification	Racks	Defrost	Price	Qty
TDE30086FA TDE30086FA	14.9 cu ft. TDE Series Ultra-Low Freezer, 115V	14.9 cu ft. (422 L)	cULus	6 Rack Capacity	Manual	$19,300.00	+ -
TDE30086LA TDE30086LA	14.9 cu ft. TDE Series Ultra-Low Freezer, 115V	14.9 cu ft. (422 L)	cULus, FDA Class II	6 Rack Capacity	Manual	$21,400.00	+ -
TDE30086FD TDE30086FD	14.9 cu ft. TDE Series Ultra-Low Freezer, 208-230V	14.9 cu ft. (422 L)	cULus	6 Rack Capacity	Manual	$19,300.00	+ -
TDE30086LD TDE30086LD	14.9 cu ft. TDE Series Ultra-Low Freezer, 208-230V	14.9 cu ft. (422 L)	cULus, FDA Class II	6 Rack Capacity	Manual	$21,400.00	+ -
TDE40086LA TDE40086LA	19.4 cu ft. TDE Series Ultra-Low Freezer, 115V	19.4 cu ft. (549 L)	cULus, FDA Class II	8 Rack Capacity	Manual	$23,700.00	+ -
TDE40086LD TDE40086LD	19.4 cu ft. TDE Series Ultra-Low Freezer, 208-230V	19.4 cu ft. (549 L)	cULus, FDA Class II	8 Rack Capacity	Manual	$23,700.00	+ -
TDE50086LA TDE50086LA	24.1 cu ft. TDE Series Ultra-Low Freezer, 115V	24.1 cu ft. (682 L)	cULus, FDA Class II	10 Rack Capacity	Manual	$26,200.00	+ -
TDE50086LD TDE50086LD	24.1 cu ft. TDE Series Ultra-Low Freezer, 208-230V	24.1 cu ft. (682 L)	cULus, FDA Class II	10 Rack Capacity	Manual	$25,800.00	+ -
TDE60086LA TDE60086LA	28.8 cu ft. TDE Series Ultra-Low Freezer, 115V	28.8 cu ft. (816 L)	cULus, FDA Class II	12 Rack Capacity	Manual	$29,700.00	+ -
TDE60086LD TDE60086LD	28.8 cu ft. TDE Series Ultra-Low Freezer, 208-230V	28.8 cu ft. (816 L)	cULus, FDA Class II	12 Rack Capacity	Manual	$29,200.00	+ -
Total $0.00

Use the Quantity box to select product first.

Featuring an h-drive hydrocarbon refrigeration system, the TDE Series Ultra-Low Freezers from Thermo Scientific™ store CryoBoxes™ at various capacities. They have an eye-level display for easy reading and various alarm settings. These units come in 14.9, 19.4, 24.1, and 28.8 cu ft. capacities and are all cULcs certified, with some units coming with FDA Class II certifications. They come with a 5-year standard warranty.

Description

Overview

Part of the Standard Performance (STP) family, Thermo Scientific™'s TDE Series Ultra-Low Freezers feature an H-drive hydrocarbon refrigeration system that provides sustainable performance with the reliability you can count on. They also come with low peak variation, which helps ensure sample temperature protection throughout the entire cabinet.

Features:

Four inner doors minimize ambient temperature during sample retrieval
Advanced security features with alarm settings, setpoint security passcode, and padlock-compatible doors
Single-hand door operation
Eye-level display
Shelf-level placement which does not require floor-level loading of racks
Plug in and go, no setup required

Includes:

CryoBoxes™ (Quantity depends on Unit)

150 CryoBoxes™ (TDE30086FA, TDE30086FD, TDE30086LA, & TDE30086LD - Units hold up to 300 CryoBoxes™)*
200 CryoBoxes™ (TDE40086FA, TDE40086FD, TDE40086LA, & TDE40086LD - Units hold up to 400 CryoBoxes™)*
250 CryoBoxes™ (TDE50086LA, TDE50086LD, TDE40086FA, & TDE40086FA - Units hold up to 500 CryoBoxes™)*
300 CryoBoxes™ (TDE60086FA, TDE60086FD, TDE60086LA, & TDE60086LD - Units hold up to 600 CryoBoxes™)*

Certification:

cULus
FDA Class II (for TDE30086LA, TDE30086LD, TDE40086LA, TDE40086LD, TDE50086LA, TDE50086LD, TDE60086LA, & TDE60086LD only)

Warranty:

5-year standard warranty

*CryoBoxes™ that measure 5 in x 5 in x 2 in

Specifications

SKU	# of Shelves	Door Type	Operating Temperature Range	Warranty	Hinge
TDE30086FA	3 Shelves	Solid Swing Door, 4 Inner Doors	-50°C to -86°C	5 Year	Right
TDE30086LA	3 Shelves	Solid Swing Door, 4 Inner Doors	-50°C to -86°C	5 Year	Right
TDE30086FD	3 Shelves	Solid Swing Door, 4 Inner Doors	-50°C to -86°C	5 Year	Right
TDE30086LD	3 Shelves	Solid Swing Door, 4 Inner Doors	-50°C to -86°C	5 Year	Right
TDE40086LA	3 Shelves	Solid Swing Door, 4 Inner Doors	-50°C to -86°C	5 Year	Right
TDE40086LD	3 Shelves	Solid Swing Door, 4 Inner Doors	-50°C to -86°C	5 Year	Right
TDE50086LA	3 Shelves	Solid Swing Door, 4 Inner Doors	-50°C to -86°C	5 Year	Right
TDE50086LD	3 Shelves	Solid Swing Door, 4 Inner Doors	-50°C to -86°C	5 Year	Right
TDE60086LA	3 Shelves	Solid Swing Door, 4 Inner Doors	-50°C to -86°C	5 Year	Right
TDE60086LD	3 Shelves	Solid Swing Door, 4 Inner Doors	-50°C to -86°C	5 Year	Right

Downloads

	TDE General Purpose Specifications	Download
	TDE FDA Class 2 Specifications	Download

Additional Info

SKU	Dimensions	Electrical Information	Refrigerant	Plug Type
TDE30086FA	38.5 in x 23.0 in x 78.0 in	115V, 60Hz	R290 (1st Stage), R170 + R290 Mix (2nd Stage)	NEMA 5-20
TDE30086LA	38.5 in x 23.0 in x 78.0 in	115V, 60Hz	R290 (1st Stage), R170 + R290 Mix (2nd Stage)	NEMA 5-20
TDE30086FD	38.5 in x 23.0 in x 78.0 in	208-230V, 60Hz	R290 (1st Stage), R170 + R290 Mix (2nd Stage)	NEMA 6-15
TDE30086LD	38.5 in x 23.0 in x 78.0 in	208-230V, 60Hz	R290 (1st Stage), R170 + R290 Mix (2nd Stage)	NEMA 6-15
TDE40086LA	38.5 in x 28.3 in x 78.0 in	115V, 60Hz	R290 (1st Stage), R170 + R290 Mix (2nd Stage)	NEMA 5-20
TDE40086LD	38.5 in x 28.3 in x 78.0 in	208-230V, 60Hz	R290 (1st Stage), R170 + R290 Mix (2nd Stage)	NEMA 6-15
TDE50086LA	38.5 in x 34.0 in x 78.0 in	115V, 60Hz	R290 (1st Stage), R170 + R290 Mix (2nd Stage)	NEMA 5-20
TDE50086LD	38.5 in x 34.0 in x 78.0 in	208-230V, 60Hz	R290 (1st Stage), R170 + R290 Mix (2nd Stage)	NEMA 6-15
TDE60086LA	38.5 in x 39.6 in x 78.0 in	115V, 60Hz	R290 (1st Stage), R170 + R290 Mix (2nd Stage)	NEMA 5-20
TDE60086LD	38.5 in x 39.6 in x 78.0 in	208-230V, 60Hz	R290 (1st Stage), R170 + R290 Mix (2nd Stage)	NEMA 6-15
