FDA Class 2 Blood Bank Refrigerators with Chart Recorder
Manufacturer: Corepoint Scientific
These AABB standards compliant FDA Class 2 Blood Bank Refrigerators with Chart Recorder thoroughly protect donated blood and plasma stored within the unit. These refrigerators feature a chart recorder, a microprocessor temperature controller, an LCD display, a backup battery, and alarms, including remote alarm contacts. Their stainless steel shelves can hold up to 65 pounds worth of blood and plasma bags. They come with a two-year parts and labor warranty and a 7 year compressor warranty.
Description
In Stock!
Lead Times May Vary
Backed by optimal temperature control and EPA SNAP compliant refrigerants, these high-performance units protect blood, prevent waste, and allow for peak delivery. Blood bank refrigerators utilize smart controllers and feature a full array of alarms, LED interior lighting, stainless steel interiors, sliding drawers and probe access port.
Features:
- Hermetic variable speed (VSC) compressor (1300-4000 rpm rated speed)
- Proportional Integral Derivative (PID) microprocessor temperature controller
- LCD display
- 24V high capacity backup battery for controller, alarms, temperature monitoring DAQ, and event logging
- Visual and audible alarms for high/low temperature, door ajar, power failure, temperature sensor failure, and battery voltage monitor and replacement.
- Remote alarm contacts
- 3/4 inch rear wall port
- Upper probe: 4 oz. (120 ml) bottle, 50% glycerol mixture
- Lower probe: Solid thermal media
- Key lock
- Stainless steel shelves
- 65 lb shelf capacity
- White powder coated steel
- Cabinet is foamed-in-place with EPA compliant high density urethane foam
Available Accessories:
- Two anchor brackets
- 7-day chart paper, pack of 50
- Factory installed lower clycerol bottle kit
- Factory installed upper solid ballast kit
- Single door refrigerator drawer
- Double door refrigerator left drawer
- Double door refrigerator right drawer
Certifications and Compliance:
- FDA listed Class II medical device
- 21CFR part 820 compliant
- ETL and CETL listed
- Certified to UL471 standard, hydrocarbon refrigerant safety
Warranty:
- 2 year parts and labor warranty
- 7 year compressor warranty
| SKU | Operating Temperature Range | Certification | Warranty | Compliance | Hinge |
|---|---|---|---|---|---|
| NSBR231WSGCR/0 | 1°C to 10°C | FDA listed Class 2 Medical Device, ETL and CETL Listed | 2 Year | 21CFR Part 820 Compliant | Right |
| NSBR231WSWCR/0 | 1°C to 10°C | FDA listed Class 2 Medical Device, ETL and CETL Listed | 2 Year | 21CFR Part 820 Compliant | Right |
| NSBR492WSGCR/0 | 1°C to 10°C | FDA listed Class 2 Medical Device, ETL and CETL Listed | 2 Year | 21CFR Part 820 Compliant | Left and Right |
| NSBR492WSWCR/0 | 1°C to 10°C | FDA listed Class 2 Medical Device, ETL and CETL Listed | 2 Year | 21CFR Part 820 Compliant | Left and Right |
| SKU | Application |
|---|---|

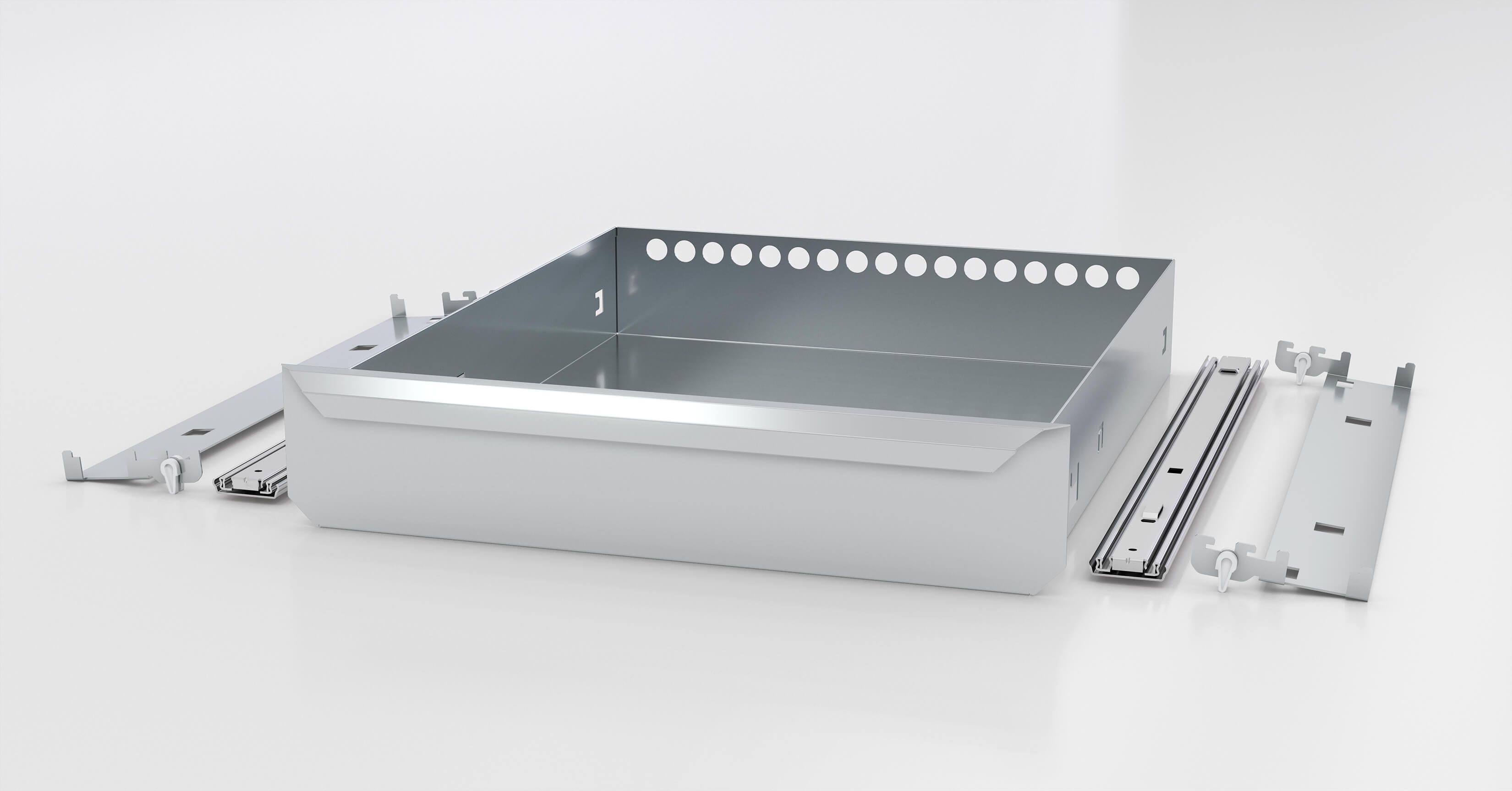

| REF-DRAWER G/S23 | Allows Optional Extra Drawer |

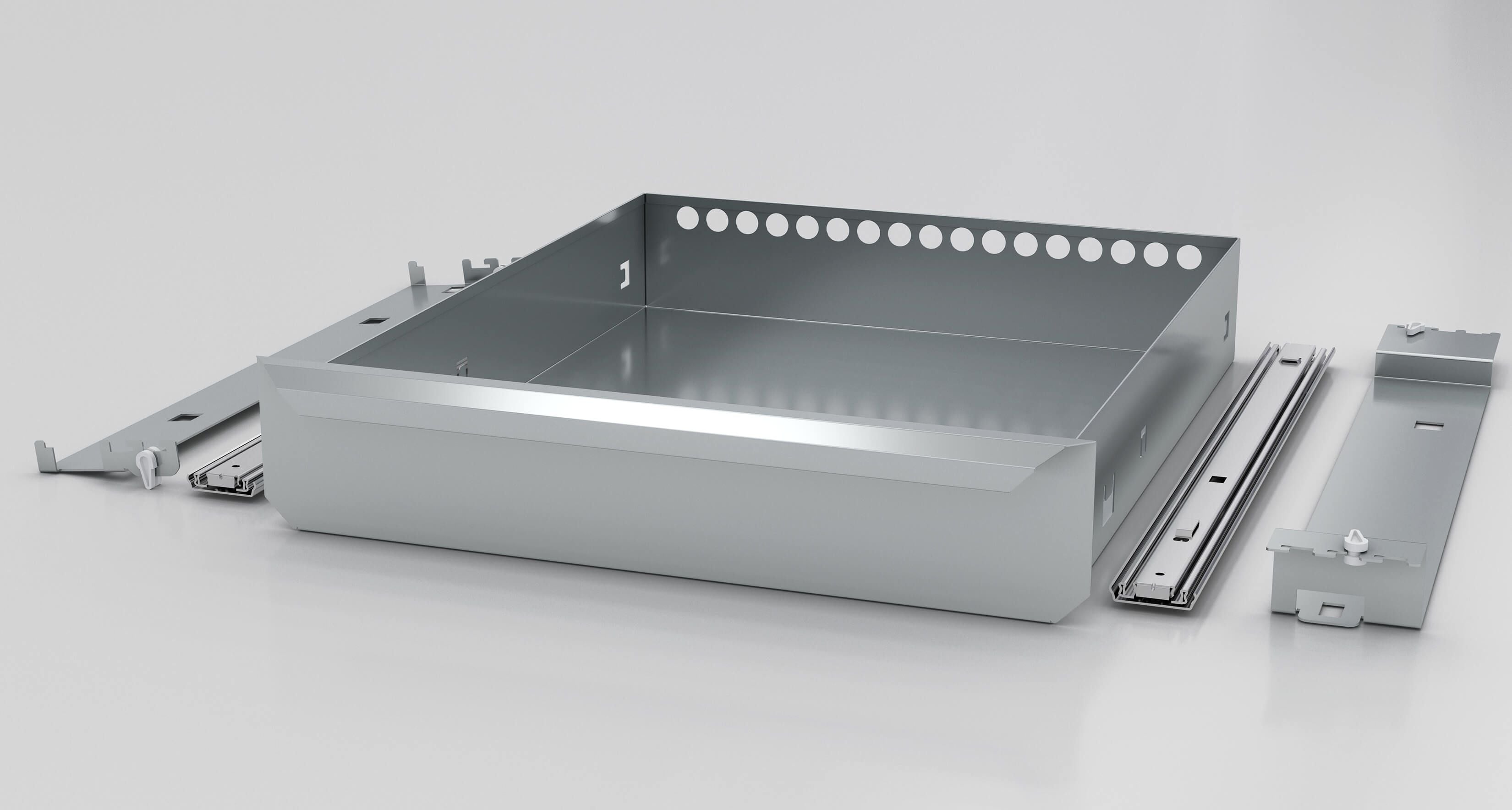

| REF-DRAWER G/S49 Left | Allows Optional Extra Drawer per Door |

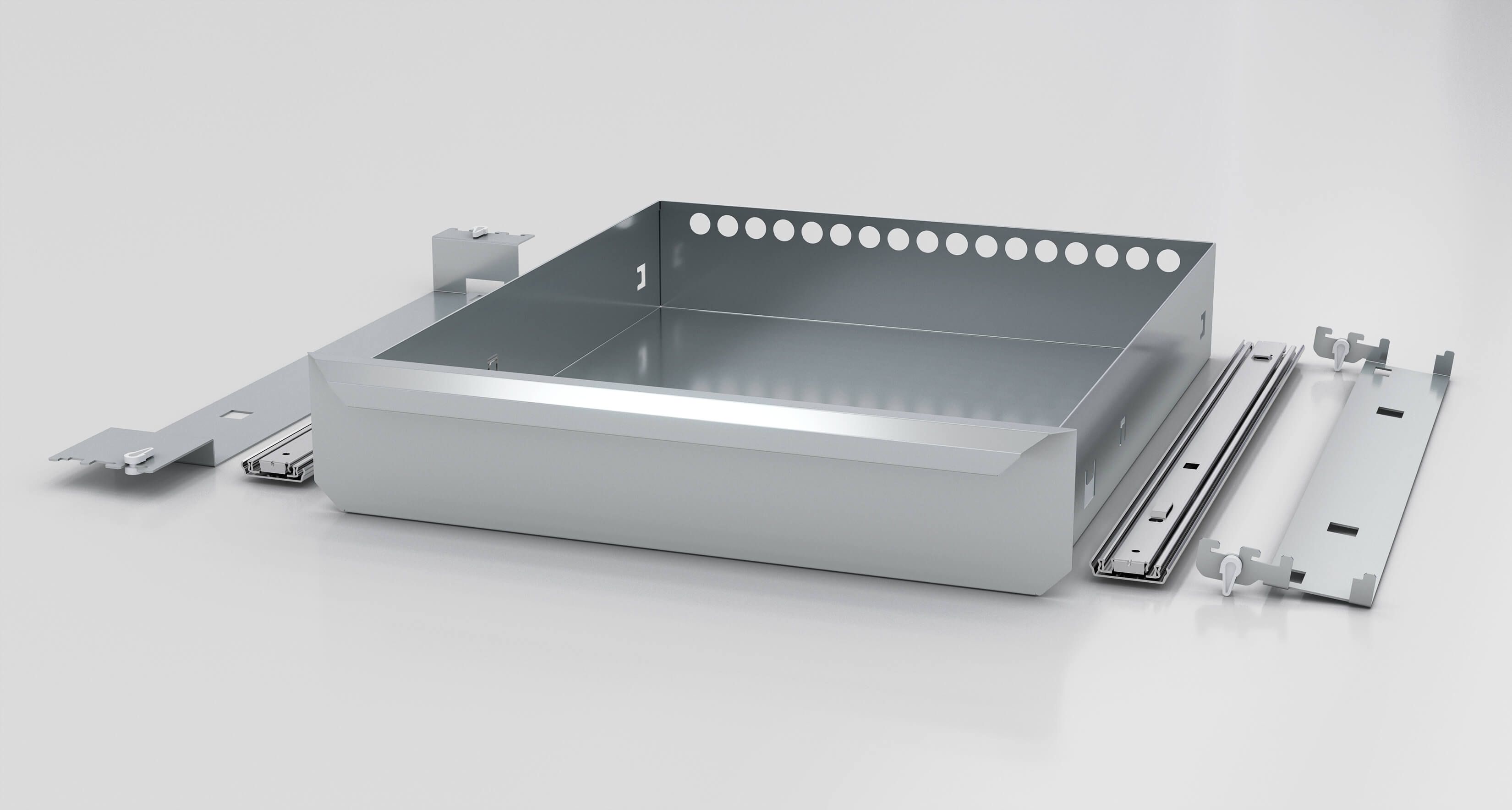

| REF-DRAWER G/S49 Right | Allows Optional Extra Drawer per Door |

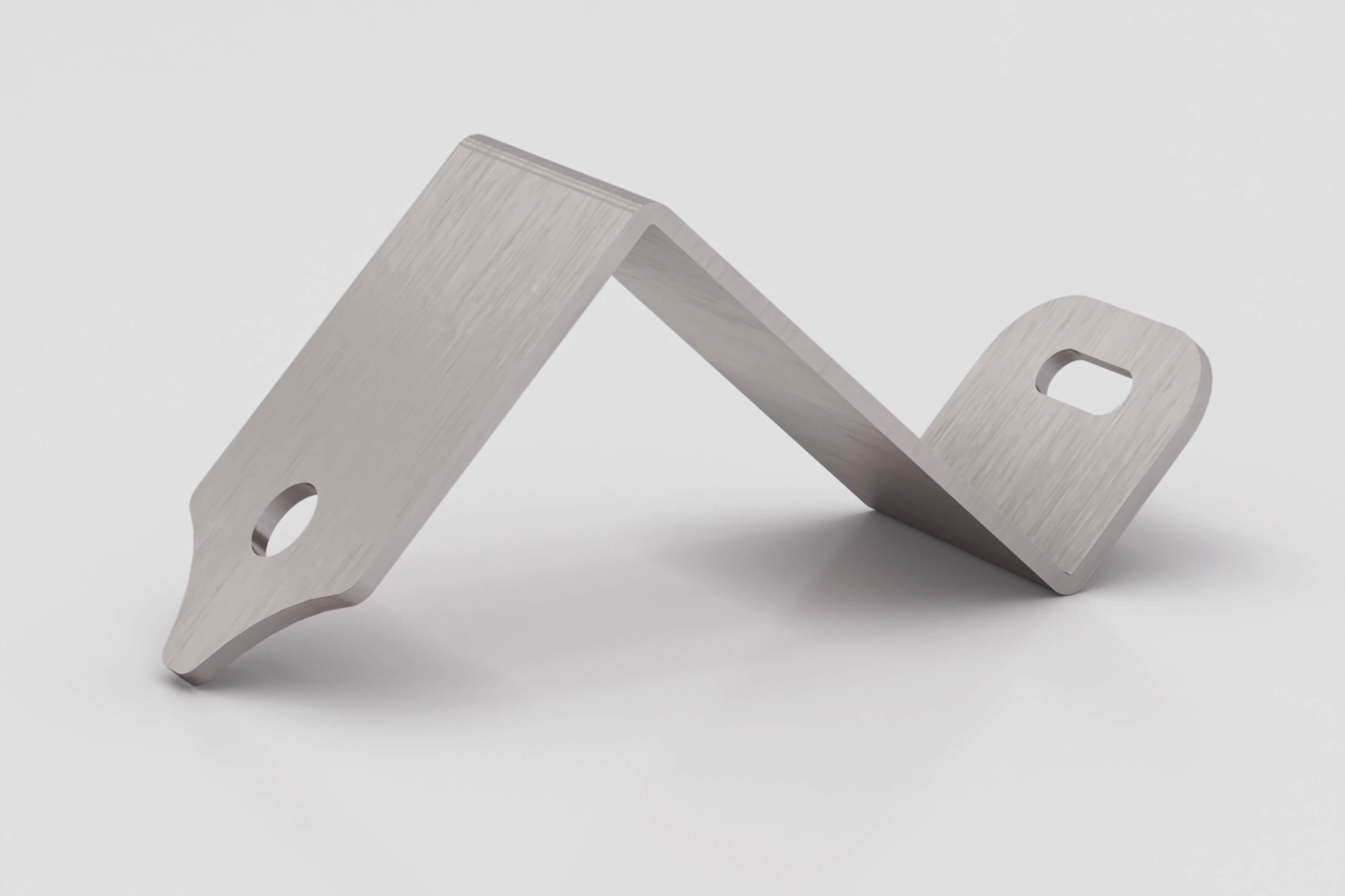

| ANCHOR KIT | Secures Blood Bank Refrigerators/Plasma Freezer units with casters to the floor to prevent rolling |

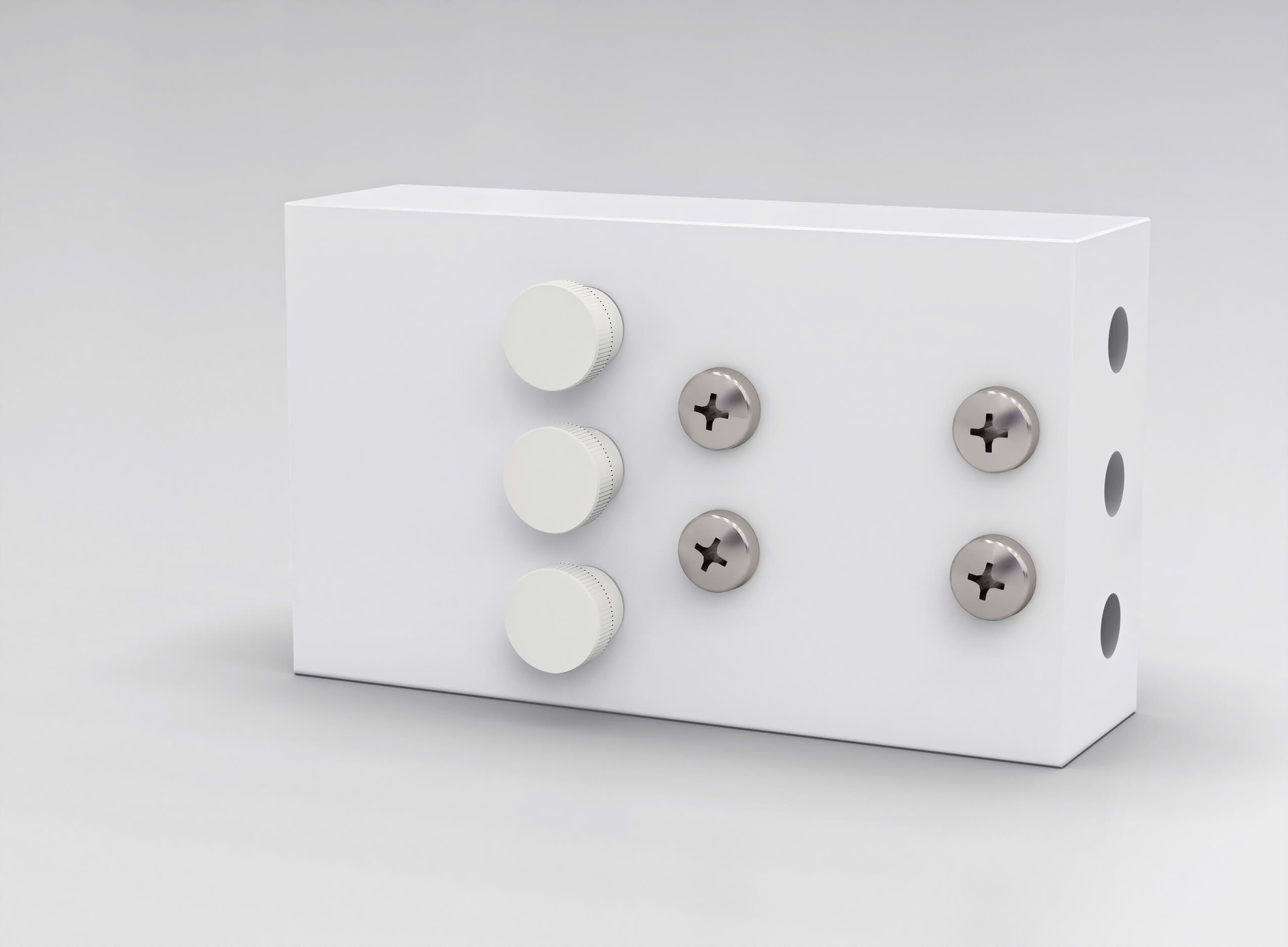

| NSBB&P BALLAST KIT | Replaces standard glycerol bottle(s) used for upper product temperature with a solid temperature ballast specifcally designed with same temperature response as a glycerol bottle. Maintenance free ballast accomodates (3) 1/4" diameter temp probes. |

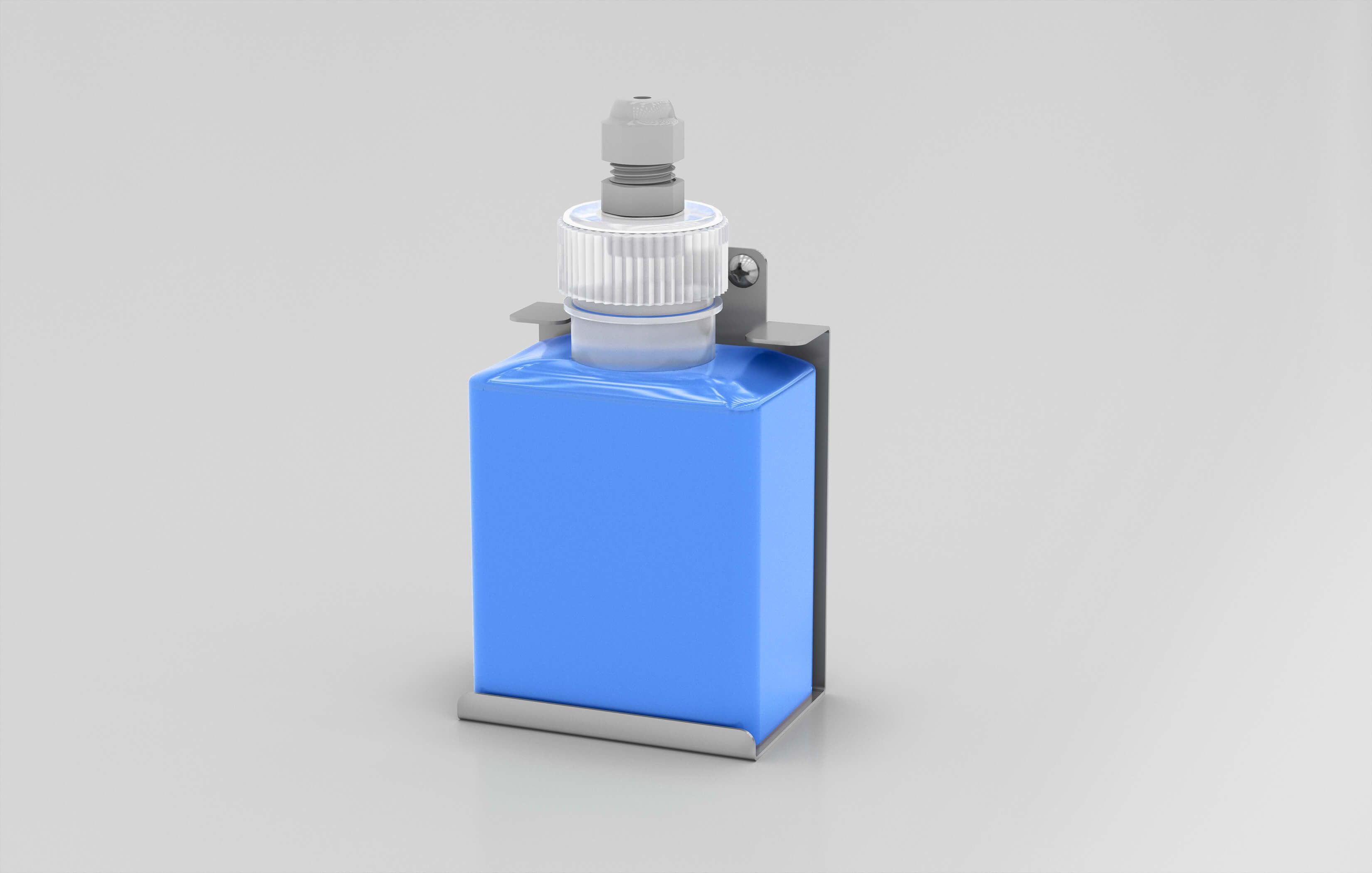

| NSBB&P GLYCEROL KIT | Replaces standard solid ballast used for lower product temperature with a glycerol bottle mounted to the back wall. |

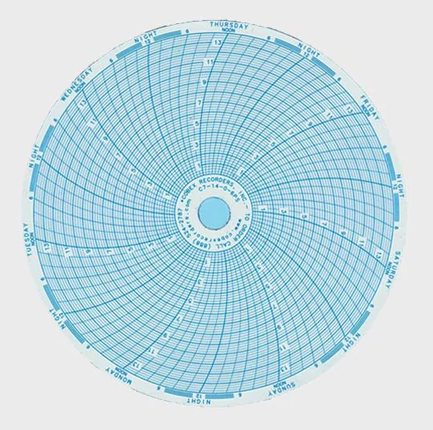

| NSBR-CCR-PPR | - |
|
Blood Bank Refrigerator Manual | Download |
|
|
Blood Bank Refrigerator Brochure | Download |
|
|
NSBR231WSGCR/0 Data Sheet | Download |
|
|
NSBR231WSWCR/0 Data Sheet | Download |
|
|
NSBR492WSGCR/0 Data Sheet | Download |
| SKU | Dimensions | Electrical Information | Refrigerant | Controller | Plug Type |
|---|---|---|---|---|---|
| NSBR231WSGCR/0 | 35.75 in x 26.875 in x 81.5 in | 115V, 60Hz | R600a | Microprocessor | NEMA 5-15P |
| NSBR231WSWCR/0 | 35.375 in x 26.875 in x 81.5 in | 115V, 60Hz | R600a | Microprocessor | NEMA 5-15P |
| NSBR492WSGCR/0 | 35.75 in x 54.0 in x 81.5 in | 115V, 60Hz | R600a | Microprocessor | NEMA 5-15P |
| NSBR492WSWCR/0 | 36.375 in x 54.0 in x 81.5 in | 115V, 60Hz | R600a | Microprocessor | NEMA 5-15P |
These AABB standards compliant FDA Class 2 Blood Bank Refrigerators with Chart Recorder thoroughly protect donated blood and plasma stored within the unit. These refrigerators feature a chart recorder, a microprocessor temperature controller, an LCD display, a backup battery, and alarms, including remote alarm contacts. Their stainless steel shelves can hold up to 65 pounds worth of blood and plasma bags. They come with a two-year parts and labor warranty and a 7 year compressor warranty.
Starting at $10,291.00
Request A Quote
![FDA Class 2 Blood Bank Refrigerators with Chart Recorder]()
Select a product below and add it to your cart to request a quote.
